REAR SECTION
The manual freewheel lever, the anti-tip wheels, the motor/transaxle assembly (not shown), the electronics
module, the batteries (not shown), the main circuit breaker (reset button) and the fuses are located on the
rear section of your scooter. See figure 6. Refer to VII. "Disassembly and Assembly" for instructions on
removing the rear shroud.
ELECTRONICS MODULE
(REMOVE REAR SHROUD TO
VIEW ENTIRE MODULE)

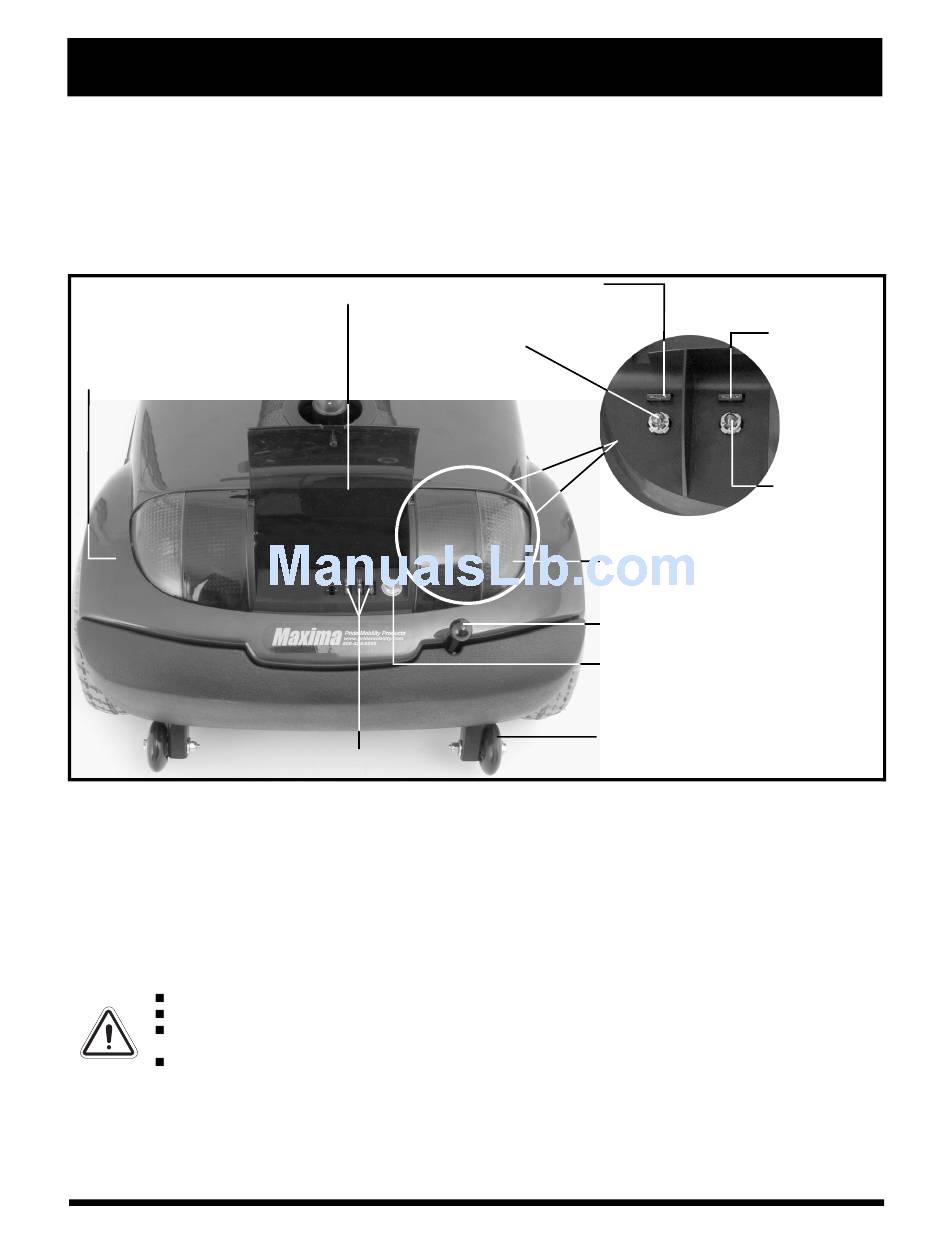

Figure 6. Rear Section
Manual Freewheel Lever
Whenever you need or want to push your scooter for short distances, you can put it in freewheel mode.
1. Pull up firmly on the manual freewheel lever to disable the drive system and the brake system.
2. You may push your scooter.
3. Push down firmly on the manual freewheel lever to reengage the drive system and the brake system
and take your scooter out of freewheel mode.
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
Disengage the drive motors only on a level surface.
Ensure the key is removed from the key switch.
Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on
a scooter to do this.
After you have finished pushing your scooter, always return it to the drive mode to
lock the brakes.
Maxima
I I I . Y O U R S C O O T E R
STORAGE COMPARTMENT
FUSES
www.pridemobility.com
RIGHT RUNNING
LIGHT FUSE
RIGHT RUNNING LIGHT
BULB
LIGHT COVER
MANUAL FREEWHEEL LEVER
MAIN CIRCUIT BREAKER
(RESET BUTTON)
ANTI-TIP WHEEL
RIGHT TURN
INDICATOR
FUSE
RIGHT TURN
INDICATOR
LIGHT BULB
17
