Page 1: Quick Installation Guide

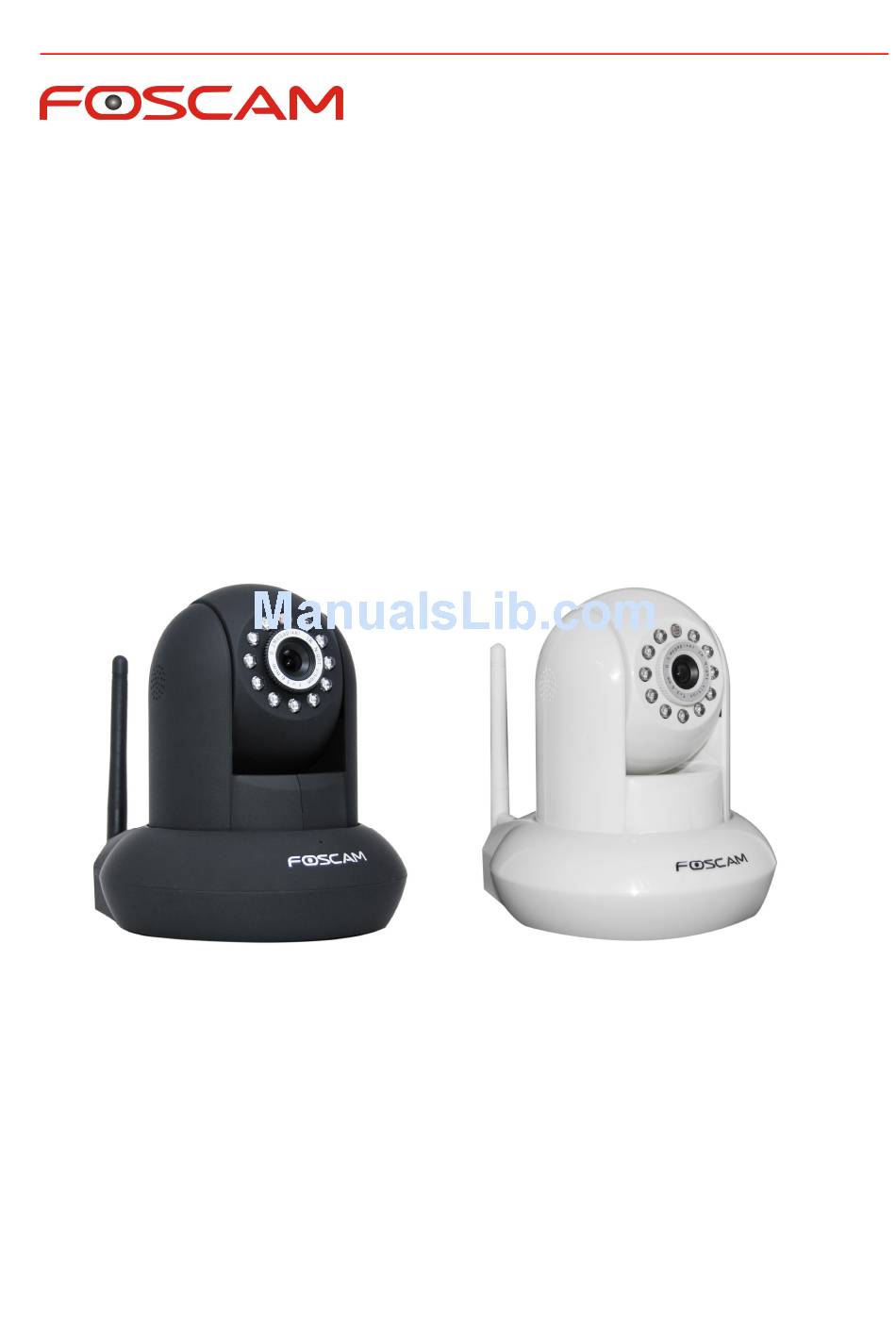

V4.01 Model: FI9820W Quick Installation Guide Indoor HD Pan/Tilt Wireless IP Camera Black White ShenZhen Foscam Intelligent Technology Co., Ltd... - Page 2 FI9820W Quick Installation Guide Quick Installation Guide - For Windows OS Package Contents HD Network Camera FI9820W DC Power Adapter (5V-2.0A) .x 1 Network Cable Wi-Fi Antenna .x 1 Mounting Bracket .x 1 Quick Installation Guide CD-ROM with Setup Software .x 1...
-
Page 3: Start Installation
FI9820W Quick Installation Guide Start Installation 1. Hardware Installation Open the package. Take out the camera out of the box carefully. Mount the antenna. Then take the Wi-Fi antenna, mount it on the SMA connector on the back of the camera, screw the antenna to the bottom, and make the antenna stand vertically. - Page 4 FI9820W Quick Installation Guide Figure 1.4 Click Close to finish installation, and get computer restarted A shortcut icon will appear on your desktop after the IP Camera Tool software installation is successfully completed. Figure 1.5 Shortcut icon 3. Login the Camera Double click the IP Camera Tool icon and the following screen should appear.
- Page 5 FI9820W Quick Installation Guide Figure 1.7 Enter the username and password Camera supports three-level users management: admin, user and guest. The default “admin” user name and password are all “admin”, the default “user” user name and password are all “user”, and the default “guest”...
- Page 6 FI9820W Quick Installation Guide Figure 1.9 Surveillance Windows Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave all the menus alone before you finish the quick installation. Note The default administrator user name and password are all admin.
- Page 7 FI9820W Quick Installation Guide Figure 2.0 Wireless Settings Click the Search button and the camera will detect all WIFI devices around the area. It will pop up a dialog box and display all available routers: (Figure 2.1) Figure 2.1 All available WIFI routers Step 02) Click OK in the first column and the corresponding information (SSID, Security mode, WPA Algorithm &...
- Page 8 FI9820W Quick Installation Guide Figure 2.2 Wireless LAN Settings Step 03) Click Check after all settings have been entered. You can see whether WIFI settings are correct. Such as the following screen: Figure 2.3 WIFI Settings are correct If failed, you will see a dialog box as the following picture. Close the dialog box and reset wireless again.
- Page 9 FI9820W Quick Installation Guide Figure 2.4 WIFI Settings are incorrect When wireless settings are correctly, click Apply. Plug out the network cable. Re-plug the power and the camera should work through your wireless router. The LAN IP address will disappear on the window of IP Camera Tool when the camera gets restarted.
-
Page 10: Remote Access Settings
FI9820W Quick Installation Guide Figure 2.6 Wireless Network Step 03) Disabled the wired connection of the PC. Select the SSID you filled at Figure2.5 for your PC and enter the same key with your camera. PC and camera will work on point_to_point mode. - Page 11 FI9820W Quick Installation Guide Figure 2.7 Obtain the WAN IP from IPCAM Click show, you will see the WAN IP as below. Figure 2.8 WAN IP How to Obtain the WAN IP from a public website To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com.The webpage at this address will show you the current WAN IP.
- Page 12 FI9820W Quick Installation Guide Figure 2.9 Get to know the WAN IP address of the router Access the IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in IE browser or other browsers you use.
- Page 13 FI9820W Quick Installation Guide Please register the account step by step according to instructions on www.no-ip.com After registration, please login your email which used to register. You will receive an email from website as below, please click the link to activate your ACCOUNT as indicated in email.
- Page 14 Firstly, goes to option of Remote Access on the administrator panel and enable DDNS. Secondly, select No-ip.com as a server. Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect.
-
Page 15: Other Settings
Please refer to the electronic user manual burned in the CD-ROM for other settings. Other advanced software settings, such as Alarm, Email Settings, User Settings. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, pls contact our service department: tech@foscam.com...
