Stored Document List; Documents Erased Notification - Muratec PLAIN-PAPER DIGITAL FAX/COPIER/PRINTER/SCANNER MFX-1330 User Manual

Stored document list

Your machine can print the list of the documents stored in the memory. It will tell you
how much memory each document is using.
The list includes:
• Type — The type of the document, such as "Batch box", will appear.
• Data (in Kbyte) — How much memory is used for the document will appear.
• Page — The number of pages will appear.
• Note — Other information, such as the box number, will appear.
To print the list of documents stored in memory:
Press
MENU
Documents erased notification
• When the image data stored in memory is erased by accident, a notification will be
printed as soon as the power comes back, listing information about the erased image
data.

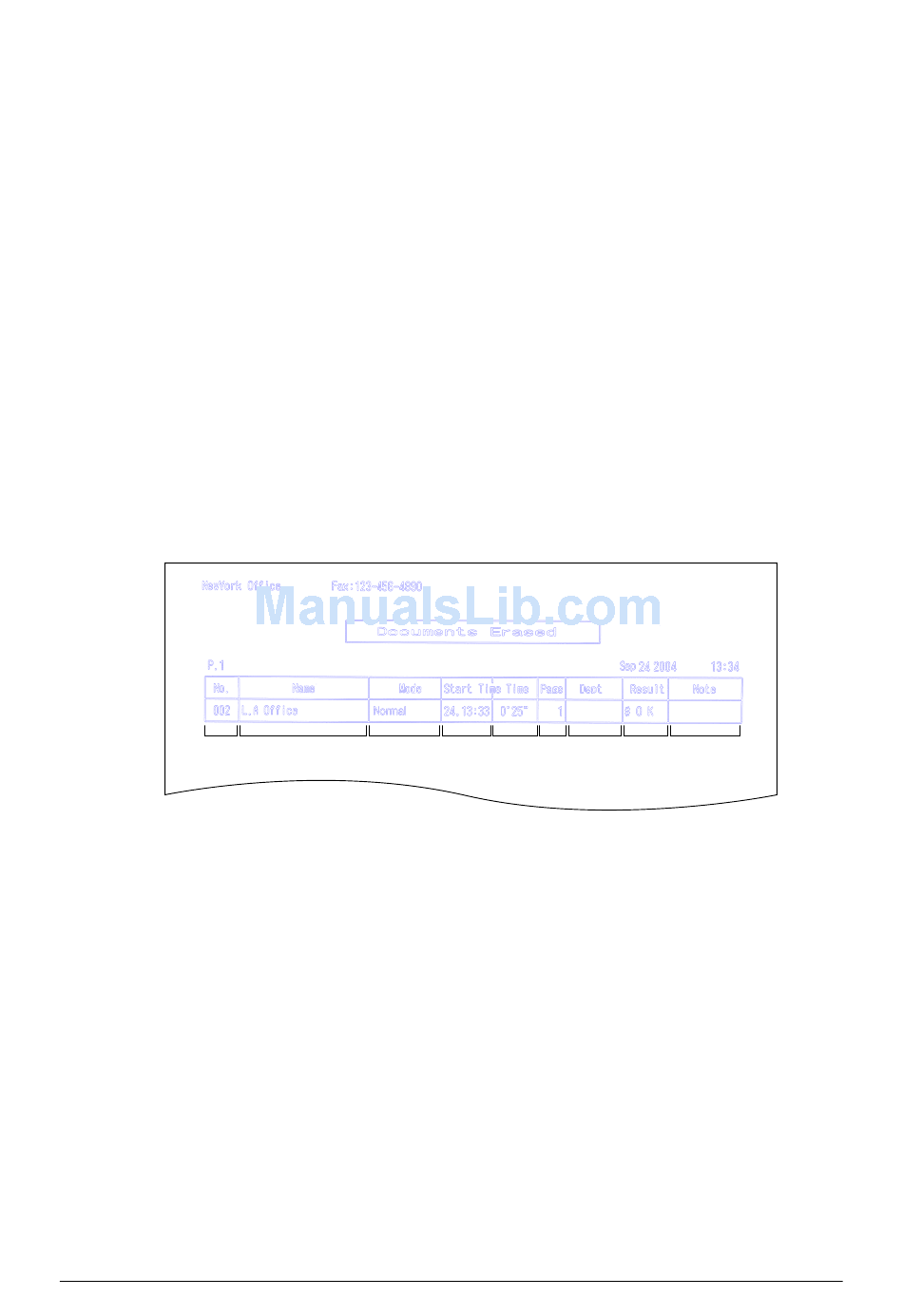

• The following is an example of a received file that has been erased. In addition, "Com-
mand erased", "Erased Poll Documents" and "F-Code box document erased" may be
printed.
1
1. No. — The number of the communication
2. Name — Registered in the following order
3. Mode — Resolution in the communication
4. Start Time — The time the communication started
5. Time — The time required for the communication
6. Page — The number of pages received
7. Dept. — When "Department code" has been set, the
8. Result — Communications results.
OK:
*:
#:
Error code: Finished abnormally
11.6 R & L
EPORT
, 5, 1, 2, 0, .
ENTER
2 3
(1) TTI number registered for the
destination name
(2) Space
department number is recorded here.
Completed normally
Communicated in ECM mode
Communicated via super G3
(For information regarding error
codes, refer to page 12.18.)
ISTS
4 5 6 7
9. Remarks —
Polling: Polling reception
Manual: Manual reception
F-Polling: Indicates F-Code polling
Security: Received in F-code security box
Relay: Received by F-code relay
Bulletin: Received in F-code bulletin box
8 9
