Cabling Your MultiVOIP
Cabling your MultiVOIP involves making the proper Power,
Command Port, phone system, and Internet connections.
Figure 3 shows the back panel connectors and the associated
cable connections. The following procedure details the steps
necessary for cabling your MultiVOIP.
Before starting to cable your MultiVOIP, perform the E&M
Jumper Block Positioning Procedure, which immediately
follows the Cabling Procedure, if either voice/fax channel (1 or
2) will be connected to an E&M trunk that is a Type 1, 3 ,4, or
5 rather than a Type 2 (the default).
1. Connect the power supply to a live AC outlet, then connect
it to the MultiVOIP as shown in Figure 3. The power
connector is a 6-pin circular DIN connector.
2. Connect the MultiVOIP to a PC using the RJ-45 to DB9
(female) cable provided with your unit. Plug the RJ-45 end
of the cable into the Command port of the MultiVOIP and
connect the other end to the PC serial port you are using.
See Figure 3.

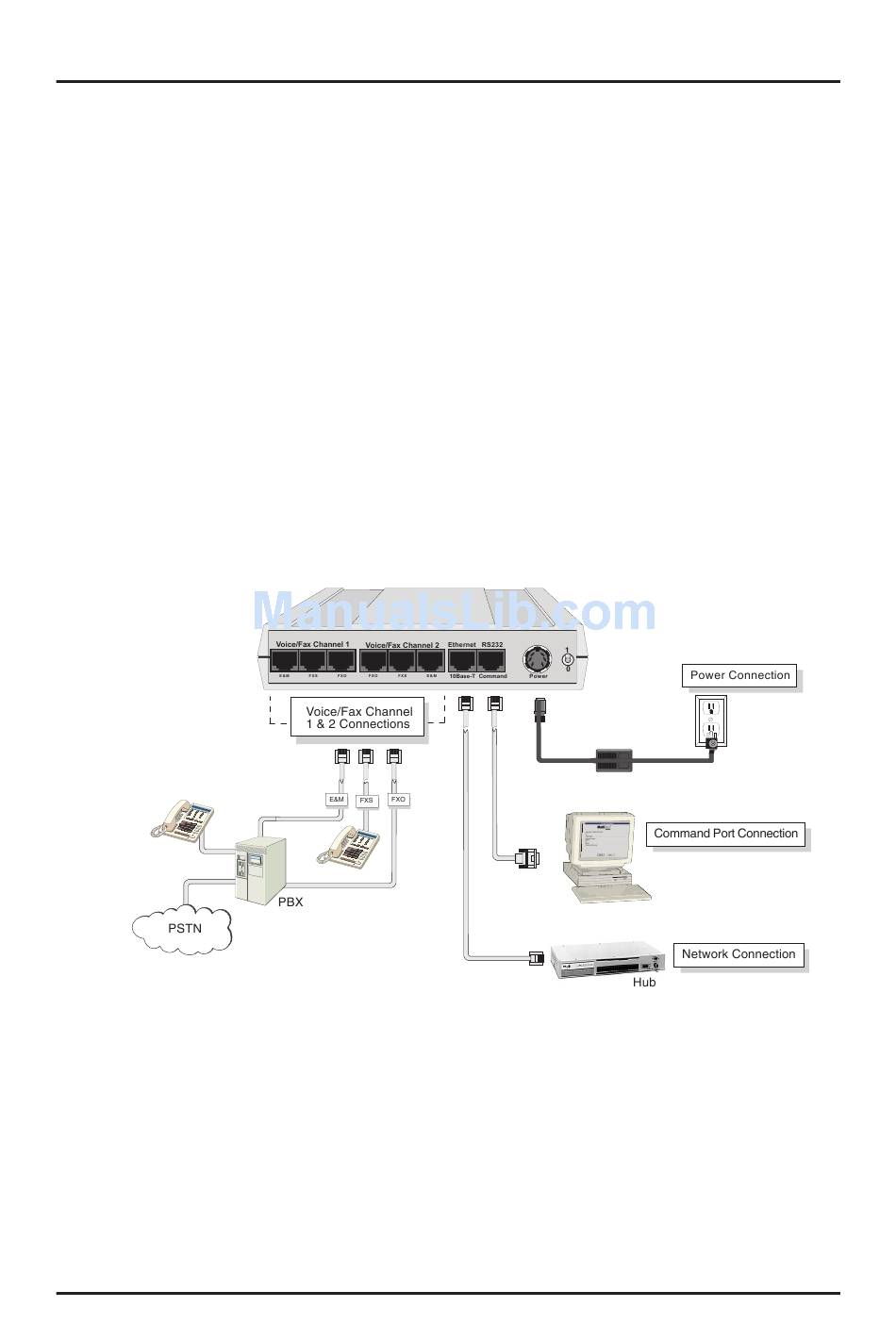

Figure 3. Cable Connections
Cabling
9
