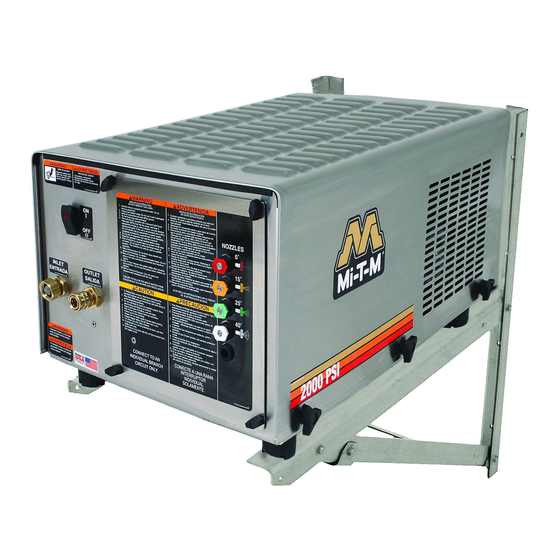

Congratulations on the purchase of your new Mi-T-M Cold Water Pressure Washer! You can be assured your pressure washer was constructed and designed with quality and performance in mind. Each component has been rigorously tested to ensure the highest level of acceptance.
important safety instructions electrical precautions 1. GROUNDING INSTRUCTIONS: This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
important safety instructions spray precautions: danger RIsk Of INjECTION OR sEvERE CUTTING INjURy keep clear of nozzle. do not direct discHarge stream at persons or pets. only trained operators sHould use tHis product. basic precautions sHould always be obserVed, including tHe following: 1.
important safety instructions detergent cleaning precautions: (optional feature) . DO NOT use solvents or highly corrosive detergents or acid type cleaners with this pressure washer. Use only mild detergents. 2. KNOW YOUR DETERGENTS! Be prepared to tell a physician exactly what you are using in the event of an emergency.
important safety instructions adJustment precautions: 1. NEVER alter or modify the equipment, be sure any accessory items and system components being used will withstand the pressure developed. Use ONLY genuine manufacturer parts for repair of your pressure washer. Failure to do so can cause hazardous operating conditions and will void warranty.
features single phase three phase features listing 1. Plug Cord w/GFCI 35 feet 10. Decal: Warning/Caution/Operating Instructions (Single Phase where applicable) Plug Cord - 0 foot . Oil Dipstick . GFCI (Single Phase where applicable) 12. Decal: Caution-High Pressure Spray 3.
Page 9
safety decals & placement DO NOT REmOvE sAfETy DECAls fROm UNIT UNlEss REplACING WITh mOsT CURRENT sAfETy DECAl!! Hang Tag: Warning-Risk of Electrocution (Part #4-05) Decal: Warning: Beltguard in Place (Part #4-0575) WARNING RISK OF ELECTROCUTION. Decal: Do Not Spray Symbol (Part #34-0391) DO NOT REMOVE THIS TAG.
4. Pump oil level should be checked before each use to be certain the oil level is in the center of the sight glass. If low, fill with Mi-T-M pump oil (#AW- 4085-006). DO NOT OVERFILL! WARNING...
installation & preparation WARNING nozzle connection: risk of seVere inJury! 1. Ensure the trigger gun is locked in the "OFF" position. See WARNING, right. tHe trigger gun sHould always be locked in tHe off . The quick-connect nozzle should be disconnected from the gun assembly position wHen not in use! at this time.
The pressure has been preset at the factory and should only be water pressure and costly repairs. adjusted by a trained Mi-T-M Customer Service Representative. tHermal relief ValVe: To ensure that the water temperature does not exceed acceptable levels, never allow the pressure washer to operate in the bypass mode (with the unit running and the trigger gun closed) for more than three minutes.
Page 13
warning tHe following pages contain operating and maintenance instructions. do not attempt to operate tHis pressure wasHer until you HaVe read and understood all safety precautions and instructions listed in tHis manual. incorrect operation of tHis unit can cause serious inJury!! do not alter or modify tHis eQuipment in any manner! Operator's Manual...
operating instructions priming tHe pump: . It is essential to prime the pump on initial start-up and each time the water supply is disconnected from the unit after initial use. 2. Lay the high pressure hose out to remove any loops. Water flow will constrict the hose creating tight loops if the hose is not straight.
operating instructions cleaning witH detergents (optional feature): The Detergent Injection feature is an optional feature on this unit. If you wish to add this feature to your unit, order part #AW-8300-0000. 1. Refer to "Detergent Cleaning Precautions" pg. 6, and the Detergent Injection Manual which accompanies part #AW-8300-0000.
3 months or 250 hour intervals are recommended. If oil appears dirty or milky, changes may be required in greater frequency. Use Mi-T-M pump oil (#AW-4085-006) and fill only to the center of the oil sight glass. Quick couplers: There is an o-ring seal inside the female quick-coupler.
If you must store your unit in an area where the temperature may fall below 32°F, you can protect your unit by following the procedure outlined below. 1. Gather the following items: a. Two 5 gallon containers. b. One gallon of antifreeze. (Mi-T-M recommends an environmentally safe antifreeze.) 32˚F 0˚C c.
troublesHooting SYMPTOM PROBABLE CAUSE REMEDY Pump motor will not start, or stops GFCI tripped. Turn unit "OFF". Test GFCI by pressing reset button. Tripped circuit breaker or fuse Disconnect all other plugs on the blown in circuit fuse box. circuit being used and reset circuit breaker OR check and replace fuse.
Page 19
troublesHooting SYMPTOM PROBABLE CAUSE REMEDY Low or fluctuating pressure. Kink in high pressure discharge hose. Replace kinked pressure hose. Water inlet screen obstructed. Remove screen, clean or replace. Pump sucking air. (Prime lost) Tighten all water intake connections Eliminate leaks in intake line. Detergent nozzle (6540/Black) is Insert high pressure nozzle.
4. The use of other than genuine Mi-T-M repair parts will void warranty. Parts returned, prepaid to our factory or to an Authorized Mi-T-M Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty.
Page 22
LIMPIEZA CON DETERGENTES ....................35 APAGADO ............................. 35 ALMACENAMIENTO Y MANTENIMIENTO ....................36-37 MANTENIMIENTO ESPECIFICO ....................36 PREPARACION PARA EL INVIERNO ..................36-37 LOCALIZACION DE FALLAs ........................38-39 ACCEsORIOs ..............................40 NOTA ................................41-42 DECLARACION DE GARANTIA ........................43 Mi-T-M CW-Eléctrico Manual del Operador...
El contenido de este manual está basado en la información actualizada disponible al momento de la publicación. Mi-T-M se reserva el derecho de efectuar ®...
Esto incluye tomacorrientes eléctricos, lámparas eléctricas, cajas de fusibles, transformadores, la unidad misma, etc. Puede ocurrir un choque eléctrico grave. 11. El fabricante no recomienda que el usuario intente ninguna reparación eléctrica a esta unidad. Mi-T-M CW-Eléctrico Manual del Operador...
7. Aun después que apague la unidad, hay agua a alta presión en la bomba, manguera y pistola hasta que la elimine accionando el gatillo. SIEMPRE apague la unidad y accione el gatillo para liberar la presión interna, antes de sacar la boquilla de rociado o reparar la unidad. Mi-T-M CW-Eléctrico Manual del Operador...
ADVERTENCIAs IMPORTANTEs DE sEGURIDAD PRECAUCIONEs PARA LIMPIEZA CON DETERGENTEs: 1. NO use solventes ni detergentes altamente corrosivos, ni limpiadores de tipo ácido con esta lavadora a presión. Use detergentes Mi-T-M solamente. ® 2. ¡CONOZCA SUS DETERGENTES! En el caso de una emergencia, esté...
PRECAUCIONEs DE AJUsTE: 1. NUNCA altere ni modifique el equipo, asegúrese que todos los artículos accesorios y los componentes del sistema que se usan resistirán la presión desarrollada. Use SOLO piezas genuinas Mi-T-M para reparar su lavadora ® a presión. El no hacerlo puede causar condiciones operativas riesgosas y cancelará...
7. Calcomanía- Advertencia: Riesgo de electrocución 17. Válvula de descarga térmica (Para las unidades singulares fases) 18. Vidrio de nivel de aceite 8. Calcomanía- No permita atomizador 19. Conjunto del la pistola 9. Correa Cubierta 20. Lanza 21. Boquillas Mi-T-M CW-Eléctrico Manual del Operador...
Page 29
•Always turn on water supply to pump before manual. •Risk of Chemical Exposure: Use only water and starting. recommended detergents with this unit. •Engage trigger safety lock-off when not in use. 34-0925-031802-ENG. Mi-T-M CW-Eléctrico Manual del Operador...
Debe revisarse el nivel de aceite de la bomba. Asegúrese de que el aceite llegue a la marca de "lleno" de la vara de nivel o del centro de la mirilla de nivel del aceite. Si parece bajo el nivel, llene el tanque con aceite para bomba Mi-T-M #AW-4085-0016.
Nunca permita que la unidad opere sin que esté conectada la tubería de agua de entrada y el suministro de agua completamente abierto. Mi-T-M CW-Eléctrico Manual del Operador...
Asegúrese que se reemplacen todas las piezas dañadas y que se corrijan los problemas mecánicos antes de operar la unidad. Consulte con el Servicio al Cliente de Mi-T-M, si usted requiere servicio. 6. Inspeccione los cordones electricos para cortes. Si encuentre unos cortes, NO TOQUé...
Page 33
PREsION hAsTA QUE hAYA LEIDO Y ENTENDIDO TODAs LAs PRECAUCIONEs E INsTRUCCIONEs DE sEGURIDAD LIsTADAs EN EsTE MANUAL. ¡¡LA OPERACION INCORRECTA DE EsTA UNIDAD PUEDE CAUsAR LEsIONEs GRAVEs!! ¡¡DE NINGUNA MANERA ALTERE O MODIFIQUE EsTE EQUIPO!! Mi-T-M CW-Eléctrico Manual del Operador...
PUEDEN OCURRIR POsIBLEs a alta presión y una variedad de patrones de rociado. Vea "Limpieza con detergents", para los procedimientos correctos, si se requiere un agente DAÑOs. de limpieza. Mi-T-M CW-Eléctrico Manual del Operador...
5. Drene la pistola, la vara y las mangueras. Desconecte las mangueras, una vez drenado. 6. Limpie la unidad con un paño y almacene con la pistola, la vara y las mangueras en un área segura. Mi-T-M CW-Eléctrico Manual del Operador...
250 horas, después de la carga inicial. Pueden requerirse cambios con mayor frecuencia, si el aceite parece sucio o lechoso. Use aceite para bombas de Mi-T-M (Pieza No. AW-4085-0016) y llene sólo hasta la marca en el vidrio. NO llene en exceso.
Page 37
Debe ejercerse precaución al usar este procedimiento, ya que pueden formarse plaquitas de hielo de las gotas de agua, lo que podría causar que la unidad reviente si se arranca antes de estar completamente descongelada. Mi-T-M CW-Eléctrico Manual del Operador...
Retire y limpie, o reemplace. La válvula de derivación no está Repárelos o cámbielos. funcionando correctamente. Empaques de la bomba desgastados. Cambie los empaques. La válvula de derivación no está Repárelos o cámbielos. funcionando correctamente. Mi-T-M CW-Eléctrico Manual del Operador...
Page 39
Saque, limpie o reemplace. del detergente. están invertidos, faltano están desgastados. Cuando la pistola de gatillo está La pistola funciona mal. Repárelos o cámbielos. asegurado en la posición "OFF", el agua fluye desde la boquilla. Mi-T-M CW-Eléctrico Manual del Operador...
*Se debe especificar presión (PSI) y volumen (GPM) al hacer el pedido. Detergentes de Mi-T-M son detergentes expecialmente para usar con lavadoras a presion de Mi-T-M y estan envasando en dimensiones varios. Para mas llame lose servicios para clientes a 800-553-9053.
La falla en seguir los procedimientos recomendados de operación y mantenimiento también cancela la garantía. 4. El uso de piezas de repuesto diferentes a las genuinas Mi-T-M cancelará la garantía.Las piezas devueltas, con franqueo pagado a un Centro de Servicio Autorizado Mi-T-M serán inspeccionadas y reemplazadas, libre de cargos, si se determina que están defectuosas y...
Page 44
Manufactured by Mi-T-M 8650 Enterprise Drive, Peosta IA 52068 563-556-7484/ Fax 563-556-1235 Mi-T-M CW-Eléctrico Manual del Operador...
