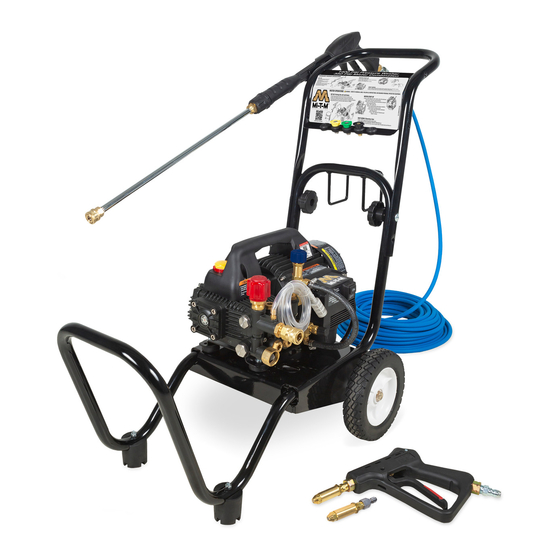

OPERATION MANUAL
CM-1400-0MEC-M
CM-1400-1MEH-M
COLD WATER ELECTRIC
PRESSURE WASHER AND
MISTER COMBINATION UNIT
CAUTION
RISK OF INJURY! READ ENTIRE MANUAL BEFORE
OPERATING! THIS MANUAL IS AN IMPORTANT PART
OF THE PRESSURE WASHER AND MUST REMAIN WITH
THIS UNIT!
Copyright 2020, Mi-T-M
Form #37-1476-E-042220
©
Operator's Manual
1
Advertisement
Table of Contents
Related Manuals for Mi-T-M CM-1400-0MEC-M
Summary of Contents for Mi-T-M CM-1400-0MEC-M
- Page 1 COLD WATER ELECTRIC PRESSURE WASHER AND MISTER COMBINATION UNIT CAUTION RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT PART OF THE PRESSURE WASHER AND MUST REMAIN WITH THIS UNIT! Copyright 2020, Mi-T-M Form #37-1476-E-042220 © Operator’s Manual...
-
Page 2: Introduction
Introduction THANK YOU for purchasing this product. The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the READ THIS MANUAL carefully to learn how to operate numbers to help in tracing the machine should it be stolen. and service your machine correctly. -
Page 3: Table Of Contents
Contents Introduction ..............2 Contents ............... 3 Safety ................4 Controls ...............11 Controls ..............12 Preparing the Washer-Pressure Washer Mode ..13 Operating the Washer-Pressure Washer Mode ..17 Preparing the Washer-Mister Mode ......21 Operating the Washer-Mister Mode ......24 Troubleshooting ............ -
Page 4: Safety
Safety RECOGNIZE SAFETY INFORMATION This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. UNDERSTAND SIGNAL WORDS A signal word--DANGER, WARNING or CAUTION--is used with the safety-alert symbol. - Page 5 PROTECT AGAINST HIGH PRESSURE SPRAY Spray from high pressure nozzles can penetrate the skin and cause serious injury. Keep spray from contacting hands or body. If an accident does occur and the spray appears to have penetrated the skin, SEEK EMERGENCY M E D I C A L C A R E .
- Page 6 EXTENSION CORDS Extension cords are not recommended for use on this pressure washer. If the use of an extension cord is unavoidable, it must be plugged into a GFCI found in circuit boxes or protected receptacles. Use only 3-wire extension cords that have 3-prong grounding type plugs and 3-pole cord connectors that accept the plug from the washer.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of injury, read this operator’s manual completely. When using this product, the following basic precautions should always be followed: 1. Read all the instructions before using the product. 2. This product is equipped with a Ground Fault Circuit Interrupter (GFCI) in the power cord to reduce the risk of electrical shock.
- Page 8 PREPARE FOR EMERGENCIES Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. Be prepared if a fire starts. INSPECT HIGH PRESSURE WASHER Be sure all covers, guards and shields are in place. Locate all operating controls and safety labels.
- Page 9 SAFETY SIGNS WARNING ADVERTENCIA RIESGO DE ELECTROCUCION. NO QUITE ESTA ETIQUETA. RISK OF ELECTROCUTION. DO NOT REMOVE THIS TAG. 1. Conecte solamente a una toma corriente que está bien fundado. No quite 1. Connect only to a properly grounded outlet. Do not la pata de conexión de la tierra.
- Page 10 WARNING ADVERTISSEMENT RISQUE D' ÉLECTROCUTION NE PAS ENLEVER CETTE ÉTIQUETTE •Brancher seulement á une prise correctement mise á la terre. Ne pas enlever la broche de mise á la terre. •Vérifier le cordon avant l'utilisation. Ne pas utiliser le cordon s' il est endommage.
-
Page 11: Controls
Controls CONTROLS CM-1400-0MEC-M A –On/Off Switch F–Power Cord K–Gun B–Mister Valve G–Ground Fault Circuit Interrupter L–Nozzle Wand C–Detergent Hose H–Discharge Hose M–Nozzles D–High Pressure Outlet I–Handle N– Quick Connect Misting Nozzle E–Water Inlet Fitting J–Gun Trigger O–Misting Gun with Nozzle... -
Page 12: Controls
Controls CONTROLS CM-1400-1MEH-M A –On/Off Switch F–Power Cord K–Gun B–Mister Valve G–Ground Fault Circuit Interrupter L–Discharge Hose C–Handle H–Detergent Hose M–Misting Gun with Nozzle D–High Pressure Outlet I–Nozzle Wand N–Quick Connect Misting Nozzle E–Water Inlet Fitting J–Gun Trigger O–Nozzles Operator’s Manual... -
Page 13: Preparing The Washer-Pressure Washer Mode
Preparing the Washer-Pressure Washer Mode ELECTRICAL REQUIREMENTS CAUTION: To avoid electrical shock, connect the washer to a properly grounded electrical receptacle. Do not use an adapter or remove third (ground) prong. Make certain the connection between the washer power cord and receptacle is kept dry. The following electrical requirements must be met: 1. - Page 14 Preparing the Washer-Pressure Washer Mode INLET WATER SUPPLY REQUIREMENTS 1. Inlet water supply must be a minimum of 20 PSI (1.4 bar). Attempting to operate the washer with less than adequate water supply will cause rapid wear of packings, valves and bearings that will dramatically shorten pump life.
- Page 15 Preparing the Washer-Pressure Washer Mode CHECK PUMP OIL 1. Remove shipping plug and install vented plug (A) on pump. 2. Check oil in pump. With washer on level surface, the oil should be 1/2 full, at the center of sight glass (B). If necessary, add SAE30W non-detergent oil, so level is 1/2 full, at center of sight glass.
- Page 16 Preparing the Washer-Pressure Washer Mode CONNECT HOSES AND PRIME PUMP 1. Hose washer with screen (A) is already attached into end of brass hose coupler. NOTE: Conical screen in washer (A) should protrude out of coupler and into flow from inlet hose. IMPORTANT: If washer is to be connected to a well water system, use 851-0207 water inlet filter (A).
-
Page 17: Operating The Washer-Pressure Washer Mode
Operating the Washer-Pressure Washer Mode STARTING MOTOR IMPORTANT: To prevent possible pump damage, do not allow washer pump to run in bypass (with gun trigger released) for longer than 3 minutes. The washer ON/OFF switch (A) is a rocker switch that includes a circuit breaker for protection against motor electrical overload.Move the ON/OFF switch to the “ON”... - Page 18 Operating the Washer-Pressure Washer Mode DETERGENT USAGE GUIDE CAUTION: Use detergents carefully. Read labels thoroughly and follow all instructions for preparation, use, safety, transportation and disposal. Be prepared to tell a physician exactly what detergents you are using in the event of an emergency.
- Page 19 Operating the Washer-Pressure Washer Mode CLEANING WITH DETERGENTS Refer to “Detergent Cleaning Precautions” before working with detergents. Be certain to wear protective safety attire. Prepare detergent solution according to label directions. Never pump acids, alkaline, abrasive fluids or solvents through the unit. 1.
- Page 20 Operating the Washer-Pressure Washer Mode SHUTDOWN IMPORTANT: Shutdown procedures should be followed at the end of each cleaning operation. 1. If a detergent was used, place detergent inlet strainer in CLEAN water and operate trigger to spray water for a period of three minutes. This will flush the system of detergents and help prevent the detergent valve from sticking or corrosion.
-
Page 21: Preparing The Washer-Mister Mode
Preparing the Washer-Mister Mode ELECTRICAL REQUIREMENTS CAUTION: To avoid electrical shock, connect the washer to a properly grounded electrical receptacle. Do not use an adapter or remove third (ground) prong. Make certain the connection between the washer power cord and receptacle is kept dry. The following electrical requirements must be met: 1. - Page 22 Preparing the Washer-Mister Mode INLET WATER SUPPLY REQUIREMENTS SUCTION FEED 1. Water supply hose should be a good grade of garden hose with an I.D. of 3/8 in. (10mm) or 1/2 in. (13mm) and be no longer than 10’ in length (3m). Attempting to operate the washer in suction feed without the correct hose will result in a lack of suction causing rapid wear of packings, valves and bearings that will...
- Page 23 Preparing the Washer-Mister Mode CONNECT HOSES AND PRIME PUMP SUCTION FEED 1. Hose washer with screen (A) is already attached into end of brass hose coupler. NOTE: Conical screen in washer (A) should protrude out of coupler and into flow from inlet hose. 2.
-
Page 24: Operating The Washer-Mister Mode
Operating the Washer-Mister Mode STARTING MOTOR IMPORTANT: To prevent possible pump damage, do not allow washer pump to run in bypass (with gun trigger released) for longer than 3 minutes. The washer ON/OFF switch (A) is a rocker switch that includes a circuit breaker for protection against motor electrical overload.Move the ON/OFF switch to the “ON”... - Page 25 Operating the Washer- Mister Mode CLEANING WITH DETERGENTS AND CHEMICALS Refer to “Detergent and Chemical Cleaning Precautions” before working with detergents. Be certain to wear protective safety attire. Prepare detergent and chemical solution according to label directions. Never pump acids, alkaline, abrasive fluids or solvents through the unit.
-
Page 26: Troubleshooting
Troubleshooting Symptom Problem Solution No discharge at nozzle when trig- Inadequate water supply. (Pressure Ensure hose is 3/4” (19.05mm) di- ger mechanism is squeezed. Feed) ameter and incoming water supply is turned on. Lost Prime In Pump. (Suction Feed) Ensure hose is 3/8” (10mm) or 1/2” (13mm) diameter and water supply (or chemical) tank is full. - Page 27 Troubleshooting Symptom Problem Solution Motor Shuts Off - GFCI Trips. Power interruption. Reset GFCI. If problem continues, contact your customer service or have electrical system checked by a qualified electrician. Electrical short in power cord or in Reset GFCI. Try again. If problem washer.
-
Page 28: Service
Service CLEANING INLET WATER CAUTION: Disconnect power cord from electrical receptacle before cleaning inlet screen. IMPORTANT: Do not operate washer with water inlet screen removed. Foreign material may enter and damage pump or valves. Inspect the water inlet screen (A) (inside brass fitting) periodically for buildup of scale, grit and dirt. - Page 29 Service CHECKING WATER PUMP OIL LEVEL IMPORTANT: If oil is white or foaming, water is in the oil reservoir. Change oil. NOTE: Water in oil occurs as a result of spray or condensation. Milky oil is not indicative of a pump malfunction.
-
Page 30: Storage
Storage Service STORING WASHER IMPORTANT: Protect washer from freezing tempera- tures. If unit will experience freezing conditions, pump must be filled with antifreeze to prevent cracking of pump manifold and unloader valve due to water expansion. Draining alone will not remove all the water. - Page 31 STATEMENT OF WARRANTY The manufacturer warrants all parts, (except those referred to below), of your new pressure washer to be free from defects in materials and workmanship during the following periods: For One (1) Year from the date of original purchase: High Pressure Pump Regulating Valve GFCI...
- Page 32 Operator’s Manual...
