VS-GSLG OPERATOR INSTALLATION GUIDE

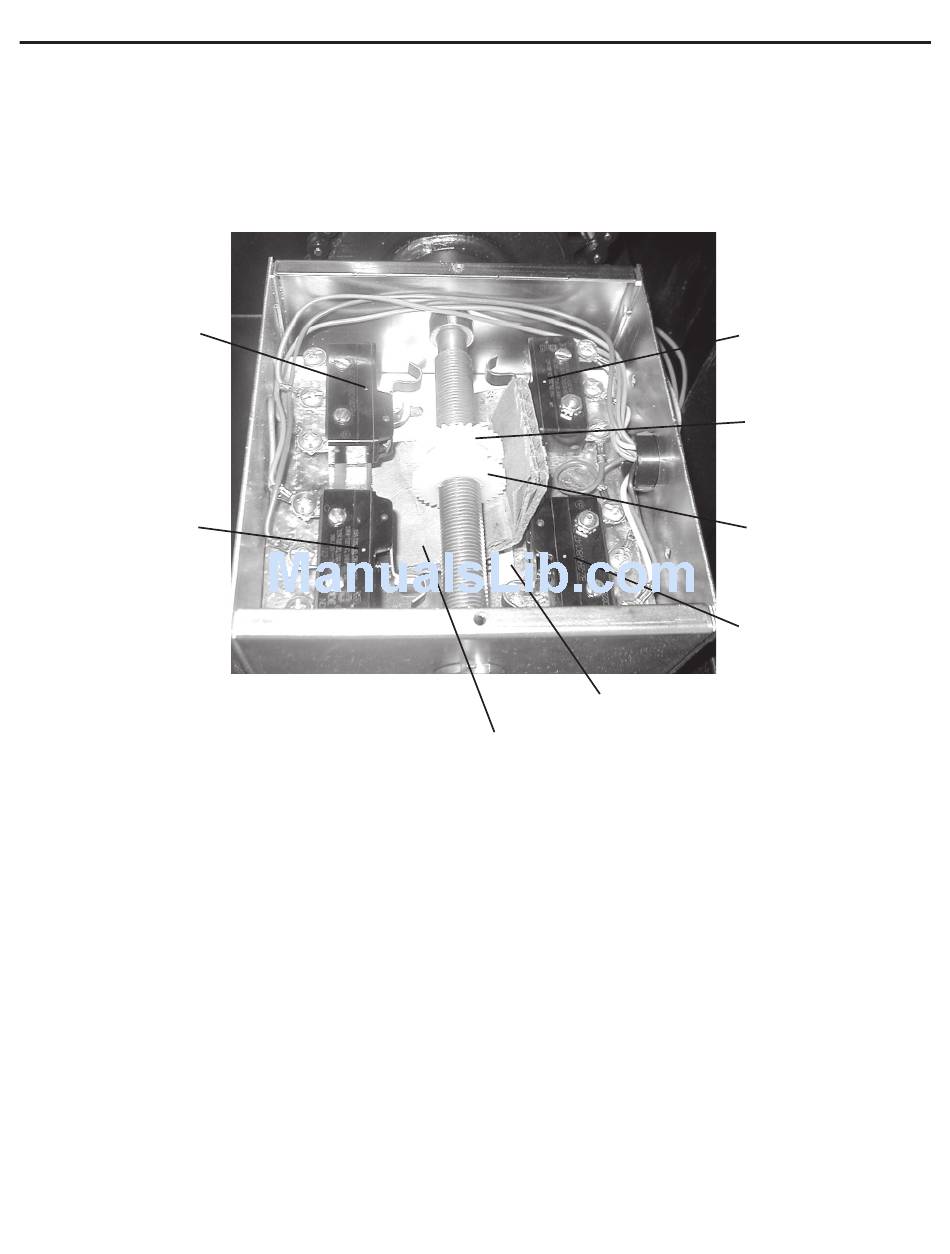

PICTURE OF FOUR SWITCH ROTARY LIMIT BOX
ON RIGHT HAND,
LSC-2
ON LEFT HAND, LSO-2
ON RIGHT HAND,
LSO-2
ON LEFT HAND, LSC-2
LSO-1 AND LSC-1 CONTROL
GATE FULL OPEN AND CLOSE
LSO-2 AND LSC-2 CONTROL
GATE OPERATOR RAMP UP AND
DOWN (SEE PAGE 5)
2520-453
DETENT PLATE
REMOVE CARDBOARD BEFORE AD-
JUSTING OR RUNNING OPERATOR!!
- 7 -
ON RIGHT HAND,
LSC-1
ON LEFT HAND, LSO-1
ON RIGHT HAND,
CLOSE LIMIT NUT
ON LEFT HAND,
OPEN LIMIT NUT
ON RIGHT HAND
OPEN LIMIT NUT
ON LEFT HAND,
CLOSE LIMIT NUT
ON RIGHT HAND,
LSO-1
ON LEFT HAND, LSC-1
