VS-GSLG OPERATOR INSTALLATION GUIDE
PROGRAMMING INSTRUCTIONS FOR VARIABLE SPEED DRIVE
PLEASE CONSULT FACTORY BEFORE MAKING ANY CHANGES!
1) Apply power
2) Press FUNC
3) Use arrows to advance to F––, (F002 for L200)
4) Press FUNC arrow to get to F02, (L100 ONLY)
5) Press FUNC, arrows to change to 3.0, (3.00 for L200) STR
6) Up arrow to advance to next parameter, (F03), FUNC to view, arrows to change, STR to store and continue,
advance through listed parameters and store new values.
7) To switch from one letter prefi x to another, press FUNC 3 times, advance to desired letter prefi x, press
FUNC, advance to desired parameter.
MODEL L100
Function Description
F02 ACCEL TIME
F03 DECEL TIME
A01 SPEED SOURCE
A02
A04 MAX SPEED
A20 TARGET SPEED
A21 SECOND SPEED
A62 MIN SPEED
B01 AUTO RESET
C03 TERM 3 FUNC
C04 TERM 4 FUNC
8) When all parameters have been changed,
advance to D01, press FUNC, then
press STR. This will display the
operating speed in Hz. (0-95)

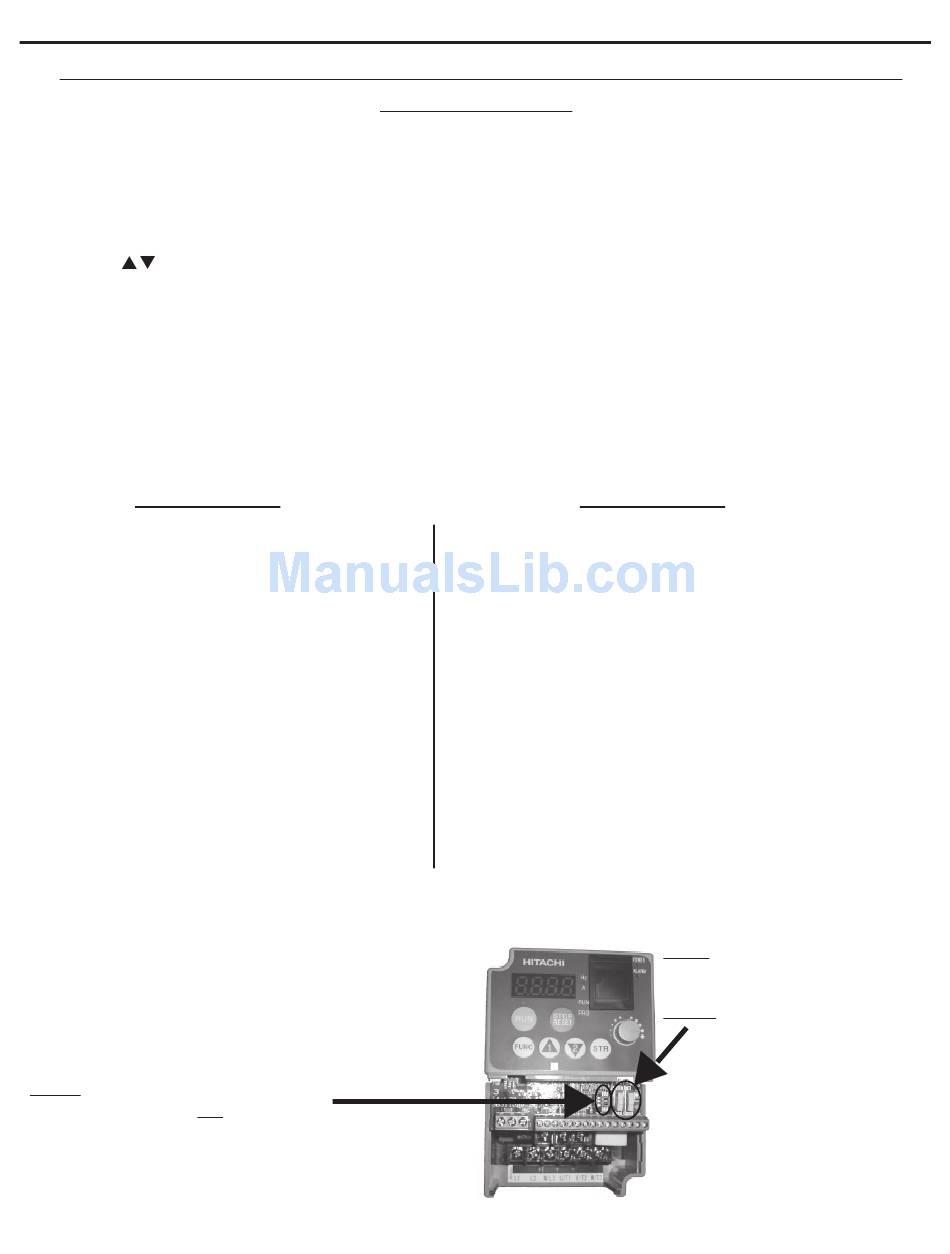

NOTE: L200 model must have this 1
switch in the UP position.
WITH HITACHI
This unit has been programmed at the factory.
No changes should be necessary for normal operation.
List of parameters set at factory:
Recommended
Setting
3.0
3.0
00 (POT)
01
95.0 (Hz)
95.0
20.0
20.0
01
03
11
MODEL L200
Function Description
F002 ACCEL TIME
F003 DECEL TIME
A001 SPEED SOURCE
A002
A004 MAX SPEED
A020 TARGET SPEED
A021 SECOND SPEED
A042 AUTO TORQUE BOOST
A044 BOOST PERCENT
A081 AUTO VOLTAGE REGULATION
A062 MIN SPEED
B001 AUTO RESET
B130 INHIBIT DECEL OVERVOLTAGE
C003 TERM 3 FUNC
C004 TERM 4 FUNC
C014 TERM 4 STATE
- 29 -
Recommended
Setting
3.00
3.00
00 (POT)
01
95 (Hz)
95.0
20.0
0
00
01
20.0
01
01
03
11
01
NOTE:
L200 model must have
these 2 switches in the
DOWN position.
