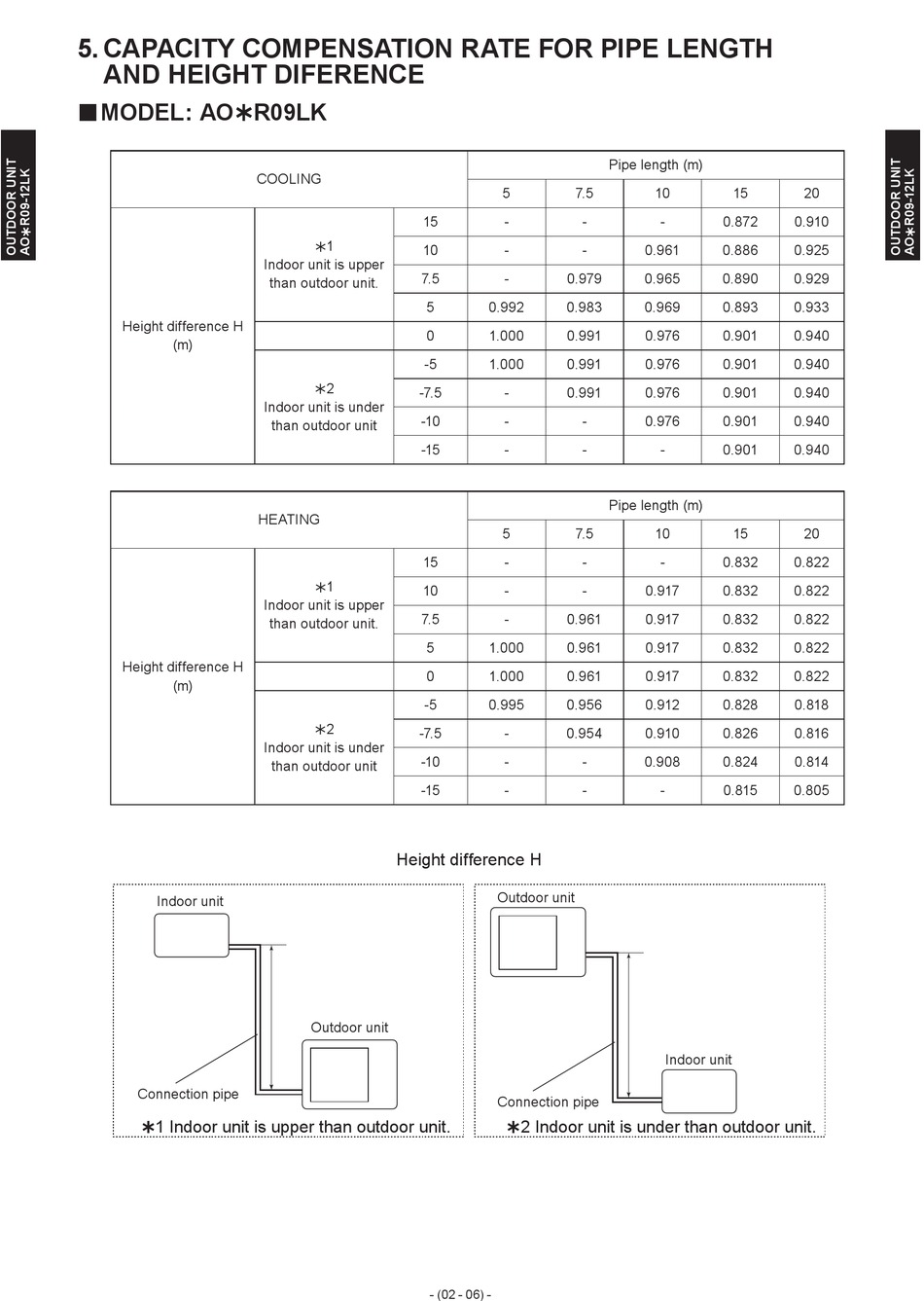

5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH
AND HEIGHT DIFERENCE
MODEL : AOR09LK
„ „
Height difference H
(m)
Height difference H
(m)
Indoor unit
Connection pipe
 1 Indoor unit is upper than outdoor unit.
COOLING
15
Û 1
10
Indoor unit is upper
7.5
than outdoor unit.
5
0
-5
Û 2
-7.5
Indoor unit is under
-10
than outdoor unit
-15
HEATING
15
Û 1
10
Indoor unit is upper
7.5
than outdoor unit.
5
0
-5
Û 2
-7.5
Indoor unit is under
-10
than outdoor unit
-15
Height difference H
Outdoor unit
- (02 - 06) -
Pipe length (m)
5 7.5 10
- - -
- - 0.961
- 0.979 0.965
0.992 0.983 0.969
1.000 0.991 0.976
1.000 0.991 0.976
- 0.991 0.976
- - 0.976
- - -
Pipe length (m)
5 7.5 10
- - -
- - 0.917
- 0.961 0.917
1.000 0.961 0.917
1.000 0.961 0.917
0.995 0.956 0.912
- 0.954 0.910
- - 0.908
- - -
Outdoor unit
Connection pipe
 2 Indoor unit is under than outdoor unit.
15 20
0.872 0.910
0.886 0.925
0.890 0.929
0.893 0.933
0.901 0.940
0.901 0.940
0.901 0.940
0.901 0.940
0.901 0.940
15 20
0.832 0.822
0.832 0.822
0.832 0.822
0.832 0.822
0.832 0.822
0.828 0.818
0.826 0.816
0.824 0.814
0.815 0.805
Indoor unit
