Fujitsu AS*A09LKC Design & Technical Manual page 7

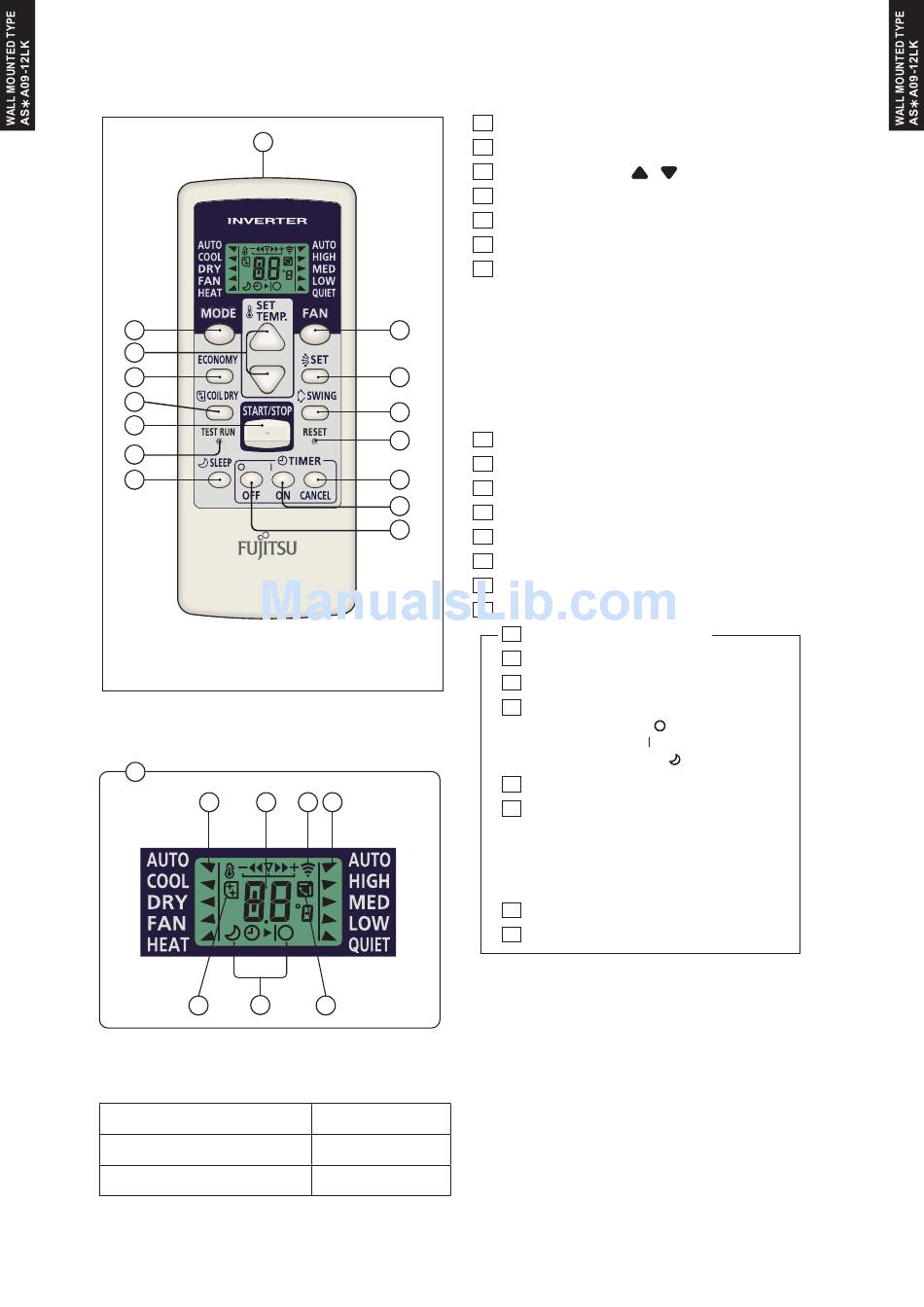

FUNCTIONS
„ „
2
3
4
5
6
7
8
Display panel
16
18
22
SPECIFICATION
„ „
SIZE (H x W x D mm)
WEIGHT
ACCESSORY
1
9
10
11
12
15
14
13
21 17 20
19 23
139×56×18
( g ) 85
Holder
Signal Transmitter
1
OPERATION MODE button
2
SET TEMP. button (
3
ECONOMY button
4
COIL DRY button
5
START/STOP button
6
TEST RUN button
7
This button is used when installing the air conditioner, and
z „
should not be used under normal conditions, as it will cause the
indoor unit's thermostat function to operate incorrectly.
If this button is pressed during normal operation, the indoor
z „
unit will switch to test operation mode, and the Indoor Unit's
OPERATION Indicator Lamp and TIMER Indicator Lamp will
begin to flash simultaneously.
To stop the test operation mode, press the START/STOP button
z „
to stop the air conditioner.
SLEEP button
8
FAN CONTROL button
9
AIR FLOW DIRECTION SET button
10
SWING button
11
RESET button
12
TIMER OFF button
13
TIMER ON button
14
TIMER CANCEL button
15
Remote Controller Display
16
Transmit Indicator
17
Operation Mode Display
18
Timer Mode Display
19
OFF TIMER Mark:
ON TIMER Mark:
SLEEP TIMER Mark:
Fan Speed Display
20
Temperature and time Display
21
It displays the temperature setting.
However, when making the Timer setting,
it will display the Timer time.
(The temperature setting will reappear
after finishing the timer setting)
COIL DRY Display
22
SWING Display
23
- (01 - 04) -
/ )
