SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
Indoor unit
ASYG24LFCC AOYG24LFCC
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM. . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
INDOOR PCB CIRCUIT DIAGRAM . . . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
1
2
3
4
5
8
10
11
15
18
Advertisement
Table of Contents
Related Manuals for Fujitsu ASYG24LFCC
Summary of Contents for Fujitsu ASYG24LFCC
-
Page 1: Table Of Contents

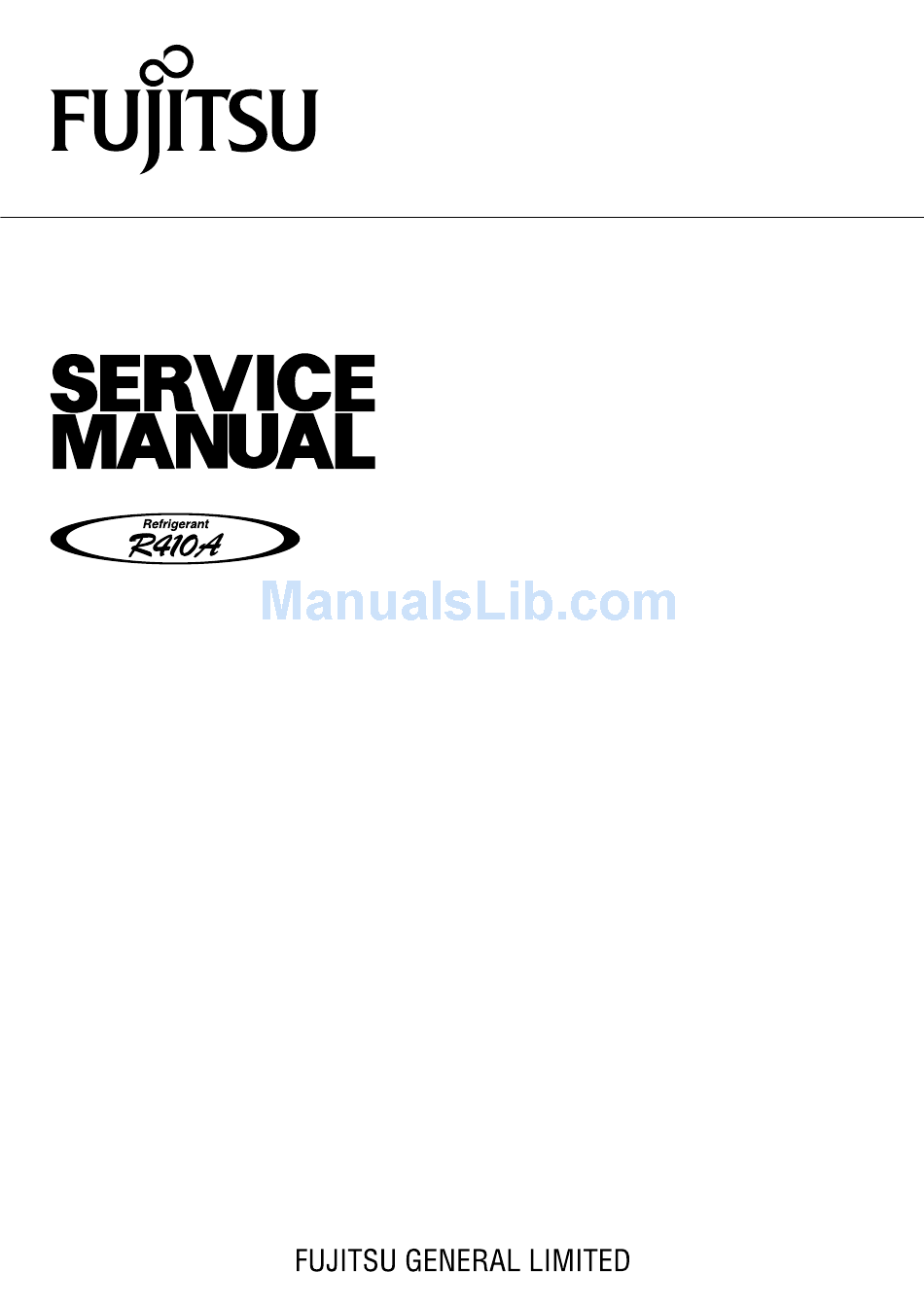

WALL MOUNTED TYPE Indoor unit Outdoor unit ASYG24LFCC AOYG24LFCC CONTENTS SPECIFICATIONS....DIMENSIONS ..... . -
Page 2: Specifications
SPECIFICATIONS ELECTRICAL DATA NOISE LEVEL High TYPE Cool & heat inverter 49 dB Medium 42 dB INDOOR UNIT ASYG24LFCC INDOOR UNIT (Cool) 37 dB OUTDOOR UNIT AOYG24LFCC COOLING CAPACITY 7.10 kW Quiet 32 dB HEATING CAPACITY 8.00 kW High 48 dB... -
Page 3: Dimensions
DIMENSIONS Unit : mm INDOOR UNIT Drain hose length : 670 mm Drain hose diameter Inside : 12 mm Outside : 16 mm OUTDOOR UNIT 2012.07.06... -
Page 4: Refrigerant System Diagram
REFRIGERANT SYSTEM DIAGRAM Heat exchanger (Indoor unit) 3-way valve 2-way valve Muffler Pressure switch Muffler Cooling flow Heating flow Refrigerant pipe diameter Strainer Compressor Liquid : 1/4" (6.35 mm) 4-Way valve Gas : 5/8" (15.88 mm) Expansion valve Strainer Heat exchanger (Outdoor unit) Sub-accumulator 2012.08.08... -
Page 5: Circuit Diagram
CIRCUIT DIAGRAM INDOOR UNIT TEST 1 2 3 4 5 CN13 EX. OUT BLUE CN16 YELLOW ( OPTION ) WHITE OUTDOOR UNIT CN10 BLACK F M FAN MOTOR EX. IN FAN MOTOR CN14 ( OPTION ) THERMISTOR HIGH PRESSURE SW MAIN PCB EXPANSION ( COMPRESSOR ) -
Page 6: Indoor Pcb Circuit Diagram
INDOOR PCB CIRCUIT DIAGRAM CONTROL UNIT EZ-01211HSE TERMINAL HP-T3064A-A29-L1 3.15A 22007 250V BLACK UL1015 AWG24 BLACK POWER SOURCE AC230V UL1015 AWG24 WHITE 22007 WHITE 50Hz FLASH UL1015 AWG24 SERIAL B07B-PASK-1 22007 WHITE EMI FILTER ESD-R-19 TRCB-1910-10 WIRED REMOTE CONTROL UL1015 AWG22 ( OPTION ) GREEN... - Page 7 INDOOR UNIT MAIN PCB K09DR-1207HSE-C1 D2FL20U 1SS355 MY064 340V 100k I C2 <RS-2W> 1000/ BA05T D1FL20U 1.0k <1/4W> 340V 1SS355 1 3 2 0.01 <1/10W> <1/4W> CN10 <ECQE> + C19 B5 ( 6-5 ) B-XARK-1-A + C36 100/ I C10 330/ 330/ I C1-39...
- Page 8 INDOOR UNIT INDICATOR PCB K05CY-0902HSE-D0 CN201 07 JB20 / PAP D201 1061 L=230 SLR-325MC GREEN D202 SLR-325DC ORANGE C201 <F> D203 SLR-325MC GREEN I C201 R201 GP1UM261R <1/4W> + C202 2012.11.28...
-
Page 9: Outdoor Pcb Circuit Diagram
OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY EZ-012YHUE TERMINAL EMI FILTER EMI FILTER TO INDOOR UNIT ZCAT3035-1330 EMI FILTER TRCB25-15 UL3271 COMPRESSOR UL1015 AWG16 AWG18 W101 BLACK UL3271 AWG16 CN73 UL1015 WHITE B03B-XN I SK-A-1 AWG18 UL3271 W102 WHITE WHITE AWG16 BLACK UL1015 SERIAL... - Page 10 OUTDOOR UNIT MAIN PCB F100 K11BS-1205HUE-C1 D101 L101 AL50201574 RFUS20TF6S FH100 250V FH101 FC51FL x 2 C100, C101 W101 C201 C200 L102 D102 600 / 450V 0.22 AL50201574 RFUS20TF6S <F> JM106 ZPR0RCH400 C400 250V Q404 Q402 2SC2411K C402 C203 C202 <B>...
-
Page 11: Error Detection
ER R OR D ETEC TION Indoor unit lamps Indoor unit lamps Wired Wired remote Description remote Description INDOOR UNIT OPERATION TIMER ECONOMY OPERATION TIMER ECONOMY control control (green) (orange) (green) (green) (orange) (green) and WIRED REMOTE CONTROL Serial communication error Display PCB microcomputers (10) communication error... -
Page 12: Parts (Indoor Unit)
PARTS INDOOR UNIT Description Parts number Front Panel Total Assy 9318738001 Front Panel 9314991080 Intake Grille Assy 9385985049 Air Filter 9315014016 Receiver Window 9315010018 Clamper Grille 9306755010 Wire Clamper 9315015013 Cap (Screw) 9309002074 Bracket Panel 9315023018 Remote Control 9379219037 Remote Control Holder 9305642045 Air Clean Filter Assy 9315212016... - Page 13 INDOOR UNIT Description Parts number Evaporator Total Assy 9315338112 22 Connection Pipe Assy 9315355058 Water Seal 9315251015 Evaporator Holder R 9314994012 Evaporator Holder L 9314995019 Rear Bracket 9315022011 Filter Guide 9315013019 Filter Guard 9315411013 29 Bearing C Assy 9306628017 30 Crossflow Fan Assy 9315024015 31 Holder (Room Thermistor) 9315252012...
- Page 14 INDOOR UNIT Description Parts number Description Parts number 41 Casing Assy 9315331045 Louver U 9315000026 Casing 9314993015 Louver Z 9315001023 Casing Cover B 9315016010 Diffuser U 9315002020 Diffuser Z 9315003027 Casing Cover L 9315017017 Casing Cover R 9315018014 Spring C 9314142017 Casing Cover F 9315019011...
- Page 15 INDOOR UNIT Description Parts number Control Box Cover 9314997013 Control Box 9314996016 Main PCB 9708540207 Terminal 9900447014 Terminal Earth 9315028020 Motor Case 9314998034 Fan Motor Assy 9602703012 Motor Step (Red) 9900384029 Motor Step (Green) 9900384036 Motor Step (Blue) 9900139063 Indicator PCB 9707210057 Clamper (Motor) 9315012012...
-
Page 16: Parts (Outdoor Unit)
PARTS OUTDOOR UNIT Ref. Description Part number Protective Net 9331640015 Top Panel Assy 9318464139 Front Panel Assy 9318463040 Cabinet Left Assy 9318461015 Cabinet Right Assy 9318462012 Grip 9317588003 Switch Cover Assy 9318499001 Motor Bracket Assy 9319124001 Fan Motor 9602724017 Propeller Fan 9313808013 Base Assy 9316885066... - Page 17 OUTDOOR UNIT Ref. Description Part number Shield Panel 9319542003 Inverter Case Assy 9319548012 PCB Holder 9319547015 Main PCB 9708996165 Heat Sink 9319540009 Terminal Bracket 9319543017 Terminal 6P 9900435028 Outdoor Thermistor 9900565008 Thermistor Assy 9900727017 Compressor Thermistor 9900777012 2013.04.05...
- Page 18 OUTDOOR UNIT Ref. Description Part number Condenser Total Assy 9317089166 Compressor 9810244000 2-way Valve Assy 9314554018 3-way Valve Sub Assy 9319098005 4-way Valve Assy 9319874012 Solenoid 9970110023 Pulse Motor Valve Assy 9314557019 Expansion Valve Coil 9970095030 2013.04.05...
-
Page 19: Accessories
