Page 1: Wall Mounted Type

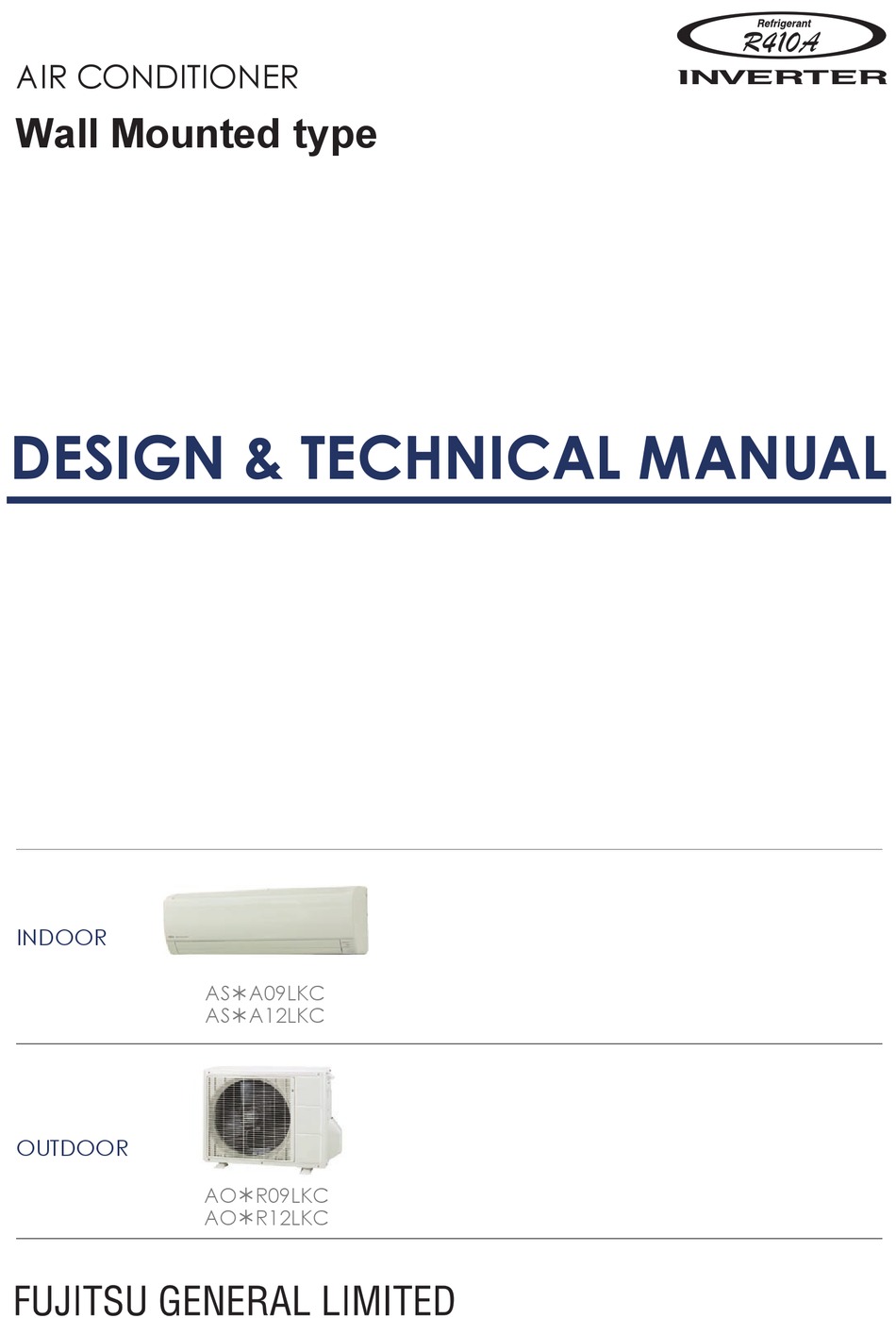

AIR CONDITIONER Wall Mounted type DESIGN & TECHNICAL MANUAL INDOOR ASA09LKC ASA12LKC OUTDOOR AOR09LKC AOR12LKC... -
Page 2: Indoor Unit
1.INDOOR UNIT WALL MOUNTED TYPE : ASA09LKC ASA12LKC DTR_AS039E_01 2010.02.24... -
Page 3: Table Of Contents
CONTENTS 1. INDOOR UNIT 1. FEATURE ........................01 - 01 2. WIRELESS REMOTE CONTROLLER ..........01 - 03 3. SPECIFICATIONS ....................01 - 05 4. DIMENSIONS ......................01 - 06 5. WIRING DIAGRAMS ..................01 - 07 6. CAPACITY TABLE .................... -
Page 4: Feature
FEATURE MODEL „ „ ASA09LKC ASA12LKC FEATURES „ „ Energy-Efficiency classification A „ Europe Energy-Efficiency classification A achieved ALL DC „ fan motor i-PAM control (12TYPE) When operation starts, the machine operates at high voltage and high power and when operation stabilizes, the set temperature is maintained at low voltage. V-PAM control (09TYPE) V-PAM technology makes a compressor more powerful. -
Page 5: Super Quiet
Super quiet „ Air flow mode can be set in 4 steps and more detailed air flow setting is possible. Fan speed Noise level Quiet dB(A) Easy maintenance „ Easy maintenance and always clean. Troublesome maintenance has been made easy. Since the front panel is easy to remove, maintenance is also easy. -
Page 6: Wireless Remote Controller
WIRELESS REMOTE CONTROLLER FEATURES „ „ Three kinds of timer setup (ON / OFF / SLEEP) ¾ „ are possible. Easy operation. ¾ „ Built-in timers „ Select from three different timer programs (On/Off/Sleep). Sleep timer „ The sleep timer function automatically corrects the temperature thermostat setting according to the time setting to prevent excessive cooling and heating while sleeping. - Page 7 FUNCTIONS „ „ Signal Transmitter OPERATION MODE button SET TEMP. button ( ECONOMY button COIL DRY button START/STOP button TEST RUN button This button is used when installing the air conditioner, and „ should not be used under normal conditions, as it will cause the indoor unit’s thermostat function to operate incorrectly.
-
Page 8: Specifications
SPECIFICATIONS WALL MOUNTED Type INVERTER HEAT PUMP Model name AS¾A09LKC AS¾A12LKC Power source 230V~ 50Hz Available voltage range 198-264V~ 50Hz Cooling European energy label Heating 2.50 3.40 Rated BTU/h 8,500 11,600 Cooling 0.5~3.0 0.9~3.8 Min-Max BTU/h 1,700~10,200 3,100~13,000 Capacity 3.20 4.00 Rated BTU/h... -
Page 9: Dimensions
DIMENSIONS MODEL : ASA09LK, ASA12LK „ „ (Unit : mm) INSTALLATION PLACE „ „ Wall hook bracket 5 cm or more 6 cm or more 9 cm or more 150 cm or more 180 cm or more (Wall cap) - (01 - 06) -... -
Page 10: Wiring Diagrams
WIRING DIAGRAMS MODEL : ASA09LK, ASA12LK „ „ TO OUTDOOR UNIT - (01 - 07) -... -
Page 11: Capacity Table
CAPACITY TABLE 6-1. COOLING CAPACITY MODEL : ASA09LK „ „ 11.8 Indoor temperature °CDB °CWB °CDB 2.34 1.60 0.55 2.61 1.61 0.56 2.70 1.75 0.56 2.87 1.76 0.56 2.96 1.90 0.57 3.14 1.89 0.57 3.32 2.01 0.58 2.22 1.52 0.62 2.48 1.53 0.62... -
Page 12: Heating Capacity
6-2. HEATING CAPACITY MODEL : AS A09LK „ „ 12.2 Indoor temperature °CDB °CDB °CWB 2.05 0.95 2.00 0.97 1.96 0.99 1.91 1.01 1.86 1.03 2.33 0.97 2.28 0.99 2.22 1.01 2.16 1.03 2.11 1.05 2.67 1.00 2.61 1.02 2.54 1.04 2.48 1.07... -
Page 13: Fan Performance And Capacity
FAN PERFORMANCE AND CAPACITY 7-1. AIR VELOCITY DISTRIBUTION MODEL : ASA09LK, ASA12LK „ „ Unit : m/s TOP VIEW Note: Vertical flap : Up Horizontal flap : Center Fan speed:High Operation mode:FAN Voltage:230V Unit : m/s TOP VIEW Vertical flap : Up Horizontal flap : Right &... -
Page 14: Air Flow
7-2. AIR FLOW MODEL : ASA09LK, ASA12LK „ „ COOLING „ Number of Fan speed rotations Air flow (r.p.m) m³/h HIGH 1400 m³/h 1200 m³/h m³/h QUIET zHEATING „ Number of Fan speed rotations Air flow (r.p.m) m³/h HIGH 1440 m³/h 1200 m³/h... -
Page 15: Operation Noise
OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : ASA09LK „ „ COOLING HEATING „ „ NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 High High NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 Quiet Quiet NC-15 NC-15 1,000 2,000... -
Page 16: Sound Level Check Point
8-2. SOUND LEVEL CHECK POINT - (01 - 13) -... -
Page 17: Electric Characteristics
ELECTRIC CHARACTERISTICS Model Name ASA09LKC ASA12LKC Voltage 230 ~ Power Supply Frequency Max Operating Current Circuit breaker *)Wiring Spec Connection Cable 1.5-2.5 Limited wiring length *) Wiring Spec Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005) - (01 - 14) -... -
Page 18: Safety Devices
SAFETY DEVICES Model Protection form ASA09LKC ASA12LKC Circuit protection Current fuse (PCB) 3.15A 250V Terminal protection Current (thermal) fuse 3A 250V 102°C Fan motor protection Terminal protection program MAX: 120±15°C - (01 - 15) -... -
Page 19: Optional Parts
OPTIONAL PARTS Exterior Parts name Model No. Summary Fine dust, invisible mold spores, and harmful microorganisms are absorbed Apple-catechin onto the filter by static UTR-FA16 electricity, and further growth filter is inhibited and deactivated by the polyphenol ingredient extracted from apples. The filter deodorizes by powerfully decomposing absorbed odors using the... -
Page 20: Wired Remote Controller
11-1. WIRED REMOTE CONTROLLER FEATURES „ „ Various timer setup (ON / OFF / WEEKLY) are possible. ¾ „ Equipped with weekly timer as standard function. ¾ „ (2 times Start / Stop per day for a week) When setting up a timer, operation mode and a temperature ¾... -
Page 21: Display Panel
FUNCTIONS „ „ START/STOP button Pressed to start and stop operation. Set temperature button Selects the setting temperature. Master control button Selects the operating mode(AUTO, HEAT, FAN, COOL, DRY). Fan control button Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH). Economy button Turns the economy efficient mode on and off. -
Page 22: External Connect Kit
11-2. EXTERNAL CONNECT KIT This kit allows to operate the air conditioner, such as stopping and starting, using an external device, and output the operation status of the air conditioner. • Only operation and stop signals will be output. Use the remote control to check the operation mode, temperature, and airflow. Check the error information on the display area of the main unit. - Page 23 11-2-2. Operating output setting • You can display air conditioner ON / OFF operation by e xternal o utput. Signal specification „ • No voltage contact. • Contact capacity : Max. DC24V 10mA to 1A or less OPERATION Indoor unit status STOP SHORT External output signal...
-
Page 24: Outdoor Unit
2.OUTDOOR UNIT SINGLE TYPE : AO R09LKC AO R12LKC DTR_AO058E_01 2010.02.24... - Page 25 CONTENTS 2. OUTDOOR UNIT 1. SPECIFICATIONS ....................02 - 01 2. DIMENSIONS ......................02 - 02 3. REFRIGERANT CIRCUIT ................02 - 03 4. WIRING DIAGRAMS ..................02 - 04 5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFERENCE ..................
-
Page 26: Specifications
SPECIFICATIONS Type INVERTER COOLING & HEATING Model name AOÛR09LKC AOÛR12LKC Power source 230V~ 50Hz Available voltage range 198-264V~ 50Hz Starting current Cooling 1,720 1,830 Air flow rate Heating 1,510 1,600 Type × Q'ty Propeller fan×1 Motor output Cooling Sound pressure level dB(A) Heating Dimensions (H ×... -
Page 27: Dimensions
DIMENSIONS MODEL : AOR09LK, AOR12LK „ „ (Unit : mm) φ20 19.5 INSTALLATION PLACE „ „ 100 mm or more 100 mm or more 200 mm or more If the space is larger that is stated, the condition will be the same as that are no obstacles. - (02 - 02) -... -
Page 28: Refrigerant Circuit
REFRIGERANT CIRCUIT MODEL : AOR09LK, AOR12LK „ „ Heat exchanger 3-Way ( INDOOR ) valve 2-Way valve Muffler 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) - (02 - 03) -... -
Page 29: Wiring Diagrams
WIRING DIAGRAMS MODEL : AOR09LK „ „ - (02 - 04) -... - Page 30 MODEL : AOR12LK „ „ - (02 - 05) -...
-
Page 31: Capacity Compensation Rate For Pipe Length And Height Diference
CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFERENCE MODEL : AOR09LK „ „ Pipe length (m) COOLING 0.872 0.910 Û 1 0.961 0.886 0.925 Indoor unit is upper 0.979 0.965 0.890 0.929 than outdoor unit. 0.992 0.983 0.969 0.893 0.933 Height difference H 1.000... - Page 32 MODEL : AOR12LK „ „ Pipe length (m) COOLING 0.858 0.868 Û 1 0.929 0.872 0.882 Indoor unit is upper 0.960 0.933 0.876 0.885 than outdoor unit. 0.992 0.964 0.937 0.879 0.889 Height difference H 1.000 0.972 0.944 0.887 0.896 1.000 0.972 0.944...
-
Page 33: Additional Charge Calculation
ADDITIONAL CHARGE CALCULATION MODEL : AOR09LK „ „ Refrigerant type R410A Refrigerant amount REFRIGERANT CHARGE „ Pipe length 20g/m Additional charge 0 (Charge less) +100 MODEL : AOR12LK „ „ Refrigerant type R410A Refrigerant amount REFRIGERANT CHARGE „ Pipe length 20g/m Additional charge 0 (Charge less) -
Page 34: Air Flow
AIR FLOW MODEL : AOR09LK „ „ COOLING „ Number of rotations Air flow (r.p.m) 1720 1012 HEATING „ Number of rotations Air flow (r.p.m) 1510 MODEL : AOR12LK „ „ COOLING „ Number of rotations Air flow (r.p.m) 1830 1077 HEATING „... -
Page 35: Operation Noise
OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : AOR09LK „ „ COOLING HEATING „ „ NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000... -
Page 36: Sound Level Check Point
8-2. SOUND LEVEL CHECK POINT - (02 - 11) -... -
Page 37: Electric Characteristics
ELECTRIC CHARACTERISTICS Model Name AOÛR09LKC AOÛR12LKC Voltage 230 ~ Power Supply Frequency Starting Current *) Wiring Spec Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005) - (02 - 12) -... -
Page 38: Safety Devices
SAFETY DEVICES Model Protection form AOÛR09LKC AOÛR12LKC Current fuse 20A 250V (Near the terminal) Circuit protection Current fuse 3.15A 250V (MAIN PRINTED CIRCUIT BOARD) OFF:100 °C Fan motor protection Terminal protection program ON:95 °C Terminal protection program OFF:110°C Compressor protection (DISCHARGE TEMP) ON: After 7 minutes - (02 - 13) -...
