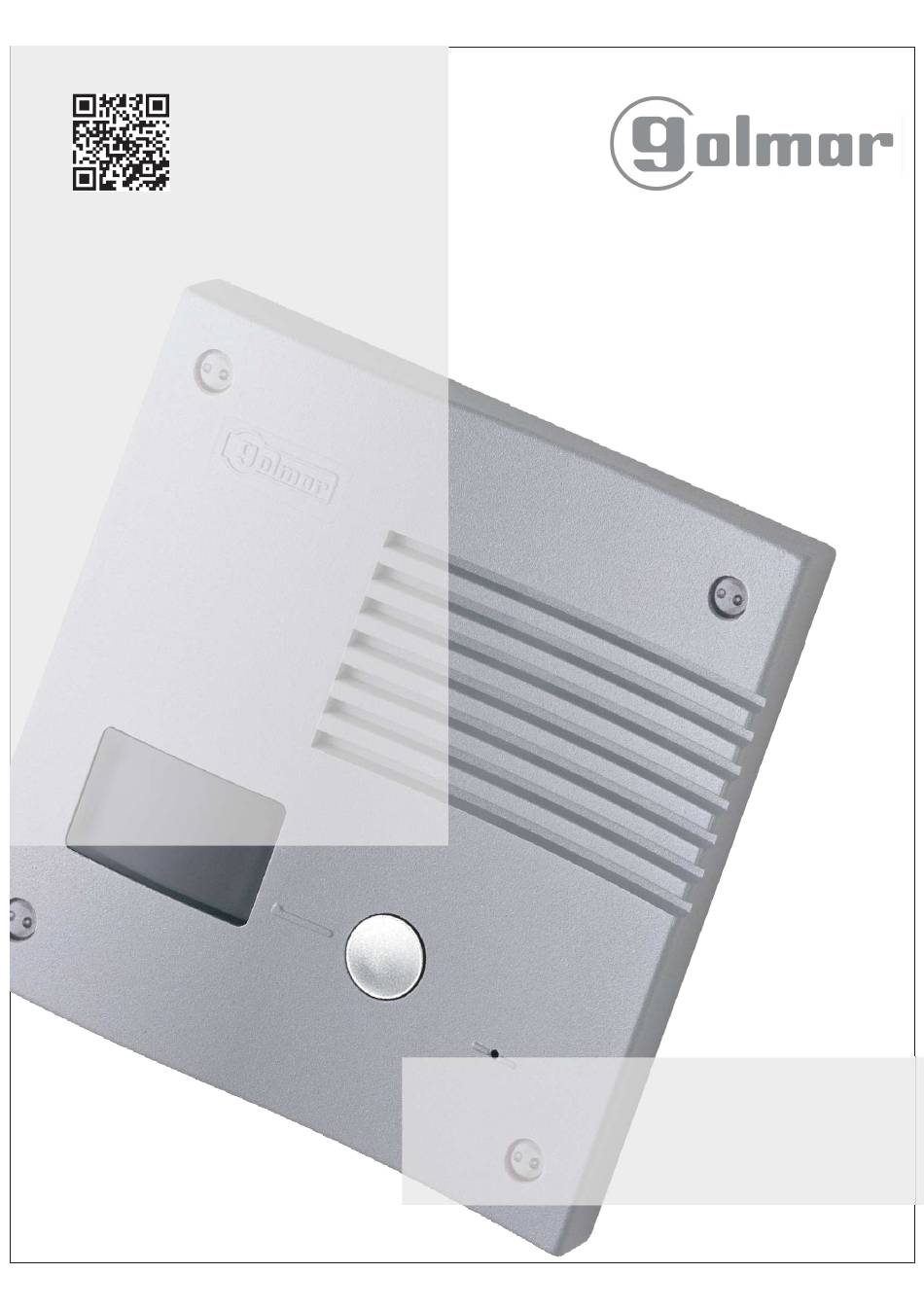

- Page 1 Cód. 50124602 Video Kit 3 + coax 4 + tp Rock Series Installation manual T801ML rev.0 1...
-
Page 2: Table Of Contents
O Each time the power supply is restarted, or after a modification, the system will remain blocked during 45 seconds. O Always use RG-59 B/U MIL C-17 or RG-11 coaxial cables, (see page 69 Never use coaxial antenna cable. In installations no longers than 100m., Golmar RAP-5130 cable can be used. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS O Install or modify the equipment without the power connected O The installation and handling of these equipments must be performed by authorised personnel O The entire installation must be at least 40 cm . away from any other installation O With power supply: wDo not use excessive force when tightening the connector screws. -
Page 4: System Operation
SYSTEM CHARACTERISTICS Coming from previous page O With T- 40 Plus telephones: w Privacy on audio communications. w Three-position control for call volume: maximum, medium and off. w Input for external door bell push button. w Input for external door release push button. w Negative o utput for additional call repeater (maximum current 250mA) -
Page 5: Door Panel Installation
DOOR PANEL INSTALLATION ositioning of the embedding 1850 1650 1450 Drill one hole in the wall so that the upper part of the doorpanel is installed at a height of 1,65m. Drill dimensions are : 131( Width ) x 131( Height ) x 45( Depth... -
Page 6: Door Panel Configuration
DOOR PANEL INSTALLATION oor panel configuration. door panel is provided with microswitches (SW1) a jumper (JP1) in its rear part; Their functions are described below. It allows the connection of an alternative current door opener; page shows the connection diagram. It allows the connection of a direct current door opener;... -
Page 7: Final Adjustments
DOOR PANEL INSTALLATION inal adjustments If, when using the device, audio volume is inadequate, it is necessary to carry out some adjustments, as shown in the picture. The camera is equipped with an horizontal and vertical orientation device. If orientation is not correct, change it. Fix the doorpanel to the... -
Page 8: Tekna Plus Se Monitor
MONITOR DESCRIPTION escription of the Tekna Plus monitor. REF. TEKNA PLUS SE CODE 11742105 00000000000 INTER SLAVE MASTER CODE ATENCIÓN Alta tensión. No abrir la tapa. ESCALERA PISO PUERTA Manipular sólo por personal STAIR FLOOR DOOR del servicio técnico. WARNING High voltage. - Page 9 MONITOR DESCRIPTION unction push buttons. One short press for 1 second, with the monitor in standby and the handset on or off the hook, activates night mode on the monitor, confirmed by the status LED blinking red. During a call, the monitor does not emit a ringtone unless it is an apartment front “...
-
Page 10: Connector
1 2 3 4 5 6 7 8 +18V White + Blue Data Green White + Brown 1 2 3 4 5 6 7 8 Male connector Female connector Brown NOT : E For this type of installation contact our Golmar technical support department. -
Page 11: El562 Module
MONITOR ADJUSTMENTS se of the end of line jumper end of line jumper is located in CN4 connector, in the rear part of the monitor In systems with twisted pair, the end of line jumper is located in the EL562 module (see next paragraph) Do not remove jumper in those monitors where the video cable end is located. -
Page 12: Monitor Connector
MONITOR CONNECTOR DESCRIPTION escription of the RCTK-PLUS monitor connector. CABLE Max. Max. pelado del cable. Max. câble dénudé. Max. peeled cable. Max. aanstrip lengte. 50mm. ( ) * Malla Malla Malla Shield Shield Shield 50mm. Malla Malla Malla ( ) * Shield Shield Shield... -
Page 13: Monitor Installation
MONITOR INSTALLATION ix the monitor connector to the wall. Avoid to place the monitor near to heating sources, in dusty locations or smoky environments. To install the monitor directly over the wall, drill two holes of Ø6mm. and use the supplied screws. The upper part of the monitor connector must be placed at 1,60m. -
Page 14: Programming
MONITOR PROGRAMMING rogramming the Tekna Plus monitors MEMBER Monitors must be programmed only in case of installed parallel units or if there are general door panels. Find the configuration switch located in the rear part of the door panel and set number to door panel will produce a tone, indicating that it has... - Page 15 MONITOR PROGRAMMING Coming from previous page To programme the monitor as Slave without video ress button and the status LED will blink green once. If button is pressed again , the monitor will return to being programmed as Slave with video , and the status LED will blink green twice.
- Page 16 MONITOR PROGRAMMING dvanced programming of Tekna Plus SE monitor Advanced programming enables the monitor's default settings to be changed: Switch off the monitor to be programmed. Once switched off, press button for 3 seconds to enter Menu 1 " " of advanced programming, and the programming LED will illuminate.
- Page 17 MONITOR PROGRAMMING Coming from previous page Accessing Menu 2 or exiting programming mode: " " To access " Menu 2 " , press button , and the programming LED will blink twice. To exit programming mode, press button for 3 seconds, and the programming LED will turn off (see page Menu 2: Then adjust the settings as required:...
- Page 18 MONITOR PROGRAMMING Coming from previous page - Accessing "Menú 3" or exiting programming mode: To access " Menu 3 " , press button , and the programming LED will blink 3 times To exit programming mode, press button for 3 seconds, and the programming LED will turn off (see page Menu 3: Then adjust the settings as required:...
- Page 19 MONITOR PROGRAMMING Coming from previous page Menú 4: Then adjust the settings as required: - Default setting, all the advanced monitor programming options: Set to "default setting": Press button , and the monitor will indicate with 2 acoustic tones that all the options of the advanced programming of the monitor (pág.
- Page 20 TELEPHONE DESCRIPTION escrip tion of T- 40 Uno telephone. Handset Sound diffusion unit Microphone Fixing hole Phone cord connector. Function button Hang up button unction button. When the handset is lifted, it is possible to make a call to master porter's exchange.
- Page 21 TELEPHONE INSTALLATION x the telephone to the wall In order to connect the phone and to fix it to the wall, it is necessary to open it. Put a flat screwdriver in the proper openings as shown in the picture and prise them open. Do not install the device near heat sources, in places with dust or fumes.
- Page 22 TELEPHONE PROGRAMMING rogramming the T- 40 Uno telephones. Find the configuration switch located in the rear part of the door panel set number 2 to ON. door panel will produce a tone, indicating that it has entered program mode. In systems with more than one door panel, this operation must be carried out only in the main...
- Page 23 TELEPHONE DESCRIPTION escription of the T-540 Plus telephone Telephone handset. Speaker grille Microphone hole Subjection hole Telephone cord connectors. Door release push button Hook switch Auxiliary function push button. Volume control. erminal connector description. +, - : Positive, negative (18Vdc) A , D : Audio, digital communication.
- Page 24 TELEPHONE DESCRIPTION unction push buttons If the handset is on the craddle sends a panic call to the porter's exchanges that have enabled the reception of this type of call. If not, allows to call to the master porter's exchange. During call reception and communication progresses allows the lock release activation.
-
Page 25: Telephone Installation
TELEPHONE INSTALLATION ix the telephone to the wall. It is necessary to open the telephone for wiring and fixing purposes To open the telephone, insert a plain screwdriver into the slots and gently lever as shown in the drawing. Avoid placing the telephone near sources of heat, in dusty locations or smoky environments The telephone can be fixed using an electrical embedding box or directly on the wall, as shown on the picture If the telephone will be... -
Page 26: Programming
TELEPHONE PROGRAMMING rogramming the T- 40 Plus telephones. Find the configuration switch located in the rear part of the door panel set number 2 to ON. door panel will produce a tone, indicating that it has entered program mode. In systems with more than one door panel, this operation must be carried out only in the main... -
Page 27: Programming
To carry out this operation, do as follows. NOT : E For this type of installation, please contact the technical trade department of Golmar. ackbone code programming. The general door panel enters programming mode after... - Page 28 ne or more accesses, alternative current lock release and coaxial cable. Link Link D4L-PLUS Link Link M =Master. S =Slave. PVS-295SE FA-805 230 110 0 out- out+ Main Vca. Lock release...
-
Page 29: Installation Diagrams
INSTALLATION DIAGRAMS Tekna Plus SE RCTK Plus Example of cascade connected devices Remove N4 connector jumper from all the monitors see page ), except from the one in which the coaxial cable end is located without using output). Malla xample of distribution connected devices Remove the end of line jumper from all the distributors (JP1) and monitors... - Page 30 ne or more accesses, alternative current lock release and twisted pair. EL562 EL562 EL562 EL562 D6L-Plus/2H M =Master. S =Slave. PVS-295SE FA-805 230 110 0 out- out+ Main Vca. Lock release...
- Page 31 INSTALLATION DIAGRAMS Tekna Plus SE RCTK Plus Example of cascade connected devices. Remove jumper of all EL562 circuits EL562 from monitors see page 48 except from the one in which the twisted pair end is located Example of distribution connected devices. Remove the end of line jumper from all the distribu tors...
-
Page 32: Sections Charts
INSTALLATION DIAGRAMS ock release connection. a.c. lock release d.c. lock release FA-805 FA-805 PVS-295SE PVS-295SE 230 110 0 Main Main In order to open the door in any moment by means of an external button, connect the button between door panel terminals 'CV1' 'CV2’... -
Page 33: Optional Connections
OPTIONAL CONNECTIONS uxiliary devices activation with Tekna Plus monitor. To activate auxiliary devices the use of a SAR-12/24 relay unit will be required. If this device is shared for all the Tekna Plus monitors, link their A1 terminal and use just one relay unit. In case that each monitor has its own application use a SAR-12/24 relay unit for each monitor and don't link the A1 monitor terminals. - Page 34 OPTIONAL CONNECTIONS ctivation of a second camera. The use of a SAR-12/24 relay will be required to activate a second camera and set the monitor push button with the function "second camera activation 2C" , as it's described on page s 46 and 54 .
-
Page 35: Intercom
OPTIONAL CONNECTIONS ntercom function. Tekna Plus monitor and (*) T- 40Plus telephone have intercom facility between two units of the same apartment . To enable this function check the following conditions: - One of the units has been configurated as master and the other unit as slave with intercom, as described on pages . - Page 36 OPTIONAL CONNECTIONS uxiliary devices activation with T- 40 Plus telephone. First t T- 40 Plus telephone must be configured with SW1 dip switch in "PA" output mode function (see page To activate auxiliary devices the use of a SAR-12/24 relay unit will be required. If this device is shared for all the T- 40 Plus telephones, link their PA terminal and use just one relay unit.
-
Page 37: Troubleshooting
TROUBLESHOOTING O Your device does not work. w Make sure that power supply output tension between terminals '–' remains between 17,5 18,5V .c. Otherwise, disconnect the power supply from the system and measure tension again If it is correct, there is a short circuit in the installation. -
Page 38: Compliance
Sistemas de comunicación S.A. golmar@golmar.es www.golmar.es GOLMAR S.A. C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar reserves the right to make any modifications without prior notice.
