Unpacking - Currys Essentials CFSG10WH Instruction & Installation Manual

Thank you
You must read this manual in order to fully understand how to operate it correctly.
This unit MUST be installed by a competent and Registered Engineer (Gas Safe in the UK).
Please allow the installer to view the installation section of this manual.
Read all the safety instructions carefully before use and keep this manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local
regulations.

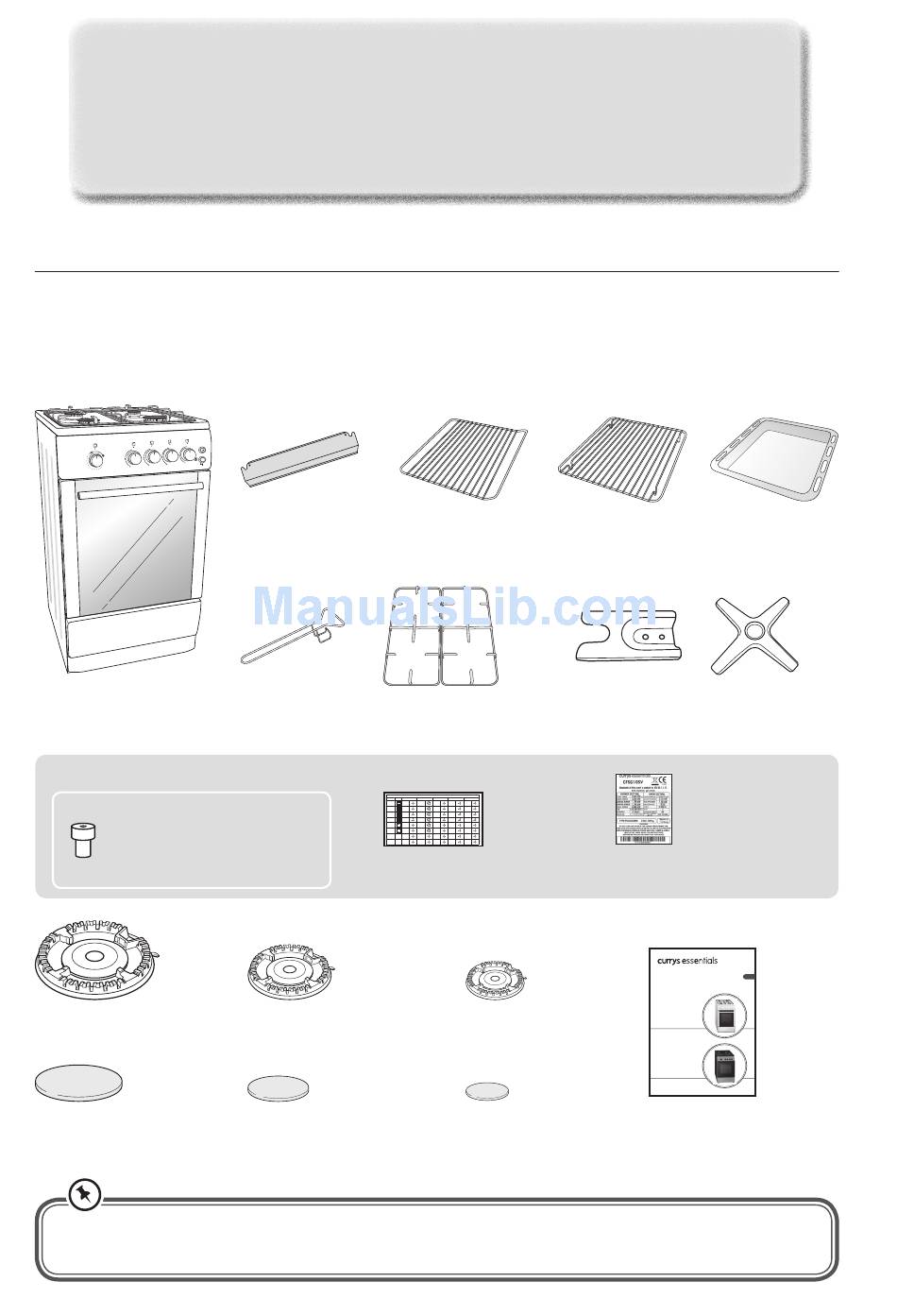

The following items are included:
0
Max
9
8
7
6
5 Min
4
3 2
1
The Main Unit
LPG Conversion Kit:
LPG nozzles x 6
Large Burner (P.N.: 20-40-59-001)
Standard Burner x 2 (P.N.: 20-40-59-002)
Small Burner (P.N.: 20-40-59-003)
Oven Burner (P.N.: 20-40-59-005)
Grill Burner (P.N.: 20-40-59-010)
Large Burner Ring × 1
P.N.: 20-40-72-001
Large Burner cap × 1
P.N.: 20-40-75-001
If items are missing, or damaged please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
for purchasing your new Currys Essentials Free Standing Gas Cooker.
Grill Deflector x 1
P.N.: Y10-05-40-0008
Grill Pan Handle x 1 Pan Supports (Left/Right) × 2
P.N.: 20-25-90-006 P.N.: 20-25-22-003
BURNER
NAME
RAPID
BURNER
SEMI-RAPID
BURNER
SEMI-RAPID
BURNER
AUXILIARY
BURNER
GRILL
BURNER
OVEN
BURNER
LPG Nozzle Installation Guide x 1
P.N.: 20-10-60-030
Standard Burner Ring × 2
P.N.: 20-40-72-002
Standard Burner Cap × 2
P.N.: 20-40-75-002
Oven Shelf x 1 Grill Rack x 1
P.N.: 20-25-11-001 P.N.: 20-25-11-004
50*60 INJECTOR TABLE FOR FREE STANDING OVENS TCN 05-2010
BURNER NG G20 (20mBar) LPG G20 (30mBar) NG G25 (25mBar) NG G20 (13mBar) LPG G30 (50mBar)
SYMBOL
Ø Ø Ø Ø Ø
1.15 mm 0.85 mm 1.20 mm 1.45 mm 0.75 mm
Ø Ø Ø Ø Ø
0.97 mm 0.65 mm 0.95 mm 1.10 mm 0.50 mm
Ø 0.97 mm Ø 0.65 mm Ø 0.95 mm Ø 1.10mm Ø 0.50 mm
Ø 0.72 mm Ø 0.50 mm Ø 0.70 mm Ø 0.85 mm Ø 0.43 mm
Ø 0.92 mm Ø 0.60 mm Ø 0.92 mm Ø 1.10 mm Ø 0.60 mm
Ø 0.97 mm Ø 0.70 mm Ø 0.95 mm Ø 1.50mm Ø 0.70mm
Small Burner Ring × 1
P.N.: 20-40-72-003
Small Burner Cap × 1
P.N.: 20-40-75-003
Grill Tray x 1
P.N.: Y10-05-40-0009
Stability Bracket x 2 Small Pan Stand x 1
P.N.: Y10-01-40-0018 P.N.: Y30-01-40-0024
LPG Replacement Rating Plate x 1
P.N.: 20-10-15-010
F R EE ST A ND I N G GA S C O O K ER
I NS T R UC T I O N / I NST A L LA T I O N M A NUA L
C F SG 1 0 WH
C F SG 1 0 SV
Instruction / Installation Manual
P.N.: CFSG10WH_SV-002
GB
