2.

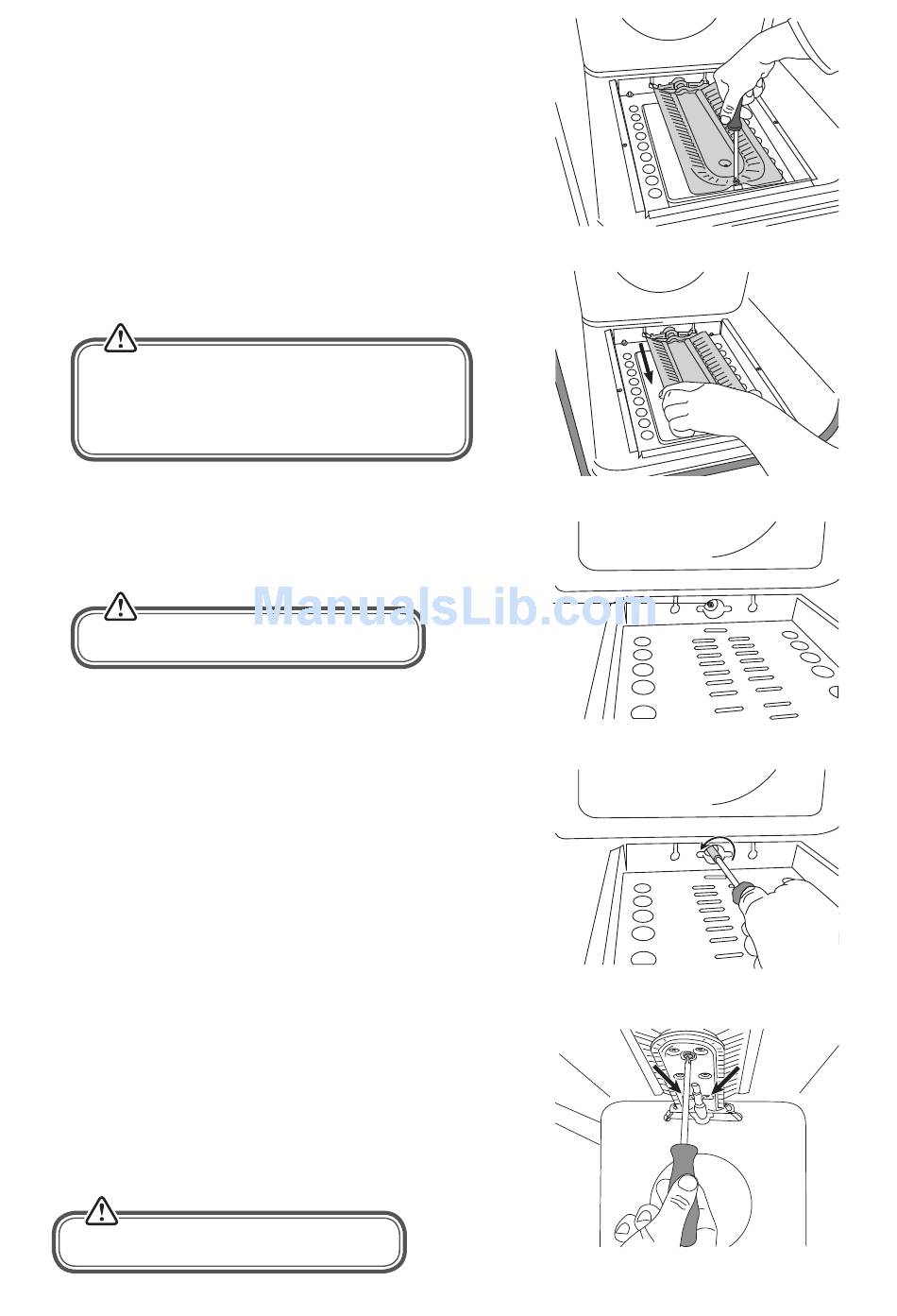

Remove the oven burner screw as shown.
3.
The oven burner shall be removed in the direction of the
arrow carefully as shown.
During disassembly of the oven burner, the
thermocouple and spark igniter connection
sheet assembly must not be changed since it
will cause the oven not to work correctly.
4.
Injector removal is possible after removal of the oven burner.
A 7 mm socket nut screw driver is necessary for removal of
the injector as shown.
Do not to drop the injector into the cavity.
5.
Assembly is the reverse of the above as shown.
Removal of the Grill Burner Injector
Electric and gas connections must be switched off and isolated
before disassembly of the grill burner.
There is no cover sheet over the grill burner. All 3 screws on the
grill burner must be removed by screwdriver as shown.
• Injector removal is possible after removal of the grill burner. A
7 mm socket nut screw driver is necessary for removal of the
injector.
Do not to drop the injector into the cavity.
Injector
25
