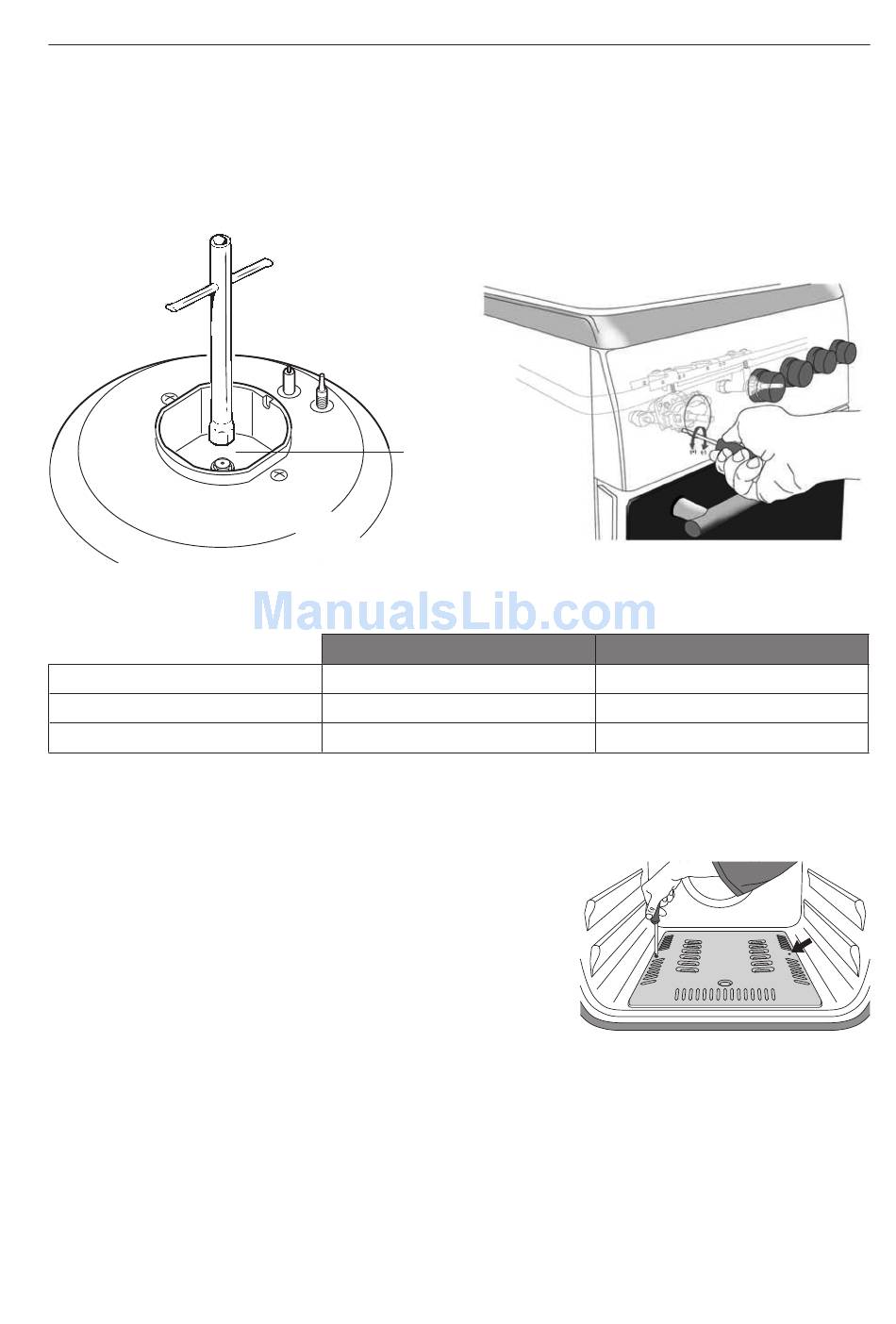

Replacement of Burner Injectors

Select the injectors to be replaced according to the "Table for the choice of the injectors".

To Replace the Hob Injectors

Remove the pan supports and burners from the cooktop. Using a wrench substitute the nozzle injectors with
those most suitable for the kind of gas which is being used. The burners are designed so that the adjustment of
primary air is not required.
The gas flow adjustment is made by turning a small screw on the control valves.
Large Burner
Standard Burner
Small Burner

To Replace the Oven/Grill Injectors

Removal of the Oven Burner

Electric and gas connections must be switched off and isolated
before disassembly of oven burner.
1. Two screws need to be removed to take off the oven burner
cover sheet as shown.
• The following components are visible after the removal of the
oven burner cover sheet:
• Oven Burner
• Oven Injector
• Thermocouple
• Spark Igniter
24
Injector
From LPG Natural Gas
3 turns anti-clockwise
2.5 turns anti-clockwise
2 turns anti-clockwise
From Natural Gas to LPG
3 turns clockwise
2.5 turns clockwise
2 turns clockwise
