15-CLEANING AND MAINTENANCE

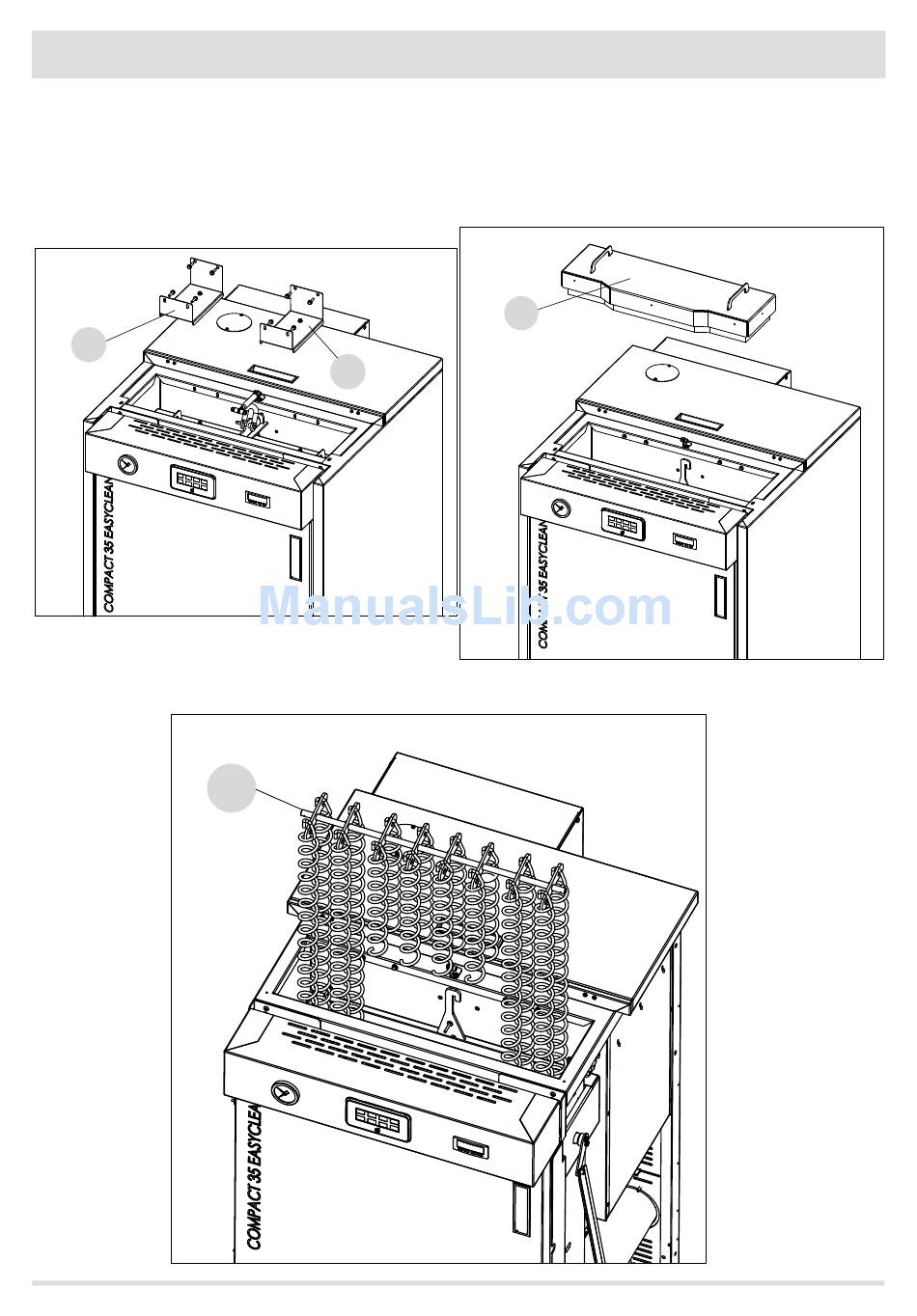

Remove the two cross-beams "R" by taking out the 4 screws and lift cover "S". Now remove the two turbulators "T" and, using a stiff rod
or a bottle brush, clean the internal pipe unit and the turbulators; remove all of the accumulated ash, use a vacuum cleaner if necessary.
Check the cover seal and replace it if necessary.
S
R
R
T
