12-MENU ENTRIES AND OPERATION
< Smoke Fan rpm >
8

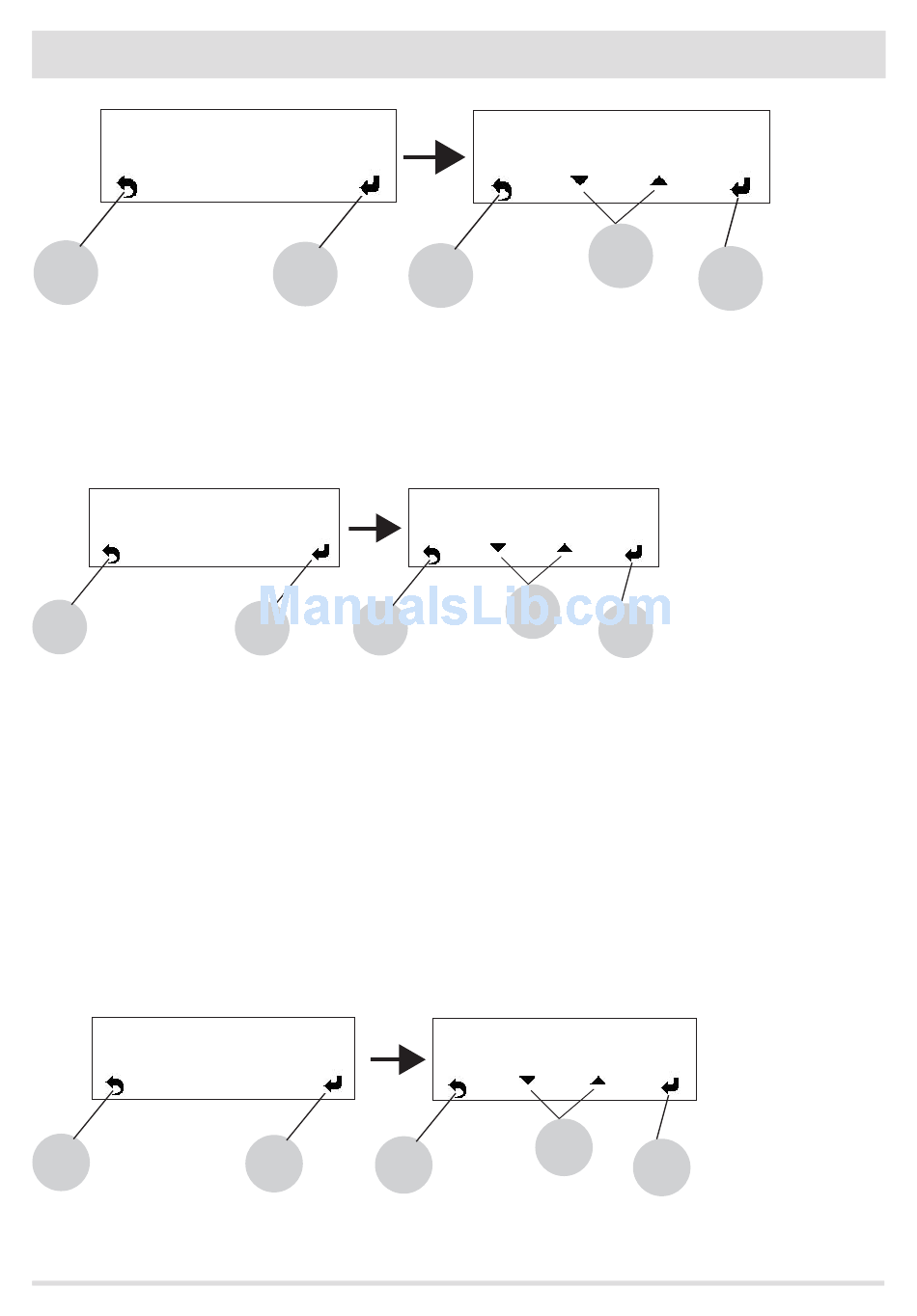

Use key 5 to go to the settings menu and select the Smoke Var.rpm option. Confirm with key 5 and then with keys "b" (arrows) you can
increase or reduce the %. Key 5 is used to confirm, while key 8 is used to go back to the main screen.
l - Maximum power (only for experienced users)
Allows you to set the maximum power limit of the flames which the boiler can use to reach the set target temperature.
Use key 5 to go to the settings menu and select the Maximum power option. Confirm with key 5 and then with keys "b" (arrows) you can
change the power value from 01 to 05. Key 5 is used to confirm, while key 8 is used to go back to the main screen.
< Maximum Power >
3
8
m - Component test (only when boiler is off).
This can be done only when the boiler is off and allows you to select the components to be tested:
•
Spark plug: it is turned on for a fixed test period during which the panel displays the countdown in seconds.
•
Feed screw: it is powered for a fixed test period during which the panel displays the countdown in seconds.
•
Smoke extractor: it is activated at 2500 rpm for a fixed test period during which the panel displays the countdown in seconds.
•
Exchanger (test not available for the boiler): enables you to conduct the test in V5 for a fixed test period of 1 minute during
which the panel displays the countdown in seconds.
•
Pump: it is activated for a fixed period of 10 seconds during which the panel displays the countdown.
•
3-way valve: the 3-way valve is activated for a fixed test period of 1 minute during which the panel displays the countdown in
seconds.
< Components Test >
3-way valve
8
Use key 5 to go to the settings menu and select the Component test option. Confirm with key 5 and then with keys "b" (arrows) you can
select the test you want to carry out. Key 5 is used to confirm, while key 8 is used to go back to the main screen.
46 46
00%
5
5
8
5
8
< Smoke Fan rpm >
8
< Maximum Power >
4
b
< Components Test >
Feed screw
b
10%
b
5
5
5
