RED COMPACT 35 Easy Clean Installation Manual page 51

12-MENU ENTRIES AND OPERATION
o - System configuration
With keys 1 and 4 in the menu, select the SETTINGS control. With key 5, go into the settings menu and select the option System Config.
The display of the room temperature or external thermostat status depends on the value of the "EXT therm" parameter.

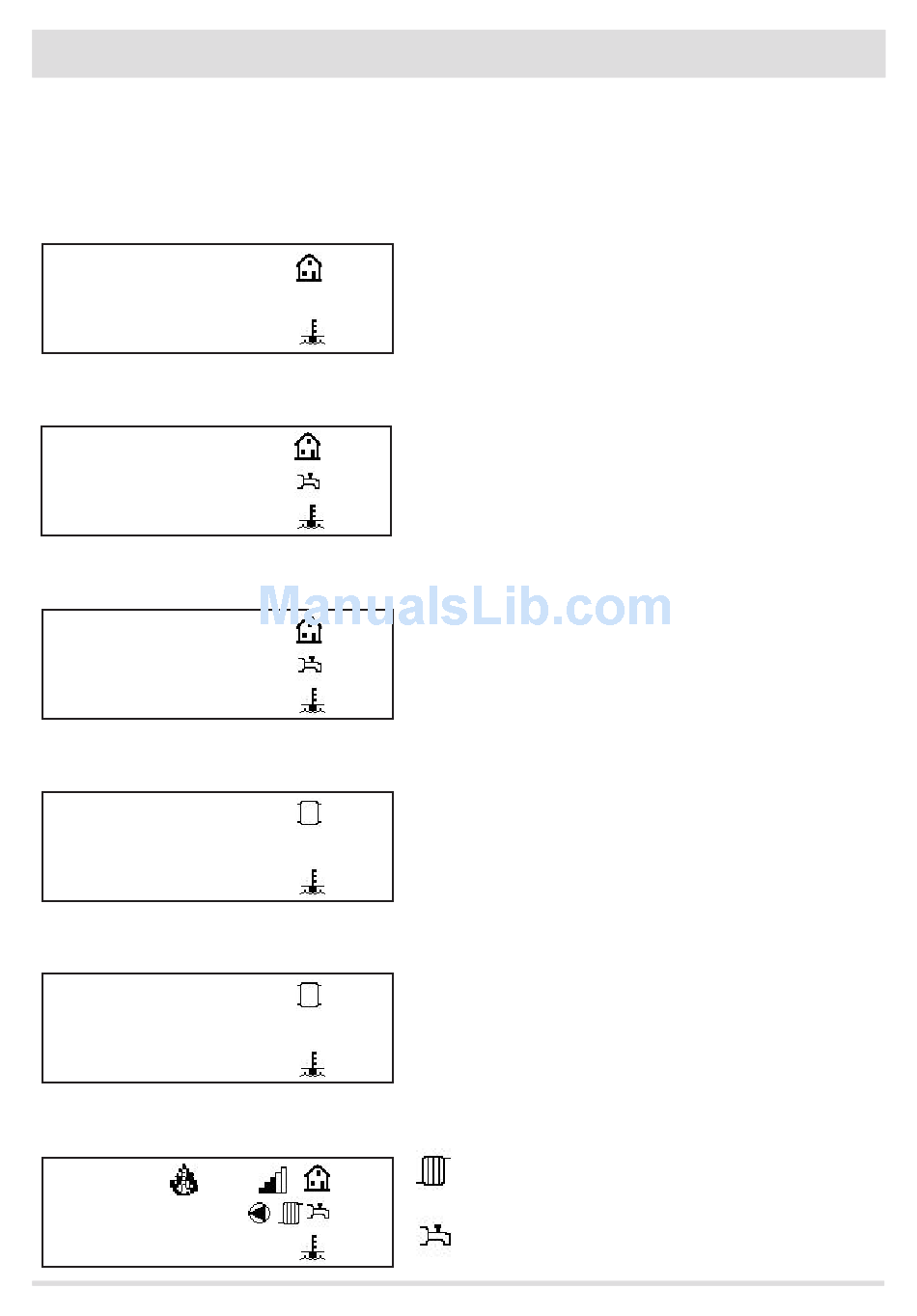

CONFIGURATION 1
OFF
12:30
MENU
Eco Mode on
CONFIGURATION 2
OFF
12:30
MENU
Eco Mode on
CONFIGURATION 3
OFF
12:30
MENU
Eco Mode on
CONFIGURATION 4
OFF
12:30
MENU
Eco Mode on
CONFIGURATION 5
OFF
12:30
MENU
Eco Mode on
For configurations 1-2-3
ON
12:30
MENU
Eco Mode on
Technical Dept. - All rights reserved - Reproduction is prohibited
20°
70°
20°
ROOM TEMPERATURE
OR EXTERNAL THERMOSTAT STATUS
DHW CONTACT STATUS
70°
WATER PROBE STATUS
OFF
ROOM TEMPERATURE
50°
OR EXTERNAL THERMOSTAT STATUS
70° WATER PROBE STATUS
OFF
PUFFER THERMOSTAT STATUS
70°
WATER PROBE STATUS
60°
PUFFER TEMPERATURE
70°
WATER PROBE STATUS
Flashing icon if there is demand for heat from the
20°
heating system, otherwise it does not appear
50°
Flashing icon if there is demand for heat from the
70°
hot water system
49 49
