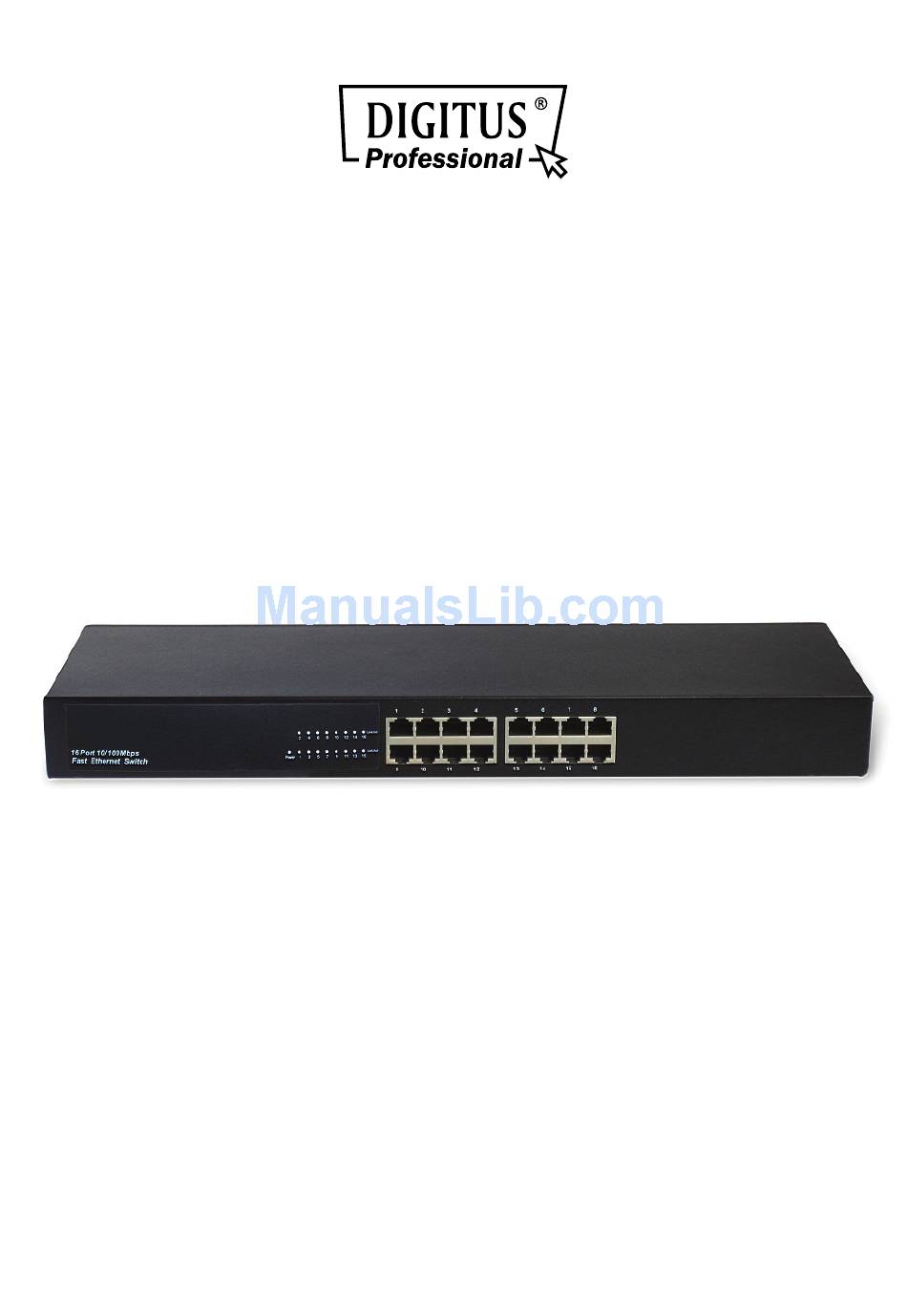

- Page 1 16-Port 10/100Mbps Ethernet Switch Manual DN-60011-1...

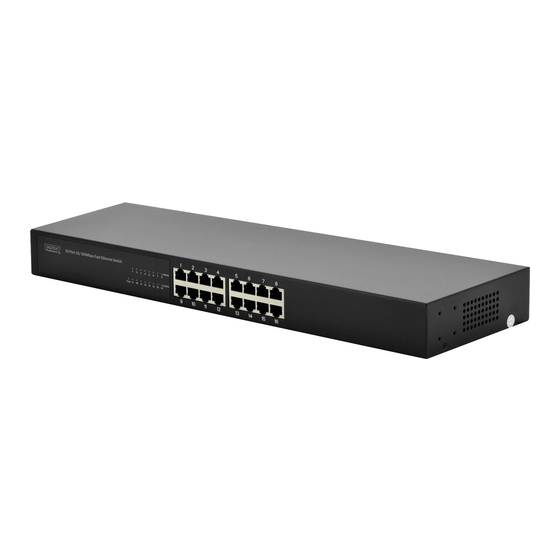

- Page 2 Description DN-60011-1 is 16-port 10/100Mbps unmanaged Ethernet Switch. Adopt professional IP1717 switch chips, the switch provides 16 x 10/100Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.
-
Page 3: Chapter 1 Introduction
Chapter 1 Introduction Congratulations on your purchase of this 10/100Mbps switch. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product. -
Page 4: Chapter 2 Installation
Chapter 2 Installation 2.1 Front Panel LEDs Power LED This green indicator illuminates when the Switch is receiving power. Link/Act This green indicator illuminates steadily when a port is connected to a station successfully, If this green indicator is blinking, it indicates that a port is transmitting or receiving data on the network. - Page 5 Specification Model DN-60011-1 Chipset IP1717+IP108A Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) Network Media (Cable) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) Number of Ports 16 x 10/100Mbps Auto-Negotiation ports 10/100M Link/Act...
