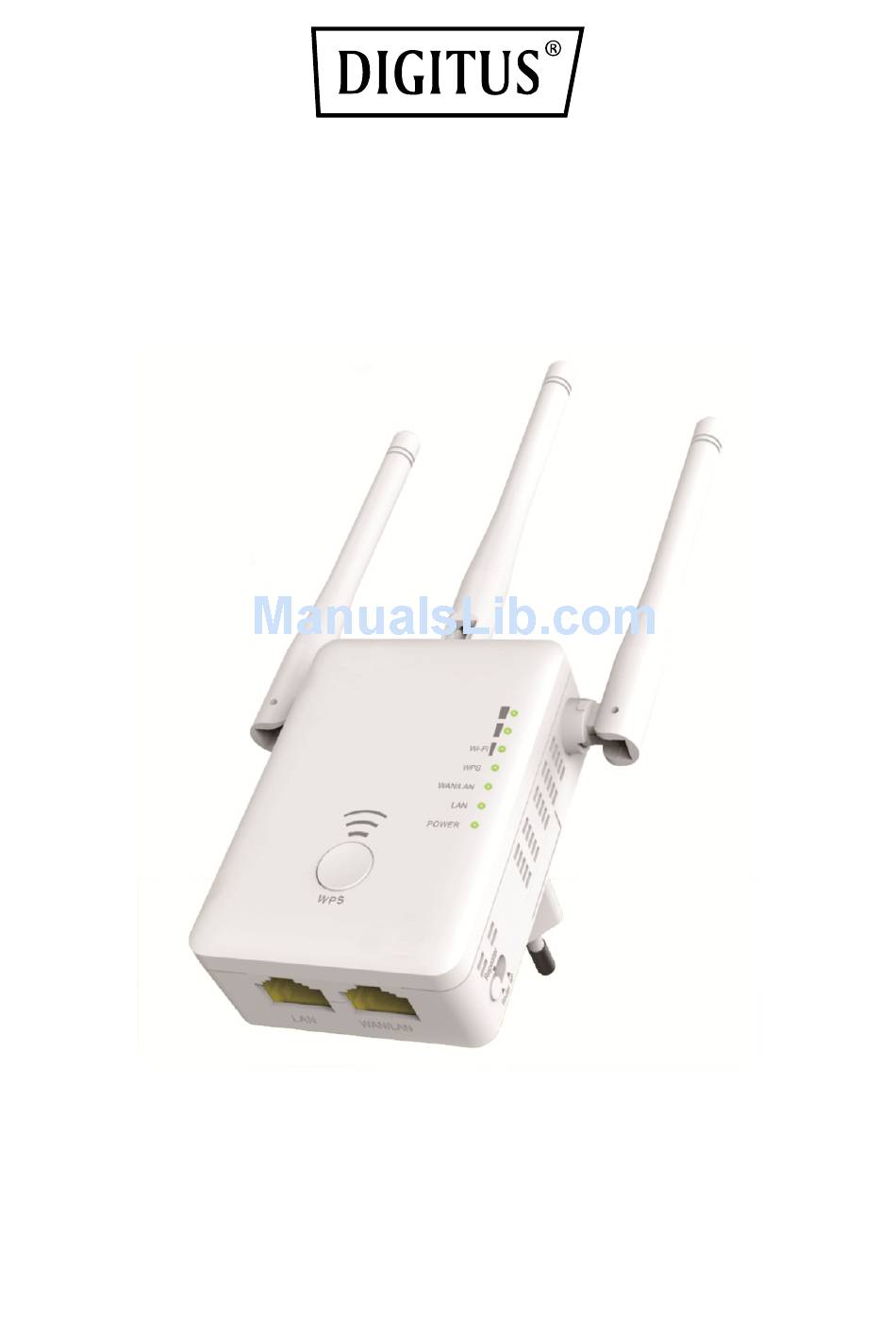

- Page 1 Concurrent 11AC WiFi Repeater/AP/Router Quick Installation Guide DN-70184...
- Page 2 Open Source Code This product includes software codes developed by third parties. These software codes are subject to either the GNU General Public License (GPL), Version 2, June 1991 or the GNU Lesser General Public License (LGPL), Version 2.1, February 1999. You can copy, distribute, and/or modify in accordance with the terms and conditions of GPL or LGPL.
-
Page 3: Default Parameters

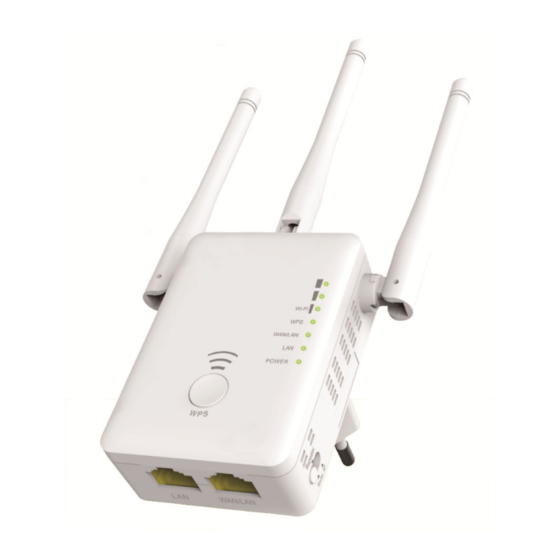

Hardwear Overview Power LED LAN LED WAN/LAN LED WPS LED 5. 3 x Wi-Fi Single WPS Button Mode Selector POWER On/Off LAN Port 10. WAN/LAN Port 11. Reset Button: 3 seconds Default Parameters 2.4G SSID: Wireless-N Default IP: 192.168.10.1 5G/AC SSID: Wireless-AC URL: http://ap.setup Wireless Key: no... -
Page 4: Getting Started
Getting Started Setting up a Wireless Infrastructure Network For a typical wireless setup at home (as shown below), please do the following: Press MODE Switch Button for AP/ Repeater / Router MODE. Wireless AP Mode The AP/Router is connected to a wired network then transforms the wired Internet access into wireless so that multiple devices can share the Internet. - Page 5 Configure the Wi-Fi Repeater Mode Configure the Wi-Fi Repeater Mode with WPS Button This is the easiest way to configure the AP/Router. First, check whether your wireless router supports WPS. For further details, please read the operating instructions for your wireless router. The mode selector must be set to the "Repeater"...
- Page 6 You can configure the Wi-Fi Repeater Mode by connecting it with your computer/laptop with enclosed RJ45 cable or wirelessly. A. Configure the Wi-Fi Repeater Mode wirelessly A1. The mode selector must be set to the “Repeater" position for Repeater Mode. Plug the AP/Router into a wall socket.
- Page 7 A4.The login screen below will appear. Enter the User Name and Password then click “Submit” to login. The default User name is “admin” and Password is “admin”. A5.After logging in, you will see the web page below: Click on the “Repeater Wizard” button.
- Page 8 A6. From the list, select a wireless network with which you want to connect the AP/Router by choosing the corresponding network in the "Select" field. A7. After having selected a wireless network, you must then specify the network key of your wireless router for Security key. After completing the entry, click on the “Apply”...
- Page 9 Configure the Wireless AP Mode Use the AP Mode to obtain a "Wireless Access Point". The wireless end devices will connect to the AP/Router in this mode. You can also use this mode, for example, to make a formerly non-wireless-enabled router wireless-enabled. The mode selector must be set to the "AP”...
- Page 10 The following message will be displayed on your web browser: SSID AP/Router Wireless SSID of the Setup the wireless security and encryption to prevent from unauthorized access and monitoring. Security type Supports WPA, WPA2, WPA/WPA2 encryption methods. AP/Router The "Password" of the Security key Click on ‘Apply’...
- Page 11 Configure the Wireless Router Mode The AP/Router is connected to a DSL or cable modem and works as a regular wireless router. Internet access from DSL or cable modem is available for one user but more users need to share the Internet. 1.
- Page 12 Choose your WAN Connection Type If Dynamic IP is selected, the Router gets the IP address automatically from the DHCP server or the ISP. No configuration should be set and you can go on with the wireless configuration. If DSL Dial-Up (PPPoE) is selected, please enter the User Name and Password from your ISP, These fields are case-sensitive.
- Page 13 If Static IP is selected, please enter the IP Address, Subnet Mask, Default Gateway, etc. Set the wireless parameter. It's recommended that you rename an SSID, choose a Security Mode and enter a Key. SSID AP/Router The "SSID" of the Channel recommend Auto (...
- Page 14 Management via Web Browser Wireless Base Configuration Please follow the following instructions: Click “Wi-Fi -> Basic Settings” located at the web management interface, the following message will be displayed on your web browser: You could configure the basic setting of Wireless settings for communication, such as Network Name (SSID) and Channel.
- Page 15 Change Management password Default password of Wireless Repeater is “admin”, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it. This is very important when you have wireless function enabled.
- Page 16 Firmware Upgrade The system software used by this router is called ‘firmware’, just like any applications on your computer, when you replace the old application with a new one, your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router.
- Page 17 Factory Default and Settings Backup, Restore You can backup all Setting of this router to a file, so you can make several copied of router configuration for security reason. To backup or restore router setting, please follow the following instructions: Please click ‘Save/Reload setting’...
- Page 18 How to connect your computer/laptop with the AP/Router Adding a Wireless computers to the AP/Router Log on to the computer. Open Connect to a Network by right-clicking the network icon ( ) in the notification area. Choose the wireless network from the list that appears, and then click Connect.
- Page 19 Adding a Wireless computers to the AP/Router with WPS Button This is the easiest way to establish a connection to the AP. First, check whether your end device supports WPS. For further details, please read the operating instructions for your end device. Log on to the computer.
-
Page 20: How To Configure Your Computer/Laptop With The Network Ip Address
How to configure your computer/laptop with the Network IP Address 1. Log on to the computer. 2. Click the “Start” button (it should be located at the lower- left corner of your screen), then click “Control Panel”. Click “View Network Status and Tasks”, and then click “Manage Network Connections”. - Page 21 Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/53/EU and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address. Warning: This device is a class B product.
