Page 1: Instruction Manual

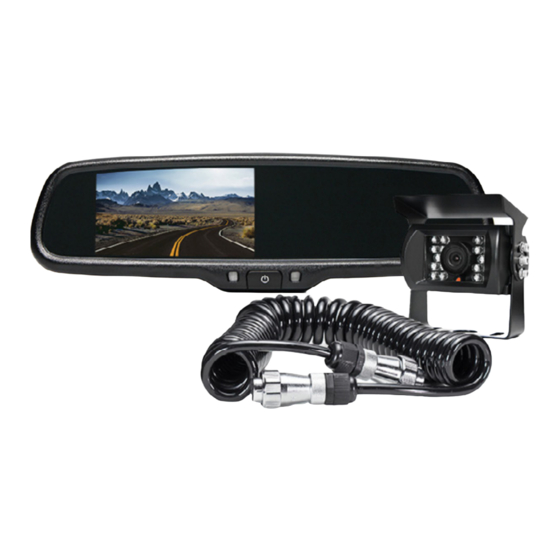

Instruction Manual Backup Camera System With Replacement Mirror Monitor and Quick Connect/Disconnect Kit RVS-770718-213 Reverse With Confidence ™... -
Page 2: Table Of Contents
Warranty....... 18 Disclaimer....... 19 Rear View Safety... -
Page 3: Introduction
NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety... - Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly. -
Page 8: Installation Guide
2. Attach monitor to existing mirror, and adjust mounting angle to allow optimum driver viewing comfort. Camera 1. Attach camera bracket close to rear marker lights, centered on vehicle (Figure 1.1 number 5). 2. Attach camera to bracket using screws provided and adjust the an- gle. Rear View Safety... - Page 9 Cable + Quick Connect/Disconnect Kit 1. The cable on this system is split into three parts, two camera cables that end with Quick Connect terminals and a Pigtail Cable. 2. The first camera cable (26') mounts on the tow vehicle. It runs from the cab to the back of the tow vehicle where it is mounted flush to the vehicle (Figure 1.1 number 2).
-
Page 10: Adjustable Grid Line
6.6 feet 9.9 feet 3.3 feet Accuracy The accuracy of the grid-lines can vary based on how you angle your cam- era. Therefore to compensate for inaccurancies, you can adjust the grid lines to your camera angle. Rear View Safety... -
Page 11: Installation And Wire
Wiring To Quick Connect Kit Video In Red To Ignition +12V Green To Reverse Signal Black To GND Reverse With Confidence ™... - Page 12 1. RED- Power (+) 2. YELLOW- Video 3. GREEN- Mirror / Normal Imaging 4. WHITE- Audio 5. BLACK- Ground (-) Rear View Safety...
-
Page 13: Remote Introduction
Remote Introduction Press the button to toggle L/R gridlines Clockwise Left Right Down Counterclockwise Remote control Adjust grid line Rotate gride line Reverse With Confidence ™... -
Page 14: Monitor Highlights
• Mirror monitor with 4.3" display • Ultra reflective - acts as mirror as well as monitor • Adjustable distance grid lines for backing up reference • Super sharp digital image • 2 Channel - can attach additional camera Rear View Safety... -
Page 15: Camera Highlights
• 1/3" Sharp® Color CCD Camera • 130° Ultra Wide Viewing Angle • 18 Infra-Red Lights - 50ft of Night Vision • Completely Waterproof - IP69K Rating • Built-In High Gain Mic Reverse With Confidence ™... -
Page 16: Monitor Specifications
4 Channel Video Source 1Vp-p, 750 Working Voltage DC 9V - 32V Operating Temperature -20°C ~ +75°C Video System Auto NTSC/PAL Overall Dimensions 10.55" (L) x 3.15" (H) x 1" (D) Weight 800G Vibration Rating Sync System Internal Rear View Safety... -
Page 17: Camera Specifications
Camera Information Camera 1/3" Sharp® Color CCD Picture Elements 410,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 620 TV lines Lens F=2.5mm Pixels NTSC: 811(H) X 507(V) PAL:752(H) X 582(V) Waterproof Rating IP69K Viewing Angle 130° Sync System Internal Synchronization Infra-red distance 50 Feet (18 Infrared IR) Usable Illumination... -
Page 18: Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. -
Page 19: Disclaimer
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN... - Page 20 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
