Page 1: Instruction Manual

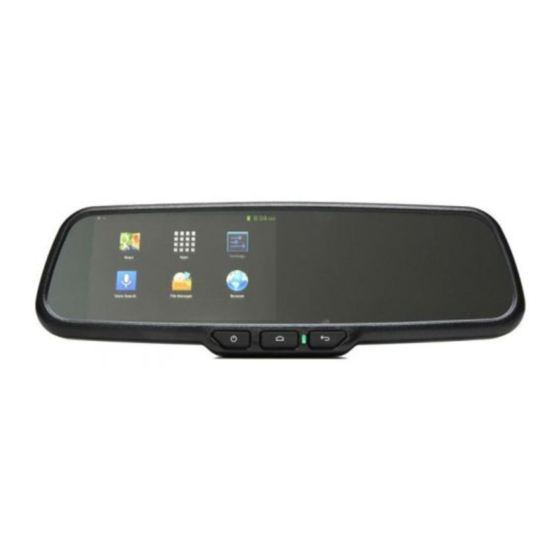

Instruction Manual G-Series Rear View Replacement Mirror Monitor with 5” Android Operated Display RVS-718-5 Rear View Safety, Inc. © 2015 Reverse With Confidence ™... - Page 2 Troubleshooting......22 Warranty & Disclaimer......23-24 Rear View Safety...
- Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
- Page 4 Function of Buttons GPS Antenna and Cable Rear View Safety...
- Page 5 Reverse With Confidence ™...
- Page 6 Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety...
-
Page 7: Installation
INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified. - Page 8 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 9 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
- Page 10 Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. Fasten all cables and secure all excess cable. Connect camera to the camera extension cable which runs inside the vehicle. Figure 1.2 Rear View Safety...
- Page 11 Wiring After connecting the camera to the “camera cable” the camera should be plugged into AV2 input. Connect the RED 12V power wire to a an ignition power source and the BLACK 12V ground wire to a chassis ground. The GREEN wire is the REVERSE trigger wire. Connect this wire to the vehicle’s backup light circuit to activate the rear-view image whenever the vehicle shifts into reverse.
- Page 12 0.2M space from the car. Accuracy The accuracy of the grid-lines can vary based on how you angle you cam- era. Therefore to compensate for inaccuracies, you can adjust the grid-lines to your camera angle. Rear View Safety...
- Page 13 FIGURE 1.1 FIGURE 1.2 Reverse With Confidence ™...
- Page 14 How to Wire Rear View Safety...
- Page 15 Reverse With Confidence ™...
- Page 16 Rear View Safety...
- Page 17 Highly Reflective Mirror In addition to being a monitor, the system is also a highly reflective mirror. Normal mirror Highly reflective mirror Back up Camera Display When the car is put into reverse, the monitor will automatically display the back up camera. Reverse With Confidence ™...
- Page 18 The icons are the same as those on an Android cellphone. Booting APP Setting Applications can be set to automatically boot up when the mirror is turned Press to enter the app list, and press Rear View Safety...
- Page 19 Up to five applications can be set to automatically start. The user can also control how long the app will remain on if inactive after startup, as well as if the app will start running in the foreground or background. Applications can also be deleted from the auto-boot list in this display.
- Page 20 Mapping Data Though this mapping data is not included with this system, users may download or buy navigation software. Rear View Safety...
-
Page 21: Specifications
About Our Monitor 10.87” 3.58” SPECIFICATIONS: Screen Size: 4.3” Display Screen: TFT-LCD Display Resolution: 400(H)x234(V) Aspect Ratio: 16:9 Color Depth: 16.7M dithering Pixel Pitch (mm) 0.219x0.219 Power Consumption: Working Voltage: DC12V VIDEO-IN to GPS/DVD Video Input: (Default) Camera to backup camera Signal System: PAL/Auto/NTSC Reverse With Confidence ™... - Page 22 Verify camera cable is plugged into cable port labeled Backup Camera • Connect known working camera • Verify that the green positive and cable to monitor trigger on power harness is put to power 12v+ • Verify Green trigger is receiving power Rear View Safety...
- Page 23 OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
- Page 24 FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN...
- Page 25 Notes Reverse With Confidence ™...
- Page 26 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
