Summary of Contents for Avdel 07385

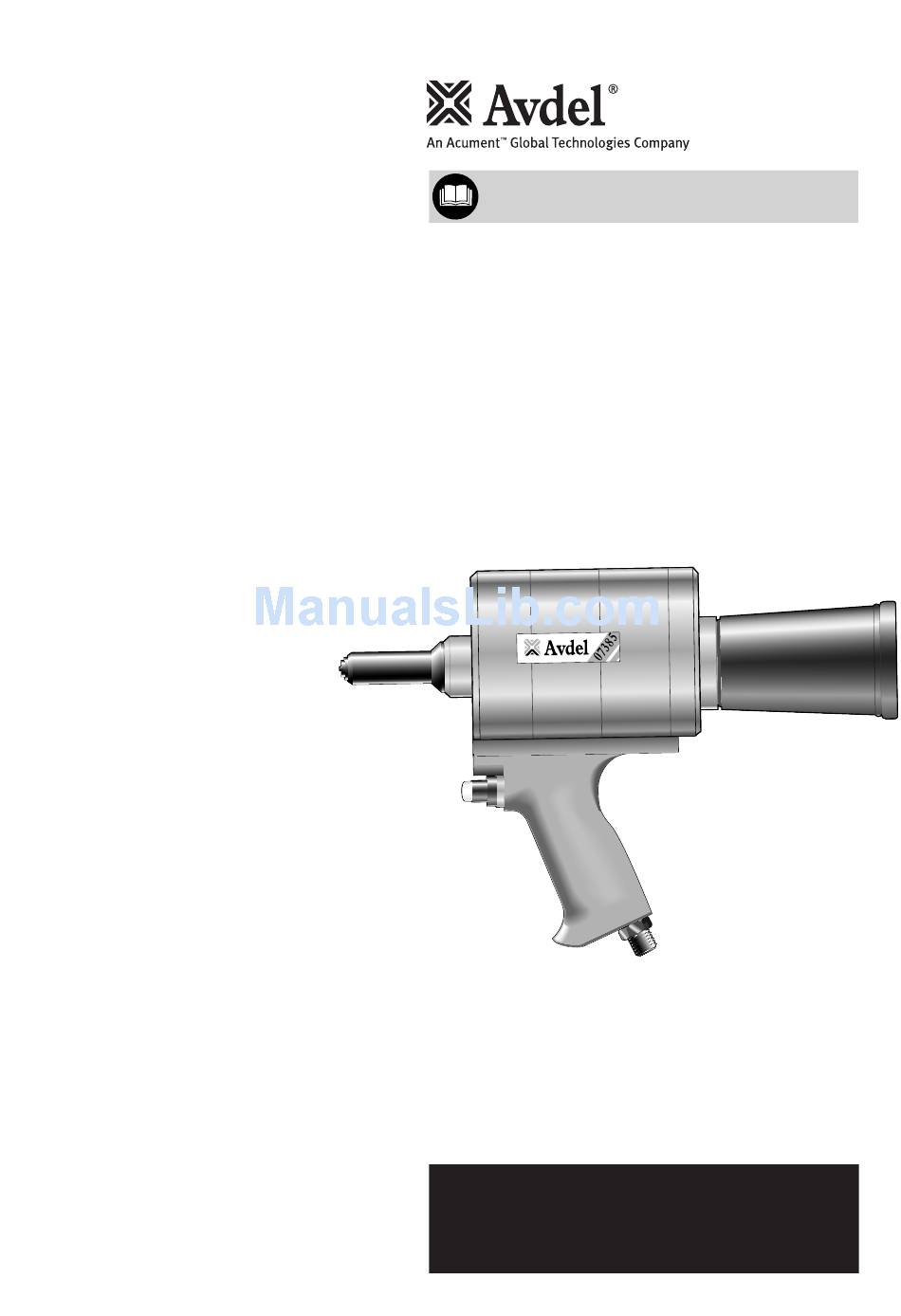

- Page 1 I n s t r u c t i o n M a n u a l Pass onto user to read and keep for reference P n e u m a t i c P o w e r T o o l 07385...
- Page 2 AVDEL policy is one of continuous development. Specifications shown in this document may be subject to changes which may be introduced after publication. For the latest information always consult Avdel. S P E C I F I C A T I O N S F O R 0 7 3 8 5 T O O L ■...
- Page 3 O N T E N T S S A F E T Y General Specific to 07385 Tool I N T E N T O F U S E General Tool Dimensions / Selection P U T T I N G I N T O S E R V I C E...
- Page 4 RECOMMENDED AND SUPPLIED BY AVDEL. ANY MODIFICATION UNDERTAKEN BY THE CUSTOMER TO THE TOOL/MACHINE, NOSE ASSEMBLIES, ACCESSORIES OR ANY EQUIPMENT SUPPLIED BY AVDEL OR THEIR REPRESENTATIVES, SHALL BE THE CUSTOMER'S ENTIRE RESPONSIBILITY. AVDEL WILL BE PLEASED TO ADVISE UPON ANY PROPOSED MODIFICATION.
- Page 5 CARE SHALL BE TAKEN TO ENSURE THAT SPENT STEMS ARE NOT ALLOWED TO CREATE A HAZARD. 07385 TOOLS MUST BE FITTED WITH AN UNDAMAGED PINTAIL DEFLECTOR OR STEM CATCHER BEFORE OPERATING. WHEN FITTED WITH A PINTAIL DEFLECTOR AND IS USED IN THE VERTICAL NOSE...
- Page 6 The 07385 fitted with a stem catcher is the standard tool,a pintail deflector is also suppied but not fitted. Use the selection chart opposite to select a complete 07385 tool which will include the correct nose assembly for a selected fastener. ‘A’ and ‘B’ dimensions will help you assess the accessibility of your application.
-
Page 7: Tool Selection
07385 TOOL SELECTION COMPLETE FASTENER NOSE (see drawing opposite for A & B) TOOL PART Nº NOSE TIP TYPE A (mm) B (mm) A (in) B (in) NOSE ASSY PART Nº NAME & HEAD Ø MATERIAL/DETAIL AVEX " 12.7 .500 .130... - Page 8 U T T I N G I N T O S E R V I C E A I R S U P P L Y All tools are operated with compressed air at an optimum pressure of 5.5 bar. We recommend the use of pressure regulators and automatic oiling/filtering systems on the main air supply.
- Page 9 A C C E S S O R I E S Two different accessories are available to make the connection to your air supply: Hose Connector Hose Assembly part nº 07005-00276 part nº 07008-000324 TO FIT 6.4 mm (1/4”) BORE PIPE 1/4”...
-
Page 10: Fitting Instructions
O S E A S S E M B L I E S There are two types of nose assemblies for the 07385 tool, standard nose assemblies and forward stem release nose assemblies. If you have purchased a complete tool, it will already be fitted with the correct nose assembly for your fastener. -
Page 11: Nose Assembly Components
Read the Nose Assemblies servicing instructions opposite carefully. Forward Stem Release nose assemblies, except nose assembly 07381-04800, also include a pin stop part number 07381-04502 (see illustration opposite). To identify which nose assemblies are forward stem release refer to the compatibility table page 5. 07385 NOSE ASSEMBLY COMPONENTS NOSE ASSY 07241-07300... -
Page 12: E R V I C I N G T H E T O O L
E R V I C I N G T H E T O O L Regular servicing should be carried out and a comprehensive inspection performed annually or every 500000 cycles, whichever is sooner. I M P O R T A N T The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel. -
Page 13: Service Kit
For all servicing we recommend the use of the service kit below (part number 07900-03810) supplied in its own plastic case. SERVICE KIT ITEM PART Nº DESCRIPTION Nº OFF 07900-00238 " - " SPANNER 07900-00225 5mm ALLEN KEY 07900-00351 3mm ALLEN KEY 07900-00400 "... - Page 14 Fit the handle and allow the sealing compound time to set. I M P O R T A N T Check the tool against daily and weekly servicing. * refers to items included in the Avdel service kit. For complete list see page 11.
- Page 15 ■ Assemble in reverse order to dismantling. I M P O R T A N T Check the tool against daily and weekly servicing. * refers to items included in the Avdel service kit. For complete list see page 11.
-
Page 18: F A U L T D I A G N O S I S T A B L E
A U L T D I A G N O S I S F A U L T D I A G N O S I S T A B L E SYMPTOM POSSIBLE CAUSE REMEDY ➝ Low air pressure. ➝... - Page 19 Engineered Fastening and Assembly Systems Declaration of Conformity Avdel UK Limited, Mundells, Welwyn Garden City, Herts, AL7 1EZ declare under our sole responsibility that the product type 07385 Serial Nº ..........to which this declaration relates is in conformity with the following standards or other formative documents...
- Page 20 Tel: +82 31 798 6340 Email: info@acument.com.au Email: AvdelDeutschland@acument.com Fax: +82 31 798 6342 Email: info@acumentkorea.com CANADA ITALY Avdel Canada, a Division of Acument Avdel Italia S.r.l. SPAIN Canada Limited Viale Lombardia 51/53 Avdel Spain S.A. 87 Disco Road 20047 Brugherio (MI)
