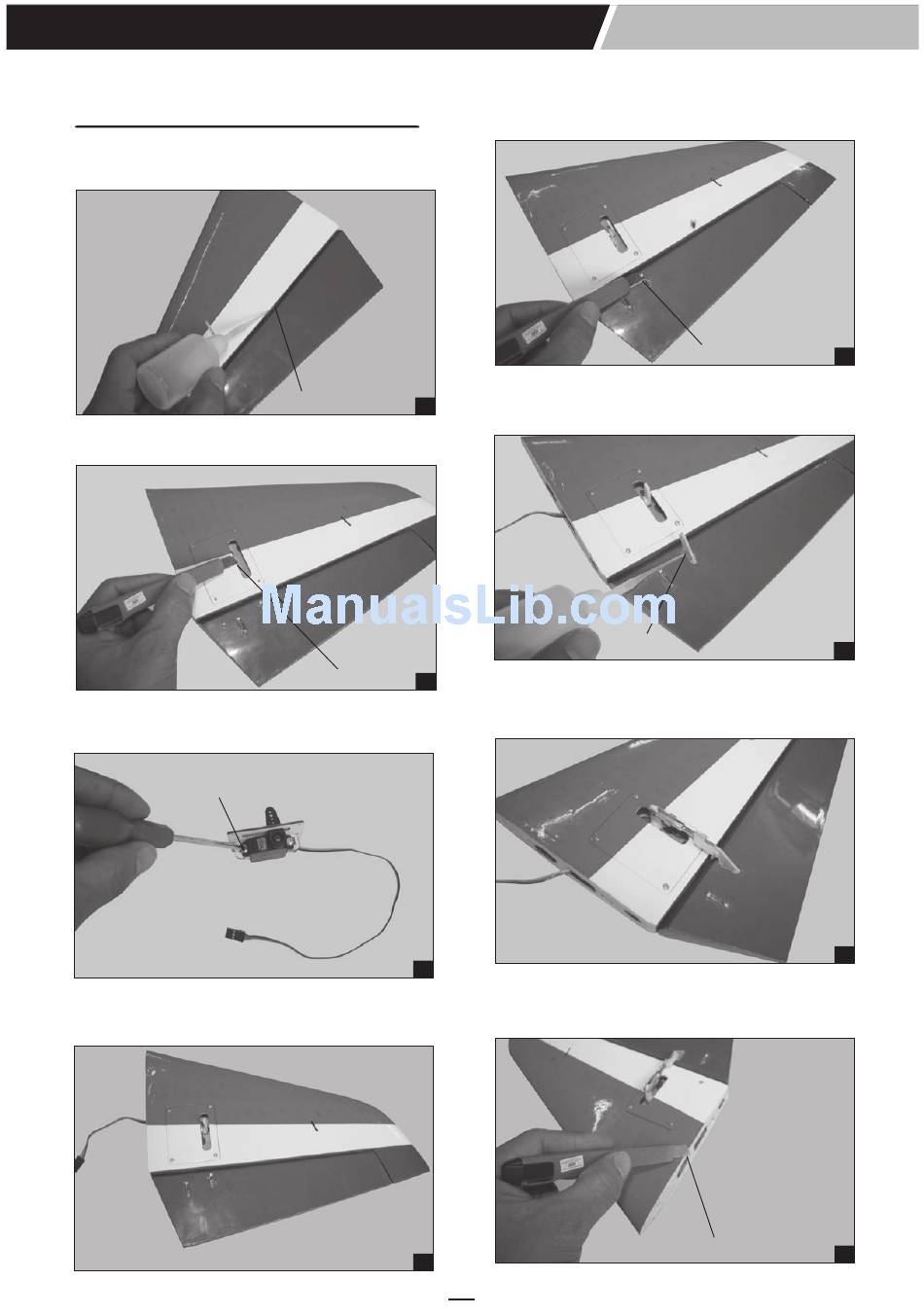

INSTALLING THE VERTICAL STABILIZER
1. Repeat these step from the installing aileron for
the installing rudder.
2. Remove the covering.
3. Install the rudder servo.
Screw
4. Secure the servo plate.
C.A glue
44
45
Remove the covering
46
47
5. Remove the covering.
6. Install and glue the rudder control horn.
C.A glue
7. The rudder linkages are assembleb as shown
below.
8. Remove the covering.
8
BAE HAWK 90MM
Remove the covering
Remove the covering
48
49
50
51
