8

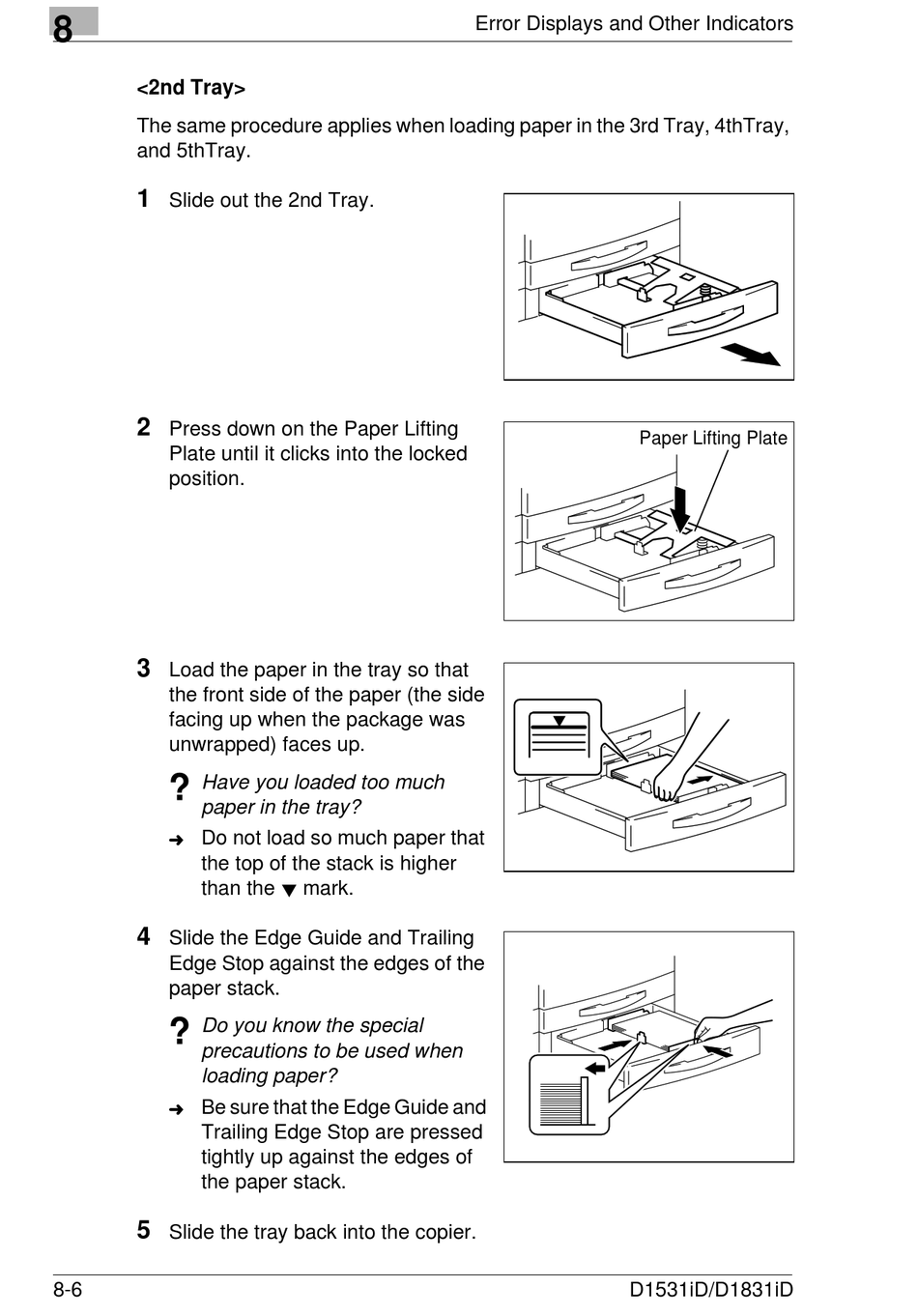

<2nd Tray>
The same procedure applies when loading paper in the 3rd Tray, 4thTray,
and 5thTray.
1
Slide out the 2nd Tray.
2
Press down on the Paper Lifting
Plate until it clicks into the locked
position.
3
Load the paper in the tray so that
the front side of the paper (the side
facing up when the package was
unwrapped) faces up.
Have you loaded too much
?
paper in the tray?
➜
Do not load so much paper that
the top of the stack is higher
than the Ä mark.
4
Slide the Edge Guide and Trailing
Edge Stop against the edges of the
paper stack.
? Do you know the special
precautions to be used when
loading paper?
➜ Be sure that the Edge Guide and
Trailing Edge Stop are pressed
tightly up against the edges of
the paper stack.
5
Slide the tray back into the copier.
8-6
Error Displays and Other Indicators
Paper Lifting Plate
D1531iD/D1831iD
