Door/Window Contact

The contact contains a transmitter and a magnet. It can be mounted on doors, windows
and any other objects that can be opened or closed. When the transmitter and magnet
are separated over 2 cm, the contact will send a signal to the control panel to trigger an
alarm.

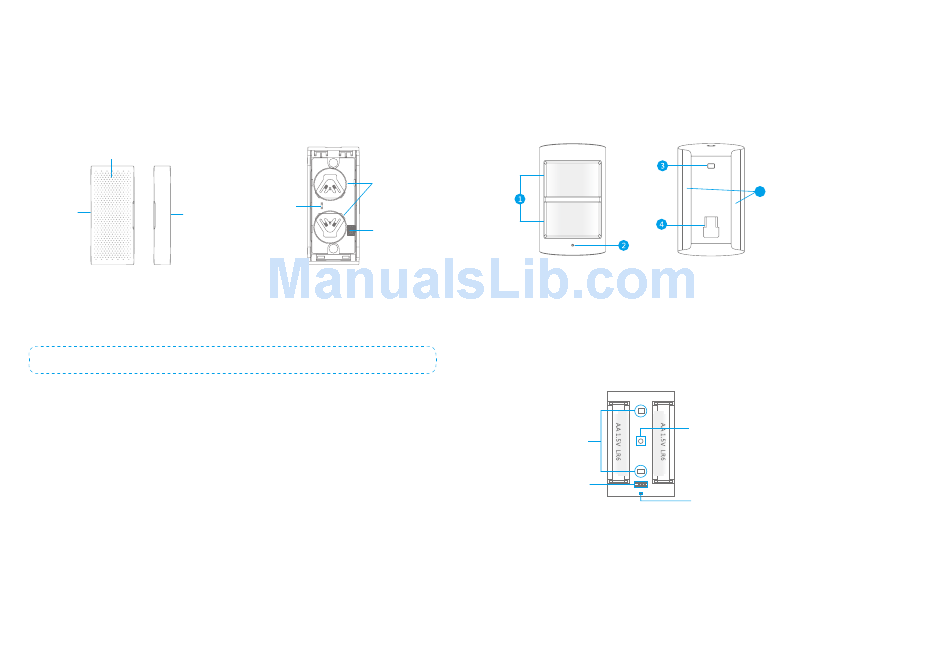

Overview
Status Indicator
Transmitter
Magnet
Status Indicator
Blinks once: Door/window is opened.
Blinks once per 3 seconds: Low battery, please replace battery.
Note: When tamper switch is pressed, the system will alarm immediately.
5
Battery
Tamper Switch
Zone Setting

PIR Motion Detector

The detector adopts digital dual-core fuzzy logic control processing technology and
intelligent analyze algorithm. When human body's infrared spectrum is detected, it will
send alarm signal to the control panel.
The detector features pet immunity for animals up to 25kgs.
Overview
Status Indication
Blinks continuously: Motion detector performs a self-test.
Blinks once: Motion is detected.
Blinks twice: Motion detector has exited testing mode, and goes to power saving mode.
Blinks once per 3 seconds: Low battery, please replace battery.
PCB Layout
Infrared Sensors
Zone Setting
Tamper Switch: When the tamper switch is pressed, system will alarm immediately.
Infrared Sensors: The infrared sensors detect movement, and please make sure they are
always clean.
1. Detection Lens
2. Status Indicator
3. Test Button
5
4. Bracket Slot
5. Double-sided Tape
Stick Place
Tamper Switch
Status Indicator
