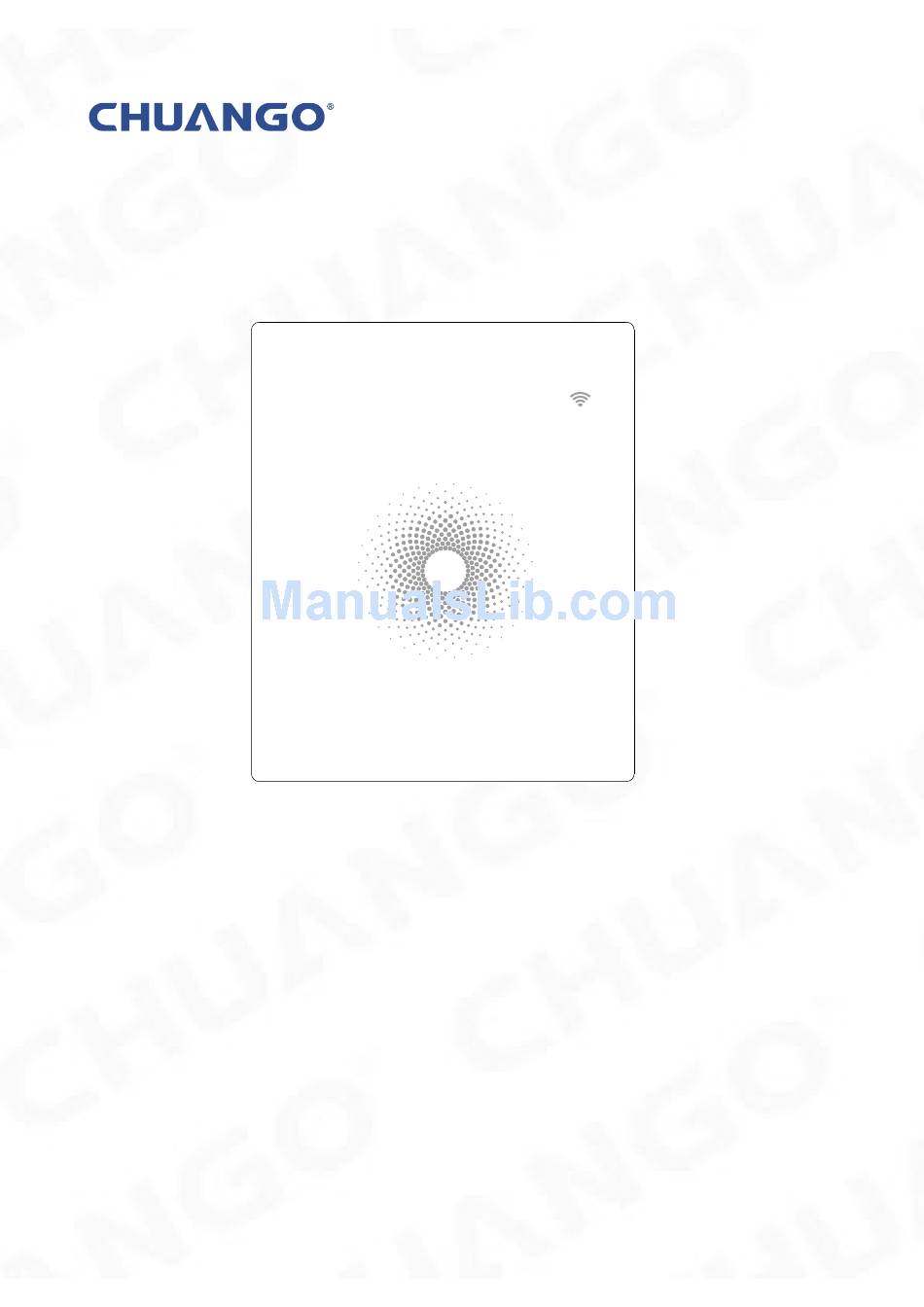

Page 1 AW1 Plus WiFi Alarm System User Manual...
Page 2 Foreword Congratulations on your purchase of the AW1 Plus Alarm system. Before you com- mence installation we recommend that you unpack the product, familiarise yourself with the component parts, and carefully read through this instruction guide. There are some parts of the installation must be completed in the order shown to ensure successful installation.
Page 3: Table Of Contents
Contents Packing List ............................1 Hub ..............................2~3 Remote Control .............................4 Door/Window Contact ........................5 Pet-immune PIR Motion Dectector ................... 6-7 Pairing New Accessories to the Hub .....................7 Getting Started ..........................8-9 App Control and Settings ......................9-13 Interference Resistance ........................14 Installation ............................. 15-18 Replacing Accessory Batteries ......................19 FAQ ..............................
Page 4: Packing List

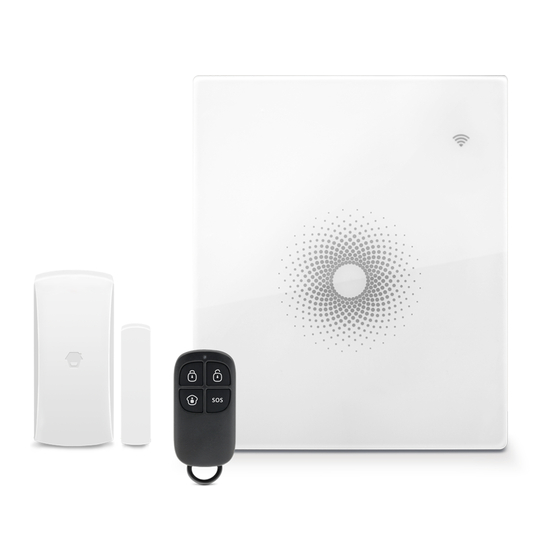

Packing List 1x AW1 Plus Hub status 1x PIR-910 Pet-immune PIR Motion Sensor 1x DWC-102 Door/ Window Contact 2x RC-80 Remote Control 1x Power Adapter 1x User Manual...
Page 5: Hub
All Sensors are wirelessly linked to the Hub. In the event of alarm activation, for example, when a Sensor is triggered, a push notification will automatically be sent to all registered users The system can be controlled and monitored both on-site using the Remote Control supplied and remotely from anywhere in the world, with the FREE iOS and Android Apps.
Page 6 LED Indication Steady On Connected with Router WiFi Indicator Searching for a network or disconnected One flash per second (Blue) from Router The Power Adapter is not plugged in Steady On Stable WiFi connection System is Armed Blue System is in Home Mode (Part Arm) Status Green System is Disarmed...
Page 7: Remote Control
Remote Control The Remote Control can be used to arm, part arm or disarm the system, and trigger an emergency alarm (SOS). Status Indicator Disarm Home Arm (Part Arm) SOS Button Button System Status All Sensors will be Armed. This mode is for use when the property is unoccupied. The System will be Disarmed, no Sensors will be triggered.
Page 8: Door/Window Contact
Door/ Window Contact Door/ Window Contacts are set to ‘Normal Zone’ by default and are ideal for protecting entry/exit points such as front and back doors and windows. When the system is Armed, should a Door Contact be triggered (Magnet separated from the Transmitter), a push notification showing the named Sensor will automatically be sent to the registered users and the Hub Internal Siren will sound immediately.
Page 9: Pet-Immune Pir Motion Dectector
Pet-immune PIR Motion Dectector The Motion Contact is designed for use on interior walls and is set to Home Mode by default. Whenever the Contact detects movement (while the alarm is armed) you will receive a push alert notification showing the name of the Contact that has been triggered and the Hub Internal Siren will sound immediately.
Page 10: Pairing New Accessories To The Hub
Case 2: Case 1: Initial start and then arm. Press the test button and then arm. 3 minutes later Sleep after detecting human movement twice. No human movement within 3 minutes Switch from sleep to arm. Pairing New Accessories to the Hub There are two ways of pairing Accessories to the Hub –...
Page 11: Getting Started
Getting Started Step One: Download the App Step Two: Sign Up / In Press the "Sign up" button on the page, and follow the instructions to create your account first. Once you have an account, select the "Sign in" button to enter the operation page.
Page 12: App Control And Settings
2.4GHz) router is used, make sure to connect with the 2.4GHz WiFi instead of the 5GHz's. Make sure your smartphone is connected to the local WiFi network and then follow the steps in the App to connect the AW1 Plus Hub to the router. Note: If the connection was failed, please consult to FAQ in page 20 or contact our technical support.
Page 13 Synchronize Time (Important Setting) The time shown on your mobile device must be synchronized with the time shown on the Server prior to setup. Operation history will only be recorded correctly once synchronization is complete. Edit Accessories Rename, add, delete and change the Zone Mode of each Sensor. Activated Zone : Sensors set to Activated Zone are armed whether the alarm is in Arm (Full Arm) or Home Arm (Part Arm) Mode.
Page 14 Note: Optional Smoke, Gas Leakage or Water Flood Sensors are automatically registered as Instant Alarm Zone Sensors and cannot be changed to other Zone. Any Motion or Door/ Window Sensor paired to the Hub by pressing the Tamper Switch will also register as a Instant Alarm Zone Sensor.
Page 15 Ringtone of Push Alert The selected ringtone will be heard when a Push Alert is received. History The Event Log holds a record of up to 300 events. Account Management Tap the [ ] icon on the top left of the main page, click the portrait to enter the account management.
Page 16 Adding More Devices One account can achieve operating multiple devices in this App, if you have multiple AW1 Plus Hubs or cameras, it is easy for you to manage these devices within this App. Tap the [ ] icon, you can add the device you want.
Page 17: Interference Resistance
Interference Resistance The AW1 Plus Hub has a feature of Interference Resistance. If this feature is enabled, an alarm will be triggered if the radio channel is jammed continuously for more than 30 seconds or the system is jammed for more than 3 periods of 10 seconds in 5 minutes period.
Page 18: Installation
Installation Wall Mounting The Hub can be wall mounted using the Wall Bracket provided. Using the screws supplied, mount the Wall Bracket onto the wall (ensuring that the arrow on the bracket is pointing upwards), then match-up the Wall Bracket hooks to the holes ①...
Page 19 Door/ Window Contact : Step 1: To power up the Contact, remove the Battery Tab Step 2: Attach the Adhesive Pads to the back of the Transmitter and Magnet Step 3: Place the Contact on the door/ window frame and the magnet on the door/ window ensuring that the distance between them is not greater than 1cm when the door/ window is shut.
Page 20 PIR Motion Detector : Warning - Do not install Near air conditioning/ heat Facing direct sunlight Facing moving objects sources Direction of motion and Detection Range 2-2.2m Ground 8m Max. 110° It is easier to detect objects that move sideways in front of the Detector, but more difficult to detect objects that move directly toward the Detector.
Page 21 Step 1: To power up the Detector, remove the Battery Tab Step 2: Perform a Walk Test Press the Test Mode button at the back of the sensor to put it in Test Mode. Place the Sensor in your desired location (don’t use screws at this point), arm the system and walk sideways in front of the Sensor to test that the Detector triggers the alarm.
Page 22: Replacing Accessory Batteries
Replacing Accessory Batteries Remote Control Remove the screw Open the casing Door/Window Contact Open the casing PIR Motion Detector Remove the screw Open the casing...
Page 23: Faq
Failed to connect to the WiFi Check whether the WiFi Indicator on the Hub has stopped flashing If the WiFi Indicator stops flashing and the Hub cannot be controlled from the App, please make sure that your local WiFi network is available and working properly. Check that the WiFi name and password are correct.
Page 24 How to delete an Accessory You can delete any Sensor in the App by going to [Accessory Setting] ,slide the sensor to the left and tap the delete icon to delete the sensor. To delete all accessories press and hold the [Learn] button inside the Hub for 5 seconds, the Hub will beep once to indicate that all accessories have been deleted.
Page 25: Specifications
Specifications Power Supply DC 12V 500 mA Battery 3.7V 600 mAh Li-ion x 1pc Battery Life Recharge Cycle 300 times WiFi IEEE 802.11b/g/n Standby Current <50mA Alarm Current <90 mA Internal Siren 90 dB Optional Accessories 10 Remote Controls, 50 Sensors Radio Frequency 315MHz or 433.92MHz Housing Material...
Page 26 Door/ Window Contact Power Supply DC 1.5V (1.5V AA LR6 battery x 1pc) Static Current <35 uA Alarm Current <40 mA Transmitting Distance <80 m (open area/no interference) Radio Frequency 315MHz or 433.92 MHz Housing Material ABS Plastic Temperature 0°C~+55°C Operating Condition Relative Humidity <80% (non-condensing) Transmitter Dimensions...
