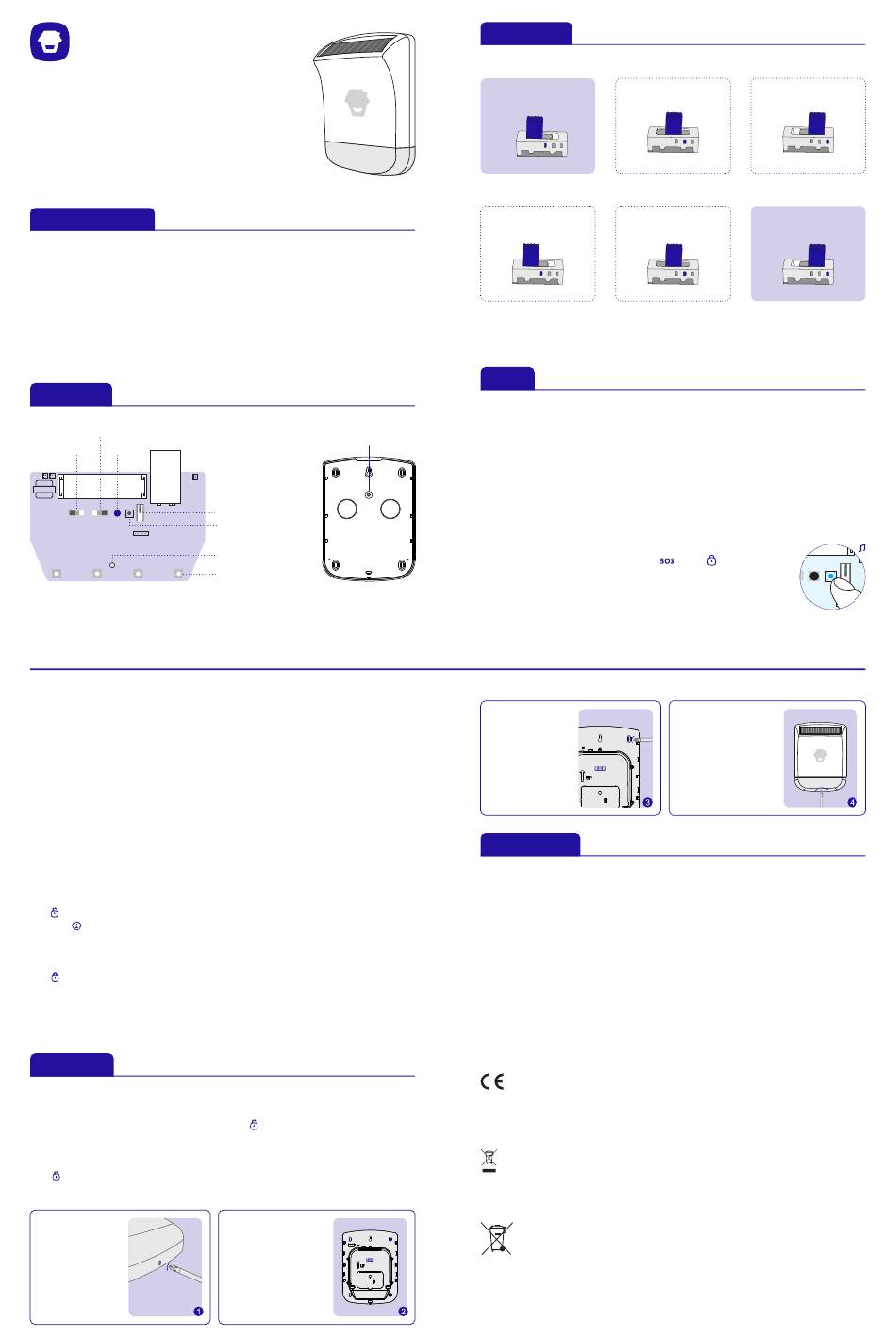

Chuango SPS-260 User Manual

Solar-Powered Siren
User Manual
SPS-260
Product Overview
The solar-powered siren is a totally wireless siren, designed to help protect yards, driveways, gardens
and all types of other external locations. The strobe siren is battery powered and kept re-charging by
the built-in solar panel. The signal transmission is all by wireless radio frequency which achieves
significantly wirefree transmission and enhances the flexibility to install. Users can install some outdoor
strobe sirens to deter the intruders in Omni-directional guard.
The strobe outdoor siren can be used as a wireless siren by connecting to the control panel as well as a
standalone alarm system to work with wireless accessories in same frequency by learning.
PCB Layout
Siren Duration Setting
Volume Setting Power On/Off
9V 6F22
18650
Note: The status LED will flash once every 5 seconds in arm status. It will not flash when in disarm status.
The siren will sound immediately if the tamper switch is triggered.
Work as an Alarm Panel
Connect with Wireless Accessories
Press the learning button (0.5 seconds), the system goes into connecting status after one beep is heard.
Press test button on accessories or trigger the accessory once. The wireless accessory is connected
successfully after another beep. To give up the connection, press the learning button again to exit
connecting status after one beep.
After connected with wireless accessories, the siren will hoot and the strobe light will flash to deter the
burglar on site when the accessories detect intrusion.
Note: No matter the siren works as a wireless siren or an alarm panel, if disarm is not operated after
the siren duration time, the status indicator of siren will flash once every 2 seconds to inform user or
patrol police that the alarm system has been triggered. This LED indication lasts for 1 hour.
Enter/Exit Connecting Status by Connected Remote Control
When the siren is working as a standalone alarm system and installed on the wall, newly purchased
accessories may not easy to connect with the siren. With this function, user can easily connect the
accessories to the siren without dismounting the siren from the wall.
1. Press on the remote control 3 times (within 5 seconds) to enter service mode.
2. Then press 3 times (within 5 seconds) to enter connecting status.
A longer beep is heard from the siren means it enters connecting status, press test button on the newly
purchased accessory or trigger the accessory once. Another beep is heard from the siren, the accessory
has been successfully connected with the siren.
Press on remote control to exit connecting status after a short beep.
Disconnect with All Alarm Panels or Accessories
Press and hold the learning button of this siren for 5 seconds and release the button when two beeps
are heard, all the paired alarm panels or accessories are disconnected
Installation
Service Mode
The service mode is to prevent triggering the alarm when you mount the siren on the wall.
When the remote control is connected with the siren, press
seconds), the siren goes into service mode when a long beep is heard. During this period, the siren will
not alarm but beep even if the tamper switch or the sensors connected are triggered. This brings you
convenience on installation.
Press on remote control to exit service mode after a short beep.
Note: Also you can press the tamper switch 7 times to enter installation mode.
Remove the fixing
screw from the bottom
edge of the siren
housing and carefully
remove front cover.
External Tamper Switch
Internal Tamper Switch
Learning Button
Status LED Indicator
Alarm LED Indicators
on remote control 3 times (within 5
Hold the mounting
plate in position and
mark the positions of
the four mounting
holes. A spirit level
placed on the water-
proof casing will ensure
a perfect level.
Jumper Setup
Volume Setting
High Mute
(default)
HIGH MUTE LOW
Siren Duration Setting
5 2
minutes
minutes
5MIN 2MIN 30S
Warning: To prevent possible hearing damage, it is suggested to avoid listening at high volume level for
long period.
Usage
Getting Started
1. Load the 9V battery.
2. Set the volume and duration of the siren.
3. Start to use by pressing the power button on.
Note: The 9V battery is used to charge 18650 battery in case it is out of power/with low power
after a long-time storage. Use the 9V battery to charge 18650 battery for 12 hours and then
remove 9V battery before installation.
Work as a Wireless Siren
Connect to Alarm Panel
Press the learning button (0.5 seconds), the wireless siren goes into
connecting status after one beep is heard. Press
the panel (or press Arm on App if the panel does not have a button),
The wireless siren is connected successfully with the control panel after
another beep.
To give up the connection, press the learning button again to exit.
Note: Please don't trigger any accessory during connecting with alarm panel.
After connected to the alarm panel, the siren will hoot and the strobe light will flash when the alarm
panel alarms.
Drill four holes and
fit the wall plugs,
and then fit
supplied fixing
screws in the
holes.
Specifications
Backup Power
Solar Panel Output Current
Maximum Alarm Current
Wireless Receiving Distance
Operation Condition:
Maximum Siren Volume
Static Current
Standby Time
Wireless Receiving Frequency
Housing Material
Size (L x W x H)
CE Declaration of Conformity
Hereby, Chuango AIoT GmbH declares that the radio equipment
type SPS-260 Solar-Powered Siren is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address:
https://www.chuango.com/english/compliance_SPS-260
INFORMATION FOR THE USERS
At the end of its life, the device has to be separated from the other
waste. Consign the device and all its components together to a
center of electronical and electrotechnical waste recycling center,
designated by your local authorities.
2006/66/EC and its amendment 2013/56/EU (battery directive):
This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product
documentation for specific battery information.
The battery is marked with this symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For
proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info.
Low
HIGH MUTE LOW HIGH MUTE
30
seconds (default)
5MIN 2MIN 30S 5MIN 2MIN
or Arm button on
Hinge the front cover
locating tabs over the top
edge of the back plate and
carefully push the base of
the siren cover into place.
Secure the siren cover in
place by refitting the fixing
screw in the bottom edge
of the cover.
18650 3.7V 1800mAh rechargeable lithium battery x 1
9V 6F22 battery x 1
2000LUX illumination ≥4mA (in sunlight)
＜500mA
＜80m (in open area)
Temperature -20℃ to +55℃
Relative Humidity ＜90% (non-condensing)
110dB
＜1mA
＜45 days (in case of no sunlight)
315MHz or 433.92MHz ( ±75KHz)
*Only 433.92MHz is available for Europe&Australia
PC + ABS + ANTI-UV
309 x 230 x 79.7mm
Safety Information
CAUTION! This device contains a loud (about 110 dB) siren. Do
not stand near the siren when sounding. Exposure at close range
may be harmful to your hearing. Wear hearing protection when
testing the alarm. To reduce the risk of falling, take extra caution
when using a ladder or similar equipment to mount the product.
CAUTION!This product contains bright flashing lights. Do not
look directly at the light source. Flashing lights may cause
dizziness.
CAUTION!This device contains a lithium-ion battery which is a
sensitive component that can cause injury if damaged. Do not
attempt to remove, open, crush the battery. If your device or
batteries appears to be damaged, discontinue use immediately.
This device also contains a 9V battery. The 9V battery is used to
charge the lithium-ion battery for 12 hours and then remove it
before installation. Replace only with the same or equivalent
type recommended battery.
This device is suitable for outdoor use. However, it is not
intended for underwater use. To protect against electric shock,
do not submerge or immerse your device or batteries in water or
expose the device/battery to other liquids.
Do not heat or place the device/battery near any heat source. Do
not expose the device/battery to explosions or other hazards.
Do not open, disassemble, puncture, cut, bend or shred the
batteries and do not allow metal objects to touch the battery
terminals on the device as they can become hot and cause burns.
Dispose of battery in accordance with applicable laws and
regulations.
