Summary of Contents for Chuango OV6
- Page 1 WiFi Alarm System User Manual...
- Page 2 Foreword Thank you for purchasing the OV6 alarm system. Please unpack the product, familiarize yourself with the component parts, and carefully read through the instruction guide before installation. The installation must be completed in the order shown in the guide to ensure a successful installation.
-
Page 3: Table Of Contents
Contents Packing List ............................1 Hub ..............................2~3 Remote Control .............................4 Door/Window Contact ........................5 Getting Started ..........................6-8 App Control and Settings ......................9-18 Installation ............................. 18-19 Replacing Accessory Batteries ......................20 Restoring to Factory Settings ......................21 Specifications ..........................21-22... -
Page 4: Packing List

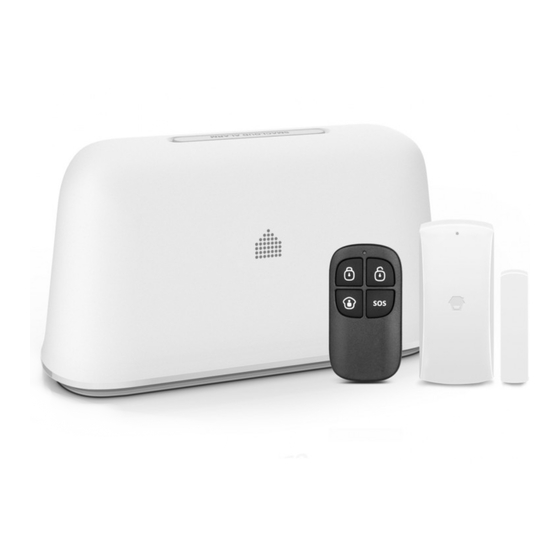

Packing List 1x Smart Hub Battery of the Hub*4 1x DWC-102 Door/ Window Contact 1x RC-80 Remote Control 1x Power Adapter 1x Reset Pin... -

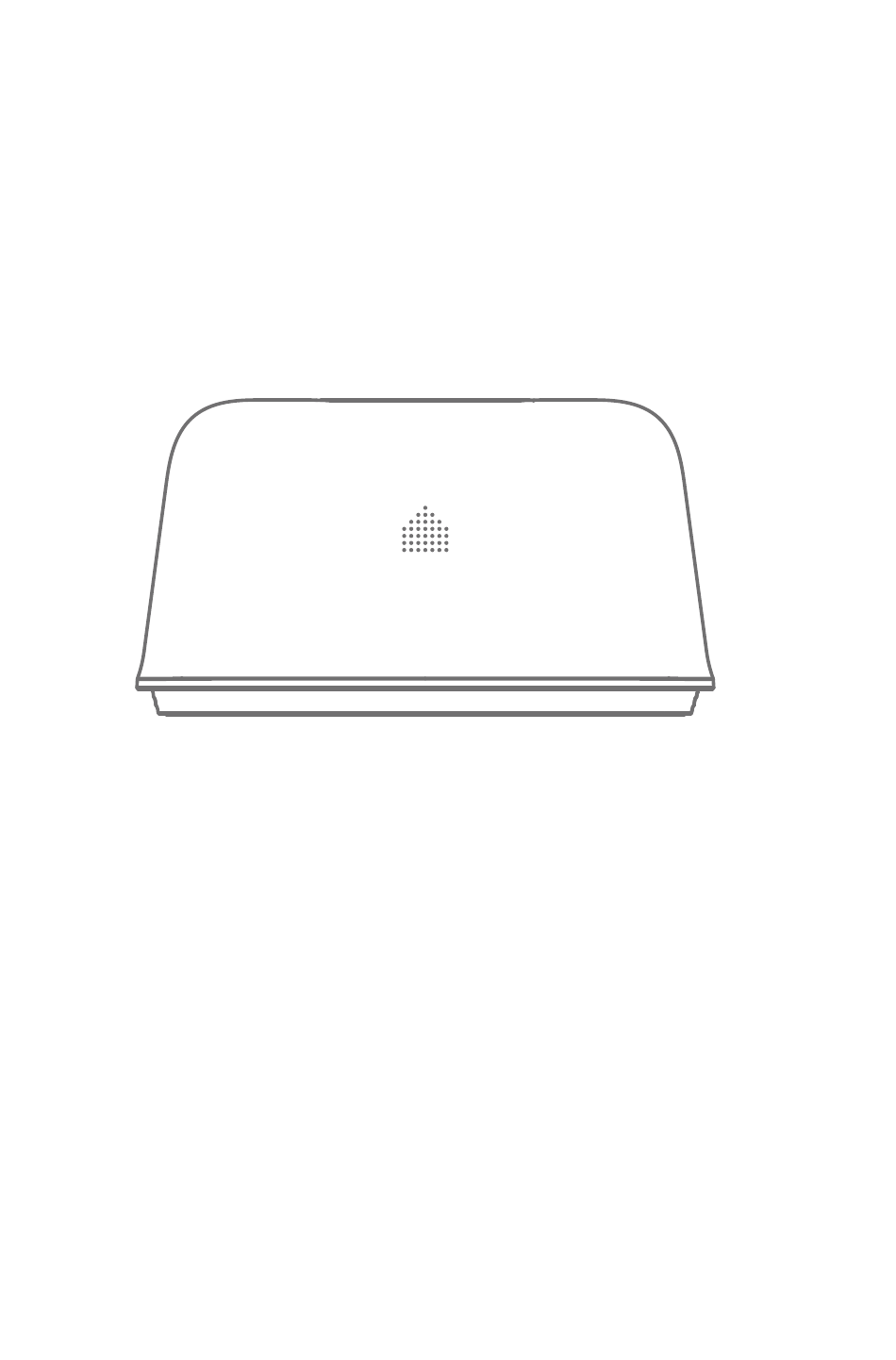

Page 5: Hub
All Sensors are wirelessly linked to the Hub. In the event of alarm activation, for example, when a Sensor is triggered, a push notification will automatically be sent to you and other pre-authorized users. The system can be controlled and monitored both on-site using the remote control supplied and remotely with the Smart Life app on the App Store and Google Play. - Page 6 LED Indication The hub is connecting with the network Rapid flashing yellow through EZ Mode. The hub is connecting with the network Slow flashing yellow through AP Mode. Alternating red, blue, and green The hub is pairing with an accessory Searching for a network or disconnected Flashing once per second from router...
-
Page 7: Remote Control
Remote Control The remote control can be used to Arm (Away Mode), Home Arm, and Disarm the system. It can also be used to trigger an emergency alarm (SOS) manually. Status Indicator Status Indicator Arm (Away Mode) Arm (Away Mode) Disarm Disarm Home Arm... -
Page 8: Door/Window Contact
Door/ Window Contact Door/window contacts are set to ‘Armed’ zone by default and are ideal for protecting entry/exit points such as front doors, back doors, and windows. When the system is Armed (Away Mode) and the door/window contact is triggered (magnet separated from the transmitter), the hub internal siren will sound immediately and send a push notification with the sensor name to its registered users. -
Page 9: Getting Started
Getting Started Step One: Download the App Download the app from the App Store or Google Play by searching the keywords “Smart Life”. Smart Life Step Two: Register/ Log In Press the "Register" button on the page and follow the instructions to create your account first. - Page 10 Step Three: Connect the Hub to Your Router 1.Tap “+” on the home page and then tap “Add Manually”. In the “Security & Sen- sors” list, tap “Alarm (Wi-Fi)” under the “Alarm” category. 2.There are two ways to add the device: EZ mode (by default) and AP Mode. EZ Mode: After powering on the device, if the indicator is blinking fast, tap “Confirm indicator rapidly blink”...
- Page 11 AP Mode: If the EZ Mode is not working or if the indicator is blinking slowly, try the AP Mode. Tap“Net Pairing Mode”and then tap“AP Mode”and to continue. Then, enter the WiFi password and tap “Confirm”. Once that is done, connect your mobile phone to the device hotspot by tapping “Go to Connect”.
-
Page 12: App Control And Settings
APP Control and Settings More Settings System Status System Status Arm (Away Mode) All sensors will detect for anomalies during this mode. The hub internal siren will sound immediately when a sensor is triggered. You and other pre-authorized users will receive push notifications on your phones. This mode is suitable when the property is unoccupied. - Page 13 Add New Accessories to the Hub Remote control, Door sensor and other accessories. Enter the OV6 Smart Hub page and tap “Accessories”. Then, tap “+” and trigger the accessory to add it to the hub. Press any button on the...
- Page 14 Sensors set to Delay Zone will work similarly to Armed Zone sensors. However, these sensors will only activate the alarm after a set alarm delay time* when triggered. * Alarm Delay Time: you can set the delay time on the app through [OV6 Settings]- [Delay Alarm Time]. Note: Optional Smoke, Gas Leakage or Water Flood Sensors are automatically registered as Instant Alarm Zone Sensors and cannot be changed to other Zone.
- Page 15 Device Settings You can enable alarm sound, alarm light and low battery alarm in OV6 setting page as well as alter alarm volume and alarm duration. Delay setting Tap delay setting in OV6 setting page to set delay time when arm the system.
- Page 16 3. Choose the activate time of the status. 4. Select the date that you want this timer to repeat. Sharing Devices [Share Device] on the OV6 [More Settings] page to share access with other registered accounts. Alternatively, you can add the other users as a permanent resident to your home that automatically grants access to all devices setup within the home.
- Page 17 You can also rename home, set home location and assign room management in the [Me]-[Home Management] page. Create Group [create group] in OV6 [More Settings] page to create a group with multiple devices to control them simultaneously.
- Page 18 Smart You are able to customize different smart functions and interconnections between the connected devices: Tap-to-Run or Automation. Tap-to-Run: Control multiple devices with one tap. Steps: 1. Launch Tap-to-Run. 2. Choose device(s) and set up the task. 3. Tap the button, then the device(s) will execute the task immediately.
- Page 19 Automation: Execute task(s) automatically according to the preset rule(s). Steps: 1. Set a condition 2. Choose device(s) and set up the task. 3. Enable the automation, then the device(s) will execute the automation as the rule describes.
- Page 20 Account Management Tap Me icon on the main page, click the portrait to enter account management. You can change the profile photo, set nickname, select time zone and find account & security related items on this page. Message Center Tap Me icon on the main page to enter Message Center where you can check all alarm events, home related messages, and bulletins.
-
Page 21: Installation
Settings You can enable notification sound, enable app notification or set Do-Not-Disturb Schedule as well as check network diagnosis under Settings. Installation A weak WiFi signal can seriously affect the performance of this alarm system. Please make sure that the hub is located as close as possible to the main router for optimal connectivity. - Page 22 Door/ Window Contact : Step 1: To power up the contact, remove the battery tab Step 2: Attach the adhesive pads to the back of the transmitter and magnet Step 3: Place the contact on the door/window frame and the magnet on the door/ window ensuring that the distance between them is not greater than 1cm when the door/window is shut.
-
Page 23: Replacing Accessory Batteries
Replacing Accessory Batteries Remote Control Remove the screw Open the casing Door/Window Contact Open the casing... -
Page 24: Restoring To Factory Settings
Restoring to Factory Settings Press the Network Configuration button underneath the hub 3 times and you will hear 2 beeps, and then press and hold the button again, release the button when you hear a long beep. Specifications Power Supply DC 12V 500 mA Battery 1.5V AA LR06 battery x 4... - Page 25 Remote Control Power Supply DC 3V (CR2025 lithium battery x 1pc) Transmit Current <8 mA Transmitting Distance <80 m (open area/no interference) ERP(dBm).Max -14.81 Radio Frequency 433.92 MHz or 315 MHz *Only 433.92MHz is available for Europe Housing Material ABS Plastic Operating Condition Temperature 0°C~50°C, Relative Humidity <80% (non-condensing)
