Pro-Form 225 ZLX User Manual page 8

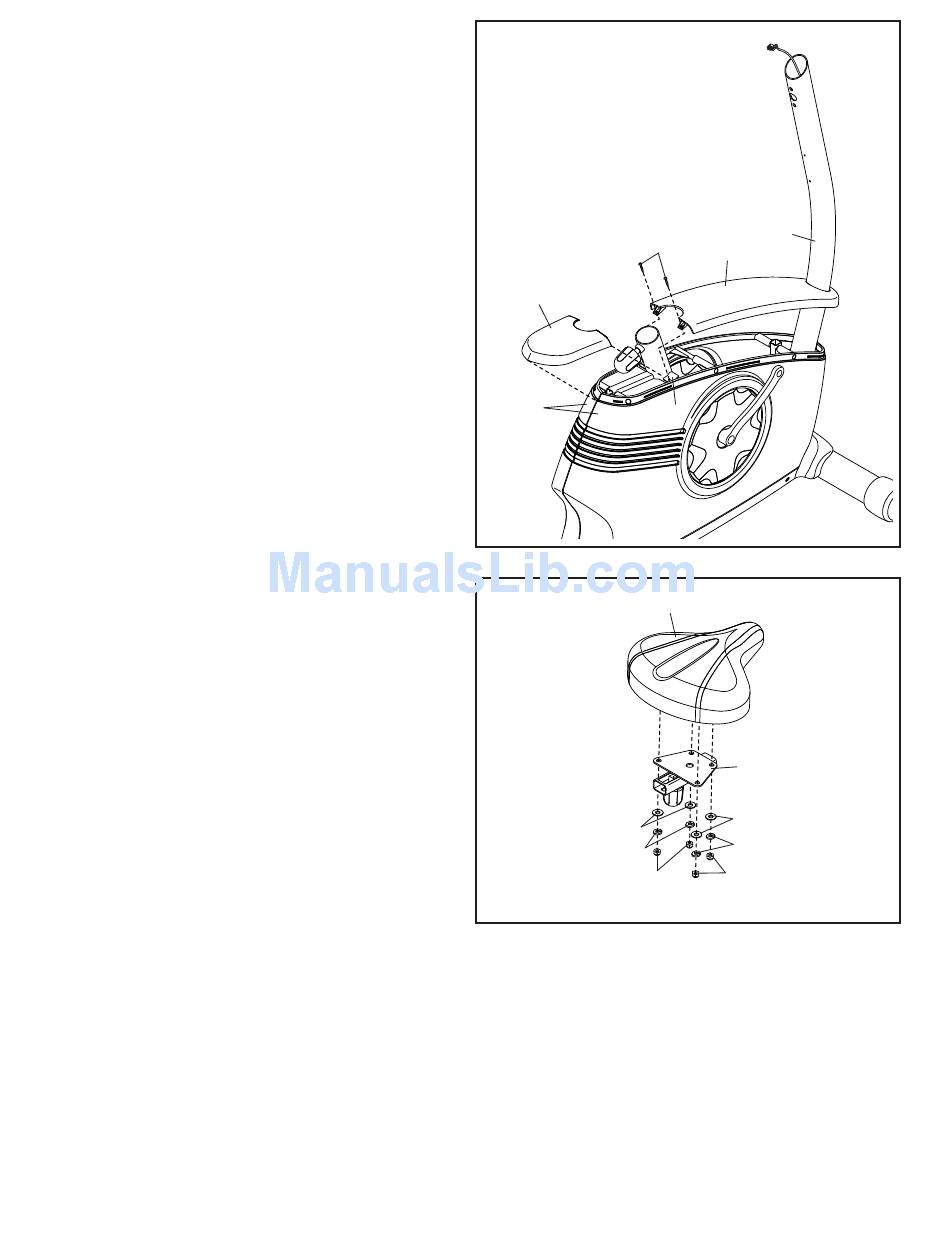

5. Orient the Top Shield (9) as shown. Slide the Top
Shield onto the Upright (3).
Attach the Top Shield (9) to the Frame (1) with
two M4 x 16mm Screws (40).
Orient the Top Shield Cap (10) as shown. Press
the Top Shield Cap onto the Left and Right
Shields (17, 18).
6. Orient the Seat (12) and the Seat Carriage (30)
as shown. Attach the Seat to the Seat Carriage
with four M8 Locknuts (37), four M8 Split
Washers (45), and four M8 Washers (56).
