MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batter-
ies. See assembly step 11 on page 11 for battery
replacement instructions.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 16.

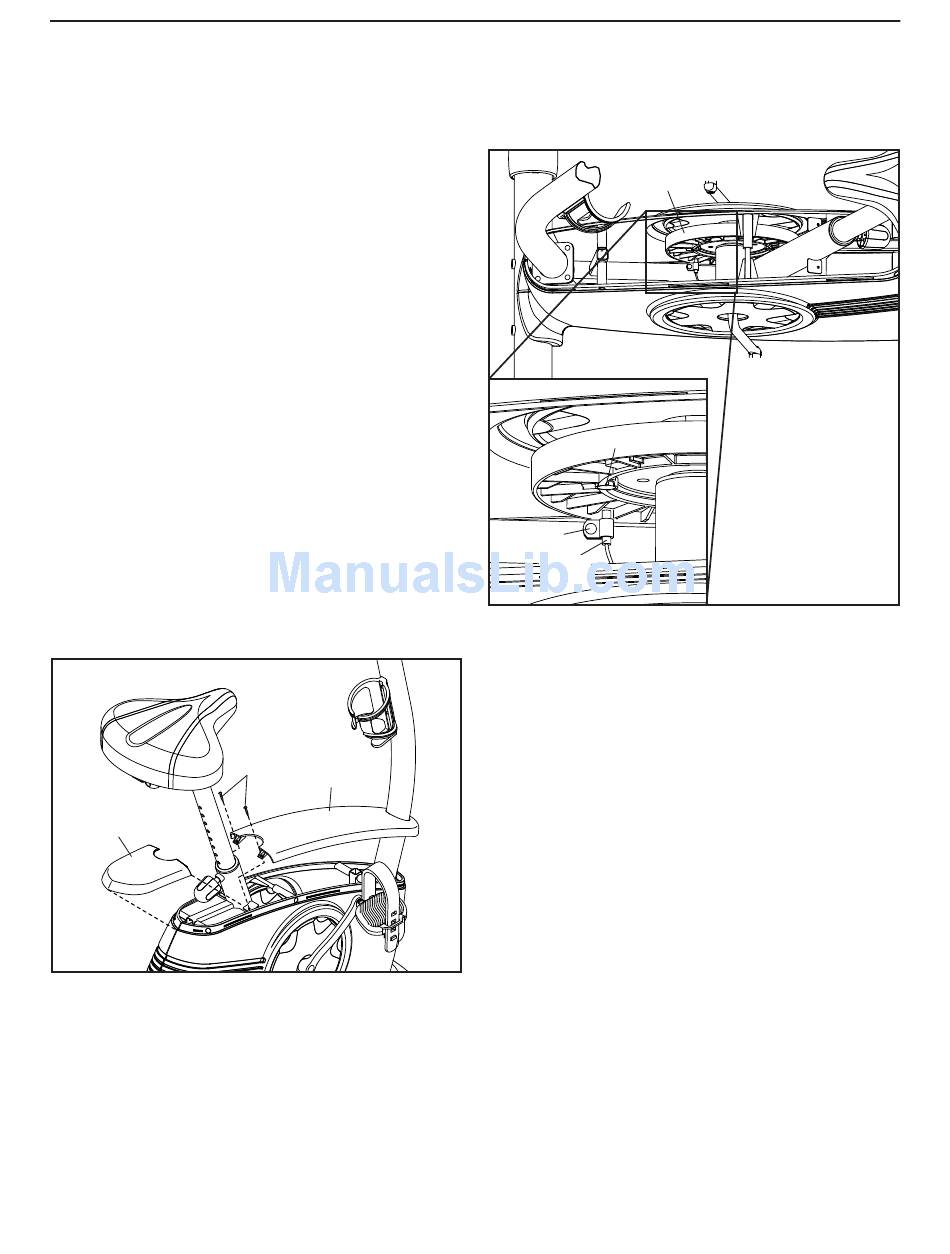

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
Using a flat screwdriver, remove the Top Shield Cap
(10). Then, remove the two M4 x 16mm Screws (40)
and lift the Top Shield (9) away from the frame.
10
40
9
Next, locate the Reed Switch (21). Loosen, but do not
remove, the M4 x 16mm Screw (40).
16
40
21
Rotate the Pulley (13) until a Pulley Magnet (16) is
aligned with the Reed Switch (21). Slide the Reed
Switch slightly toward or away from the Pulley Magnet.
Then, retighten the M4 x 16mm Screw (40).
Rotate the pulley for a moment. Repeat these actions
until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the top shield and the top shield cap.
19
13
