One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
iCoupler EVAL-ADuM5010EBZ, 150 mW isoPower Evaluation Board
FEATURES
isoPower integrated, isolated dc-to-dc converter
Regulated 3.15 V to 5.25 V output
Up to 150 mW output power
20-lead SSOP package with 5.3 mm creepage
High temperature operation: 105°C
High common-mode transient immunity: >25 kV/µs
SUPPORTED iCoupler® MODELS
ADuM5010
ADuM6010
GENERAL DESCRIPTION
The
EVAL-ADuM5010EBZ
ADuM6010
150 mW isolated power modules. It provides a
JEDEC standard SSOP20 pad layout as well as support for
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
supports the
ADuM5010
and

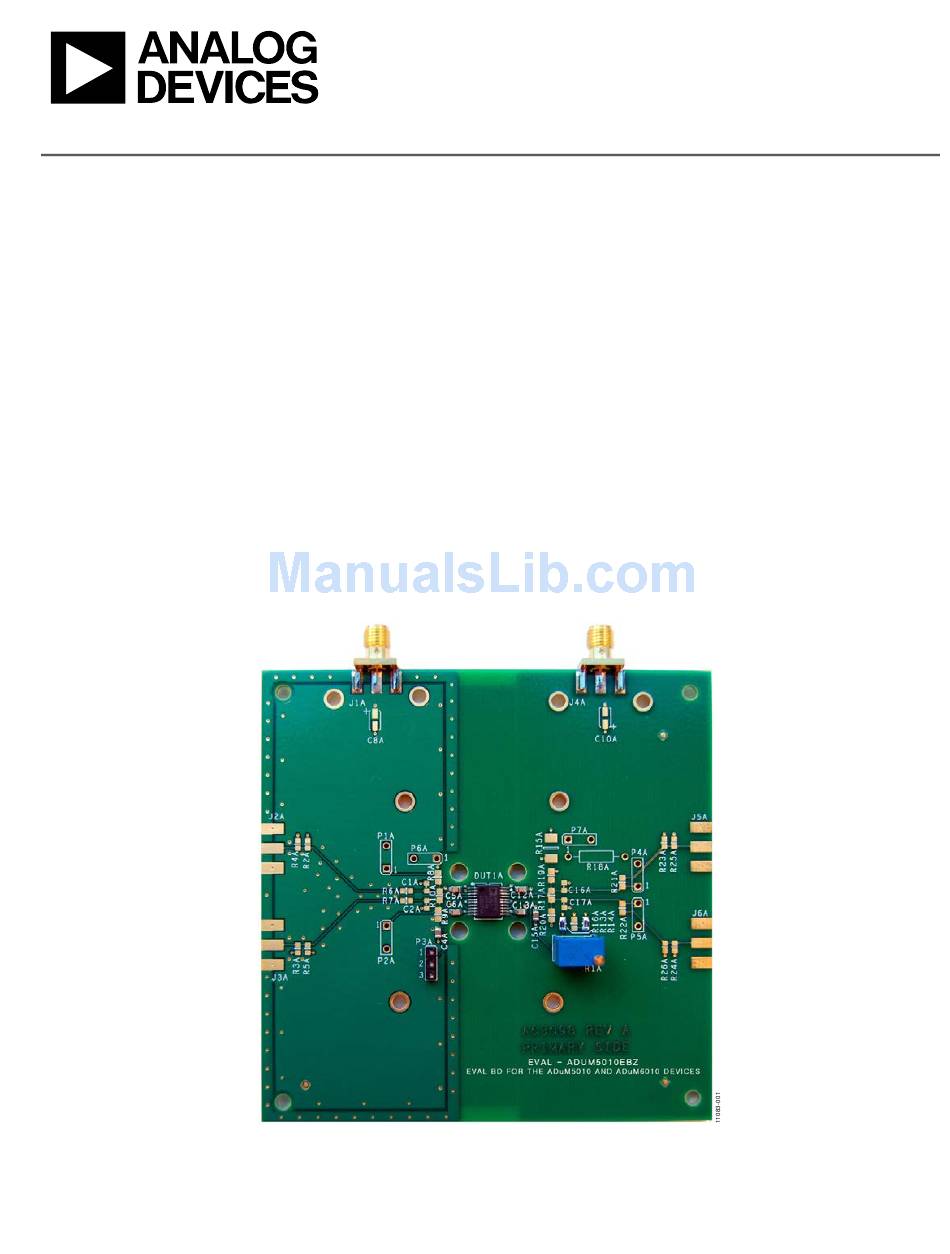

EVALUATION BOARD
Figure 1.
Evaluation Board User Guide
setting the desired output voltage, setting enable control, and
providing multiple positions for on-board loads and bypass
capacitors.
isoPower devices employ high frequency high power switching
circuits to enable power transfer across chip scale, air core
transformers. The evaluation board includes EMI mitigation
recommendations from the
the included techniques, this PCB and power module is capable
of meeting the requirements of CISPER22 Class A or Class B
depending on the voltage and load range.
Complete specifications for the
are provided in the
available from Analog Devices, Inc., and should be consulted
in conjunction with this user guide when using the evaluation
board.
EVAL-ADuM5010EBZ
Evaluation Board
Rev. 0 | Page 1 of 8
AN-0971 Application
ADuM5010
and
ADuM5010
and
ADuM6010
UG-487
Note. With
ADuM6010
data sheets,
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADuM5010EBZ
Summary of Contents for Analog Devices EVAL-ADuM5010EBZ
-
Page 1: Features
ADuM6010 are provided in the ADuM5010 ADuM6010 data sheets, GENERAL DESCRIPTION available from Analog Devices, Inc., and should be consulted EVAL-ADuM5010EBZ supports the ADuM5010 in conjunction with this user guide when using the evaluation ADuM6010 150 mW isolated power modules. It provides a board. -
Page 2: Table Of Contents
UG-487 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Bypass on the PCB ................3 Supported iCoupler® Models ............1 Provision for Loading ..............3 General Description ................. 1 EMI Mitigation ................4 Evaluation Board ................1 High Voltage Capability ...............4 Revision History ................ -
Page 3: Pcb Evaluation Goals
Evaluation Board User Guide UG-487 PCB EVALUATION GOALS Control of the V voltage is accomplished through a voltage divider that’s center node is attached to the V pin as shown This board is intended to achieve two goals. in Figure 3. There are two options for setting the output voltage ... -
Page 4: Emi Mitigation
UG-487 Evaluation Board User Guide EMI MITIGATION stack-up. This addresses emissions due to large high frequency vertical current flow through vias and traces near the edges. The PCB implements EMI mitigation techniques discussed Figure 4 shows the top layer guard ring and the bottom layer in the AN-0971 Application Note to demonstrate the... -
Page 5: Evaluation Board Schematics And Artwork
Evaluation Board User Guide UG-487 EVALUATION BOARD SCHEMATICS AND ARTWORK MTSW-202-12-G-S-730 MTSW-202-12-G-S-730 VDDPA VISOA VDDPA VISOA C10A JOHNSON142-0701-851 JOHNSON142-0701-851 VISOA VISOA 5 4 3 2 VDDPA C12A C14A R15A R18A 0.1µF 0.1µF DUT1A ADuM5010ARSZ VDD1 VDD2 GNDP GNDISO VISOA MOLEX22-03-2031 GNDP GNDISO GNDP... - Page 6 UG-487 Evaluation Board User Guide Figure 4. Edge Guard on Primary Side Top and Bottom Layers Figure 5. Power Fill, Top Layer, Primary Side Rev. 0 | Page 6 of 8...
-
Page 7: Ordering Information
Evaluation Board User Guide UG-487 ORDERING INFORMATION BILL OF MATERIALS Table 1. Quantity Reference Designator Description DUT1A ADuM5010 C5A, C6A, C16A, C17A 0.1 µF, 25 V, 10%, 0805 C4A, C15A 10 µF, 6.3 V, 10%, 0805 R14A 10 kΩ, 1/10 W, 1% 0805 R16A 16.5 kΩ, 1/10 W, 1%, 0805 20 kΩ... - Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
