Summary of Contents for Ltl Acorn Ltl-3310 Series

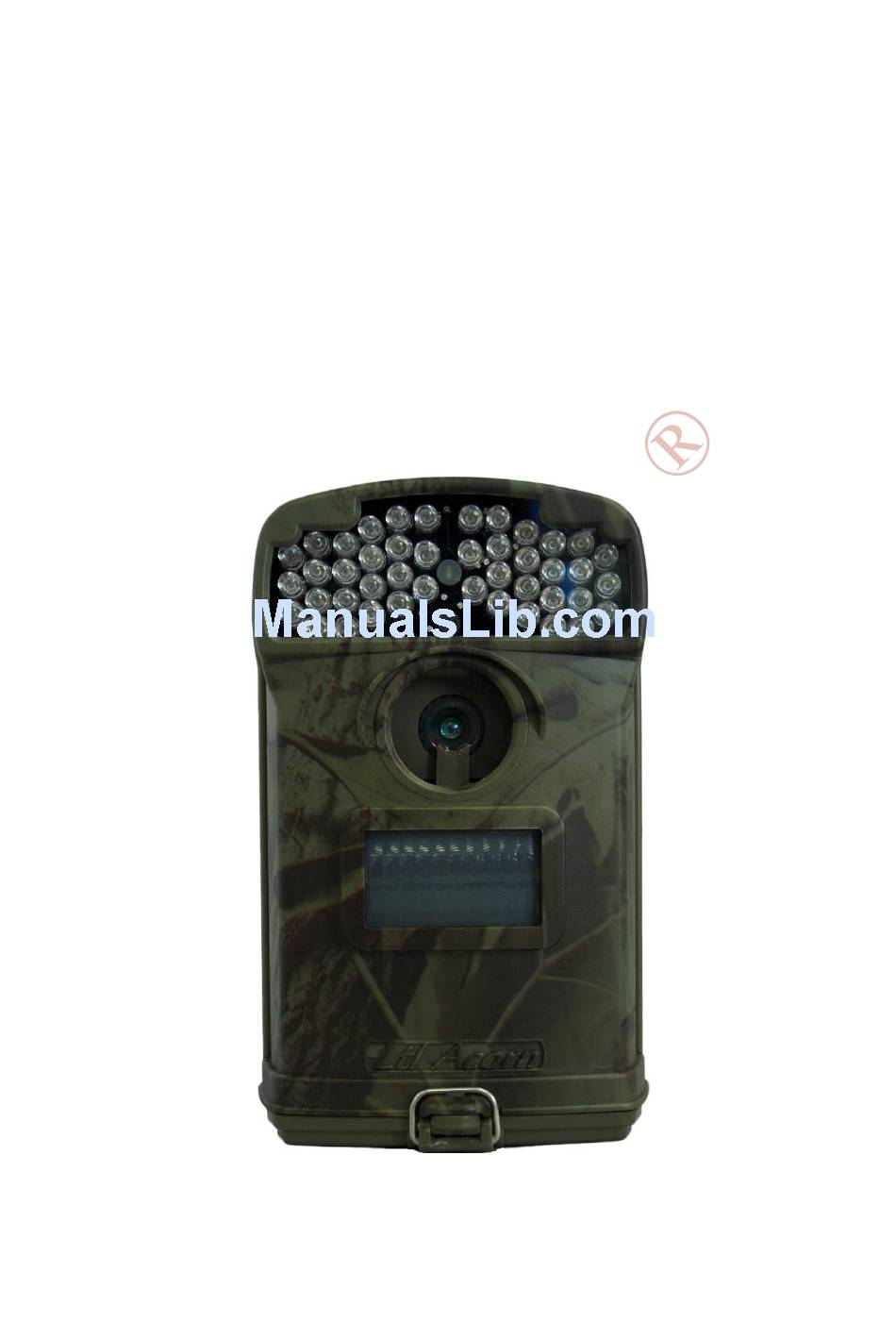

- Page 1 ® LTL ACORN Infrared Digital Scouting Camera Ltl-3310 Series Two high accuracy timers Download picture and video via Wireless Connection on mobile USER’S MANUAL...
-
Page 2: Table Of Contents
2.4 Enter Test Mode ........................10 2.5 Enter Live Mode .......................10 Advanced Settings ......................... 11 3.1 Parameter Settings......................11 3.2 File Format........................14 Ltl-3310 Series Products.......................15 4.1 3310 Series Model ......................15 4.2 Models for Purchase......................15 Important Information .........................16 5.1 Power Supply ........................16 5.2 SD Card..........................16... -
Page 3: General Information
Forty-four LEDs make Ltl-3310 series the most outstanding quality of night picture, ideal for security and surveillance purposes. Ltl-3310 series camera allows a field of view of 80 degrees and sensing angle of 60 degrees, can detect object or changes in the larger field of surroundings. -
Page 4: Application
Date, time, temperature, moon phase and battery level can be stamped on picture. Lockable and password protected For Ltl-3310B, the 320×240 thumbnail would be generated automatically at the shoot and could be downloaded to the mobile phone for review via wireless connection, it is recommended to retrieve SD card from camera and view the original picture on mobile device or PC directly (SD card reader may be needed). - Page 5 Figure 1.1: Front view of Ltl-3310 Figure 1.2: Bottom view of Ltl-3310A - 3 -...
- Page 6 The camera provides the following connections for external devices: SD card slot and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera.
-
Page 7: Getting Started
GETTING STARTED 2.1 Load Batteries Open the bottom cover by pulling down the lock hole. Follow direction of the arrow, push and release the battery door. Install 4 AA batteries or 8 AA batteries in the camera (batteries must be leaned to one side without empty in the middle). -
Page 8: Set Up Camera On Pc
Find the enclosed compact CD in the gift box and put it on the CD tray. (An external disc drive would be needed if the PC does not have a disc drive.) Run the Setup.exe file. In another way, download the setup file from Ltl Acorn’s website: http://www.ltlacorn.cn/about/downloaden.html (Download→... - Page 9 Select your language and model. Click on Camera Setup, and you will see the following menu: - 7 -...
- Page 10 Set up the camera based on your own need. Please refer to Section 3.1 Parameter Settings in Advanced Settings to find detailed explanations for each setting. Set up the camera based on your need. Click on to retrieve the computer time. Click on to choose the directory to save your settings, usually under the root directory of the SD card (you need to insert the SD card into the SD card reader and plug it in your...
- Page 11 Then, click on . A message window will pop out as below. You can also use the manufacturer default settings by clicking on if needed. A file named menu.dat would be created and saved in the selected directory. If you selected a directory other than the SD card, you need to move the menu.dat file to the root directory of the SD card before inserting the card into camera.
-
Page 12: Enter Test Mode
If the Motion Indicator flashes red, it means that the position you stand can be detected by PIR sensor. You can identify the best position to install the LTL ACORN camera through this test. In general, we recommend placing the camera 3 to 6 feet (1 to 2 meters) above the ground. -
Page 13: Advanced Settings
ADVANCED SETTINGS The LTL ACORN trail camera comes with default settings. You can change the settings to meet your requirements, by manually operating on the camera or programming on your computer. 3.1 Parameter Settings For Ltl-3310A, switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like using a regular digital camera, or enter the Menu to set up parameters. - Page 14 Cam+Video mode, camera takes photos and video at the same trigger. Format Enter All files would be deleted after formatting the SD card. Format the SD card on the camera when using it for the first time. Caution: make sure wanted files on the SD card are backed 5MP, 3MP, 1.3MP Select desired resolution for photos from...
- Page 15 Low setting is helpful in cold weather. On, Off Select On if you want the date & time Time Stamp stamped on every photo. Off, On Select On if you only want the camera to Timer1 work within a specified period every day.
-
Page 16: File Format
3.2 File Format Ltl-3310 series, there are two default folders DCIM and MISC to save pictures and videos, MISC is standby folder. The SD card stores all original pictures and videos in the folder DCIM\100MEDIA. Pictures are saved with filenames like IMAG0001.JPG and videos like IMAG0001.AVI. -
Page 17: Ltl-3310 Series Products
Ltl-3310 SERIES PRODUCTS 4.1 3310 Series Model: Ltl-3310A (TFT LCD, No Wireless Connection) Ltl-3310B (Wireless Connection, No TFT LCD) 4.2 Models for Purchase: (Ltl-3310A) (Ltl-3310B) (Color Picture) (Black and White Picture) - 15 -... -
Page 18: Important Information
IMPORTANT INFORMATION 5.1 Power Supply The working voltage of Ltl-3310 Series is up to 12V. The 4 AA batteries or 8 AA batteries in the camera (batteries must be leaned to one side without empty in the middle), and the external power supply form a three-path parallel circuit. -
Page 19: Mount On Tripod
5.5 Mount on Tripod The camera can be mounted on a 1/4" tripod. CAUTION: To avoid breakage, always turn the knob in position to secure the bottom cover. 5.6 Low Battery Alarm When battery level gets low, the message “Low Battery” would be shown on the screen in the TEST mode. -
Page 20: Firmware Upgrades
FIRMWARE UPGRADES 6.1 Firmware Upgrades The manufacturer reserves the right to upgrade the camera and the firmware. Follow the steps below to implement the upgrades: Back up the contents in the SD card on your computer. Install batteries and the SD card into the camera. ... -
Page 21: Warranty Information
LIMITED WARRANTY We take great pride in our products. We always stand behind our promises and provide leading warranty term and service. Every LTL ACORN trail camera comes with a limited warranty period. We guarantee our trail cameras to be free of defects in materials and workmanship under normal use and service for a one-year warranty after the registered date of purchase. -
Page 22: Appendix I Technical Specifications
Appendix I: TECHNICAL SPECIFICATION Item Parameters F/NO=2.4; FOV=80°; Auto IR-Cut Lens 850nm LED: 20 meters IR Flash 940nm LED (black flash): 15 meters 2.0〞TFT LCD Screen(Ltl-3310A) 6 keys Operation Keypad(Ltl-3310A) SD card (8MB ~ 16GB) Memory Photo Size 1.3MP(1280×960), 3MP(2048×1536), 5MP(2560×1920) Video Size 640×480(30fps), 320×240(30fps) High/Normal/Low/Off... - Page 23 Test mode working current(without operation): Power Consumption Ltl-3310A: 110mA~160mA Ltl-3310B: 80mA~130mA Live mode working current(with IR LED on): Take video: 750mA(first 10s)~450mA(after 10s) Take photo: 700mA~650mA When battery level gets low, the message “Low Battery” would be Low Battery Alert shown on the screen in the TEST mode.
-
Page 24: Appendix Ii Package Contents
Appendix II: PACKAGE CONTENTS Part name Quantity Quantity (Ltl-3310A) (Ltl-3310B) Digital Camera Strap Warranty Card User’s Manual External DC cable (optional) - 22 -...
