Sandpiper Installation Guide

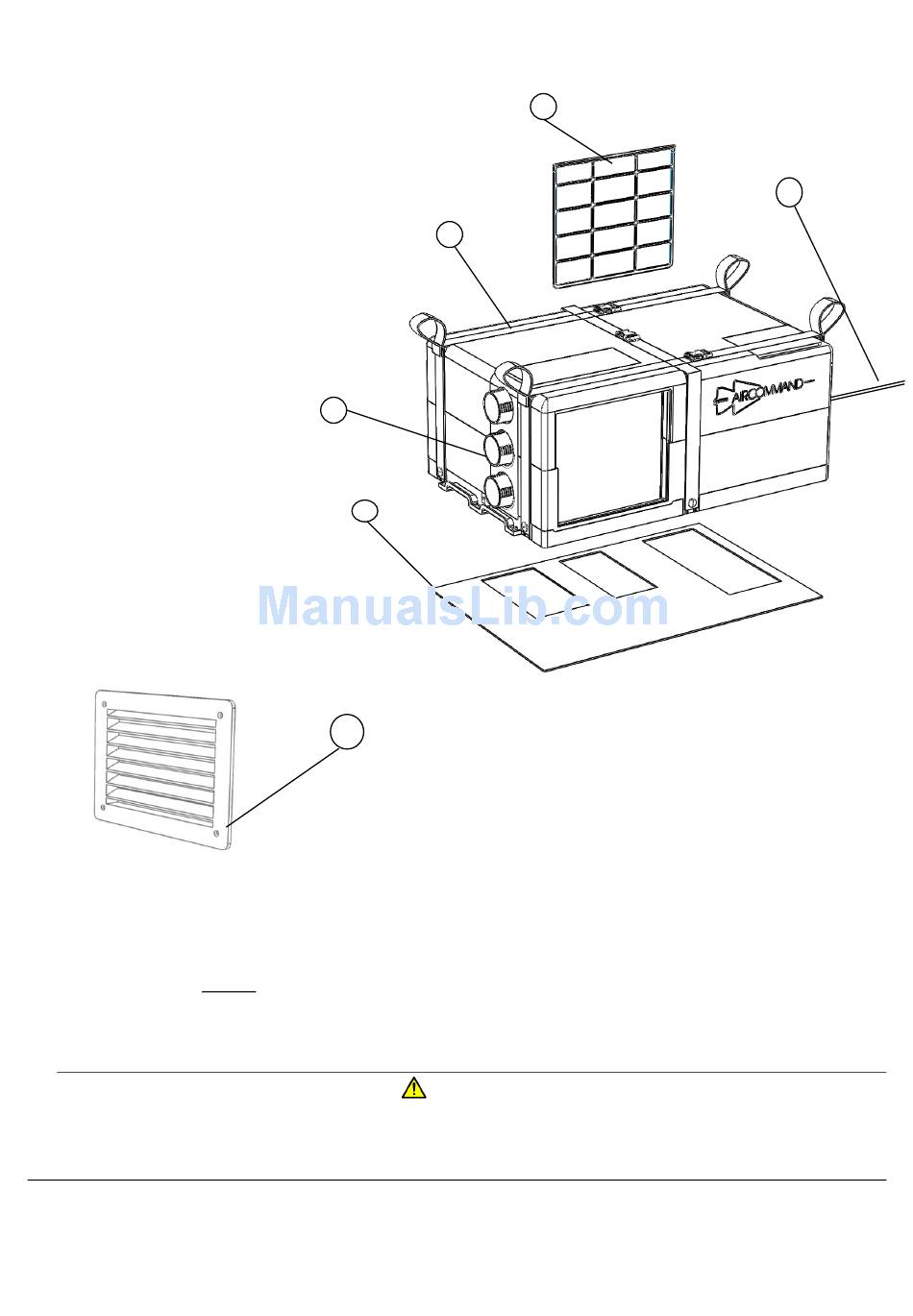

INSTALLATION PARTS LIST
Main components
1. Sandpiper air conditioner
2. Filter
3. Sealing mat
4. Return air grille
5. Ducting spigots
6. LCD touchscreen and remote (not shown)
7. Power cord (2m long) and separate
cable to interface
Fixtures and fittings (not shown)
8. Unit hold down screws x 6
9. Ducting outlets x 3
10. Ducting brackets x 10
11. Ducting bracket screws x 20
12. Return air grille screws x 4
13. Return air grille screw caps x 4
14. LCD touch screen screws x 2
15. Remote bracket screws x 2
Note: The ducting bracket screws, LCD touch
screen screws and the remote bracket screws
are all the same type of screw.
Ensure that the installation instructions have been properly read and understood.
DO NOT attempt to modify or add components to the installation procedure.
If your installation varies from the method outlined please contact Aircommand for specialty advice.
The unit weighs approximately 29kg, ensure a two person lift or use a mechanical hoist to avoid the risk of injury.
Failure to properly install the unit or attempting to modify it in any way can be extremely hazardous and may result in
Aircommand will not be held responsible for issues arising from incorrect or improper installation methods.
th
28
5
3
4

BEFORE INSTALLATION

Installation must conform to local wiring regulations.
This equipment must only be serviced by a licensed refrigeration mechanic.
property damage and/or personal injury.
May 2013 – Revision 7
2
1
WARNING
Page 5 of 22
7
