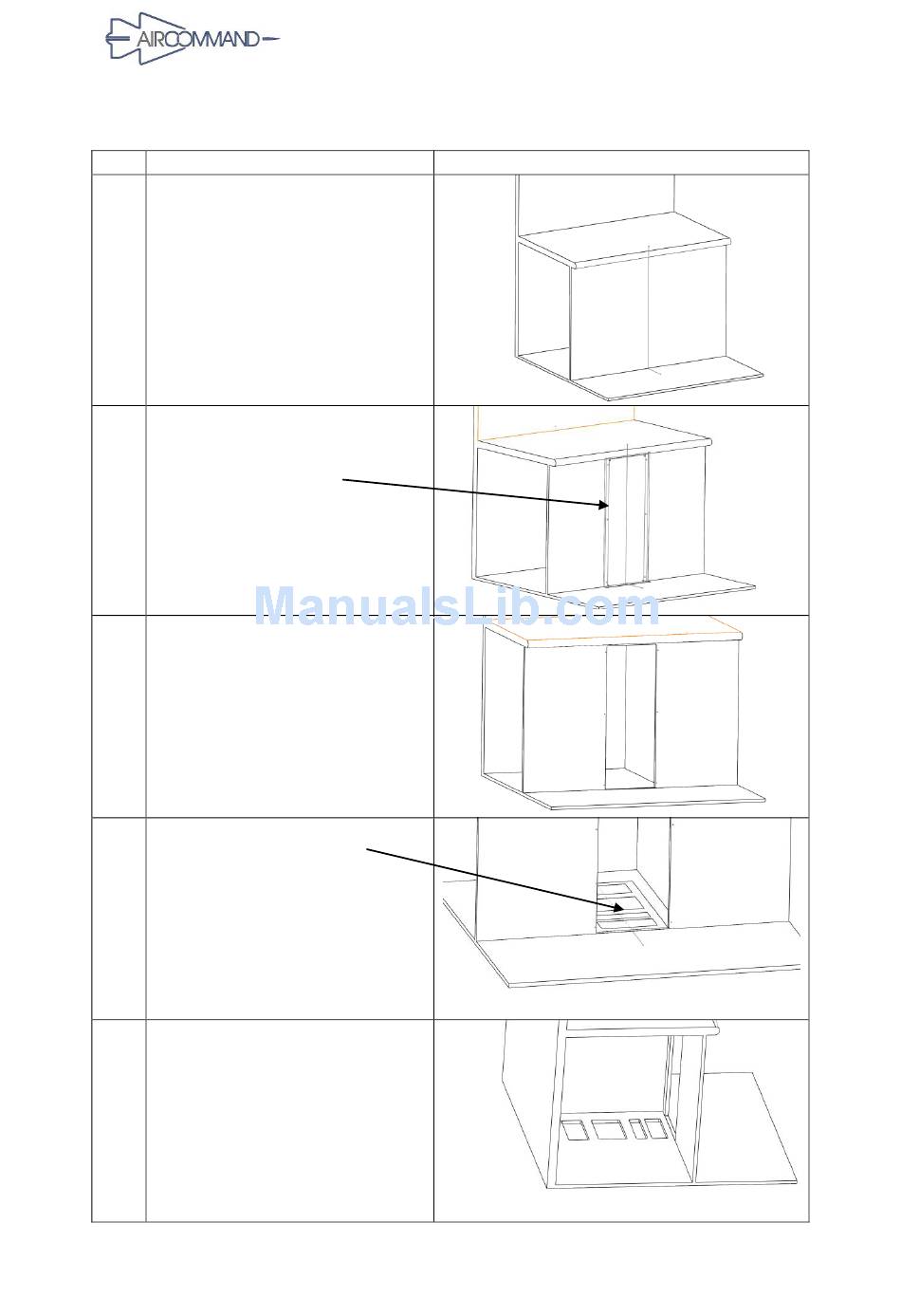

Jabiru Installation instructions
Step Description
1
Mark out centre line of the
installation
2
Align centre line of installation
with the centre line of the
"Front Panel Cut out"
template.
Align "FLOOR" on template
with floor of vehicle. Tape
template in place
3
Drill 4 x 10mm holes in the
corner of the cut out region.
Remove template. Use jig saw to
cut out between the outside of
the 10 mm holes
4
Align centre line of
"Floor cut out" template
with centre line of installation.
Align front face of cupboard
with line on template. Tape
template in place
5
Drill the 10mm holes as marked
on floor cut out template.
Use jig saw to cut out the areas
between the 10mm holes
Jabiru Installation instruction
Version 3 Issued 12/7/11
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Aircommand Jabiru
Summary of Contents for Aircommand Jabiru
- Page 1 Jabiru Installation instruction Version 3 Issued 12/7/11 Page 1 of 5 Jabiru Installation instructions Step Description Mark out centre line of the installation Align centre line of installation with the centre line of the "Front Panel Cut out" template. Align "FLOOR" on template with floor of vehicle.
- Page 2 Jabiru Installation instruction Version 3 Issued 12/7/11 Page 2 of 5 Align centre line of installation with centre line of "Rear exhaust cut out" template". Align fold in template with corner of floor and rear wall. Tape template in place Drill 4 x 10mm holes as marked on cut out template.
- Page 3 Jabiru Installation instruction Version 3 Issued 12/7/11 Page 3 of 5 Stick the base sealing gasket around the perimeter of the cut outs in the floor Lay the metal slipper over the gasket with the folded end just outside the cupboard.
- Page 4 Jabiru Installation instruction Version 3 Issued 12/7/11 Page 4 of 5 Locate three holes on the inside of the units sheet steel cover. Use screws provided to secure the unit to the bracing. Repeat for three holes on other side of...
- Page 5 Jabiru Installation instruction Version 3 Issued 12/7/11 Page 5 of 5 Insert condenser duct through the hole in the external wall and inside the condenser air spigot. Ensure the duct is pushed in as far as possible. Trim excess duct so it is flush with outside wall.
