Installation Parts List

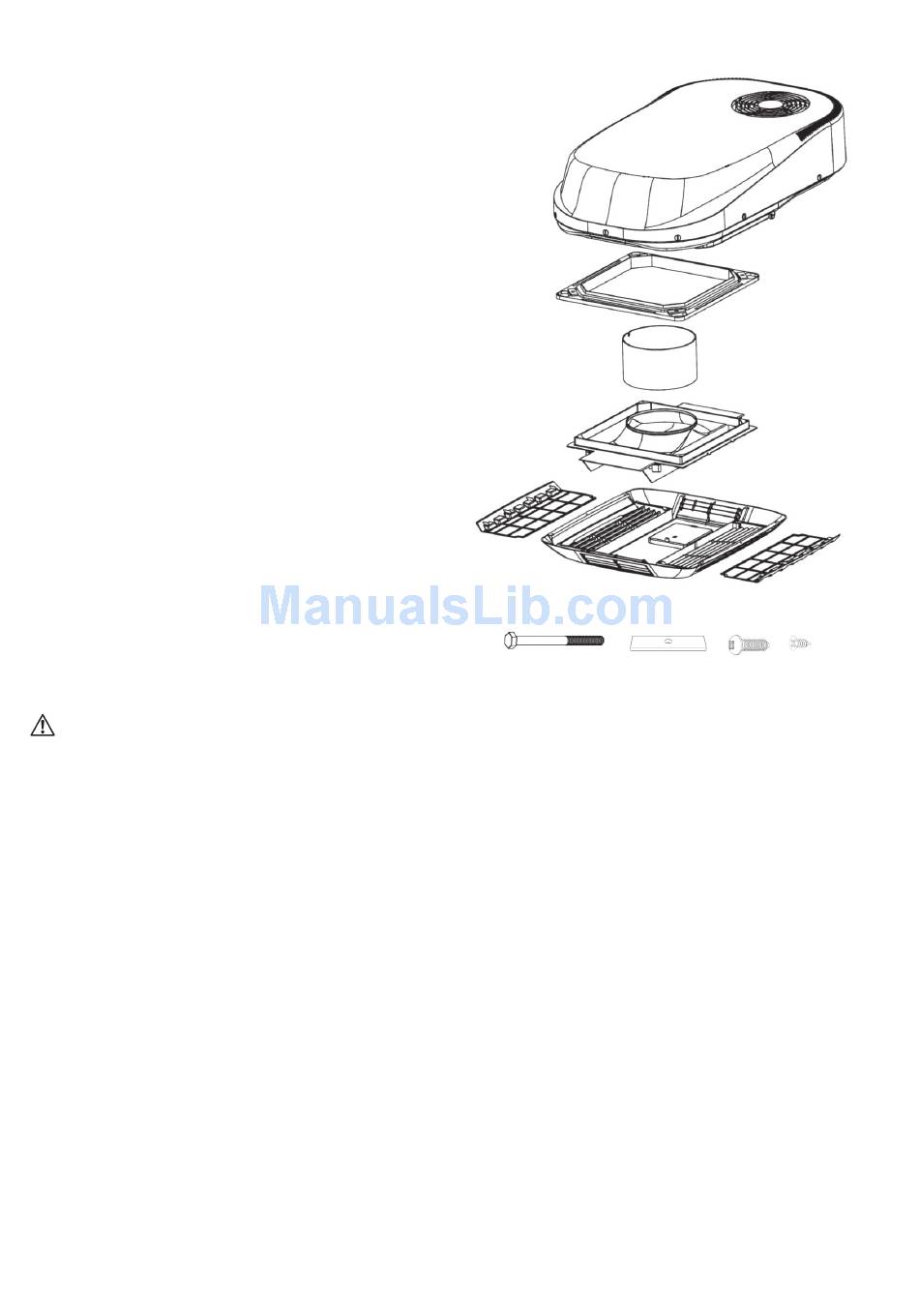

MAIN COMPONENTS
1
Sparrow Mk4 rooftop air conditioner
1
2 Weather collar
3 Black plastic duct
4 Brace assembly
5 Plenum fi lters x 2
6 Plenum cover
2
FITTINGS & FIXTURES
7 M8x120mm bolts x 4
8 Hold down bars x 4
3
9 Plenum cover screws x 4
10 Self tapping screws x 6
4
BEFORE INSTALLATION
Ensure that the installation instructions have been properly
5
read and understood.
Installation must confi rm to nation wiring regulations and
in particular AS3001 – 2008.
5
DO NOT attempt to modify or add components to the
6
installation procedure.
This equipment must only be serviced by a licensed
refrigeration mechanic.
If your installation varies from the method outlined please
7
8
9
10
contact Aircommand for specialty advice.
WARNING
Failure to properly install the unit or attempting to modify
it in any way can be extremely hazardous and may result in
property damage and/or personal injury.
Aircommand will not be held responsible for issues arising
from incorrect or improper installation methods.
