Digital Cordless Telephone
Motorola IT.6X
For Models: IT.6.1X, IT.6.2X, IT.6.3X and IT.6.4X
Warning: Charge the handset for 24 hours before use.

Advertisement

loading

  Related Manuals for Motorola IT.6.1X

  Summary of Contents for Motorola IT.6.1X

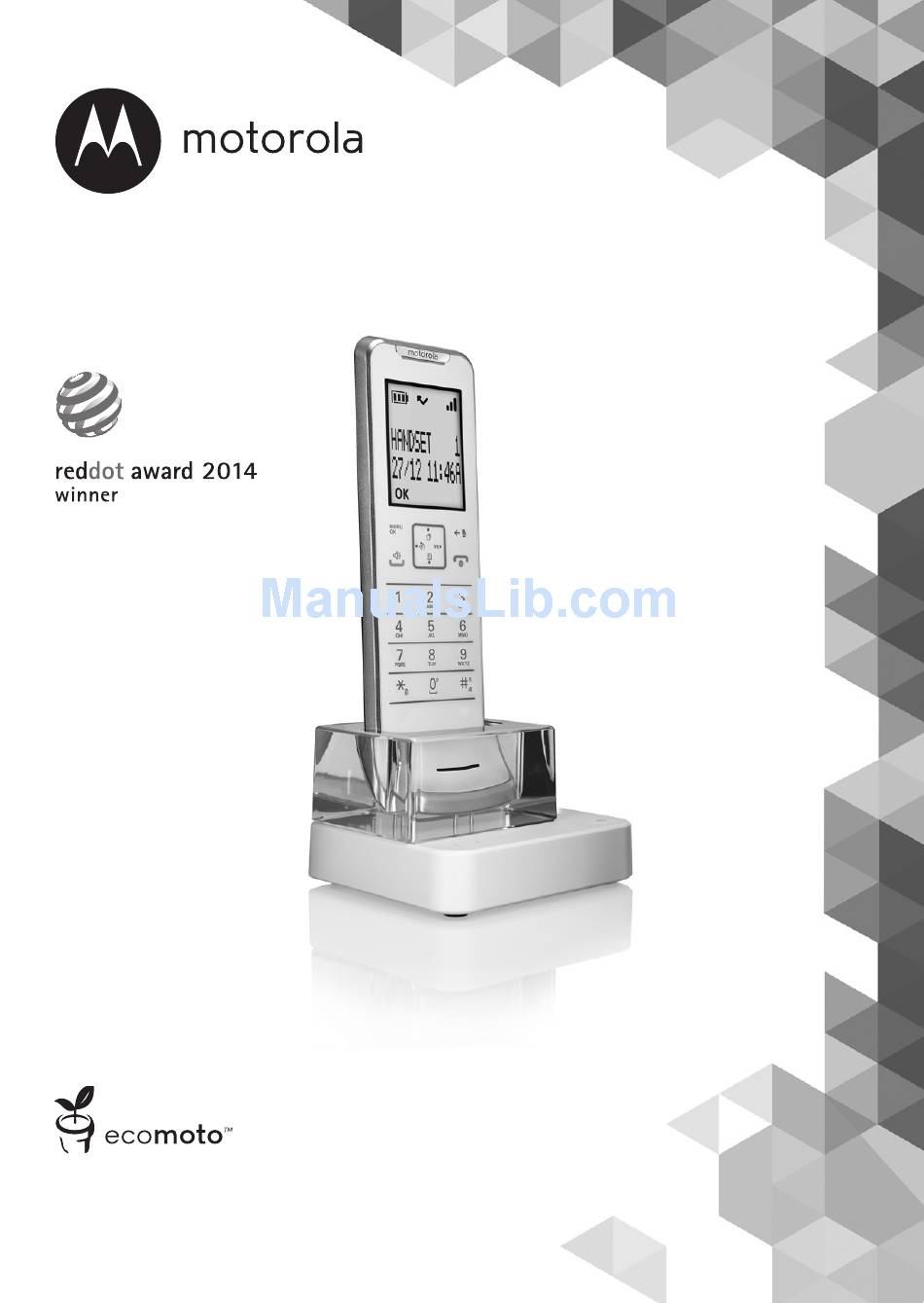

  • Page 1 Digital Cordless Telephone Motorola IT.6X For Models: IT.6.1X, IT.6.2X, IT.6.3X and IT.6.4X Warning: Charge the handset for 24 hours before use.
  • Page 2 Welcome... to your new Motorola IT.6X Digital Cordless Telephone! • All handsets fully cordless for locating anywhere within range. • 100 Name and number phonebook. • Bright backlit display. • Speakerphone for hands-free conversations. • Caller ID shows you who’s calling and see details of the last 50 callers in a Calls list.
  • Page 3 This User Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on the next few pages. IMPORTANT Only use the telephone line cord supplied.
  • Page 4: Table Of Contents

    1. Getting started ..............6 2. Getting to know your phone ..........10 3. Using the phone ..............15 Make a call .....................15 Pre-dial ......................15 Dial direct memory numbers 1 to 9...............15 Call from the phonebook ................15 Call from the Calls list ..................15 Answer a call ....................15 Adjust volume ....................16 Mute .......................16...
  • Page 5 5.2.4 Delete a redial list entry ..............24 5.2.5 Delete entire redial list ................24 6. Clock & Alarm ..............25 Set date and time ...................25 Set alarm ......................25 Set alarm melody ...................25 Switch auto clock on / off ................26 7. Personal settings ..............27 Handset tones ....................27 7.1.1 Ring volume ..................27...
  • Page 6: Getting Started

    1. Getting started IMPORTANT Do not place your IT.6X in the bathroom or other humid areas. Location You need to place your IT.6X base within 2 metres of the mains power socket and telephone wall socket so that the cables will reach. The socket-outlet should be installed near the equipment and should be easily accessible.
  • Page 7: Connecting The Base

    Connecting the base 1. Plug the telephone line cord into the socket marked on the underside of the base. 2. Plug the power adaptor into the socket marked on the underside of the base and plug the other end into the mains power wall socket. Switch on the mains power. Charging the handset 1.
  • Page 8 1. Plug the power adaptor into the socket marked on the underside of the charger and plug the other end into the mains power wall socket. 2. If you are charging the batteries for the first time, place the handset on the charger to charge for at least 24 hours continuously.
  • Page 9: Date And Time

    Note that new batteries do not reach their full capacity until they have been put to normal use for several days. To keep your batteries in the best condition, leave the handset off the base for a few hours at a time. Running the batteries right down at least once a week will help them last as long as possible.
  • Page 10: Getting To Know Your Phone

    2. Getting to know your phone Overview of your handset A Earpiece B Display See page 12 for display icons. C Call Log / Scroll Up / Volume up Open the Call log. Press to enter Call log menu and then press to select Call List...
  • Page 11 F Talk / Hands-free key Make or answer a call. Activate and deactivate hands-free during a call. IMPORTANT Hands-free activation can suddenly increase the volume in the earpiece to a very high level. Make sure the handset is not too close to your ear. G Pulse to Tone Dialling / * / Keypad lock During a call, press and hold to switch from pulse dialling to tone dialling.
  • Page 12: Handset Display

    Handset display Display icons On when the line is in use. Flashes when there is an incoming call. Flashes when you have missed calls and new number(s) are in the Calls list. Handset ringer is off. Steady when the handset is registered and within range of the base. Disappears when the handset is out of range and flashes when searching for the base.
  • Page 13: Overview Of The Base

    This feature is dependent on your Network Service provider supporting the service. A subscription fee may be payable. Overview of the base A Paging key Paging is a useful way to find lost handsets. 1. Press on the base. All handsets ring. 2.
  • Page 14 Menu map Handset Name Phonebook List Entry Auto Pick-Up Auto Hang-Up When no entry is stored List empty Language is shown, if entries are stored Backlight scroll to the required entry and press Advanced Set Call List Edit Conference Delete Auto prefix New Entry Digit Detect...
  • Page 15: Using The Phone

    3. Using the phone Make a call 1. Press 2. Dial the telephone number. Pre-dial 1. Enter the phone number (maximum 24 digits). If you make a mistake press 2. Press to dial the phone number entered. Dial direct memory numbers 1 to 9 1.
  • Page 16: Adjust Volume

    IMPORTANT When the phone is ringing, avoid holding the earpiece too close to your ear as it may damage your hearing. NOTE If Auto Pick up mode (see page 28) is on, simply lift up the handset from its base to answer the call.
  • Page 17: Transfer An External Call To Another Handset

    NOTE If the handset does not belong to IT.6X range, this function may not be available. 3.11.2 Transfer an external call to another handset 1. During an external call, press Your caller is put on hold. 2. Enter the number of the handset you want to call or press to ring all handsets.
  • Page 18: Phonebook

    4. Phonebook The IT.6X handset phonebook can store up to 100 names and numbers. Numbers can be up to 24 digits long and names up to 12 characters long. Entries are stored in alphabetical order. View and dial phonebook entries 1.
  • Page 19: Character Map

    Character map Use the keypad to enter names and characters. Case Assigned characters and symbols L / U 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § … a b c 2 à â æ á ã ä å ą ā ç č A B C 2 À...
  • Page 20: View An Entry

    View an entry In standby: 1. Press 2. Enter the first letter of the name to search alphabetically then scroll to the exact entry. The name is displayed. 3. Press to display the number. If there are more than 12 digits, press again to see the rest of the number.
  • Page 21: Delete All Entries

    4.10 Delete all entries 1. Press twice. 2. Scroll Delete All and press 3. Display shows Confirm?. Press 4. Press to return to standby. 4.11 Store a direct memory number 1. Press twice. 2. Scroll Direct Mem and press Key 1 is displayed.
  • Page 22: Caller Id And Calls List

    5. Caller ID and Calls list If you have subscribed to Caller ID and provided the identity of the caller is not withheld, the number of the caller will be displayed together with the date and time of the call (if provided by the network).
  • Page 23: Dial From The Calls List

    NOTE icon stops flashing once all new calls have been viewed. 5.1.2 Dial from the Calls list 1. Press to enter the Call log option menu, then press to enter Call List. The most recent call is displayed. 2. Scroll to the entry you want.
  • Page 24: View And Dial A Number In The Redial List

    5.2.2 View and dial a number in the redial list 1. Press . The last number dialled is displayed. If required, scroll to display the number you want. 2. Press to dial the number. 5.2.3 Copy a redial number to the phonebook 1.
  • Page 25: Clock & Alarm

    6. Clock & Alarm If you subscribe to your network’s Caller ID service and Auto clock is set to on, the time on your IT.6X may be set automatically each time you receive a call, depending on your network provider. (Only applicable to FSK caller ID system). You can also set or adjust the time using the Clock/Alarm menu.
  • Page 26: Switch Auto Clock On / Off

    Switch auto clock on / off If you have subscribed to Caller ID Service, the date and time will be set on all your handsets whenever a call is received. This feature can be set to On or Off. 1. Press , scroll to Clock/Alarm and press...
  • Page 27: Personal Settings

    7. Personal settings Handset tones IMPORTANT When the phone is ringing, avoid holding the earpiece too close to your ear as it may damage your hearing. 7.1.1 Ring volume Choose from 5 levels and off. 1. Press , scroll Personal Set and press Handset Tone is displayed.
  • Page 28: Handset Name

    5. Press to return to standby. Handset name Personalise your handset, with a name or location for example Peter or Bedroom. Maximum 10 characters. 1. Press , scroll Personal Set and press 2. Scroll Handset Name and press . The current name is displayed. 3.
  • Page 29: Backlight On/Off

    5. Press to return to standby. Backlight on/off 1. Press , scroll Personal Set and press 2. Scroll to Backlight. Press 3. Press to select or Off. 4. Press to confirm. 5. Press to return to standby. Keypad lock Prevent accidental dialling while carrying the handset by locking the keypad. While the keypad is locked, you can answer incoming calls as normal.
  • Page 30: Advanced Settings

    8. Advanced settings Call List You can set Call list type to All calls or Missed calls only. If All calls is selected, press keys in idle will view all calls lists. If Missed calls is selected, press keys in idle will view missed call only.
  • Page 31: Dial Mode

    1. Press , scroll Advanced Set and press 2. Scroll Recall Time is displayed. Press 3. Press to select the setting you want: Short, Medium, Long. 4. Press to confirm. 5. Press to return to standby. NOTE The functionality of your IT.6X cannot be guaranteed on all PABX. SHORT-100ms, MEDIUM-250ms &...
  • Page 32: De-Register A Handset

    De-register a handset Use one handset to delete another. You cannot delete the handset that you are using. 1. Press , scroll Advanced Set and press 2. Scroll Unregister and press 3. Enter the 4 digit master PIN and press Display shows the first registered handset number.
  • Page 33: Eco Plus

    4. Scroll to the required range either House, Apartment Room and press To switch ECO mode off select Off. 5. Press to return to standby. A confirmation beep is emitted and when the range is set and the icon shows on the display.
  • Page 34: Default Settings

    4. Scroll to Number. Press 5. If necessary, scroll to the next available slot. 6. Press and enter the number or prefix you want to bar. Press to confirm. 7. Press to return to standby. 8.14 Default settings Handset name HANDSET Key tone Auto pick up...
  • Page 35: Help

    10. Help icon is not scrolling during charge • Bad battery contact – move the handset slightly. • Dirty contact – Clean the battery contact with a cloth moistened with alcohol. • Battery is full – no need to charge. No dialling tone •...
  • Page 36: General Information

    11. General information IMPORTANT This equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public switched telephone networks and private switchboards in Singapore.
  • Page 37: Installation Guidelines

    Installation Guidelines • Read and understand all instructions and save them for future reference. • Follow all warnings and instructions marked on the product. • Do not install this product near a bath tub, sink, or shower. • Operate this phone using only the power source that is indicated on the marking label. If you are unsure of the power supply to your home, consult with your dealer or local power company.
  • Page 38 Consumer Products and Accessories Warranty Thank you for purchasing this Motorola branded product manufactured under license by Suncorp. What Does this Warranty Cover? Subject to the exclusions contained below, Suncorp warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product...
  • Page 39 WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR SUNCORP BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE...
  • Page 40: Technical Information

    Motorola or Suncorp, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage. Unauthorized Service or Modification. Defects or damages resulting from service,...
  • Page 41: Connecting To A Switchboard

    R&TTE This product is intended for use within Singapore for connection to the public telephone network and compatible switchboards. This equipment complies with the essential requirements for the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC including compliance with ICNIRP standard for electromagnetic energy exposure. Connecting to a switchboard This product is intended for use within Singapore for connection to the public telephone network.
  • Page 42 < This page has intentionally been left blank >...
  • Page 43 Brandname: Motorola Type: IT.6.1X, IT.6.2X, IT.6.3X and IT.6.4X Descriptions: DECT phone without telephone answering machine (IT.6.xX) and their multi-handset versions. to which this declaration related is in conformity with the essential requirements of the following directives of the Council of the European Communities: R&TTE Directive (1999/5/EC)
  • Page 44 Manufactured, distributed or sold by Suncorp Technologies Ltd., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
