Controls and Connectors

Front Panel Controls

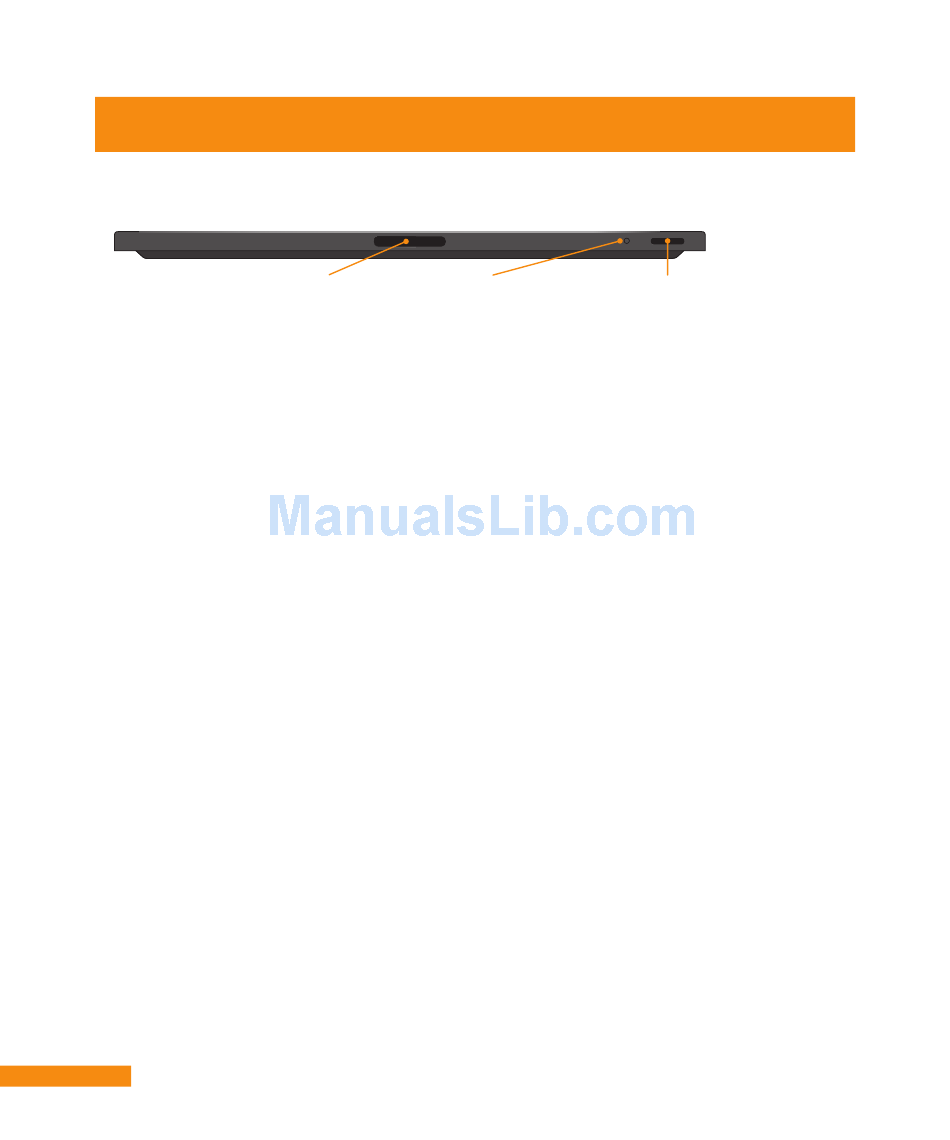

The front panel of your DVR+ receiver has the following controls:
Do not cover or obstruct.
• IR Receiver – Receives infrared signals from your remote control. Please do not cover or obstruct
the IR receiver.
• Status LED – Provides a visual indication of whether your DVR+ receiver is turned on (bright blue)
or in standby mode (dim blue). The bright-blue light turns red when the DVR+ receiver is actively
recording a program or event.
• Power Button – Activates your DVR+ receiver (if it is standby mode) or puts it in standby
(if it's active).
:: Introduction
4
IR Receiver Status LED
Receives IR signals Red – Recording
from the remote. Dim Red – Recording in Standby
Bright Blue – On
Dim Blue – Standby
Power Button
Turns power on/off; push and
hold to reset.
