Channel Master CM-7400 Quick Start Manual

Hide thumbs Also See for CM-7400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Start Guide
CM-7400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-7400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Channel Master CM-7400

Summary of Contents for Channel Master CM-7400

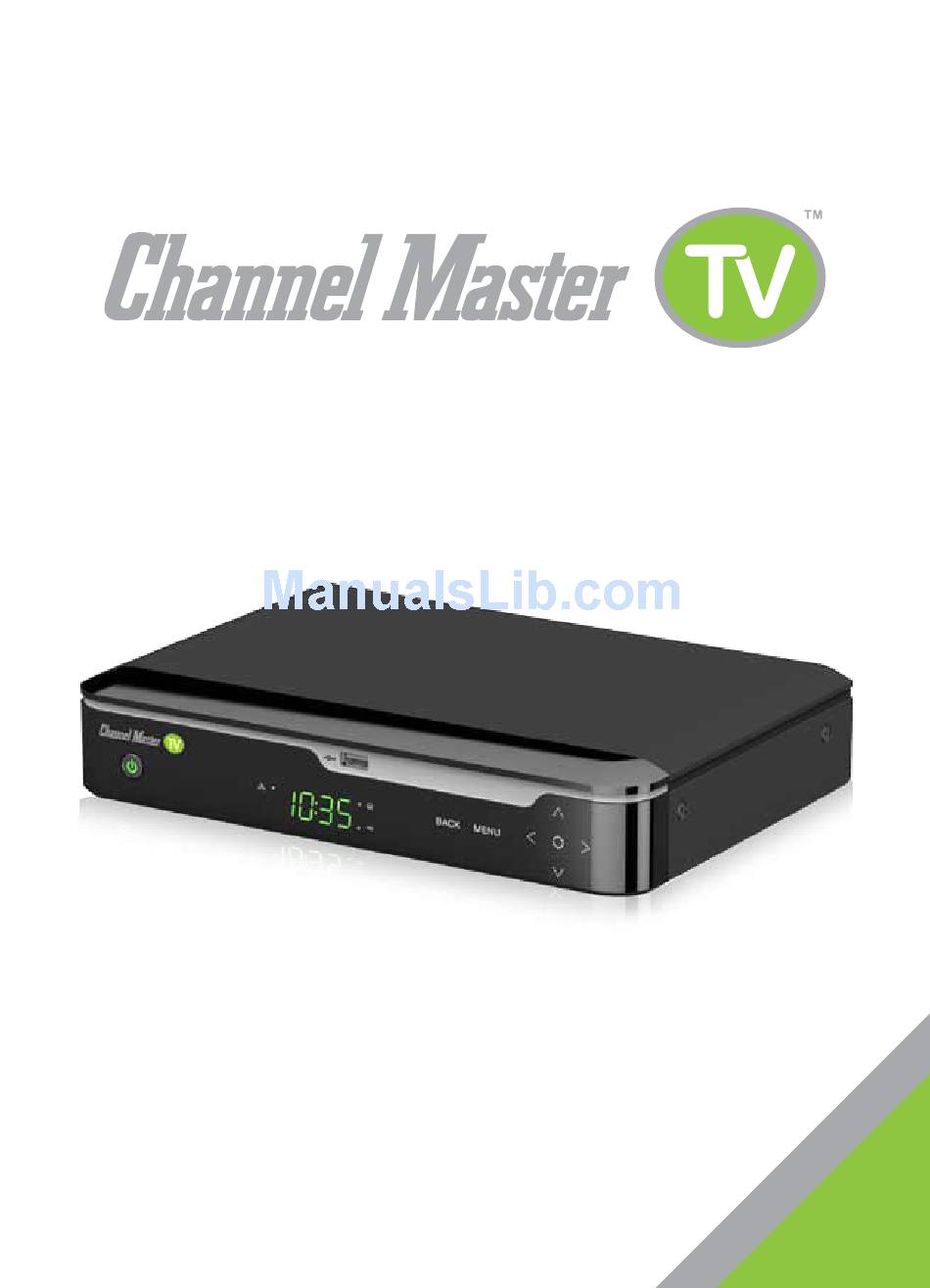

  • Page 1 Quick Start Guide CM-7400...
  • Page 2 The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, Channel Master assumes no liability resulting from the use of the information contained herein.

  • Page 3: Table Of Contents

    Table of Contents Overview Safety Instructions Contents Front Panel Back Panel Remote Control Step 1 - Connecting Video High-Definition TVs Standard Definition TVs Step 2 - Connecting TV Source ATSC Antenna or Cable Step 3 - Connecting Audio TV (Stereo) A/V Receiver (Surround Sound) Step 4 - Connecting Network Wired...

  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING: To prevent fire or shock hazard, do not expose this product to rain or moisture. • Read these instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 • To help prevent electric shock, plug the power cable into properly grounded sources. Use only properly grounded extension cords and adapters, if they are needed. • The AC main plug is used as the disconnect device, the disconnect device shall remain readily operable. •...

  • Page 6: Contents

    Contents CM-7400 Unit IR Universal Remote Control (2) AA Batteries AC Power Adapter...

  • Page 7: Hdmi Cable

    RF Coaxial Cable (For TV Sources) HDMI Cable (For HD Video) Composite Audio/Video Cable (For SD Video and Stereo Audio) Quick Start Guide User Guide...

  • Page 8: Front Panel

    Front Panel Name Function Description Solid Green indicates the unit is on. POWER Button Solid Red indicates the unit is in standby mode. Flashing Green light indicates the unit is starting up. Press button once to put unit in standby mode, press again to resume.

  • Page 9: Back Panel

    Back Panel Name Description External Serial ATA Connector (May support future eSATA upgrades). CABLE/ANT IN For Clear QAM Cable TV Source and ATSC Antenna. TV OUT Connection to RF TV Output. WI-FI Wi-Fi antennas for extended range and coverage. VIDEO Composite Video (Supports SD Video).

  • Page 10: Remote Control

    Remote Control...

  • Page 11: Button Description

    TV: Select to control TV (if programmed). STB: This button is pre-programmed to control your DEVICE CONTROL Channel Master TV. AUX: Select to control another device (if programmed). Controls video program for LIVE TV / DVR / VOD REPLAY: Go back a few seconds.
  • Page 12 NOTE: • The “POWER” key can be configured to control both your Channel Master TV and TV while the remote control is in STB mode, please refer to the section “Toggle Power Key Punch-through Functionality” on page 11 for details.
  • Page 13 The “Vol +/-” and “MUTE” keys can be configured to • control both your Channel Master TV and TV while the remote control is in STB mode, please refer to the section “Toggle Power Key Punch-through Functionality” on page 11 for details.
  • Page 14 The “STB” device mode key backlight will light up. 2. Press “POWER” key once. 3. Do either of the following: a. Press “1” to control both your Channel Master TV and TV, or b. Press “0” to control your Channel Master TV ONLy...
  • Page 15 NOTE: Use the “AUX” mode key to program control of VCR, DVD player, cable box, satellite set-top box, and audio device. 3. Press the “POWER” key once. 4. Aim the remote control at the device. Press either the “CH UP” key or “CH DOWN” key to do device auto- scan: a.

  • Page 16: Step 1 - Connecting Video

    (HDMI cable included) to deliver best entertainment experience with a single cable HDMI Cable (For HD Video) HDTV *This connection handles both Video and Multi-Channel Audio. If you have CM-7400 Back selected HDMI for your Video, then proceed to page 15.

  • Page 17: Video Cable

    OPTION #2 Component Video Cable Connect to Component Video* Delivers excellent picture (*Component Video cable not included) quality Component Video Cable HDTV CM-7400 Back...
  • Page 18 Select only one Video option and then proceed to TV Source OPTION #3 Composite Video Connect to Composite Video Delivers good picture quality (Composite Video cable included) SDTV Composite Video Cable (Please use yellow Connector for Video Connection) CM-7400 Back...

  • Page 19: Coaxial Cable

    OPTION #4 Coaxial Cable Connect to Coaxial Delivers good picture quality (Coaxial cable included) Coaxial Cable SDTV CM-7400 Back...

  • Page 20: Step 2 - Connecting Tv Source

    ATSC Antenna or Clear QAM Cable TV Select only one TV Source option and then proceed to Audio OPTION #1 Connect to Outdoor or Indoor Antenna Source (ATSC Antenna) (Coaxial cable included) HD Indoor Antenna Coaxial Cable (Outdoor or indoor antenna sold separately) CM-7400 Back...
  • Page 21 OPTION #2 Connect to Clear QAM Cable TV Source using RF Coaxial Cable (Coaxial cable included) Clear QAM Cable TV Coaxial Cable CM-7400 Back...

  • Page 22: Step 3 - Connecting Audio

    Select only one Audio option and then proceed to Networking OPTION #1 Connect to TV's Stereo Audio (Composite Video cable included) HDTV Composite Video Cable (Use Red/White Connectors for Audio Connection if you've selected Component Video, or Composite Video) CM-7400 Back...

  • Page 23: A/V Receiver (Surround Sound)

    OPTION #2 Connect to A/V Receiver for Digital 5.1 Surround Sound* (*Digital Audio cable not included) A/V Receiver Digital Audio Cable CM-7400 Back...

  • Page 24: Step 4 - Connecting Network

    Wired or Wireless Select only one Networking option and then proceed to Powering Up OPTION #1 (Recommended) Connect to Wired Network via DSL, Cable Modem or Network Router* (*Ethernet cable not included) Router* (*Router not included) Ethernet Cable CM-7400 Back...

  • Page 25: Wireless

    OPTION #2 Connect to Wireless Network via Wireless Network Router or Access Point Wireless Router* (*Wireless Router not included) CM-7400 Back...

  • Page 26: Step 5 - Powering Up

    3. Insert the AA batteries, matching the "+" and "-" marks on the batteries to the "+" and "-" marks on the interior of the remote. 4. Snap the battery cover back onto the remote. CM-7400 Remote back...

  • Page 27: Connecting To Power Source

    Connecting to Power Source 1. Connect the power connector from adapter to "POWER" in on your Channel Master TV product. 2. Connect AC adapter to power outlet. 3. Press power button to turn unit ON and follow on-screen directions. AC power adapter...

  • Page 28: Device Codes

    Appendix - Device Codes your Universal Remote Control can control many brands and models of televisions, VCR's, DVD's and other types of audio- visual equipment. The following pages list device codes for many categories and brands of equipment. Many brands list more than one code, and you may need to test several codes to find the best match for your equipment.
  • Page 29 Viewsonic 0021, 0085, Pioneer 0208 Bell & Howell 0223, 0014 0107, 0026, 0290, 0174, Plasmsync 0224 Benq 0079 0082, 0277, 0255, 0069, Sony 0289, 0086 Bradford 0182, 0097 0304 Toshiba 0224, 0120 Brockwood 0308 Vizio 0002 Zenith 0011 Broksonic 0097, 0288, Westinghouse 0021, 0063, PROjECTION HDTV 0032, 0046, 0199, 0334...
  • Page 30 0014, 0295, 0097, 0288, JVC 0102, 0175, 0297, NetTV 0430 0062, 0032, 0162, 0308, 0259, 0096, 0121, 0334, Net-TV 0228 0276, 0061 0324, 0335, 0340, 0372, Nexus Electronics 0469 Envision 0308, 0348, 0413, 0434, 0474 Nikko 0331 0390, 0411, 0461, 0464 Kawasho 0153, 0308 Norcent 0116, 0390, 0411 Epson 0301...
  • Page 31 0266, 0138, 0157, 0242, Sylvania 0122, 0295, TV MONITOR 0023, 0308, 0005, 0262, 0024, 0315, 0308, 0276, Sony 0181 0245, 0087, 0407, 0396, 0442, 0325, 0330, 0378, TV/DVD/TUNER COMBO 0323, 0326, 0337, 0361, 0383, 0391, 0446, 0450, Panasonic 0176 0367, 0370, 0386, 0436, 0457, 0497 Sony 0126 0453, 0456, 0459, 0471,...
  • Page 32 JVC 0121 CyberHome 4107 Norcent 4243, 4083, 4073, LG 0308, 0040 Cytron 4116 4232 Magnavox 0271 Daewoo 4035, 4067 Onkyo 4209, 4198, 4027, Mintek 0271 Denon 4017, 4222, 4054, 4062, 4159, 4133, 4058 Panasonic 0190 4037, 4090, 4047 Oritron 4002, 4011 Philips 0016, 0271 Desay 4176 Panasonic 4017, 4198,...
  • Page 33 Toshiba 4093, 4198, 4184, Polaroid 4069 Memorex 4093 4071, 4088, 4024, 4173, Sony 4127 Panasonic 4200 4175, 4100 TV/DVD COMBO Philips 4208, 4247 Trutech 4059 Aiwa 4077 Pioneer 4138 Urban Concepts 4198 Akai 4088, 4129 Polaroid 4016 Venturer 4118, 4036 Apex 4124 Presidian 4208 xbox 4224...
  • Page 34 Alienware 3053 Hush 3053 Philips Magnavox 3013 American High 3021 iBUyPOWER 3053 Pilot 3043 Asha 3052 Insignia 3082 Pioneer 3002 Audio Dynamics 3024 Instant Replay 3021 Polaroid 3059, 3077 Audiovox 3043 JC Penney 3024, 3083, Presidian 3063 Beaumark 3052 3052, 3043, 3021 Proscan 3020, 3011, 3016 Bell &...
  • Page 35 Thomas 3091 TV/DVD/VCR COMBO Pioneer 2070, 2031 TMK 3052 Akai 3039 RCA 2010 Toshiba 3053, 3057, 3095, Diamond Vision 3058 Rotel 2011 3006, 3045, 3036 Emerson 3003 Soundmatters 2039 Totevision 3052, 3043 Magnavox 3003 Technics 2008 Touch 3053 Memorex 3009 yamaha 2079, 2026 Unitech 3052 Panasonic 3076...
  • Page 36 Nakamichi 2033 Denon 2016 Onkyo 2067, 2017, 2002, Emerson 2014 2057, 2100, 2065 Insignia 2038 Optimus 2070, 2054 JBL 2020 Panasonic 2008, 2088, JVC 2006, 2000, 2024 2058, 2007, 2051, 2066 Koss 2018, 2018 Philips 2085, 2096, 2047 Onkyo 2057, 2100, 2065 Pioneer 2070, 2048, 2062, Panasonic 2051, 2066, 2074, 2030, 2027, 2022,...

  • Page 37: Declaration Of Conformity

    Declaration of Conformity To ensure proper use of this product, please read this manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service location. WARNING: This symbol indicates the presence of uninsulated dangerous voltage within the product's enclosure that constitutes a risk of electric shock.

  • Page 38: Product Return Policy And Warranty

    Warranty PerIOd: Channel Master TV has a standard one (1) year limited warranty from the original purchase date. During the first ninety (90) days, your warranty covers both parts and labor. After ninety (90) days, and for the remainder of the one year warranty period, your warranty covers parts alone.
  • Page 39 Customer will be based on standard labor and parts prices in effect at the time of the repair. CHANNEL MASTER will use its best efforts to ensure that the cost of such repair, exchange, refurbishing, or substitution will not exceed the original price of Product.
  • Page 40 Information contained in this document is provided on an as is basis. In no event will Channel Master be liable for damages arising directly or indirectly from any use of the information contained in this document. Contents...
