Configuration Procedure - HP 5920 Series Configuration Manual

Configure a multiport ARP entry to send IP packets with destination IP address 192.168.1.1 to the three
servers.

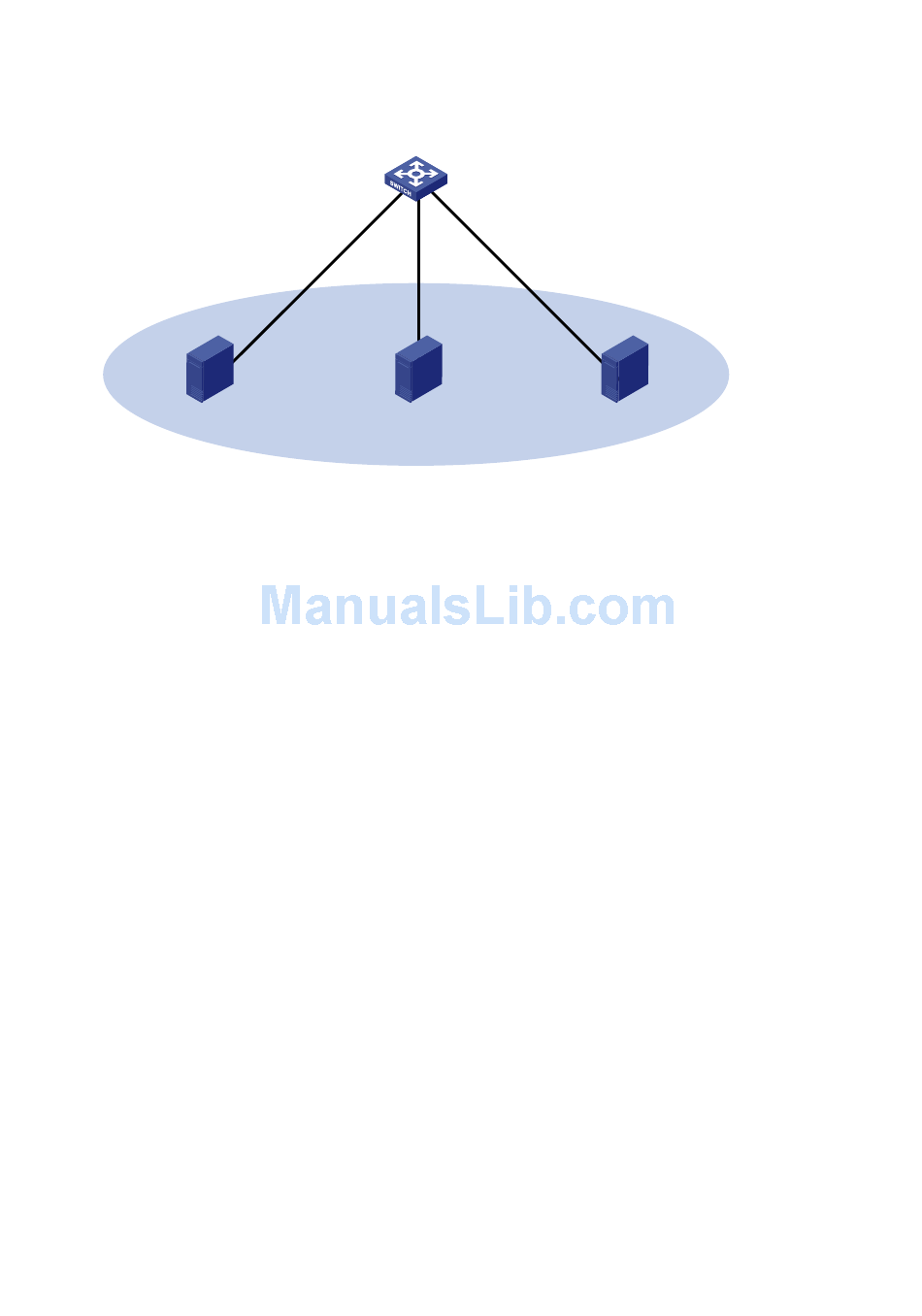

Figure 4 Network diagram

Configuration procedure

# Create VLAN 10.
<Switch> system-view
[Switch] vlan 10
[Switch-vlan10] quit
# Add Ten-GigabitEthernet 1/0/1, Ten-GigabitEthernet 1/0/2, and Ten-GigabitEthernet 1/0/3 to
VLAN 10.
[Switch] interface Ten-GigabitEthernet 1/0/1
[Switch-Ten-GigabitEthernet1/0/1] port access vlan 10
[Switch-Ten-GigabitEthernet1/0/1] quit
[Switch] interface Ten-GigabitEthernet 1/0/2
[Switch-Ten-GigabitEthernet1/0/2] port access vlan 10
[Switch-Ten-GigabitEthernet1/0/2] quit
[Switch] interface Ten-GigabitEthernet 1/0/3
[Switch-Ten-GigabitEthernet1/0/3] port access vlan 10
[Switch-Ten-GigabitEthernet1/0/3] quit
# Create VLAN-interface 10 and specify its IP address.
[Switch] interface vlan-interface 10
[Switch-vlan-interface10] ip address 192.168.1.2 24
[Switch-vlan-interface10] quit
# Configure a multiport unicast MAC address entry that has MAC address 00e0-fc01-0000, and output
interfaces Ten-GigabitEthernet 1/0/1, Ten-GigabitEthernet 1/0/2, and Ten-GigabitEthernet 1/0/3 in
VLAN 10.
[Switch] mac-address multiport 00e0-fc01-0000 interface Ten-GigabitEthernet 1/0/1 to
Ten-GigabitEthernet 1/0/3 vlan 10
# Configure a multiport ARP entry with IP address 192.168.1.1 and MAC address 00e0-fc01-0000.
[Switch] arp multiport 192.168.1.1 00e0-fc01-0000 10
