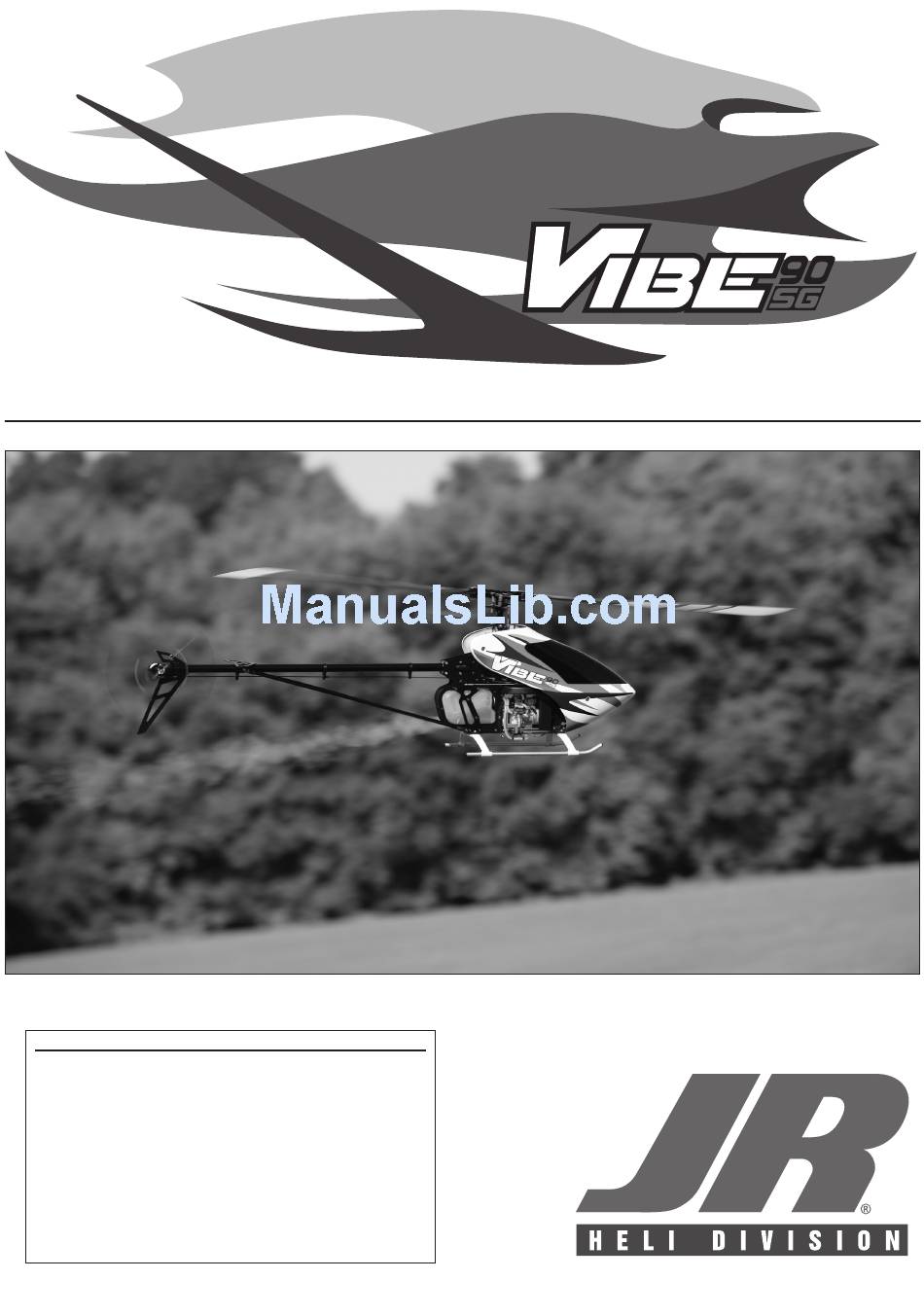

JR Vibe 90SG Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly InstructIons

Vibe 90SG Specifications
Overall Length ..............................53.5 in (1359mm)
Height ..............................................17.25 in (438mm)
Main Rotor Diameter .................... 63 in (1600mm)
Tail Rotor Diameter .....................11.34 in (288mm)
Gear Ratio ..........................................................8:1:4.65
Weight (no fuel) ....10.25–10.75 lb (4.65–4.88 kg)
Control System ..............................120 or 140 CCPM
