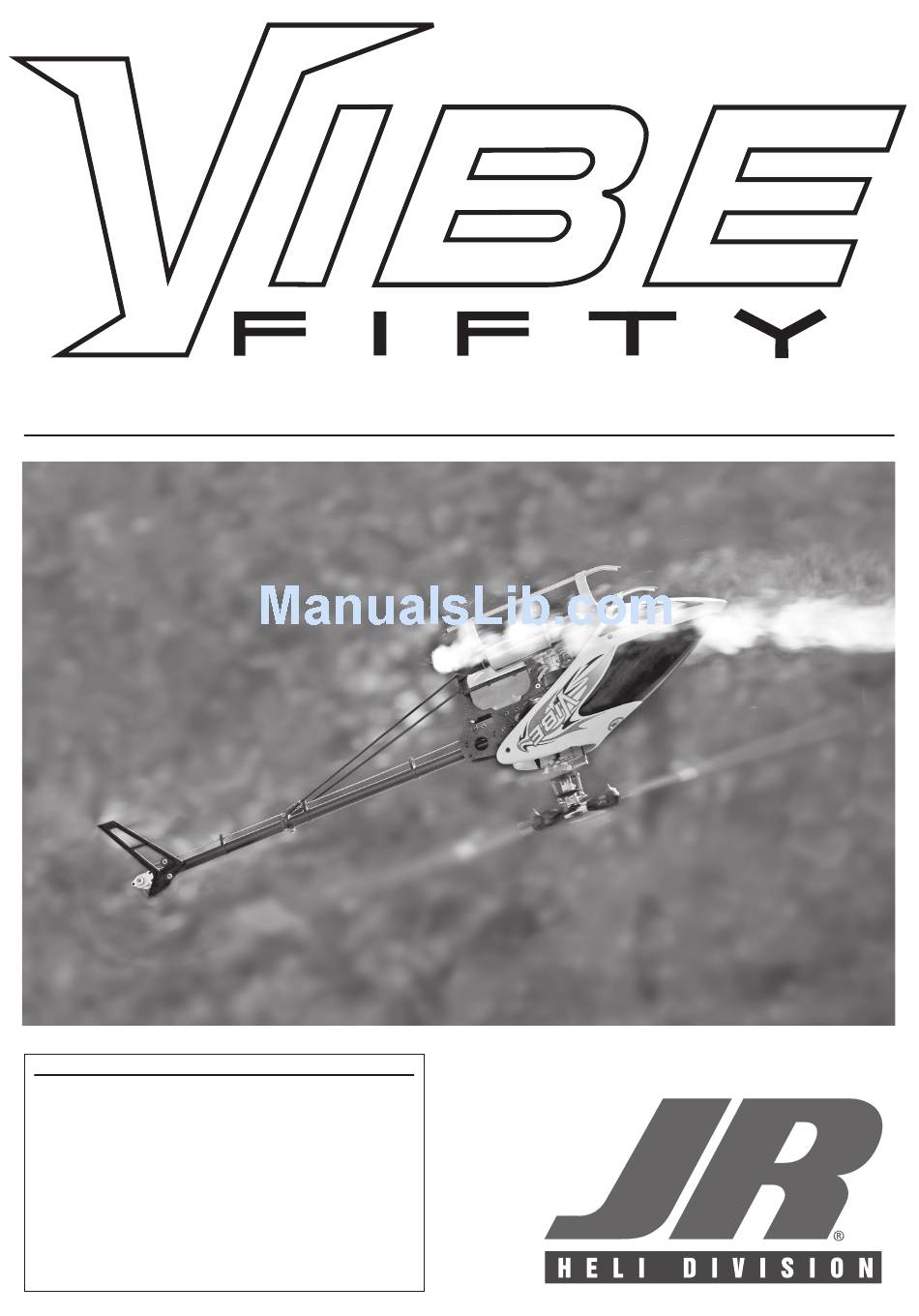

ASSEMBLY INSTRUCTIONS

Vibe 50 Specifications
Length....................................49.5 inches (1257mm)
Height....................................... 16.0 inches (406mm)
Main Rotor Diameter ........52.8 inches (1341mm)
Tail Rotor Diameter.............. 10.4 inches (264mm)
Gear Ratio ........................................................ 8.7:1:4.7
Weight.............................7.8–8.25 lb (3538–3742 g)
Engine ............................................. .50 cu in (8.17cc)
Bearings........................... Full Bearing Set Included
Control System..............................120 or 140 CCPM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vibe Fifty and is the answer not in the manual?

Questions and answers

Related Manuals for JR Vibe Fifty

Summary of Contents for JR Vibe Fifty

  • Page 1: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Vibe 50 Specifications Length........49.5 inches (1257mm) Height........16.0 inches (406mm) Main Rotor Diameter ..52.8 inches (1341mm) Tail Rotor Diameter....10.4 inches (264mm) Gear Ratio ............8.7:1:4.7 Weight......7.8–8.25 lb (3538–3742 g) Engine ..........50 cu in (8.17cc) Bearings......Full Bearing Set Included Control System......120 or 140 CCPM...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..................................4 KEY FEATURES..................................4 PRE-ASSEMBLY WARNING ..............................5 RECOMMENDED RADIO SYSTEM ............................5 ITEMS REQUIRED TO COMPLETE ASSEMBLY......................... 6 CLUTCH BELL/START SHAFT ASSEMBLY......................7 TAIL PINION ASSEMBLY (SHAFT DRIVE)......................7 T-ARM LEVER ASSEMBLY............................8 ELEVATOR ARM ASSEMBLY..........................8 DOUBLE MAIN DRIVE GEAR ASSEMBLY......................
  • Page 3 RADIO SYSTEM PREPARATION............................40 UNDERSTANDING THE CCPM CONTROL SYSTEMS................... 41–42 IMPORTANT CCPM PROGRAMMING DO’S AND DON’TS..................43 CCPM SOFTWARE INITIAL ADJUSTMENTS ........................44 JR X9303 2.4 AND XP9303: PROGRAMMING......................45–48 JR 7202 AND SPEKTRUM DX7: PROGRAMMING....................49–52 SPEKTRUM DX6i SYSTEMS: PROGRAMMING......................53–55 SERVO INSTALLATION 1.............................56 SERVO INSTALLATION 2.............................57 SERVO HORN INSTALLATION..........................58...

  • Page 4: Introduction

    flying qualities that will be a superb combination of precision and pizzazz. While the new Vibe may be the most potent JR 50 heli ever, JR’s legendary quality and ease-of-operation make your Vibe a joy to build and service. Modular construction and careful engineering make the Vibe perfect for active 3D fliers.

  • Page 5: Preassembly Warning

    At the end of each assembly, in most cases, there should be no parts remaining. NOTE: Your kit also includes JR® red and green threadlock. Unlike conventional U.S.-made threadlock, JR red is actually the U.S. equivalent of blue. JR green is actually the equivalent of U.S. red.

  • Page 6: Items Required To Complete Assembly

    ITEMS REQUIRED TO COMPLETE ASSEMBLY...

  • Page 7: Clutch Bell/Start Shaft Assembly

    CLUTCH BELL / START SHAFT ASSEMBLY After assembly rotate the Starter Hex Adapter and check that no play is detected. Setscrew, 4x4mm (1pc) This confirms that the Setscrew 4x4mm is secured in the proper position. Starter Hex Adapter Be careful not to pull the Start Shaft up too hard while fixing the setscrew otherwise the Clutch Bell Assembly may not rotate freely.

  • Page 8: T-Arm Lever Assembly

    T-ARM LEVER ASSEMBLY Elevator Control Arm Flat Head Screw, 2x8mm (8pcs) Steel Joint Ball (2pcs) Steel Joint Ball (8pcs) Lever Collar (2pcs) Flat Head Screw, 2x8mm (2pcs) Flat Head Screw, Assemble the 2x8mm (6pcs) T-Arm Lever (2pcs) T-Arms as necessary for 120 or 140 CCPM Lever Collar (2pcs) depending on the...

  • Page 9: Double Main Drive Gear Assembly

    DOUBLE MAIN DRIVE GEAR ASSEMBLY Autorotation Spacer Socket Head Bolt, 3x6mm (4pcs) Step side down Flat Head Bolt, 3x6mm (4pcs) Socket Head Bolt, 3x6mm (4pcs) Main Drive Gear T87 The side markd “UP” Autorotation Spacer (1pc) is the upper side. Autorotation Assembly Tighten the bolts for the main drive gear and the tail drive gear...

  • Page 10: Main Frame Assembly 1

    MAIN FRAME ASSEMBLY 1 Socket Head Bolt, 3x8mm (15pcs) Note the proper direction Socket Head Bolt, 3x10mm (1pc) of the Main Frame L / R and Bearing Blocks. Flat Washer, 3mm (4pcs) Bearing Block w/Bearing, 10x19x7mm (3pcs) Bearing, F4x10x4mm (2pcs) Socket Head Bolt, 3x10mm Governor Mount Use this for attaching...

  • Page 11: Main Frame Assembly 2

    MAIN FRAME ASSEMBLY 2 Socket Head Bolt, 3x10mm (10pcs) Flat Washer, 3mm (10pcs) Socket Head Bolt, 3x10mm (10pcs) Flat Washer, 3mm (10pcs) * : Don’t tighten all bolts completely at this time.

  • Page 12: Main Frame Assembly 3

    MAIN FRAME ASSEMBLY 3 Cross Member, 32mm (5pcs) Socket Head Bolt, 3x8mm (10pcs) Socket Head Bolt, 3x8mm (10pcs) Cross Member, 32mm (5pcs)

  • Page 13: Elevator Arm Installation

    ELEVATOR ARM INSTALLATION Setscrew, 4x4mm (4pcs) Nylon Lock Nut, 4mm (1pc) Setscrew, 4x4mm (4pcs) Secure so that the Setscrew 4x4mm engages in the D-shape recess. Nylon Lock Nut, 4mm A-Arm Base Spindle Make sure that the elevator control arm is installed so that it is 90° to the A-arm base.

  • Page 14: T-Arm Lever Installation

    T-ARM LEVER INSTALLATION Socket Head Bolt, 3x28mm (2pcs) Lever Spacer, 120 CCPM (2pcs) Install the T-Arms in the location as marked for 120 or 140 CCPM depending on Socket Head Bolt, 3x35mm (2pcs) the type you will use. Lever Spacer, 140 CCPM (2pcs) Nylon Lock Nut, 3mm (2pcs) Nylon Lock Nut, 3mm (2pcs)

  • Page 15: Fuel Tank Installation

    FUEL TANK INSTALLATION Socket Head Bolt, 3x8mm (4pcs) Cross Member, 32mm (1pc) Socket Head Bolt, 3x12mm (4pcs) Fuel Tank Holder (4pcs) Nylon Lock Nut, 3mm (2pcs) Cross Member, 32mm Tank Stay (2pcs) Nylon Lock Nut, 3mm (2pcs) Fuel Tank Holder (4pcs) Socket Head Bolt, 3x8mm (4pcs) Socket Head Bolt,...

  • Page 16: Front Radio Bed Installation 1

    FRONT RADIO BED INSTALLATION 1 Socket Head Bolt, 3x40mm (1pc) Socket Head Bolt, 3x45mm (1pc) Nylon Lock Nut, 3mm (2pcs) Nylon Lock Nut, 3mm (2pcs) Front Bed Frame (2pcs) Socket Head Bolt, 3x40mm Socket Head Bolt, 3x45mm * : Don’t tighten bolts completely at this time. I-Beam Cross Member B...

  • Page 17: Front Radio Bed Installation 2

    FRONT RADIO BED INSTALLATION 2 Socket Head Bolt, 3x8mm (6pcs) Cross Member, 32mm (2pcs) Socket Head Bolt, 3x10mm (4pcs) Body Catch, 37mm (2pcs) Nylon Lock Nut, 3mm (4pcs) Socket Head Bolt, Nylon Lock Nut, 3mm (4pcs) 3x8mm (4pcs) Socket Head Bolt, 3x10mm (2pcs) Gyro Frame (2pcs) Socket Head Bolt,...

  • Page 18: Front Radio Bed Installation 3

    FRONT RADIO BED INSTALLATION 3 Socket Head Bolt, 3x8mm (10pcs) Flat Head Bolt, 3x6mm (6pcs) Radio Bed Mount (3pcs) Gyro Mount Gyro Frame Spacer (2pcs) Socket Head Bolt, 3x8mm (4pcs) Flat Head Bolt, 3x6mm (6pcs) Front Radio Bed Radio Bed Mount (3pcs) Socket Head Bolt, 3x8mm (6pcs)

  • Page 19: Body Catch Installation

    2-10 BODY CATCH INSTALLATION Socket Head Bolt, 2.6x8mm (4pcs) Socket Head Bolt, 3x8mm (2pcs) Body Catch L, 21mm (2pcs) Body Catch, 21mm (2pcs) Nylon Lock Nut, 2.6mm (4pcs) Body Mount Plate (2pcs) Socket Head Bolt, 3x8mm (2pcs) Nylon Lock Nut, 2.6mm (4pcs) Socket Head Bolt, 2.6x8mm (4pcs)

  • Page 20: Engine Mount Installation

    2-11 ENGINE MOUNT INSTALLATION Socket Head Bolt, 3x10mm (2pcs) Socket Head Bolt, 3x40mm (2pcs) Spacer B (2pcs) Socket Head Bolt, 3x50mm (1pc) Socket Head Bolt, 3x12mm (2pcs) Nylon Lock Nut, 3mm (5pcs) Socket Head Bolt, 3x22mm (2pcs) Cross Member, 32mm (2pcs) Flat Washer, 3mm (6pcs) Fully tighten bolts in Step 2-7 at this time.

  • Page 21: Landing Gear Installation

    2-12 LANDING GEAR INSTALLATION Nylon Lock Nut, 3mm (4pcs) Setscrew, 3x4mm (4pcs) Socket Head Bolt, 3x8mm (6pcs) Flat Washer, 3mm (12pcs) Socket Head Bolt, 3x16mm (4pcs) Landing Skid Cap (4pcs) Nylon Lock Nut, 3mm (4pcs) Flat Washer, 3mm (12pcs) Bottom Frame Plate Socket Head Bolt, 3x8mm (6pcs) * : Don’t tighten bolts...

  • Page 22: Main Shaft/Main Drive Gear Installation

    MAIN SHAFT/MAIN DRIVE GEAR INSTALLATION Setscrew, 3x4mm (1pc) Socket Head Bolt, 2.6x8mm (1pc) ø3 Special Socket Head Bolt, 4x26mm (1pc) Nylon Lock Nut, 4mm (1pc) Main Shaft Socket Head Bolt, 2.6x8mm ø4 Setscrew, 3x4mm Main Shaft Collar Fastening the Main Rotor Shaft Collar, push it down and pull up on the Main Rotor Shaft and fasten by Socket Head Bolt M2.6x8 first and after that, fasten...

  • Page 23: Cooling Fan/Clutch Installation

    COOLING FAN/CLUTCH INSTALLATION Socket Head Bolt, 3x6mm (2pcs) Flat Head Screw, 2x8mm (1pc) Steel Joint Ball (1pc) Button Head Bolt, 3x5mm (4pcs) Hex Nut, 2mm (1pc) Tapered Collet Lower (1pc) Washer, 10x13x0.75mm (1pc) Tapered Collet Upper (1pc) : Before the clutch is permanently attached, rotate the clutch/fan assembly to check for trueness.

  • Page 24: Engine Installation

    ENGINE INSTALLATION Self-Tapping Screw, 2x8mm (5pcs) Flat Washer, 3mm (4pcs) Adjust the position of the engine so Self-Tapping Screw, 2.6x10mm (4pcs) the bottom of the clutch assembly is Fan Shroud Collar (4pcs) flush with the bottom of the clutch bell. Also check to ensure that the clutch and Socket Head Bolt, 3x15mm (4pcs) clutch bell are parallel.

  • Page 25: Swashplate/Washout Installation

    3x3mm (3pcs) Long Control Ball, Joint Ball Spacer, 28.25mm (2pcs) 2.75mm (4pcs) 140 CCPM Control Ball, 9mm (2pcs) 120 CCPM It is a good idea to size the ball links with the JR Ball Link Sizing tool prior to attachment.

  • Page 26: Mixing Arm Installation

    MIXING ARM INSTALLATION Joint Ball Spacer, 1.5mm (2pcs) Socket Head Bolt, 3x14mm (2pcs) Flat Head Screw, 2x10mm (2pcs) Washer, 3x4.5x1mm (4pcs) Flat Head Screw, 2x8mm (2pcs) Nut, 3mm (2pcs) Steel Joint Ball (4pcs) Bearing, 3x7x3mm (4pcs) Socket Head Bolt, 3x14mm (2pcs) Washer, 3x4.5x1mm (4pcs) Mixing Arm (2pcs)

  • Page 27: Rotor Head Assembly

    ROTOR HEAD ASSEMBLY Socket Head Bolt, 3x6mm (1pc) Socket Head Bolt, 4x10mm (2pcs) Special Socket Head Bolt, 4x35mm (2pcs) Nylon Lock Nut, 4mm (t3.8) (2pcs) Flat Washer, 4mm (2pcs) Grip Spacer (2pcs) Spindle Shim Washer (2pcs) Spindle Shaft Washer (2pcs) O-ring Damper, 7.5x14.5x3.5mm (4pcs) Attention The main rotor head dampeners should be...

  • Page 28: Seesaw Shaft Installation

    SEESAW SHAFT INSTALLATION Socket Head Bolt, 2x8mm (4pcs) Socket Head Bolt, 3x6mm (2pcs) Seesaw Spacer Collar (2pcs) Universal Ball Link (double L) (2pcs) Note the proper direction of Flybar Stopper. Seesaw Spacer Collar (2pcs) Flybar Stopper (2pcs) Socket Head Bolt, 3x6mm (2pcs) Seesaw Shaft Universal Ball Link...

  • Page 29: Flybar/Paddle Installation

    FLYBAR/PADDLE INSTALLATION Setscrew, 3x3mm (4pcs) : For safety, it’s important to note that Nylon Lock Nut, 3mm (1pc) a hardened bolt with a long shank should be used to attach the rotor head. We have seen many people, over time, replace Setscrew, 4x4mm (2pcs) Flat Washer, 3mm (2pcs) these with standard bolts.

  • Page 30: Control Rod Installation

    Threaded Rod, 2.3x15mm with little ridges around the lip of the link. These ridges, in conjunction with the JR Ball Link Sizing Tool, are there to help you custom fit the link to the ball. Universal Ball Link (short) If the link fits on the ball too tight, you MIXING ARM TO SWASHPLATE.......2pcs...

  • Page 31: Tail Drive Shaft Assembly

    TAIL DRIVE SHAFT ASSEMBLY Bearing, Shaft Drive Guide Setscrew, 3x10mm (2pcs) 8x14x4mm It is very important that the guide bearing be attached to the shaft off center as shown to prevent resonance vibration and fatigue. Attach the bearing first. Tail Drive Shaft Setscrew, 3x10mm (2pcs) Drive Shaft Joint (2pcs) 400mm...

  • Page 32: Tail Gear Case Installation 1

    TAIL GEAR CASE INSTALLATION 1 Setscrew, 3x3mm (1pc) Poly Slider, 0.13mm (2pcs) Button Head Bolt, 3x6mm (5pcs) Tail Output Shaft Stopper (1pc) Button Head Bolt, 3x8mm (2pcs) Socket Head Bolt, 3x10mm (1pc) Button Head Bolt, 3x6mm (5pcs) Tail Gear Case Assembly Tail Gear Case Plate A Socket Head Bolt, 3x10mm Tail Gear Case Plate B...

  • Page 33: Tail Gear Case Installation 2

    TAIL GEAR CASE INSTALLATION 2 Socket Head Bolt, 2x6mm (2pcs) Position the vertical fin so that it is perpendicular to the building surface (parallel with the main rotor shaft) and Socket Head Bolt, 3x6mm (2pcs) tighten the tail gear case clamp bolt from the previous step.

  • Page 34: Tail Pitch Control Lever Installation

    TAIL PITCH CONTROL LEVER INSTALLATION Flat Head Screw, 2x8mm (1pc) Button Head Bolt, 3x8mm (2pcs) Steel Joint Ball (1pc) Tail Pitch Slider Bolt (2pcs) Tail Pitch Link Pin (2pcs) Tail Pitch Base Bearing Collar (2pcs) CA Stopper Ring, 2mm (4pcs) Button Head Bolt, 3x8mm (2pcs) Bearing, F4x7x2.5mm(2pcs) Tail Pitch Base Bearing...

  • Page 35: Tail Center Hub Assembly

    TAIL CENTER HUB ASSEMBLY Setscrew, 4x3mm (2pcs) Washer, 4x7x0.5mm (2pcs) : Use thin oil on the tail shaft to lubricate the tail pitch slider. Nylon Lock Nut, 3mm (2pcs) Also apply grease to the tail Washer, 7x10x1mm (2pcs) thrust bearings. O-ring, 3.5x5.5x1mm (2pcs) Flat Washer, 3mm (2pcs) Nylon Lock Nut, 3mm (2pcs)

  • Page 36: Tail Blade Holder Assembly

    TAIL BLADE HOLDER ASSEMBLY Nylon Lock Nut, 2mm (8pcs) Socket Head Bolt, 2x10mm (8pcs) Special Socket Head Bolt, 3x15mm (2pcs) Nylon Lock Nut, 3mm (2pcs) Rotation direction: Be sure to note the Flat Head Bolt, 2x10mm (2pcs) correct direction of Steel Joint Ball (2pcs) the tail rotor blades during assembly.

  • Page 37: Tail Boom Brace Assembly

    TAIL BOOM BRACE ASSEMBLY Socket Head Bolt, 2.6x12mm (4pcs) Socket Head Bolt, 2.6x12mm (4pcs) Tail Brace Tube (2pcs) Note the proper direction of Tail Brace Connectors. Tail Brace Connector (4pcs) TAIL BOOM BRACE INSTALLATION Socket Head Bolt, 3x12mm (2pcs) Nylon Lock Nut, 3mm (2pcs) Position the horizontal fin so that it is level to the building surface (90 degrees Socket Head Bolt, 3x25mm (2pcs)

  • Page 38: Tail Bell Crank Installation

    5-10 TAIL BELL CRANK INSTALLATION Flat Head Screw, 2x10mm (2pcs) Socket Head Bolt, 2.6x6mm (2pcs) Socket Head Bolt, 3x16mm (1pc) Steel Joint Ball (2pcs) Washer, 3x4.5x0.4mm (1pc) Brass Spacer (1pc) Washer, 3x4.5x0.4mm Bearing, F3x8x4mm (2pcs) Bell Crank Steel Joint Ball (2pcs) Mounting Bracket Socket Head Bolt, Flat Head Screw,...

  • Page 39: Tail Control Rod Attachment

    5-11 TAIL CONTROL ROD ATTACHMENT Self-Tapping Screw, 2x8mm (3pcs) Tail Rod Collar Guide B (3pcs) Universal Ball Link (2pcs) 665.5mm (approximate) Tail Control Rod Tail Rod Guide Collar B (3pcs) Universal Ball Link (2pcs) Tail Rod Guide (3pcs) Self-Tapping Screw, 2x8mm (3pcs) 120mm 180mm...

  • Page 40: Radio System Preparation

    SERVO HORN INSTALLATION SUGGESTIONS Since the servo output spline on a JR system has an odd number of teeth (23), it’s possible to reposition the servo arm on the servo at 90° intervals to achieve the proper neutral attachment of the servo horn.

  • Page 41: Understanding The Ccpm Control Systems

    For JR radio owners, please refer to the radio information contained at the front of this manual or on the following pages to determine if your radio system has the CCPM function. For other brands of radio systems, please contact the radio manufacturer for CCPM information.
  • Page 42 The JR 120°/140° three servo CCPM relies on the radio’s special CCPM swashplate mixing, rather than a conventional mechanical mixer that is utilized to achieve the same results. The radio’s 120° or 140° 3-servo CCPM function automatically mixes the three servos to provide the correct mixing inputs for aileron (roll), elevator (pitch), and collective.

  • Page 43: Important Ccpm Programming Do's And Don'ts

    This variation is more common in analog type servos. If JR’s new digital servos are used, the travel adjustment values will generally not need to be altered.

  • Page 44: Ccpm Software Initial Adjustments

    CCPM-Ready JR Radio Systems Most current JR and Spektrum heli radio systems (12X, X9303 2.4, XP9303, DX7, DX6i, as well as older 10 series systems) are equipped with 120° and/or 140° CCPM electronics for use with JR CCPM machines. Radios you may be flying now, like the X347, X388S, XP783,and XP8103, have 120°...

  • Page 45: Jr X9303 2.4 And Xp9303: Programming

    JR X9303 2.4 AND XP9303: PROGRAMMING The following activation and setup procedure should be used for the JR 9303 systems. Prior to activating the CCPM function, it is first suggested that the data reset function be performed to reset the desired model number to be used back to the factory default settings.
  • Page 46 C) D/R and EXPO Selection Turn the power switch on, then press the ENT key to enter the function mode. Move the roll selector to highlight the D/R and EXPO function, then press the roll selector to enter the function. Set the Dual Rate and Expo values as desired, below are suggested settings.
  • Page 47 E) Travel Adjustment Move the roll selector until TRVL.ADJ is highlighted on the screen, then press the roll selector to enter the function. Adjust the values as shown by moving the roll selector to highlight the desired channel, while using the control stick to select up/down, or left/right values to be adjusted. Please note that the required travel values will vary based on the type of servo selected.
  • Page 48 H) Gyro Sensitivity Selection Move the roll selector to highlight the GYRO function, then press the roll selector to enter the function. Set the gyro gain as shown as a starting point for the G770 3D gyro. Adjust the percentage as necessary when flying the heli.

  • Page 49: Jr 7202 And Spektrum Dx7: Programming

    JR 7202 AND SPEKTRUM DX7: PROGRAMMING The following activation and setup procedure should be used for the JR 7202 and Spektrum DX7 systems. Prior to activating the CCPM function, it is first suggested that the data reset function be performed to reset the desired model number to be used back to the factory default settings.
  • Page 50 C) Input Select function Press the DOWN key until the INPUT SELECT function is displayed, then set AUX 2 to GYRO and GEAR to INH. (If channel 7 is not available for the GYRO function, select GYRO under gear and select INH under AUX 2.) Press the down and select keys together to exit the system menu.
  • Page 51 E) Servo Reversing Press the UP key to select the REVERSING function. Next, reverse channels 1, 4, and 6 by selecting the channel with the SELECT key, and pressing the INCREASE key as needed to change from NORM to REV. F) Travel Adjustment Press the UP key to select the TRAVEL ADJUST function.
  • Page 52 H) Throttle Hold Setting Press the UP key to select the THRO HOLD function. Press the INCREASE key to activate the function. Once the throttle linkage is set up, set the hold position in this function so that when the throttle hold switch is pulled, the throttle servo does not move with the throttle stick at idle and throttle trim set at the idle position.

  • Page 53: Spektrum Dx6I Systems: Programming

    SPEKTRUM DX6i SYSTEMS: PROGRAMMING The following activation and setup procedure should be used for the Spektrum DX6i systems. Prior to activating the CCPM function, it is first suggested that the data reset function be performed to reset the desired model number to be used back to the factory default settings. Caution: Prior to performing the data reset function, it will be necessary to select the desired model number to be used.
  • Page 54 C) CCPM Activation Move the roll selector to highlight the SWASH TYPE function, then press the roll selector to access the swashplate type function. Move the roll selector to highlight the CCPM type, then press the roll selector to access the variations of CCPM mixing, then move the roll selector to select the 120 CCPM type. Move the roll selector to highlight LIST and press the roll selector to exit the function.
  • Page 55 F) Gyro Sensitivity Selection Move the roll selector to highlight the GYRO function, then press the roll selector to enter the function. Set the gyro gain as shown as a starting point for the G770 3D gyro. Adjust the percentage as necessary when flying the heli.

  • Page 56: Servo Installation 1

    SERVO INSTALLATION 1 Self-Tapping Screw, 2.6x12mm (12pcs) We recommend the same model be used for all Swashplate servos. Be careful when tightening the tapping bolt. If it is too loose, the servo will move. Over tightening it will cause damage. The ideal position will dent the rubber slightly. Be sure to note the direction of the Servos.

  • Page 57: Servo Installation 2

    SERVO INSTALLATION 2 Self-Tapping Screw, 2.6x12mm (8pcs) Flat Washer, 2.6mm (8pcs) Type B Servo Mounting Plate (4pcs) Switch Dampener (2pcs) Switch Dampener (2pcs) Switch Harness Screw Supplied with Switch Self-Tapping Screw, 2.6x12mm (8pcs) Pitch Servo (Ch6) Flat Washer, 2.6mm (8pcs) Throttle Servo Type B Servo Mounting Plate (4pcs)

  • Page 58: Servo Horn Installation

    SERVO HORN INSTALLATION Flat Head Screw, 2x8mm (6pcs) Steel Joint Ball (6pcs) Flat Head Screw, 2x8mm (6pcs) Hex Nut, 2mm (6pcs) Hex Nut, 2mm (6pcs) Steel Joint Ball (6pcs) JR Large HD Servo Horn (3pcs) 2pcs 27mm...

  • Page 59: Ccpm Control Rod Assembly

    CCPM CONTROL ROD ASSEMBLY 120 CCPM Universal Ball Link (12pcs) Threaded Rod, 2.3x45mm (2pcs) ............2pcs 24.5mm Threaded Rod, 2.3x80mm (2pcs) ..2pcs 60mm Threaded Rod, 2.3x75mm (2pcs) .....2pcs 57.5mm 140 CCPM Threaded Rod, 2.3x25mm (2pcs) Universal Ball Link (12pcs) ..................2pcs 5.5mm Threaded Rod, 2.3x60mm (2pcs) ........2pcs 40.5mm...

  • Page 60: Ccpm Control Rod Attachment

    CCPM CONTROL ROD ATTACHMENT 120 CCPM : C 140 CCPM : D 120 CCPM : A 140 CCPM : B...

  • Page 61: Checking The Swashplate For Level

    checKIng the sWAshPlAte for level After the control linkages have been attached to the swashplate, it will be necessary to check the swashplate to ensure that it is level. To do this, turn on the radio system and place the collective stick in the center position as before. Next, check to make sure that all trim levers and knobs are also in their center position.

  • Page 62: Tail Control/Throttle Linkage Attachment

    TAIL CONTROL/THROTTLE LINKAGE ATTACHMENT Servo Horn Flat Head Screw, 2x10mm (1pc) Super Horn Steel Joint Ball (2pcs) Hex Nut, 2mm (2pcs) Flat Head Screw, 2x8mm (1pc) Flat Head Screw, 2x8mm Flat Head Screw, 2x10mm Steel Joint Ball (2pcs) Hex Nut, 2mm (2pcs) Remove Threaded Rod, 2.3x65mm shaded area.

  • Page 63: Gyro/Receiver/Battery Installation

    GYRO/RECEIVER/BATTERY INSTALLATION Be certain when installing the gyro unit to the front radio bed that it does not come in contact with the frame of the helicopter, etc. Also make sure that the front radio bed is free from oil and debris. Clean with rubbing alcohol if necessary to insure proper adhesion.

  • Page 64: General Radio Setup Information

    This condition is generally more common when standard-type servos are used. If JR® digital servos are used, the adjustment required is generally very small, if any. These variations in travel can be corrected by altering the travel value of each servo slightly through the travel adjustment function.
  • Page 65 PITCH-TO-ELEVATOR MIXING ADJUSTMENT WITH TRAVEL ADJUST The total travel of each servo can vary slightly, which can also cause the swashplate to be tilted fore and aft when the collective is moved to the extreme high and low pitch positions. This situation can also be corrected if necessary through the use of the travel adjustment function.

  • Page 66: Final Servo Adjustment And Radio Setup

    fInAl servo Adjustment And rAdIo setuP Now that the radio system is completely installed into the helicopter, it’s necessary to check and adjust the following: 1. Servo Direction (Servo Reversing) Check to ensure that all servos have been set to the correct direction. 2. Sub-Trim Settings It’s suggested that the correct neutral settings be achieved without the use of the Sub-Trim function, as this will affect the neutral position of the servos.

  • Page 67: Pitch Range And Curve Settings

    PItch rAnge And curve settIngs Note: Flight modes #1 and #2 are duplicated for safety. Pitch Range Settings Throttle Curve Settings Flight Low Pitch Hovering Pitch HighPitch Application Below are several examples of possible throttle Mode (Low Stick) (Half Stick) (High Stick) curves during various flight conditions.

  • Page 68: Body/Muffler Attachment

    BODY/MUFFLER ATTACHMENT : Carefully cut out decals from provided decal sheet. Use Socket Head Bolt, 3x12mm (2pcs) a spray bottle w/two drops of dish soap and water to allow repositioning of the decals. Refer to the page 70 for decal placement. Flat Washer, 3mm (2pcs) In case the body interfere the linkage of swashplate, please sandpaper the body little bit to prevent it.

  • Page 69: Final Preflight Check

    fInAl PreflIght checK Once all assemblies have been completed, please review the following suggestions before attempting initial flights. • Review the instruction book and confirm that all assembly steps have been completed thoroughly. • C heck to ensure that all servos are operating smoothly and in the correct direction. Also verify that there is no binding in the control rods and that each servo horn is secured with a servo horn mounting screw.

  • Page 70: Blade Tracking Identification

    blAde trAcKIng IdentIfIcAtIon Out of Track Incorrect Adjustment is necessary. In Track Correct Adjustment is not necessary. Caution: Be sure to maintain a safe distance from the helicopter (15 to 20 feet) when tracking main rotor blades. Blade Labeling for Tracking Purposes Black A: Use two different blade tracking tape colors (e.g., black and red) at the tip of each main rotor blade.

  • Page 71: General Maintenance

    generAl mAIntenAnce Engine Tail Pitch Slider After each day of flying, fully drain the fuel tank. Lubricate the tail pitch slider using light oil Then start the engine and let it idle until the engine every 5–10 flights to ensure smooth operation and the fuel line are completely burned off.
  • Page 72 REPLACEMENT PARTS LISTING 980035 970104 980027 980027 980035 980031 970104 970001 980037 980037 970002 970001 980032 980037 980031 980047 980055 980055 980105 980047 980046 980045 980121 980054 970004 970004 120CCPM 140CCPM 970004 970166 996136 996211 996210 980015 961259 980036 996133 996135 Assembly Manual...
  • Page 73 Item # Description Quantity 980027 SELF-TAPPING SCREWS, 2.6x12mm 980035 PLATE WASHERS, 2.6mm 970104 SERVO MOUNTING PLATE 980031 FLAT HEAD SCREWS, 2x8mm 970001 JOINT BALLS, 2x8mm SCREWS 980037 HEX NUTS, 2mm 970002 JOINT BALLS, 2x10mm SCREWS 980032 FLAT HEAD SCREWS, 2x10mm 980047 CONTROL ROD, 2.3x75mm 980055...
  • Page 74 REPLACEMENT PARTS LISTING 980059 981032 970001 996145 980031 996093 970518 996144 980032 981067 970002 970120 996146 980107 996140 996143 981070 980164 980012 996137 996139 980102 980071 996147 970471 981021 980164 980052 996142 996141 980055 980012 980039 980127 980036 980036 996138 970095 970098 970004...
  • Page 75 Item # Description Quantity 980059 SOCKET HEAD BOLT, 3x14mm 981032 BEARING, SEALED, 3x7x3mm 996145 MIXING ARM SET w/BEARING 980031 FLAT HEAD SCREWS, 2x8mm 970001 JOINT BALLS, 2X8mm SCREWS 980032 FLAT HEAD SCREWS, 2x10mm 970002 JOINT BALLS, 2X10mm SCREWS 970120 CONTROL BALL SPACER, 1.5mm 996146 MIXING ARM 980107...
  • Page 76 REPLACEMENT PARTS LISTING 970082 970010 996150 981015 996151 970002 996148 996152 980059 996149 981031 970119 970184 970002 980032 970184 970078 980067 970466 996153 981032 961165 996156 996154 980004 996155 980006 961109 961075 996157 980067...
  • Page 77 Item # Description Quantity 996150 WASHOUT BASE METAL 970082 WASHER, 3x4.5x.4 mm 970010 WASHOUT LINK 981015 CA STOPPER RING, 2mm 996148 WASHOUT ARM SET w/BEARING 980059 SOCKET HEAD BOLTS, 3x14mm 981031 BEARING,FLANGED, 3x8x4mm 970119 SPACER, 3x.5x1.8mm 996149 WASHOUT ARM 970002 JOINT BALLS, 2x10mm SCREWS 996152 LONG CONTROL BALL...
  • Page 78 REPLACEMENT PARTS LISTING 980039 980013 981059 960733 980022 996161 996160 980013 996159 980117 970082 996158 980031 960818 970002 970001 980004 996163 980039 960265 996162 981032 970121 981031 980079 980032 980017 970001 980031 120 CCPM 970004 961182 961181 970039 996165 980004 996164 140 CCPM 980020...
  • Page 79 Item # Description Quantity 980013 SOCKET HEAD BOLTS, 3x8mm 980039 NYLON LOCK NUTS, 3mm 981059 BEARING, SEALED, F04x10x4mm 960733 TAIL BOOM HOLDER 980022 SOCKET HEAD BOLTS, 3x40mm 996160 BEARING BLOCK w/BEARING 996161 CROSS MEMBER, 32mm 996158 MAIN FRAME SET L/R 970001 JOINT BALLS, 2x8mm SCREWS 980031...
  • Page 80 REPLACEMENT PARTS LISTING 961187 996169 996167 980013 996166 980039 980013 980014 980013 980129 980115 996170 80014 980065 980039 960732 980013 980014 980039 980022 980013 996172 980191 996168 980014 980013 996171 970034 996173 970106 980015 980039 970287 980013 996174 980015...
  • Page 81 Item # Description Quantity 980013 SOCKET HEAD BOLTS, 3x8mm 996169 GYRO FRAME SET 961187 GYRO TRAY 980039 NYLON LOCK NUTS, 3mm 980014 SOCKET HEAD BOLTS, 3x10mm 996167 BODY CATCH, 21mm 996166 BODY MOUNT PLATE 980115 SOCKET HEAD BOLTS, 2.6x8mm 980129 NYLON LOCK NUTS, 2.6mm 960732 CROSS MEMBER B...
  • Page 82 REPLACEMENT PARTS LISTING 980024 996177 980147 996178 980147 960721 980012 960722 960011 970300 980030 970277 980039 970503 996176 980036 980022 980037 980036 980016 980036 980031 980013 970001...
  • Page 83 Item # Description Quantity 980147 SELF-TAPPING SCREWS, 2.6X10mm 980024 SELF-TAPPING SCREWS, 2x8mm 996177 COOLING FAN SHROUD 996178 FAN SHROUD COLLAR 960721 FAN HUB 980012 SOCKET HEAD BOLTS, 3x6mm 960722 CLUTCH ASSEMBLY 970300 UPPER COLLET 960011 COOLING FAN BLADES 980030 BUTTON HEAD BOLTS, 3x5mm 970277 TAPER COLLET, LOWER 970503...

  • Page 84: Replacement Parts Listing

    rePlAcement PArts lIstIng 970474 980012 996179 960005 961090 980004 980013 981025 960157 980036 980013 980014 961074 996175 981005 980065 996181 996182 961091 961088 961113 980181 996180 980001 980115 980164 970513 961112...
  • Page 85 Item # Description Quantity 980013 SOCKET HEAD BOLTS, 3x8mm 980014 SOCKET HEAD BOLTS, 3x10mm 960005 STARTER HEX ADAPTOR: ALL JR 980004 SETSCREWS, 4x4mm 960157 START SHAFT BEARING BLOCK 980036 PLATE WASHERS, 3mm 981005 BEARING, SEALED, 10x19x7mm 996175 GOVERNOR MOUNT 981025...
  • Page 86 rePlAcement PArts lIstIng 980039 980036 996183 980014 981068 981019 996190 996189 996187 996188 980078 980190 980022 996184 970311 996185 980078 981019 980036 980014...
  • Page 87 Item # Description Quantity 980039 NYLON LOCK NUTS, 3mm 980036 PLATE WASHERS, 3mm 980014 SOCKET HEAD BOLTS, 3x10mm 996183 TAIL PINION UNIT BEARING CASE A 981019 BEARING, SEALED, 4x10x4mm 980078 TAIL PULLEY SPRING PIN 996188 BEVEL GEAR T20 JOINT 996190 BEARING COLLAR, 18x16.5x7mm 981068 BEARING, SEALED, 12x18x4mm...
  • Page 88 REPLACEMENT PARTS LISTING 980009 960044 996193 996192 983051 960293 980024 980039 970004 980036 970018 996005 980039 980019 980039 980036 980039 980122 980014 996005 980015 996191 980036 980017 961123 980001 980036 980017 961066 960339 970023...
  • Page 89 TAIL BRACE SET 980009 SOCKET HEAD BOLTS, 2.6x12mm 960044 TAIL BRACE CONNECTOR 996192 TAIL BOOM, 708mm 960293 TAIL ROD GUIDE SET: ALL JR 980024 SELF-TAPPING SCREWS, 2x8mm 970004 UNIVERSAL BALL LINK: ALL 983051 TAIL CONTROL ROD, L685 980039 NYLON LOCK NUTS, 3mm...
  • Page 90 REPLACEMENT PARTS LISTING 980012 980036 996194 996198 981067 996195 980091 980091 996197 996200 981028 980192 980051 996196 980073 980014 980078 980073 980067 996206 996199 996216 996212 981069 996201 981068 996202 996188 980091 980119 996205 980051 981028 981069 996203...
  • Page 91 Item # Description Quantity 980012 SOCKET HEAD BOLTS, 3x6mm 980036 PLATE WASHERS, 3mm 996194 VERTICAL FIN 996195 TAIL DRIVE SHAFT ASSEMBLY 996198 SHAFT DRIVE GUIDE 981067 BEARING, SEALED, 8x14x4mm 996197 DRIVE SHAFT JOINT 980192 SETSCREWS, 3x10mm 996196 TAIL DRIVE SHAFT 980091 BUTTON HEAD BOLT 3x6mm 981028...
  • Page 92 REPLACEMENT PARTS LISTING 980039 970054 980039 980036 981034 981018 970065 961202 980119 981019 970530 996217 981038 980128 961260 970529 996209 970528 981065 980039 961201 970001 980119 980031 961206 980131 960056 980170 961261 980032 960507 970002 996083 970163 996208 980061 980036 961198 980039 980036...
  • Page 93 Item # Description Quantity 980039 NYLON LOCK NUTS, 3mm 980036 PLATE WASHERS, 3mm 981018 BEARING, OPEN, 4x10x3mm 970054 TAIL WASHER, 4x7x.5mm 981034 THRUST BEARING, 4x9x4mm 970065 TAIL WASHER, 7x10x1 mm 981019 BEARING, SEALED, 4x10x4mm 996217 BLADE BOLTS SET (TAIL) 980128 NYLON LOCK NUTS, 2mm 981065 BEARING, SEALED, 7x11x3mm...

  • Page 94: Warranty Information

    WArrAnty InformAtIon Warranty Period Damage Limits Exclusive Warranty- Horizon Hobby, Inc., (Horizon) HORIZON SHALL NOT BE LIABLE FOR SPECIAL, warranties that the Products purchased (the INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF “Product”) will be free from defects in materials PROFITS OR PRODUCTION OR COMMERCIAL LOSS and workmanship at the date of purchase by the IN ANY WAY CONNECTED WITH THE PRODUCT, Purchaser. WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.
  • Page 95 Any repair left unpaid or unclaimed after 90 days Inspection or Repairs will be considered abandoned and will be disposed If this Product needs to be inspected or repaired, of accordingly. Please note: non-warranty repair please call for a Return Merchandise Authorization is only available on electronics and model (RMA).
  • Page 96 © 2008 Horizon Hobby, Inc. 4105 Fieldstone Road Champaign, Illinois 61822 (877) 504-0233 horizonhobby.com 11255...
