ASSEMBLY INSTRUCTIONS

Designed for Today's
Extreme 3D Flying

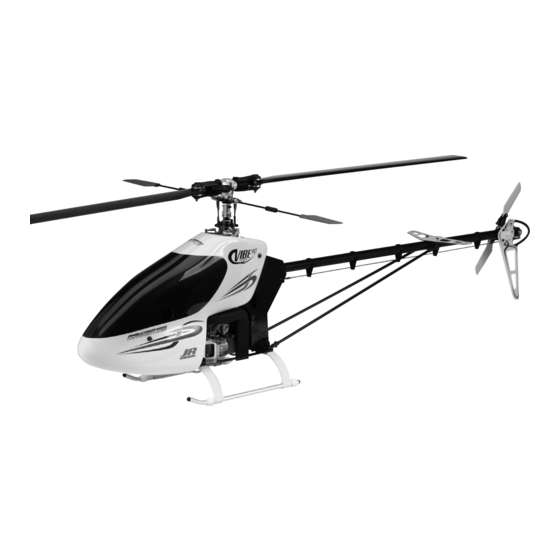

VIBE 90 SPECIFICATIONS
Length:
Height:
Weight:
Engine:
Bearings:
Gear Ratio:
Main Blade:
(Main rotor blades not included)
®
54 in
17.5 in
10.2-10.5 lb
.80–.91 Heli
Full
8:1:4.83
700–720 mm
7749
7/2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIBE 90 3D and is the answer not in the manual?

Questions and answers

Related Manuals for JR VIBE 90 3D

Summary of Contents for JR VIBE 90 3D

  • Page 1: Assembly Instructions

    Designed for Today’s Extreme 3D Flying ASSEMBLY INSTRUCTIONS VIBE 90 SPECIFICATIONS Length: 54 in Height: 17.5 in Weight: 10.2-10.5 lb Engine: .80–.91 Heli Bearings: Full Gear Ratio: 8:1:4.83 Main Blade: 700–720 mm (Main rotor blades not included) 7749 7/2005 ®...

  • Page 4: Introduction

    The radio controlled model helicopter contained in this kit is not a toy but a sophisticated When first opening your Vibe 90 3D kit, you will notice that all of the parts are packaged piece of equipment. This product is not recommended for use by children. Radio and numbered to coordinate with the assembly step numbers of this instruction manual.

  • Page 5: Table Of Contents

    Upper Servo/Gyro Tray Attachment ....38 Tools Needed to Assemble the JR Vibe 90 3D (not included) ..6 Servo/Switch Harness Installation .

  • Page 6: Radio System Requirements (Not Included)

    ITEMS REQUIRED TO COMPLETE THE JR VIBE 90 3D 1. RADIO SYSTEM REQUIREMENTS (NOT INCLUDED): • 6-channel or greater R/C helicopter system with 120° or 140° CCPM with 5 servos • 1800mAh or larger receiver battery • Gyro CCPM-Ready JR Radio Systems...

  • Page 7: Engine Requirements (Not Included)

    RVO1180 (YS) RVO1190 (OS) YS 91 ST4 Heli Engine OS 91 C-Spec Heli Engine 3. BUILDING SUPPLIES (not included): The following items are needed to complete the assembly of the JR Vibe 90 3D: Medium Silicone Fuel High-Speed Tubing (3 ft)

  • Page 8: Tools Needed To Assemble The Jr Vibe 90 3D (Not Included)

    4. TOOLS NEEDED TO ASSEMBLE THE JR VIBE 90 3D (not included): Nut Drivers: 5 mm, 7 mm Needle-Nose Pliers Scissors Phillips Screwdriver Drill and Drill Bits Small Hammer Hobby Knife Metric Ruler JR Ball Link Sizing Tool Sandpaper (80–120 Grit) Allen Wrenches: 1.5, 2.0, 2.5,...

  • Page 9: Hardware Identification

    There are a variety of sizes and shapes of hardware included in this kit. All of the hardware, screws, nuts, etc., contained in the Vibe 90 3D kit are Prior to assembly, please be careful to identify each screw by matching it described in the following A, B, C manner: to the full size screw outlines included in each step.

  • Page 10: Clutch Bell/Start Shaft Assembly

    CLUTCH BELL/START SHAFT ASSEMBLY TEAM TIP: Clean areas with rubbing alcohol to ...2 pcs remove any oil residue before applying threadlock. Socket Head Bolt, 3 x 14 mm Note: ....1 pc Starter Hex Set Screw, 4 x 4 mm Be sure the bearing Adaptor with the 6 mm ID faces upward.

  • Page 11: Elevator Arm Assembly

    .......1 pc Set Screw, 4 x 4 mm Remove 1 mm from the bottom of this link using a hobby knife Note: Socket Head Bolt, 2.3 x 15 mm Remove JR ® Propo 11 mm ......2 pcs from outside of link using a hobby knife.

  • Page 12: T-Arm Lever Assembly

    T-ARM LEVER ASSEMBLY Flat Head Screw, 2 x 8 mm (2 pcs) ......8 pc Steel Joint Ball Flat Head Screw, 2 x 8 mm ......8 pcs Steel Joint Ball (6 pcs) Steel Joint Ball Flat Head Screw, 2 x 8 mm (4 pcs) Use Red Threadlock on all screws T-Arm Assembly...

  • Page 13: Main Frame Assembly:bearing Block/Clutch Installation

    2-1A MAIN FRAME ASSEMBLY: BEARING BLOCK/CLUTCH INSTALLATION Note: Note: ........4 pcs Positon so that bearing faces upward. Prior to assembling the main Socket Head Bolt, 3 x 8 mm frames, sand all edges of the frame using 120 grit sandpaper..4 pcs This will prevent wire chaffing Socket Head Bolt, 3 x 40 mm...

  • Page 14: Elevator Arm Installation

    2-1B ELEVATOR ARM INSTALLATION Direction of Installation ....4 pcs Standard Range Long Socket Head Bolt, 3 x 8 mm Short Front ..1 pc Rear Socket Head Bolt, 4 x 10 mm .......4 pcs Nylon Lock Nut, 3 mm ......1 pc Spacer, 4 x 5 x 1 mm Use Red Threadlock...

  • Page 15: Main Frame Assembly: Cross Member Installation

    MAIN FRAME ASSEMBLY: CROSS MEMBER INSTALLATION Cross Member, 24 mm Set Screw, .....2 pcs 3 x 18 mm (2 pcs) Set Screw, 3 x 18 mm TEAM TIP: Do not apply ..1 pc threadlock to bolts unless Cross Member, 32 mm you will proceed through Step 3-8 during this ....3 pcs...

  • Page 16: T-Lever Installation

    2-3A T-LEVER INSTALLATION Socket Head Bolt, 3 x 28 mm ..2 pcs ........2 pcs Nylon Lock Nut, 3 mm .......2 pcs Mixing Lever Spacer ........2 pcs Nylon Lock Nut, 3 mm (2 pcs) Spacer, 3 x 5 x 1 mm 120 CCPM T-Lever Positions 140 CCPM...

  • Page 17: Elevator Control Arm Installation

    2-3B ELEVATOR CONTROL ARM INSTALLATION ........2 pcs Set Screw, 4 x 4 mm Elevator Control Arm *Standard Range Direction ........1 pc Nylon Lock Nut, 4 mm Set Screw, 4 x 4 mm ........1 pc Flat Washer, 4 mm Flat Washer, 4 mm Nylon Lock Nut, 4 mm Use Red Threadlock...

  • Page 18: Main Frame Assembly: Engine Mount/Cross Member Installation

    MAIN FRAME ASSEMBLY: ENGINE MOUNT/CROSS MEMBER INSTALLATION ..6 pcs Socket Head Bolt, 3 x 40 mm ........9 pcs O.S. Engines and YS Engines Socket Head Bolt, 3 x 50 mm ..3 pcs Nylon Lock Nut, 3 mm Engine Mount Direction TEAM TIP: Do not tighten bolts completely at this time.

  • Page 19: Main Frame Assembly: Bottom Plate Installation

    MAIN FRAME ASSEMBLY: BOTTOM PLATE INSTALLATION Remove a " x 1 " portion of the clear coating from the top of the bottom carbon fiber plate as shown.....2 pcs Socket Head Bolt, 3 x 10 mm ....4 pcs Socket Head Bolt, 3 x 6 mm ....2 pcs Button Head Bolt, 3 x 10 mm Remove a...

  • Page 20: Fuel Tank Installation

    FUEL TANK INSTALLATION * Cut the tank mounting rubber to ..4 pcs a length as shown from the two 120 mm Socket Head Bolt, 3 x 20 mm pieces included with the kit....2 pcs 210 mm Hex Spacer, 3 x 6 x 6 mm Spacer, 3 x 6 x 6 mm (2 pcs) .......2 pcs Spacer, 3 x 6 x 2 mm...

  • Page 21: Front Radio Bed Installation

    FRONT RADIO BED INSTALLATION ..........4 pcs Socket Head Bolt 3 x 8mm Socket Head Bolt, 3 x 10 mm (4 pcs) ..........4 pcs Socket Head Bolt 3 x 10 mm ....2 pcs Body Mounting Standoff 24 mm Cross Member 48 mm ..1 pc ......

  • Page 22: Bevel Gear Assembly

    3-1B BEVEL GEAR ASSEMBLY Flat Head Bolt, 3 x 6 mm (4 pcs) ...... 4 pcs Flat Head Bolt, 3 x 6 mm Bevel Gear Use Red Threadlock Attach the bevel gear hub as shown. Be sure not to overtighten the four 3 mm bolts as this could distort the bevel gear.

  • Page 23: Landing Gear Assembly Installation

    LANDING GEAR ASSEMBLY INSTALLATION Nylon Lock Nut, 3 mm (2 pcs) ...2 pcs Socket Head Bolt, 3 x 20 mm ......2 pcs Nylon Lock Nut, 3 mm Landing Struts (2 pcs) ......4 pcs Set Screw, 4 x 4 mm ......4 pcs Flat Washer, 3 mm Flat Washer, 3 mm (4 pcs) Socket Head Bolt, 3 x 20 mm (2 pcs)

  • Page 24: Clutch Assembly Attachment

    CLUTCH ASSEMBLY ATTACHMENT Socket Head Clutch Assembly Bolt, 4 x 6 mm (2 pcs) ....2 pcs Socket Head Bolt, 4 x 6 mm .....1 pc Flat Head Screw, 2 x 8 mm ......1 pc Steel Joint Ball ......1 pc Hex Nut, 2 mm Use Red Threadlock Flat Head Screw, 2 x 8 mm...

  • Page 25: Cooling Fan Shroud Bracket Attachment

    COOLING FAN SHROUD BRACKET ATTACHMENT Cooling Fan Shroud Brackets (2 pcs) .....8 pcs Self Tapping Screw, 3 x 12 mm ......8 pcs Flat Washer, 3 mm Note: Do not tighten screws at this time. They will be tightened in Step 3-9. Self Tapping Screw, 3 x 12 mm (8 pcs) Flat Washer, 3 mm (8 pcs) BOLT TIGHTENING ORDER/GEAR MESH ADJUSTMENT...

  • Page 26: Cooling Fan Shroud Installation

    COOLING FAN SHROUD INSTALLATION ...4 pcs ..6 pcs ....4 pcs Self Tapping Screw, 3 x 12 mm Self Tapping Screw, 2.6 x 8 mm Flat Washer, 3 mm Cooling Fan Shroud (Right) Tighten after right shroud half has been aligned. Glow Plug Opening Cooling Fan (can be enlarged if...

  • Page 27: Swashplate Assembly

    SWASHPLATE ASSEMBLY ........1 pc Set Screw, 3 x 3 mm Steel Joint Ball (4 pcs) Flat Head Screw, ......4 pcs Steel 2 x 10 mm (4 pcs) Joint Ball Spacer, 2.75 mm (4 pcs) Joint Ball Flat Head Screw, 2 x 10 mm (note correct direction) .........4 pcs Steel Joint Ball...

  • Page 28: Swashplate/Washout Assembly Installation

    Use caution when connecting the ball links to the swash- plate balls to prevent damage. It is also a good idea to size the ball links with the JR Ball Link Sizing tool prior to attachment.

  • Page 29: Rotor Head Installation

    ROTOR HEAD INSTALLATION ....1 pc Special Socket Head Bolt, 3 x 22 mm (Long Shank) Main Rotor Head Dampeners Maintenance The main rotor head dampeners should be inspected after 30 to .......1 pc 50 flights and replaced as needed. When replacing the dampeners, Socket Head Bolt, 3 x 12 mm it is also suggested that the thrust bearings be greased using a high speed grease to prolong bearing life.

  • Page 30: Flybar Installation

    FLYBAR INSTALLATION ......2 pcs Set Screw, 3 x 4 mm Washer, .......2 pcs 4 x 6 x 0.5 mm (2 pcs) Washer, 4 x 6 x 0.5 mm Set Screw, 4 x 4 mm (2 pcs) Flybar, 530 mm Caution: Flybar Control Arm Center the flybar in the seesaw shaft before securing the two...

  • Page 31: Swashplate/T-Arm Control Rod Installation

    This reduces the size of the the balls. link hole and makes the link fit tighter. JR links are some of the best links available. It is important to note that very little force is needed on the ridges to resize the link.

  • Page 32: Tail Drive Shaft Preparation

    TAIL DRIVE SHAFT PREPARATION Make sure that all holes are aligned..2 pcs Aluminum Drive Pipe Insert Aluminum Drive Shaft, 794.5 mm Use Green Threadlock Aluminum Drive Shaft Insert Make sure that all holes are aligned. TAIL DRIVE SHAFT ASSEMBLY Set Screw, 3 x 4 mm (2 pcs) .....

  • Page 33: Bevel Pinion Gear Assembly

    continued DRIVE SHAFT GUIDE BEARING ATTACHMENT Follow this procedure when attaching: Step A Step B Step C Note: Front Rear 260 mm/230 mm Use Poly Zap Wipe lightly (not included) to attach w/finger or towel. Slide and spread. bearings to the drive shaft. Once the Poly Zap is applied and the guide bearings are in their...

  • Page 34: Boom/Bevel Pinion Gear Installation/Adjustment

    TAIL BOOM/BEVEL PINION GEAR INSTALLATION/ADJUSTMENT 1 pc Aluminum Tail Boom Holder ......2 pc Socket Head Bolt, 3 x 6 mm 2 pc Aluminum Tail Boom Holder Socket Head Bolt, 3 x 40 mm ..4 pcs Bevel Pinion Gear Assembly ........

  • Page 35: Tail Support Clamp Installation

    TAIL SUPPORT CLAMP INSTALLATION Aluminum Tail Support Clamp, Upper ..2 pcs Socket Head Bolt, 3 x 12 mm Use Red Threadlock Aluminum Tail Support Clamp, Lower Socket Head Bolt, 3 x 12 mm (2 pcs) *Do not tighten bolts completely at this time.

  • Page 36: Tail Brace Installation

    TAIL BRACE INSTALLATION Use Red Threadlock ..... 2 pcs Socket Head Bolt, 3 x 8 mm Aluminum Tail Support Clamp, Lower ......2 pcs Flat Washer, 3 mm 2 pcs Socket Head Bolt, 3 x 8 mm (2 pcs) Socket Head Bolt, 3 x 22 mm Flat Washer ....4 pcs 3 mm (2 pcs)

  • Page 37: Tail Center Hub Assembly

    TAIL CENTER HUB ASSEMBLY Note: ....2 pcs Slide the tail slide ring assembly on the tail output shaft before installation of the tail Set Screw, 4 x 3 mm rotor hub. When attaching the tail rotor hub, be certain that the set screws 3 x 3 mm engage into the holes at the end of tail output shaft.

  • Page 38: Steel Joint Ball Installation

    5-11 STEEL JOINT BALL INSTALLATION ..... 1 pc Flat Head Screw, 2 x 8 mm Hex Nut, 2 mm ....1 pc Steel Joint Ball Attach the steel joint ball to the outside hole as shown...... 1 pc Hex Nut, 2 mm Steel Joint Ball Flat Head Screw, 2 x 8 mm 5-12...

  • Page 39: Tail Belcrank Attachment

    TAIL BELCRANK ATTACHMENT Step 1: Insert the 2 flanged bearings ..1 pc and spacer into the belcrank. Socket Head Bolt, 3 x 18 mm Brass Spacer .....2 pcs Socket Head Bolt, 3 x 8 mm Plastic Belcrank Flanged Bearing ....2 pcs Flat Head Screw, 2 x 8 mm ....1 pc Nylon Lock Nut, 3 mm...

  • Page 40: Upper Servo/Gyro Tray Attachment

    UPPER SERVO/GYRO TRAY ATTACHMENT Flat Head Bolt, Step 1: Attach the 2 48mm Cross 3 x 6 mm (4 pcs) ......6 pcs Members to the gyro plate using the 4 3x6mm Flat Head Screws Socket Head Bolt, 3 x 20 mm ........4 pcs Socket Head Bolt, 3 x 10 mm ........

  • Page 41: Servo/Switch Harness Installation

    SERVO/SWITCH HARNESS INSTALLATION Elevator Servo Note output (Ch3) ....20 pcs shaft direction. Self Tapping Screw, 2.6 x 12 mm Type-B Servo Mounting Plate (10 pcs) .....2 pcs Self Tapping Screw, 2.6 x 15 mm Self Tapping Screw, 2.6 x 15 mm (2 pcs) *This portion only.

  • Page 42: 6-4A Intermediate Tail Control Rod Attachment

    6-4A INTERMEDIATE TAIL CONTROL ROD ASSEMBLY 3 x 235mm Stainless Steel Control Rod Special Ball Links, 3 mm ID... 2pc 286 mm Attach the 2 special 3mm ID Ball Links to the 235mm Stainless Steel Control Rod as shown. Adjust the links so that the ball spacing is set to approximately 286 mm as shown.

  • Page 43: Gyro/Receiver/Battery Installation

    GYRO/RECEIVER/BATTERY INSTALLATION Note: Be certain when installing the gyro unit to the front radio bed that it does not come in contact with the frame of the helicopter, etc. Also make sure that the front radio bed is free from oil and debris. Clean with rubbing alcohol if necessary to insure proper adhesion.

  • Page 44: Radio System Preparation

    “exact” neutral settings. It will also be necessary to enlarge the appropriate hole in the servo Since the servo output spline on a JR system has an odd number horn slightly to allow correct installation of the steel control balls to of teeth (21), it’s possible to reposition the servo arm on the servo...

  • Page 45: Understanding Ccpm Control Systems

    For JR radio owners, please refer to the radio information contained at the front of this manual or on the following pages to determine if your radio system has the CCPM function. For other brands of radio systems, please contact the radio manufacturer...
  • Page 46 HOW 120/140 CCPM WORKS The JR 120°/140° three servo CCPM relies on the radio’s special CCPM swashplate mixing, rather than a conventional mechanical mixer that is utilized to achieve the same results. The radio’s 120° or 140° 3-servo CCPM function auto- matically mixes the three servos to provide the correct mixing inputs for aileron (roll), elevator (pitch), and collective.

  • Page 47: Important Ccpm Programming Do's & Dont's

    This variation is more common in analog type servos. If JR’s new digital servos are used, the travel adjustment values will generally not need to be altered.
  • Page 48 Aileron Servo: We will refer to this servo as the “Right Front” servo. The channel number for this servo when using a JR radio is CH2. Aux 1 (Pitch) Servo: We will refer to this servo as the “Left Front” servo. The channel number for this servo when using a JR radio is CH6.

  • Page 49: Ccpm Software Activation

    6-channel or greater R/C helicopter system with 120° or 140° CCPM function CCPM-Ready JR Radio Systems Most current JR heli radio systems (XP662, XP8103 w/digital trims, XP9303, 10X, as well as older 10 series systems) are equipped with 120° CCPM electronics for use with JR CCPM machines.
  • Page 50 1. JR XP9303 SYSTEMS: PROGRAM INPUT The following activation and setup procedure should be used for all JR 9303 systems. Prior to activating the CCPM function, it is first suggested that the data reset function be performed to reset the desired model number to be used back to the factory default settings.
  • Page 51 RUDD L150% R150% AUX3 +100% -100% AUX4 +100% -100% AUX4 +100% -100% Note: The travel values shown for the rudder function are for use with solid state and Ring Sensor type gyros, like the JR G500T or G7000T type gyros.
  • Page 52 – Note: The travel values shown for the rudder function are for use with solid state or Ring Sensor type gyros, like the JR G500T, or G7000T type gyros. If a conventional mechanical type gyro is used (JR 120, 130 etc.), then the travel value...

  • Page 53: Preparation And Installation Of Servo Horns

    Before trimming the servo horns as shown, it is first suggested that these horns be test fit to the servo to achieve the correct positioning. JR servos utilize a 21 spline output shaft, which allows the position of the servo arm to be varied when rotated at 180-degree intervals.

  • Page 54: Ccpm Servo Centering With The Sub-Trim Function

    3. JR PCM10, 10S, 10SX, 10SXII, 10X SYSTEMS 1) Enter the sub-trim function (code 15). 2) Adjust the left (aileron), right (Aux 1) and top (elevator) servos as needed until the servo arm is exactly parallel to the servo when the collective stick is in the center position.

  • Page 55: Control Rod Assembly

    CONTROL ROD ASSEMBLY 120Standard Range (All Systems) Control Rod, 2.3 x 85 mm ..4 pcs 64.5 mm Control Rod, 2.3 x 85 mm ..2 pcs 70.5 mm 140Standard Range (For 10X and XP9303 Systems only) Control Rod, 2.3 x 70 mm ..4 pcs 47.5 mm Control Rod, 2.3 x 85 mm...

  • Page 56: Ccpm Control Rod Attachment

    If the rods are too long or too short, adjust each rod an equal amount until the control rods line up with each of the T-lever control balls. Use JR Ball Link Sizing Tool Rod B (2 pcs) Rod A (4 pcs)

  • Page 57: Tail Control Rod Connection

    TAIL CONTROL ROD CONNECTION Adjust the length of the tail Note that control ....1 pc Hex Nut, 2 mm control rod until the tail ball is attached Flat Head Screw, 2 x 8 mm pitch slider is in the center to the inside of its travel and the servo of the servo arm.

  • Page 58: Throttle Linkage Connection

    THROTTLE LINKAGE CONNECTION *Option: For smooth operation, ....1 pc pre-size the ball links with the Flat Head Screw, 2 x 8 mm JR ball link sizing tool prior to attachment....1 pc Steel Joint Ball ....1 pc Hex Nut, 2 mm...

  • Page 59: Throttle Arm/Servo Horn Positions

    Adjust the + or - value as necessary until the proper mix is achieved. For initial cyclic to throttle mixing value information, please refer to the JR Note: 8103 and PCM10X series data sheets located on pages 73-77 of this manual.

  • Page 60: Checking The Swashplate For Level

    CHECKING THE SWASHPLATE FOR LEVEL Check to insure the swashplate is level on the fore/aft axis. Adjust the control rods as needed until the swashplate is level with all servos in their neutral (90) position. Reconfirm that the elevator arm is at 90. Left Servo (C) Top Servo (A) Check to insure that the...

  • Page 61: Pitch-To-Aileron Mixing Adjustment With Travel Adjust

    It is very possible that the travel of each servo varies slightly, which can cause the swashplate to be tilted to the left or right when the collective is moved to the extreme high and low pitch positions. This condition is generally more common when standard type servos are used. If JR ®...

  • Page 62: Pitch-To-Elevator Mixing Adjustment With Travel Adjust

    PITCH-TO-ELEVATOR MIXING ADJUSTMENT WITH TRAVEL ADJUST The total travel of each servo can vary slightly, which can also cause the swashplate to be tilted fore and aft when the collective is moved to the extreme high and low pitch positions. This situation can also be corrected if necessary through the use of the travel adjustment function.

  • Page 63: Final Servo Adjustment And Radio Setup

    FINAL SERVO ADJUSTMENT AND RADIO SETUP Now that the radio system is completely installed into the helicopter, it’s XP8103 System XP9303 System necessary to check and adjust the following: [SWASH MIX] [Swash Mix] AILE +50% 3servos Servo Direction (Servo Reversing) ELEV +50% 3servos...

  • Page 64: Final Servo Adjustment And Radio Setup

    FINAL SERVO ADJUSTMENT AND RADIO SETUP (CONTINUED) B) Throttle Curve Settings Below are several examples of possible throttle curves during various flight conditions. Since throttle curves can vary greatly due to engine and muffler combinations, it will be necessary to fine tune and adjust these values during test flights to achieve a constant main rotor rpm.

  • Page 65: Grommet Attachment

    GROMMET ATTACHMENT ..4 (or 6) pcs Rubber Grommets Insert rubber grommets as shown. Rubber Grommets (4 pcs)

  • Page 66: Body Attachment & Final Fitting

    BODY ATTACHMENT & FINAL FITTING .... 4 pcs Socket Head Bolt, 3 x 12 mm (4 pcs) Socket Head Bolt 3 x 12 mm Flat Washer, 3 mm (4 pcs) ......4 pcs Flat Washer, 3 mm Check to insure the body does not come in contact with any portion of the main frame, muffler, servo, servo horns, etc. Trim for clearance if necessary.

  • Page 67: Decal Placement

    DECAL PLACEMENT...

  • Page 68: Main Rotor Blade Attachment (Blades Not Included)

    MAIN ROTOR BLADE ATTACHMENT (BLADES NOT INCLUDED) Two sets required Hold the 4 mm Lock Nut while tightening using a Wiha 7 mm Nut Driver or equivalent.....2 pcs Lock Nut, 4 mm (1 pc) Socket Head Bolt, 4 x 35 mm .........2 pcs Lock Nut, 4 mm 12 mm...

  • Page 69: Preflight Check

    FINAL PREFLIGHT CHECK Once all assemblies have been completed, please review the following • Verify that the gyro is operational and compensating in the correct suggestions before attempting initial flights. direction (detailed in Section 7, page 61). • Make sure that both the transmitter and receiver have been fully •...

  • Page 70: General Maintenance

    GENERAL MAINTENANCE Engine Tail Pitch Slider After each day of flying, fully drain the fuel tank. Then start the engine Lubricate the tail pitch slider using light oil every 5–10 flights to insure and let it idle until the engine and the fuel line are completely burned off. It is smooth operation and reduce wear.

  • Page 71: Assembly Process - Main Rotor Head 1

    ASSEMBLY PROCESS – MAIN ROTOR HEAD 1 Bearing, 8 x 16 x 5 mm (4 pcs) ..2 pcs Control Ball, 14 mm .....4 pcs Bearing, 8 x 16 x 5 mm Use caution when inserting the Main Blade Holder main blade holder bearings so as not to distort/damage the main blade holders.

  • Page 72: Assembly Process - Main Rotor Head 3

    ASSEMBLY PROCESS PARTS – MAIN ROTOR HEAD 3 ....2 pcs Button Head Bolt, 3 x 5 mm .......2 pcs Seesaw Spacer Collar Button Head Bolt, 3 x 5 mm (2 pcs) Be sure to note correct placement of the front and the back of the seesaw assembly.

  • Page 73: Assembly Process - Washout Unit

    ASSEMBLY PROCESS – WASHOUT UNIT Washer, 3 x 4.5 x 0.4 mm (2 pcs) CA Stopper Ring, 2mm (4 pcs) ....2 pcs Washout Base Socket Head Bolt, 3 x 15 mm Washout Link Pin (2 pcs) ......2 pcs Washout Link Flat Head Screw, 2 x 10 mm ......4 pcs Flange Bearing, 3 x 8 x 4 mm...

  • Page 74: Assembly Process - Flybar Control Arm

    ASSEMBLY PROCESS – FLYBAR CONTROL ARM .......2 pcs Flat Head Screw, 2 x 8 mm Flat Head Screw, 2 x 8 mm (2 pcs) ......2 pcs Steel Joint Ball Steel Joint Ball (2 pcs) Flybar Control Arm Make two flybar control arms. Use Red Threadlock...

  • Page 75: Data Sheets

    XP8103 Vibe 90 3D Data Sheet, 120° CCPM MODEL NO. ____________________________________ VIBE 90 3D MODEL NAME ____________________________________ MODULATION SPCM - ZPCM - PPM __________________ AILE ELEV RUDD INH • ACT AUTO 100% 100% 100% INH • ACT (POS. 1) DUAL-RATE HOLD INH •...
  • Page 76 XP9303 Vibe 90 3D Data Sheet, 120° CCPM MODEL NO. ____________________________________ VIBE 90 3D MODEL NAME ____________________________________ THRO ELEV RUDD GEAR PITCH AUX2 AUX3 NORM NORM NORM NORM NORM NORM NORM NORM REVERSE SW Adjust so that no Sub Trim is needed...
  • Page 77 XP9303 Vibe 90 3D Data Sheet, 140° CCPM MODEL NO. ____________________________________ VIBE 90 3D MODEL NAME ____________________________________ THRO ELEV RUDD GEAR PITCH AUX2 AUX3 NORM NORM NORM NORM NORM NORM NORM NORM REVERSE SW Adjust so that no Sub Trim is needed...
  • Page 78 10X Vibe 90 3D Data Sheet, 120° CCPM MODEL NO. (84) _____________________________________ Vibe 90 3D MODEL NAME (81) ___________________________________ MODULATION (85) SPCM-ZPCM-PPM THRO AILE ELEV RUDD GEAR PITCH AUX2 AUX3 AUX4 AUX5 REVERSE SW (11) 100% L 115 % D 115 % L 150 % +...
  • Page 79 • —— —— HOV.SEL THRO • CURVE (18) • TH,TRIM=SLOW HOV.T=CENTER • • • —— —— HOV.SEL • PITCH CURVE • (68) • P,TRIM=CENTER HOV.P=CENTER • HOLD • MODE HOLD 1.0s 0.5s 0.25s +15 % Rudder→Throttle • • • FAIL- 4→1 SAFE MEMORY...
  • Page 80 10X Vibe 90 3D Data Sheet, 140° CCPM MODEL NO. (84) _____________________________________ Vibe 90 3D MODEL NAME (81) ___________________________________ MODULATION (85) SPCM-ZPCM-PPM THRO AILE ELEV RUDD GEAR PITCH AUX2 AUX3 AUX4 AUX5 REVERSE SW (11) 100% L 115 % D 115 % L 150 % +...
  • Page 81 • —— —— HOV.SEL THRO • CURVE (18) • TH,TRIM=SLOW HOV.T=CENTER • • • —— —— HOV.SEL • PITCH CURVE • (68) • P,TRIM=CENTER HOV.P=CENTER • HOLD • MODE HOLD 1.0s 0.5s 0.25s +15 % • • • Rudder→Throttle FAIL- 4→1 SAFE MEMORY...

  • Page 82: Start Shaft/Clutch/Engine Assembly Parts List

    START SHAFT/ CLUTCH/ ENGINE ASSEMBLY JRP996089 JRP996101 JRP980004 JRP970080 JRP981025 JRP996091 JRP980036 JRP980013 JRP996100 JRP981005 JRP991001 JRP996092 JRP996090 JRP996080 JRP981005 JRP980062 JRP996016 JRP980036 JRP970050 JRP980059 JRP996006 JRP996002 JRP980012 JRP980036 JRP996003 JRP996006 JRP996011 JRP980029 JRP980062 JRP980036 JRP980029 JRP980036 JRP996002 JRP980026 JRP970102 JRP980106 JRP970004 JRP996075...
  • Page 83 VIBE 90 3D MANUAL PARTS LISTINGS Start Shaft/ Clutch/ Engine Assembly Part # Description Quantity Comments/ Additional Contents 996101 Hex Shaft Adaptor Complete w/ 4 x 4 mm set screw 980004 Set Screw, 4 x 4 mm 981025 Bearing, Sealed, 5 x 19 x 6 mm...

  • Page 84: Main Frame/Landing Gear/Autorotation Assembly Parts List

    ™ MAIN FRAME/LANDING GEAR/AUTOROTATION ASSEMBLY JRP996009 JRP994009 JRP980039 JRP996004 JRP996082 JRP9960191 JRP980022 JRP996001 JRP996004 JRP980022 JRP970020 JRP990053 JRP980022 JRP980036 JRP980019 JRP960097 JRP980036 JRP980122 JRP980122 JRP996081 JRP99601911 JRP980061 JRP970204 JRP9960081 JRP980039 JRP980013 JRP980004 JRP980036 JRP980036 JRP996005 JRP970008 JRP992018 JRP980036 JRP980014 JRP980036 JRP996065 JRP980012 JRP960338...
  • Page 85 VIBE 90 3D MANUAL PARTS LISTINGS Main Frame/Landing Gear/Autorotation Assembly Part # Description Quantity Comments/ Additional Contents 980039 Nylon Lock Nut, 3 mm Low Profile 996009 Upper Main Shaft Bearing Block w/BB Complete with ball bearing 996082 Tail Boom Mounting Clamp, 2-piece...

  • Page 86: Swashplate/Ccpm Control System Parts List

    SWASHPLATE/CCPM CONTROL SYSTEM JRP970004 JRP996039 JRP980016 JRP980004 JRP996085 JRP996043 JRP970078 JRP980102 JRP970211 JRP980013 JRP970201 JRP970209 JRP994020 JRP994019 JRP980039 JRP991003 JRP980004 JRP970002 JRP970020 JRP996073 JRP980013 JRP970004 JRP980046 JRP970001 JRP994018 JRP980002 JRP980040 JRP980071 JRP970004 JRP980056 JRP970001 JRP970104 JRP996040 JRP970053 JRP970002 JRP980039 JRP970018 JRP980148 JRP970206 JRP996041...
  • Page 87 VIBE 90 3D MANUAL PARTS LISTINGS Swashplate/CCPM Control System Part # Description Quantity Comments/ Additional Contents JRP970001 Joint Balls w/8 mm Screws JRP970002 Joint Balls w/10 mm Screws JRP970004 Universal Links JRP970018 Mixing Lever Spacer JRP970020 Main Frame Standoff, 32 mm JRP970053 Control Ball Spacer JRP970078 Control Ball Spacer, 2.75 mm...

  • Page 88: Main Rotor Head/Washout Assembly Parts List

    ™ Main Rotor Head/Washout Assembly JRP980004 KSJ15721 JRP970069 JRP994008 JRP980040 JRP970001 JRP980013 JRP996033 JRP960189 JRP980004 JRP996079 JRP996105 JRP970175 JRP960176 JRP9830083 JRP994005 JRP996093 JRP980052 JRP994005 JRP996077 JRP996078 JRP996026 JRP980039 JRP970001 JRP970082 JRP980075 JRP980037 JRP980016 (5mm) JRP980030 JRP970029 JRP970099 JRP970077 JRP996076 JRP981027 JRP980015 JRP970093 JRP970010...
  • Page 89 VIBE 90 3D MANUAL PARTS LISTINGS Main Rotor Head/ Washout Assembly Part # Description Quantity Comments/ Additional Contents 980013 Socket Head Bolt, 3 x 8 mm 980004 Set Screw, 4 x 4 mm KSJ15721 3D Flybar Paddles 994008 Flybar Weights...

  • Page 90: Tail Drive System/Shaft Drive Parts List

    TAIL DRIVE SYSTEM/SHAFT DRIVE PARTS JRP980004 JRP980001 JRP970170 JRP970173 JRP970171 JRP970172 JRP993004 JRP970171 JRP980001 JRP960133 JRP980067 JRP970169 JRP980012 JRP980036 JRP993007 JRP980015 JRP960134 JRP993005 JRP996087 JRP980036 JRP996103 JRP992031 JRP980024 JRP996086 JRP996101 JRP980013 JRP960132 JRP970004 JRP980039 JRP980019 JRP996024 JRP980069 JRP960094 JRP990053 JRP980036 JRP970111 JRP980036 JRP991002...
  • Page 91 VIBE 90 3D MANUAL PARTS LISTINGS Tail Drive System/Shaft Drive Parts Part # Description Quantity Comments/ Additional Contents JRP960056 Tail Pitch Link 2 JRP960092 Bevel Front Pinion Gear (Metal) JRP960094 Tube Drive Joint, Front JRP960111 Bevel Tail Drive Gear (Plastic)

  • Page 92: Tail Rotor Blade Holder/Tail Brace

    TAIL ROTOR BLADE HOLDER/TAIL BRACE JRP976103 JRP980067 JRP960128 JRP970002 JRP980131 JRP980070 JRP981034 JRP981018 JRP960129 JRP980128 JRP980016 JRP981019 JRP970065 JRP970054 JRP980036 JRP980070 JRP996083 JRP980009 JRP960507 JRP980019 JRP993003 JRP994004 JRP980036 JRP980039...
  • Page 93 VIBE 90 3D MANUAL PARTS LISTINGS Tail Brace/ Tail Boom Assembly Part # Description Quantity Comments/ Additional Contents 994004 Tail Brace Connector Complete w/bolt 960047 Tail Brace Tube 980009 Socket Head Bolt, 2.6 x 12 mm 980036 Flat Washer, 3 mm...

  • Page 94: Body Set/Fuel Tank Assembly Parts List

    BODY SET/FUEL TANK ASSEMBLY JRP9920012 JRP980015 JRP996033 JRP980132 JRP980036 JRP960072 JRP970104 JRP970025 Assembly Manual Decal JRP9960292 JRP960336 JRP970106 JRP970214 JRP996010...
  • Page 95 VIBE 90 3D MANUAL PARTS LISTINGS Body Set/ Fuel Tank Assembly Part # Description Quantity Comments/ Additional Contents 9920012 Vibe Body Set 960072 Rubber Body Grommets 980036 Flat Washer, 3 mm 980015 Socket Head Bolt, 3 x 12 mm 980132 CA Stopper Ring, 3.5 mm...
