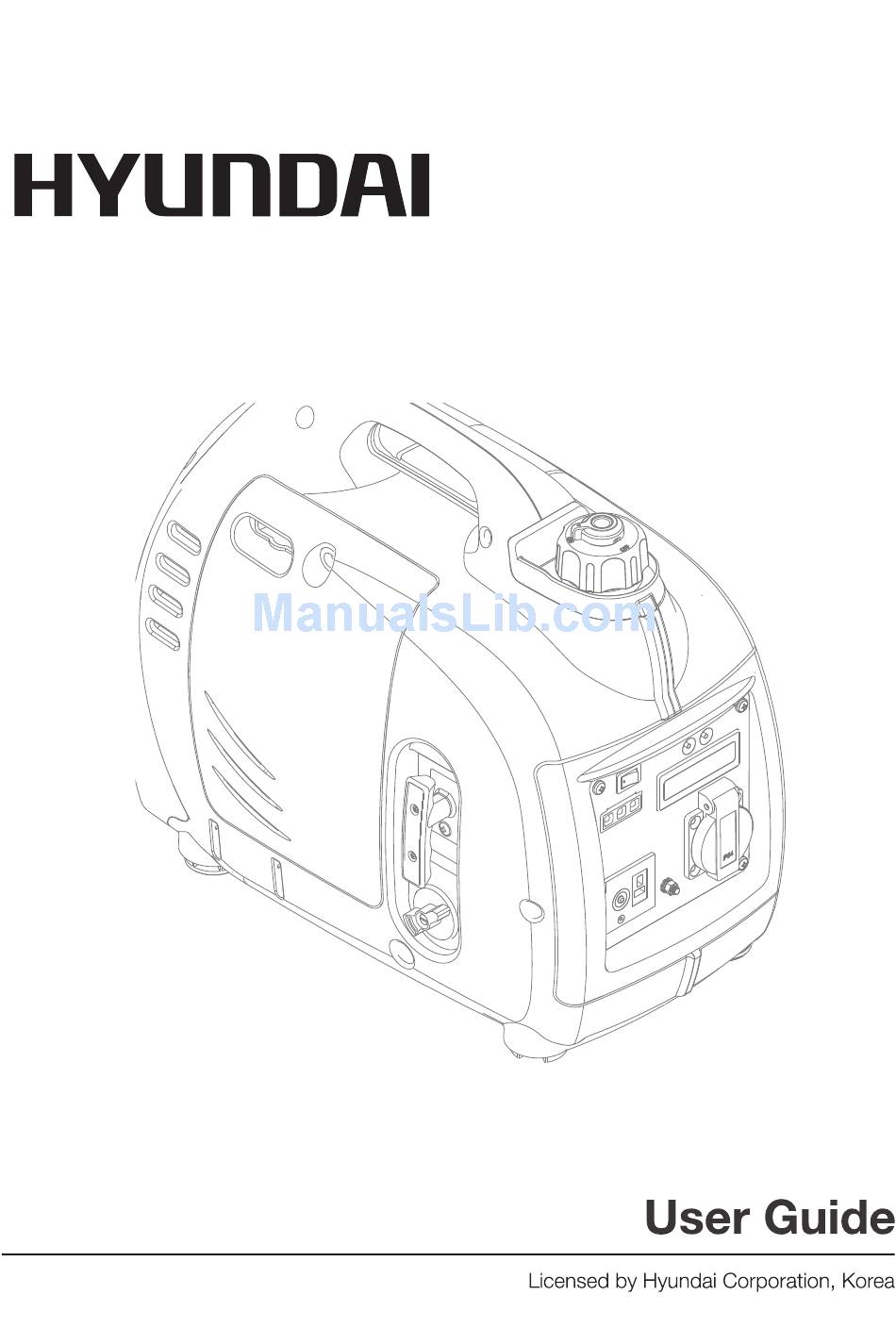

- Page 1 PETROL INVERTER GENERATOR Models HY1000Si - HY2000Si...
-
Page 2: Table Of Contents
CONTENTS Safety Information Safety Label Location Component Identification Control Panel ECON Switch Hour Meter Pre-operation Checks Oil Level Check Fuel Level Check Air Filter Check Starting the Engine 6 .0 Generator Use DC Applications AC Applications Output & Overload Indicator Oil Alert System Stopping the Engine Maintenance... -
Page 3: Safety Information
Safety Information. To protect yourself and your property, please carefully read the following instructions. WARNING ● Read and understand the user manual before using the generator. ● DO NOT use in an enclosed area or a moving vehicle. The engine exhaust gas contains poisonous carbon monoxide. -
Page 4: Safety Label Location
Fire Protection • Only use the generator outdoors Net Weight DO NOT USE inside a home or in an Year of Manufacture unventilated area Serial Number (exhaust fumes contain Licensed by Hyundai Corporation, Korea. carbon monoxide). PAGE 4... -
Page 5: Component Identification
Component Locations. CHOKE LEVER FUEL CAP VENT LEVER FUEL CAP LEFT SIDE MAINTENANCE COVER STARTER GRIP ENGINE SWITCH CONTROL PANEL SPARK PLUG EXHAUST MAINTENANCE COVER PAGE 5... -
Page 6: Control Panel
Control Panel. ECON Switch Oil Alert Indicator Light RED Overload Indicator Light RED Output Indicator Light GREEN DC Circuit Fuse DC Output Socket Ground/Earth Terminal AC Output Socket Hour Meter ECON Switch (Economy Control Switch) "ON" ( When the economy control switch is turned to "ON" ( ) the engine keeps running at idle state automatically when the electrical appliance is disconnected, and will return to the proper speed when the electrical load requires it. -
Page 7: Hour Meter
NOTE When a high load electrical appliance is connected and in order to reduce voltage change, turn the economy control switch to the “OFF”( ) position. This will allow the engine speed to increase before the load is applied In DC operation, turn the economy control switch to the “OFF”( )position. -
Page 8: Pre-Operation Checks
If the level is low, fill to the upper limit of the oil filler neck with the recommended oil. Oil Capacities HY1000Si - 0.25L HY2000Si - 0.40L OIL FILLER... -
Page 9: Oil Level Check
FUEL CAP OPEN UPPER LIMIT MARK Fuel capacities: HY1000Si - 2.2L, HY2000Si 3.8L WARNING Petrol is extremely explosive and flammable. DO NOT smoke or allow naked flames or sources of ignition in or around the fuelling area or in fuel storage areas. -
Page 10: Air Filter Check
Press the latch tab on the top of the air cleaner. c) Remove the air cleaner cover. d) Check the element, clean and replace as necessary. MAINTENANCE COVER COVER SCREW COVER SCREW MAINTENANCE COVER HY1000Si HY2000Si LATCH CLEANER BODY AIR CLEANER AIR CLEANER ELEMENT AIR CLEANER... -
Page 11: Starting The Engine
FUEL CAP VENT LEVER 5.2 Turn the engine switch to the "ON" position. ENGINE SWITCH HY1000Si HY2000Si 5.3 HY1000Si - Move the choke lever to the "START" position. HY2000Si - Pull the choke knob fully out. CHOKE LEVER START CHOKE KNOB... - Page 12 Return the starter grip slowly by hand. DO NOT let the starter grip spring back. 5.5 After starting and warming up the engine, turn the choke lever (HY1000Si) to the "RUN" position. After starting and warming up the engine, push the choke knob (HY2000Si) to the normal position.
-
Page 13: Generator Use
Make sure to ground/earth the generator when the connected appliance is grounded/earthed. DO NOT connect to the buildings electrical system. Back feeding it is both illegal and highly dangerous. GROUND TERMINAL GROUND TERMINAL EARTH MARK EARTH MARK (SYMBOL) (SYMBOL) HY1000Si HY2000Si PAGE 13... -
Page 14: Dc Applications
The AC socket outlet can be used while the DC power is in use. If using both at same time, be sure not to exceed the total power for AC and DC. (HY1000Si AC - 0.9kVA, DC - 5A) (HY2000Si AC - 1.6kVA, DC - 5A). - Page 15 The DC receptacle can be used while the AC power is in use. When DC circuit overload will trip the DC circuit protector, remove load firstly, and then reset the protector after a few minutes. DC CIRCUIT PROTECTOR DC CIRCUIT PROTECTOR HY1000Si HY2000Si PAGE 15...
-
Page 16: Ac Applications
In normal operating conditions, the output indicator light (GREEN) will remain on. If the generator is overloaded (HY1000Si - over 1000w, HY2000Si - 2000w), or the connected appliance is short-circuited, the output indicator light (GREEN) will go out, and overload indicator light (RED) will come on. -
Page 17: Oil Alert System
INDICATOR INDICATOR LIGHT (RED) LIGHT (GREEN) HY1000Si HY2000Si NOTE When you start the engine, it is normal for both the overload indicator light (RED) and output indicator light (GREEN) to be ON simultaneously. The overload indicator light will go OFF after 5 seconds, otherwise contact your dealer. -
Page 18: Stopping The Engine
To stop the engine in an emergency, turn the engine switch to the “OFF” position. 7.1 Switch off the connected electrical appliances and remove their plugs from the AC sockets. PLUG PLUG HY1000Si HY2000Si 7.2 Turn the engine switch to the “OFF” position. ENGINE SWITCH... -
Page 19: Maintenance
WARNING Stop the engine before performing any maintenance. If the engine must run, be sure the area is well ventilated. The exhaust contains poisonous carbon monoxide gas. Only use genuine Hyundai spares to replace worn components. Maintenance Schedule. Regular Service... -
Page 20: Air Cleaner Service
OIL FILLER MAINTENANCE COVER UPPER LEVEL OIL FILLER HOLE HY1000Si Oil Capacity: 0.25L HY2000Si Oil Capacity: 0.40L After oil change, wash your hands with soap. NOTE To conform with environmental requirements, the used oil should be put into a sealed container and then be transported to an amenity recycling centre. - Page 21 8.2.1 Loosen the two screws of the air cleaner maintenance cover, and remove the cover. MAINTENANCE COVER COVER SCREW COVER SCREW MAINTENANCE COVER HY1000Si HY2000Si 8.2.2 Press down the latch tab on the top of the air cleaner, and open the air cleaner cover. LATCH TAB AIR CLEANER BODY AIR CLEANER...
-
Page 22: Spark Plug Service
Check the spark plug gap and clean the carbon deposition at the bottom of the spark plug. 8.3.1 Remove the spark plug maintenance cover. SPARK PLUG MAINTENANCE COVER HY1000Si HY2000Si 8.3.2 Take off the spark plug cap. 8.3.3 Clean the carbon deposition at the bottom of the spark plug. -
Page 23: Spark Arrester Maintenance
Never use a spark plug with an improper heat range. 8.4 Spark Arrester Maintenance. WARNING The spark arrester must be maintained every 100 hour service. 8.4.1 Remove the four/six screws, and remove the exhaust guard. HY1000Si HY2000Si PAGE 23... - Page 24 8.4.2 Once the engine cools down remove the spark arrester from the exhaust. HY1000Si HY2000Si 8.4.3 Remove carbon deposits of the spark arrester using a wire brush. If the spark arrester is worn, replace it. HY1000Si HY2000Si 8.4.4 Refit the spark arrester and exhaust guard.
-
Page 25: Transporting/Storage
Transporting/Storage. Avoid fuel spillages during transportation or temporary storage, both the engine switch and the fuel cap vent lever should be turned to “OFF’ position, and the generator should be turned off. DO NOT move a running generator, turn it off then move to new location. WARNING Transporting the Generator. - Page 26 Turn the engine switch to “ON” position, and loosen the carburetor float bowl drain screw to discharge from inside of carburetor float bowl. SCREW DRIVER HY1000Si HY2000Si c. Take off the spark plug cap, pull the recoil starter grip three or four times, discharge the petrol from the fuel pump and fuel lines.
-
Page 27: Troubleshooting
10.0 Troubleshooting. HY1000Si - Troubleshooting Appliance does not operate： When the engine cannot be started: Is the output indicator light ON? Is the overload indicator Contact an Is there fuel in the tank? Refill the fuel tank light ON? authorised... -
Page 28: Technical Specifications
11.0 Technical Specifications HY1000Si Technical Specifications Specifications Parameters DC Output 12V/5A Fuel Tank Volume HS1200i.1 2.2L Model 4-stroke, overhead valve, Continuous Running Time Type single cylinder, forced-air cooling ≤500g/(kW.h) Fuel Consumption Engine Displacement 53.2cm -20°C ~ 40°C Working Ambient Temperature Bore*Stroke 43.5mm*35.8mm... -
Page 29: Wiring Diagrams
12.0 Wiring Diagrams. HY1000Si HY2000Si PAGE 29... -
Page 30: Appendix
13.0 Appendix. 13.1 EC Declaration of Conformity The generator complies with below the technical requirements: 2006/42/EC Machinery Safety. EN12601:2010 Reciprocating internal combustion engine driven generating sets safety. 2006/95/EC Low Voltage Electrical Equipment. 2004/108/EC Electromagnetic Compatibility. 97/68/EC (with amendment 2010/26/EU) Engine Emission of Pollutants. 2000/14/EC Outdoor Noise Directive. -
Page 31: Environmental Corrections
13.2 Environmental Corrections. The standard condition of rated power output; Altitude; 0 metres 25 ℃ Ambient Temperature Relative humidity; Ambient temperature℃ Altitude (m) 0.98 0.96 0.93 0.90 0.93 0.91 0.89 0.87 0.84 1000 0.87 0.85 0.82 0.80 0.78 2000 0.75 0.73 0.71 0.69... -
Page 32: Noise & Access
P=Pn *(C-0.02) = 1.6*(0.82-0.02) = 1.28kVA 13.3 Noise and Access. Noise emission measure according to ISO 8528-10, EN ISO 3744, European Directive 2000/14/EC with amendment 2005/88/EC Model of Generator Set: HY1000Si HY2000Si Guaranteed Sound Power Level: 90dB(A) 90dB(A) Measurement Uncertainty K: 1.7 dB(A) - Page 33 NOTES PAGE 33...
- Page 34 NOTES PAGE 34...
- Page 35 NOTES PAGE 35...
- Page 36 GENPOWER LTD Isaac Way, Pembroke Dock, Pembrokeshire, UK, SA72 4RW T: +44 (0) 1646687880 F: +44 (0) 1646 686198 sales@genpower.co.uk www.hyudaipowerequipment.co.uk PAGE 36...
Need help?
Do you have a question about the HY1000Si and is the answer not in the manual?
Questions and answers

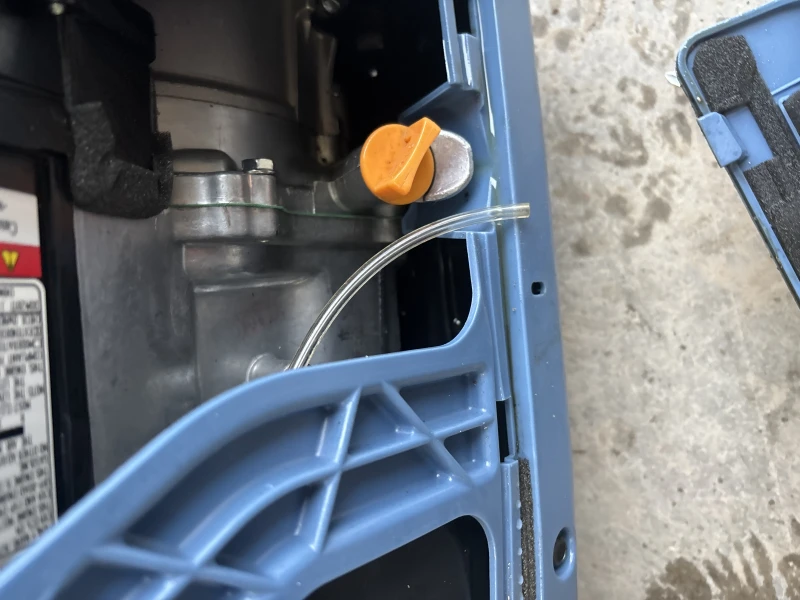

Working with an HY 2000 S inverter. There is a small clear tube in the engine compartment. One end has come loose. Wondering what it attaches to something or if one end should be hanging ffree.
