Summary of Contents for Hyundai HY4000SEi

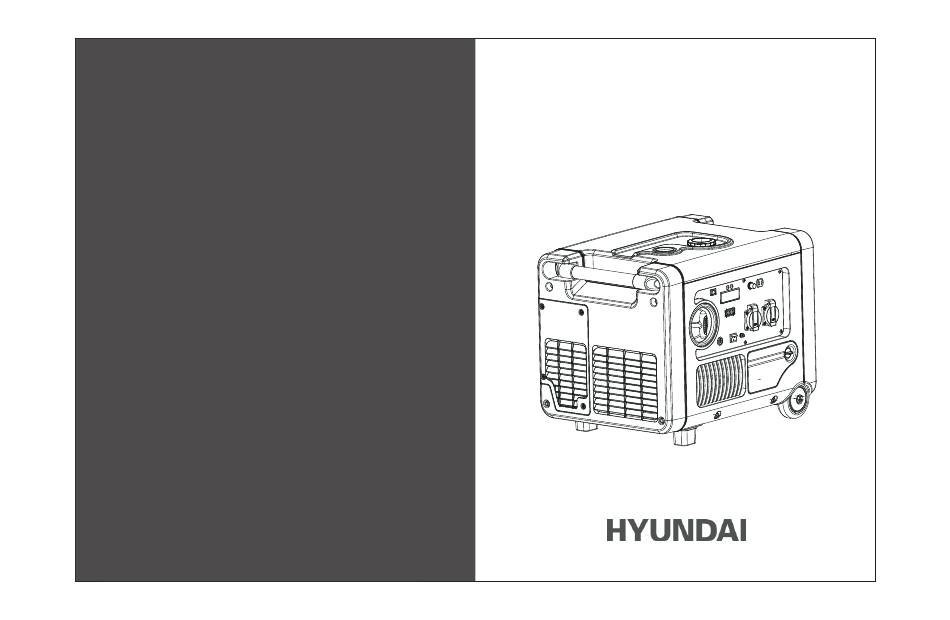

- Page 1 CONVERTER GENERATOR HY4000SEi User’s Manual FOR YOUR SAFETY Read and understand this manual before use. Save this manual for future reference. Licensed by HYUNDAI CORPORATION, KOREA...
- Page 3 INSTRUCTIONS To ensure personal and property safety, please replaced. carefully read the following. Do not operate or store the appliance in wet or humid surroundings or on highly conductive surfaces such as metal coatings or steel constructions. Read this manual carefully- familiarize yourself with the appliance.
- Page 4 Don’t refuel during operation; Allow generator to cool for at least 2 minutes before removing fuel cap. Loosen cap slowly to Don’t refuel while smoking or near naked relieve pressure in tank. flames; Do not overfill gas tank. Gas may expand Don’t spill fuel;...
- Page 5 extension cord. When using extension lines rubber-sheathed exible cable or the equivalent should be used. or mobile distribution networks the total length of lines for a cross section of 1.5 mm The user that he shall conform to regulations of electrical safety applicable to the place where should not exceed 60 m;...
- Page 6 Do not turn on electrical devices until after they Some parts of the internal combustion engine are hot and may cause burns. Do not are connected to the generator. touch hot surfaces. Pay attention to the Turn off all connected electrical devices before warnings on the generating set.
- Page 12 Press the multifunctional button,The generator's multifunctional screen displays the engine's cumula- tive working time, engine revolution, output voltage & power, EFI components diagnosis information.
- Page 16 5. STARTING THE ENGINE For some models, the generator provides with 5.1.1) Turn the engine switch to “ON” position . three types of starting system: recoil start, electric start, remote start. Please operate your generator based on you purchased NOTE Before starting engine, disconnect load with receptacle.
- Page 17 NOTE Turn on engine switch to "ON" position and NOTE wait for 3 to 5 seconds, in order to let fuel ■ If the generator stops and can not restart, pump running 3~5 seconds and set up 300kPa check the oil level firstly. fuel pressure If oil indicator light turns on red, and flicker 5.1.4) Pull the starter grip slowly until it is...
- Page 18 CAUTION For equipping with electrical starting system 5.2.2） Press the Electrical Starting Button to start. of the generator, if the generator does not equip with the battery or the battery wares out, the generator can not be start by any starting mode.
- Page 19 NOTE ■ If the generator stops and can not restart, check the oil level firstly. If the oil alert indicator light (red) is on during the generator running, it need to add oil. Electronic Fuel Injection Modification for High Altitude Operation <<17>>...
- Page 20 6. GENERATOR USE WARNING Be sure to ground the generator when the connected electrical appliance is grounded. Do not connect to the building’s electrical system, in order to avoid the electric shocks and fires. EARTH MARK GROUND TERMINAL <<18>>...
- Page 21 WARNING 6.1) DC Application The DC receptacle, 15-30V under no－load condition, For continuous operation, do not exceed the ● rated out-put power of generator. may be used for charging 12V battery only. Do not make parallel connection with other NOTE ● In DC operation, turn the ECON．...
- Page 22 WARNING The battery can release the explosive gases． ● Keep the battery away from spark/fire. Charge the battery in ventilated condition. Battery electrolyte contains sulfuric acid that ● will cause severe burn of skin and eyes. Therefore it is necessary to wear the protective clothing and mask.
- Page 23 NOTE OUTPUT LIGHT (GREEN) ● While using the AC power, you can use that DC power at the same time. 6.2) AC applications 6.2.1) Start engine and make sure the output indicator light (green) is on. 6.2.2) Confirm all electrical appliances are switched off, and connect the appliance plugs to the PLUG generator receptacles.
- Page 24 6.3) Output and Overload Indicator 6.4) Oil alert system The oil alert system is designed to prevent engine In normal operating, output indicator light damage caused by an insufficient amount of oil (green) will remain on. in the crankcase. Before the oil level in the If the generator is overload (over 3.5kVA), or the crankcase falls below a safe limit, ECU connected appliance is short-circuit, the output...
- Page 25 7. STOPPING THE ENGINE Recoil start To stop the engine in an emergency, turn the engine switch o the position. “OFF” 7.1) Switch off the connected electrical appliances, and pull out their plugs. ENGINE SWITCH 7.2) Turn the engine switch to the “OFF” position. <<23>>...
- Page 26 MAINTENANCE Spark plug Replace Spark arrester ⊙ Valve Clearance Check-adjust The purpose of the maintenance and adjustment Combustion Chamber Clean After every 300 hrs(2) schedule is to keep the generator in the beset Fuel tank& filter Every year(2) Clean operating condition. Fuel line Check Every 2 years ( Replace if necessary)(2)
- Page 27 8.1.3)Place oil collection pan under oil drain plug. 8.1.4)Remove the oil drain plug, and drain oil into the oil collection pan completely. 8.1.5) Reinstall the oil drain plug. DRAIN PLUG Tighten oil drain plug with 25-30 N.m 8.1.6)Refill the recommended oil, and check the oil level.
- Page 28 NOTE COVER SCREW For conforming to the environment requirement, the used oil will be put into a sealed container and then be transported to the service station for recycler. Do not throw it into the trash or pour it on the ground. 8.2) Air Cleaner Service A dirty air cleaner will restrict air flow into the carburetor.Clean and maintain the air cleaner...
- Page 30 8.3.6) Reinstall the spark plug cap 8.3.2) Take off the spark plug with the spark plug spanner. 8.3.7) Reinstall the spark plug maintenance cover. 8.3.3) Visual inspection the spark plug. Change a new one if its insulator cracked or chipped. NOTE Clean it with a wire brush if the spark plug is reused.
- Page 31 NOTE When the engine is running, the battery will ■ be charge by the charging system of generator. The battery shall be charge for storage a long ■ period. For using other charging system, the charging current less than 0.15c amperes (c: battery rated capacity) .
- Page 32 Storing for a long period: <<32>>...
- Page 33 STARTER GRIP <<33>>...
- Page 34 10.TROUBLESHOOTING When the engine can not be started: Is there fuel in the tank? Refill the fuel tank Are the engine switch Turn the engine switch ON Is there enough oil in the Add the recommended oil engine? Clean, readjust gap Is the spark plug in good condition? and dry the spark plug.
- Page 35 Noise level is measured when the ECON. SW is Oil Capacity 0.6L turned to ‘’ ON ‘’( Oil Model SE 15W-30 HY4000SEi shows the guaranteed sound power Model tested by 2000/14/EC. The noise level in “dB/7m” is the arithmetic mean value of sound press level (L ) in...
- Page 36 13. APPENDIX 13.1) Environment Correction NOTE: Relative humidity 60% correction factorC- 0.01； The standard condition of rated power output: Relative humidity 80% correction factorC -0.02； Altitude:0m Relative humidity 90% correction factorC- Ambient temperature:25 C 0.03； Relative humidity 100% correctionfactorC- Relative humidity:30% 0.04；...
- Page 37 This information, however, will enable the user of EN ISO 3744, European Directive 2000/14/EC with the machine to make a better evaluation of the amendment 2005/88/EC hazard and risk. Model of generator set: HY4000SEi Sound Pressure Level: 75dB(A) Guaranteed Sound Power Leve l： 97dB(A) Measurement Uncertainty K: 1.7dB(A)
- Page 38 14. CONSUMER INFORMATION Consumer Service Information Service dealers are trained professionally. They should be able to answer any questions you have. If the dealer does not solve your problems, please discuss them with the manager of the dealer. Most of your problems are solved in this way.
