Summary of Contents for Hyundai HY12000LE
-

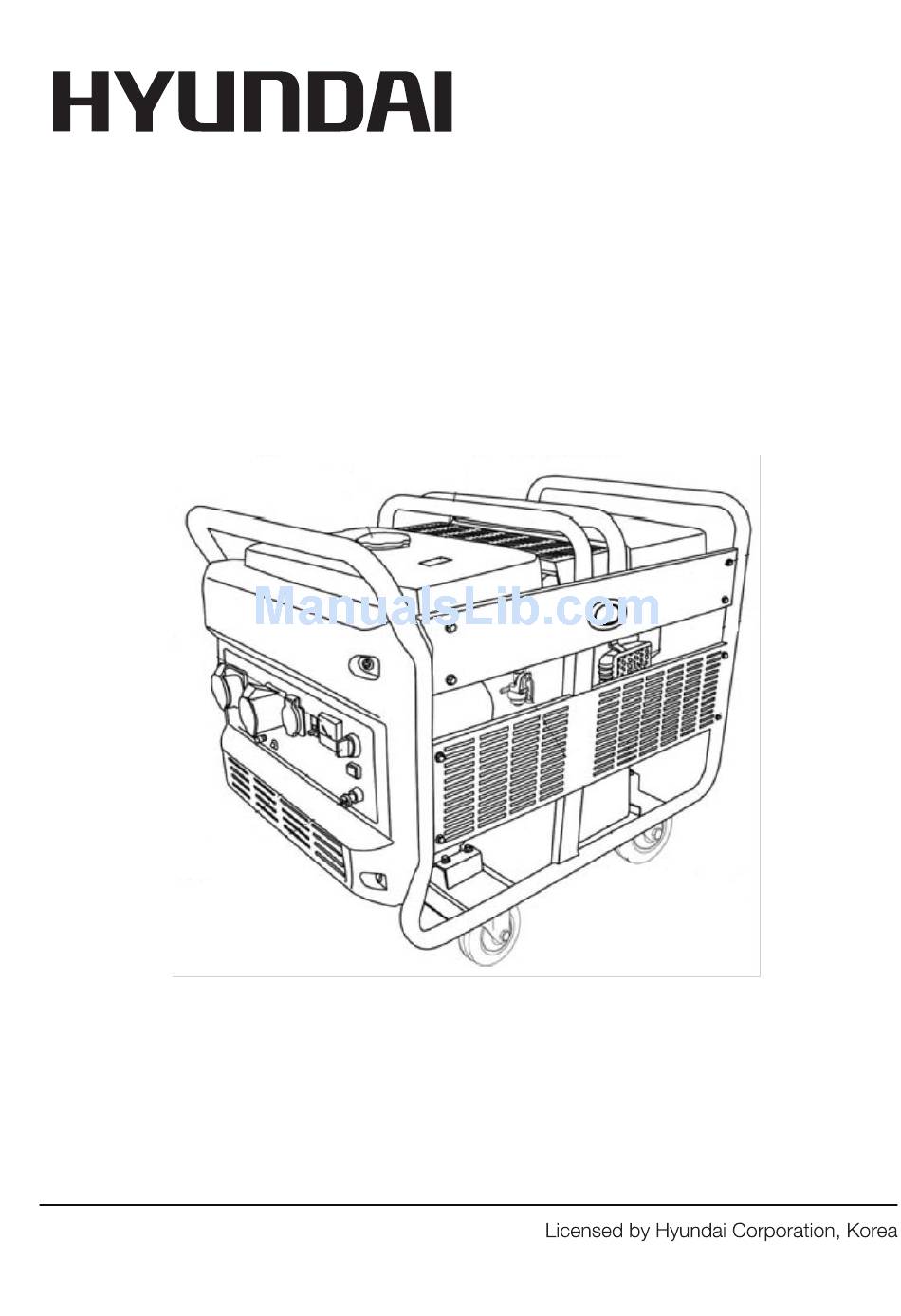

Page 1: User Manual
PETROL GENERATOR Models HY12000LE & HY12000LE-3 User Manual... -
Page 2: Table Of Contents
CONTENTS o’s Page N Section Description 1. SAFETY 3 - 6 2. MACHINE LAYOUT 3. PRE-OPERATION CHECKS 7 – 8 4. OPERATION 8 – 10 5. STARTING THE ENGINE 10 – 11 6. STOPPING THE ENGINE 7. USING THE MACHINE 11 –... -
Page 3: Safety
1. SAFETY. 1.1. The operator of the machine is; 1.1.1. Responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never be left it in a condition which would allow an untrained or unauthorised person/s to operate this machine. - Page 4 1.3.2.2. Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and simply tiredness. That’s why it’s quite common for people to mistake this very dangerous poisoning for something else. 1.3.3. To avoid Carbon monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside a home or garage even if doors and windows are open.
- Page 5 1.4.8.4. Protective clothing. 1.4.8.5. Respiratory protective equipment should be used when in an unventilated area. 1.4.8.6. When defueling always use a propriety fuel retriever. 1.4.8.7. Always carry fuel in the correct and clearly marked container. 1.4.9. Petrol safety. 1.4.9.1. Always fuel and defuel in well-ventilated area. 1.4.9.2.
-
Page 6: Machine Layout
1.4.10.6.1.3. Use fresh running water to wash excess acid, continue this until medical assistance arrives. 1.4.10.6.1.4. Eye contact with acid needs to be washed away. Make sure that you do not wash the acid to another part of the face or body. 1.4.10.6.1.5. -
Page 7: Pre-Operation Checks
3.1.3. Make sure you use the fuel filter screen on the fuel filler neck. 3.1.4. Fuel tank capacity; Model Full HY12000LE, HY12000LE-3 25 Litres DO NOT refill tank while engine is running or HOT. 3.1.5. Close fuel tap before re-fuelling. -
Page 8: Operation
3.2.3. If oil level is below the lower level line, refill with 15W 40 oil to the upper level. Change contaminated oil. 3.2.4. Oil Capacity Model Full HY12000LE, HY12000LE-3 1.5 Litres 4. OPERATION 4.1. Engine switch. 4.1.1. “RUN” indicates the engine in “RUN” position, “OFF” indicates the engine in “OFF”... - Page 9 4.3. Choke button. 4.3.1. The choke button is used to provide mixed gas with rich fuel to the engine when it is in cold start. When the engine runs normally, push it to “open” position. 4.4. AC circuit breaker. 4.4.1. Overload current will make the circuit breaker trip out automatically. 4.4.2.
-
Page 10: Starting The Engine
4.6. Engine protection system. 4.6.1. The engine protecting system is designed to protect engine from damage because of lack of oil in the crank case. 4.6.2. When the engine oil in crank case is lower than the safe level line, the engine protecting system will stop the engine automatically, even if the engine switch is still in “run”... -
Page 11: Stopping The Engine
5.5. After starting the engine, release the “START” switch immediately, the switch will return back to “RUN” position. 5.6. After warming up the engine, push the choke button to “OPEN” position. 6. STOPPING THE ENGINE If an emergency stop is required, turn the engine switch to “OFF” position. - Page 12 7.3. Generator grounding (Earthing). DO NOT use generator without first connecting to ground/earth connection. 7.3.1. The grounding terminal (Earth connection) is a special terminal which is used to connect the generator to the ground properly. 7.4. Alternating Current (AC). Overloading of your generator will shorten its service life. 7.4.1.
-
Page 13: Battery
7.4.4. The following table indicates the parameter of the appliances for your reference Watt Example Type Typical appliances Start Rated Appliances Start Rated Filament lamp Filament lamp Filament lamp 100W 100VA (W) 100VA (W) Heater Fluorescent lamp Fluorescent lamp Fluorescent X1.5 80VA (W) lamp... -
Page 14: Periodic Maintenance
8.1.2. Make sure battery is free from damage and is not leaking. If battery shows signs of damage or leaking – DO NOT continue to use. Instead replace battery as soon as possible. Make sure that all battery acid spills are correctly cleaned up straight away. 8.2. - Page 15 Check for leaks, re- tighten or replace ● gasket as required Exhaust system Check silencer screen, clean and ● replace as required Check Choke Carburettor ● operation Check Cooling fan Cooling system ● for damage Check recoil starter Starting system ●...
- Page 16 9.4. Air filter. DO NOT clean the air filter element with petrol or inflammable solvent, fire or explosion may occur. Clean with soap water or non-flammable solvent. DO NOT run the engine without the air filter elements fitted, it will result in rapid wear of the engine.
- Page 17 9.5.5. Check spark plug. If the electrode has damaged, or isolator has broken, replace the spark plug. The clearance of the spark plug electrode should be 0.70mm - 0.80mm adjust the side electrode as required. 9.5.6. Screw the spark plug by hand carefully to avoid damaging the thread on the head.
-
Page 18: Troubleshooting
10. TROUBLESHOOTING. 10.1. Engine Troubleshooting - N.B. all corrective actions should be carried out by suitably qualified person/s. Condition Possible cause/s Corrective action/s Loose spark - - - - - - - > - - - - - - - > Tighten plug properly Plug Loose... -
Page 19: Storage
10.2. Generator Troubleshooting - N.B. all corrective actions should be carried out by suitably qualified person/s. Condition Possible cause/s Corrective action/s Circuit breaker tripped Reset breaker Poor connections or broken wire/s Indicator light ON, no AC output Check and repair. Broken output socket Faulty circuit breaker Indicator light OFF, no AC output... -
Page 20: Specicifations
12. SPECIFICATIONS HY12000LE / LE-3 Model HY680 Type 2 cylinder, 4 stroke, forced air cooling Bore × stroke mm 78×71 Displacement ml Compressed rate 8.5:1 Max output power 14.7kW/3600rpm kW/(r/min) - Engine Rated power kW/(r/min) - 10kW/3600 Engine 43.5/ 0(2500±200) -
Page 21: Wiring Diagrams
13. WIRING DIAGRAMS 13.1. (N.B. Subject to change without prior notice) Page 21... - Page 22 Page 22...
-
Page 23: Contact Details
14. GENPOWER CONTACT DETAILS 14.1. Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. 14.2. Telephone and Fax contact numbers; Office +44 (0)1646 687880 +44 (0)1646 686198 14.3. Email contacts; After sales service@genpower.co.uk 14.4. Web site; http://genpower.co.uk Page 23... -
Page 24: Declarations Of Conformity
15. DECLARATIONS OF CONFORMITY 15.1. Genpower Ltd confirms that these Hyundai products conform to the following CE Directives; 15.1.1. 2006/42/EC Machinery Directive 15.1.2. 2004/108/EC EMC Directive 15.1.3. 2000/14/EC Noise Emissions Directive 15.1.4. 97/68/EC NRMM Emissions Directive 15.1.5. 2006/95/EC Low Voltage Directive... - Page 25 Page 25...
- Page 26 Page 26...
- Page 27 Page 27...
- Page 28 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
