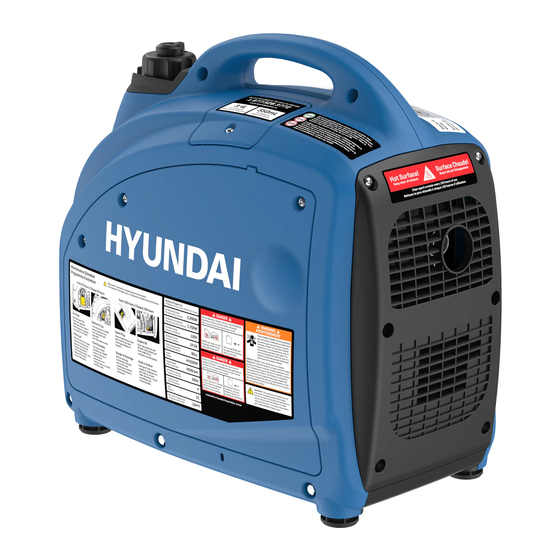

Hyundai HY2200P Owner's Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Portable Generator
  5. HY2200P
  6. Owner's manual

Hyundai HY2200P Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HY2200P
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY2200P and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HY2200P

Summary of Contents for Hyundai HY2200P

  • Page 1 HY2200P Manual...
  • Page 2 HYUNDAI HY2200P The engine exhaust from this product contains chemicals known to cause cancer, birth defects or other reproductive harm. ©2022 Hyundai Power Equipment. All Rights Reserved. Licensed by Hyundai Corporation Holdings, Korea. HY2200P_Manual_EN_2022-09-30...
  • Page 3 HY2200P This product is supported by Midland Power. Contact us directly for assistance and warranty help. Do not return this product to store. You must register online for your warranty to be valid. It only takes a minute, do it now while you still have your purchase receipt.
  • Page 4 HYUNDAI Thanks for choosing the HY2200P! You're excited to get started, we'll keep this brief. READ THIS ENTIRE GUIDE BEFORE USING THIS PRODUCT AND SAVE FOR LATER USE. This user guide contains important instructions including safety, setup, operation, and maintenance that must be followed.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. Safety 1.1 Operator Safety 1.2 AC Safety 1.3 Maintenance Safety 1.4 Running Generators in Parallel 1.5 Other Safety Tips 2. Learn About Your Generator 2.1 Component Identification 2.2 Control Panel 2.3 Control Functions 2.4 Make Sure You Have Everything 3.

  • Page 6: Safety

    HYUNDAI 1. SAFETY DANGER! Using a generator indoors can kill you in minutes. Generator exhaust contains carbon monoxide. This is a poison TOXIC FUMES HAZARD. Running engines give off that you cannot see or smell. carbon monoxide, an odourless poisonous gas that can cause nausea, fainting, or death.

  • Page 7: Ac Safety

    HY2200P   Gasoline is a highly flammable and explosive liquid. Refuel in a well ventilated area with the engine stopped.   Use of gasoline with an ethanol content greater than 10% can damage the engine and fuel system and will void the manufacturer’s warranty.

  • Page 8: Maintenance Safety

    1.4 RUNNING GENERATORS IN PARALLEL Warning!   Only connect in parallel with a Hyundai parallel model with the approved parallel kit (sold separately). Attempting to connect other brands or non- parallel Hyundai models will void your warranty and could cause bodily...

  • Page 9: Other Safety Tips

    HY2200P 1.5 OTHER SAFETY TIPS TOXIC FUMES HAZARD. Running engines give off carbon monoxide, an odourless poisonous gas that can cause nausea, fainting, or death. Do not start engine indoors or in an enclosed area, even if the windows and doors are open.

  • Page 10: Learn About Your Generator

    HYUNDAI 2. LEARN ABOUT YOUR GENERATOR This section will show you how to identify key parts of your generator. Going over the terminology below will make sure we’re on the same page. 2.1 COMPONENT IDENTIFICATION Fuel Cap Vent Lever Fuel Cap...

  • Page 11: Control Panel

    HY2200P 2.2 CONTROL PANEL 1. Fuel Valve 6. USB 2. Power Switch 7. Ground Terminal 3. EcoMode 8. Reset Button 4. AC Breaker 9. 120V 20A 5-20R Outlet 5. Parallel Port...

  • Page 12: Control Functions

    HYUNDAI 2.3 CONTROL FUNCTIONS EcoMode (Economy Control Switch)   Turn EcoMode ON to minimize fuel consumption. In this mode the engine will dynamically meet the demand of the electrical load and will automatically go into an idle state if all loads are disconnected.

  • Page 13: Make Sure You Have Everything

    HY2200P AC Circuit Breaker   While the generator is running, the breakers should be in the ON position.   If the current has exceeded its limits the breaker will automatically pop out to the OFF position. Reduce the electrical load on the generator and push the button back to the ON position.

  • Page 14: Pre-Operation Check

    HYUNDAI 3. PRE-OPERATION CHECK Set the generator on a level surface and the power switch to OFF. 3.1 PREPARE THE AIR CLEANER Clean and oil the air filter before your first use. Check the maintenance schedule for a complete cleaning guide.
  • Page 15 5W-30 0°C °C 0°C °C HY2200P 32°F °F 3.2 ADD ENGINE OIL 32°F °F Oil Transfer Tool Oil Cap & Dipstick Oil Transfer Tool Oil Cap & Dipstick Max Oil Level Max Oil Level Min Oil Level Min Oil Level...
  • Page 16 HYUNDAI Effective Viscosity Range of Engine Oils 15W-50 Synthetic 5W-30 10W-30 5W-30 0°C °C 32°F °F NOTE   Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine.   Use high quality 4-stroke engine oil, certified to meet or exceed API standard SG, SF, SAE ratings with strong detergents.
  • Page 17 Only use OUTSIDE and or garage. EVEN if doors far away from windows, and windows are open. doors, and vents. HY2200P Avoid other generator hazards READ MANUAL BEFORE USE. 3.3 ADD FUEL Warning! TOXIC FUMES HAZARD. Running engines give off...

  • Page 18: Starting The Engine

    HYUNDAI 4. STARTING THE ENGINE DANGER! Using a generator indoors WILL KILL YOU IN MINUTES. TOXIC FUMES HAZARD. Running engines give off carbon monoxide, an odourless poisonous gas Generator exhaust contains high levels of carbon monoxide (CO), that can cause nausea, fainting, or death. Do a poisonous gas you cannot see or smell.

  • Page 19: Starting Your Generator

    HY2200P 4.1 STARTING YOUR GENERATOR Warning! Before using the generator, consult a local electrician and local electrical codes to determine grounding requirements for your intended use. This generator is floating neutral. OPEN CLOSED Rotate the fuel cap vent lever to ON.
  • Page 20 HYUNDAI Carburetor Modification for High Altitude Operation (Above 2000 feet) NOTE   This engine is equipped to run at altitudes below 2,000-ft.   A high-altitude Main Jet is recommended when operated at 2,000 to 7,000-ft above sea level.   At elevations above 7,000-ft the engine may experience decreased performance even with a high-altitude Main Jet.
  • Page 21 HY2200P Carburetor Assembly Fuel Cup Seal Mixing Tube (might remain inside carburetor) Main Jet Fuel Cup Washer Drain Bolt Bolt Seal Bolt Turn off the engine. Close the fuel valve. Place a bowl under the fuel cup to catch any spilled fuel.

  • Page 22: Generator Use

    HYUNDAI 5. GENERATOR USE Warning! Be sure to ground the generator when the connected electrical appliance is grounded. Do not connect to the building’s electrical system. Doing so may result in electrical shocks and fire. To prolong engine life, do not exceed the rated running wattage.

  • Page 23: Ac Applications

    HY2200P 5.2 AC APPLICATIONS Start engine and make sure the output indicator light (READY) is on. Confirm all electrical appliances are switched off, and connect the appliance plugs to the generator receptacle. Turn on the appliances. Turn EcoMode ON. NOTE  ...

  • Page 24: Ac Parallel Operation

    HYUNDAI 5.3 AC PARALLEL OPERATION Warning! Do not start the generators before connecting the parallel cable. If the cable is connected while one generator is running it will be overloaded and the ‘RESET’ button will need to be pressed. If the overload indicator light stays on after resetting the generator stop the engine, wait for 5 minutes then restart it.

  • Page 25: Stopping The Engine

    HY2200P 6. STOPPING THE ENGINE Normal Operation: Switch off the connected electrical appliances, and disconnect from the generator. Turn the power switch to the OFF position. Turn the fuel valve to the CLOSED position. Turn the fuel cap vent lever to the OFF position.

  • Page 26: Maintenance Schedule

    HYUNDAI 7.1 MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life of the generator. Maintain the generator according to the maintenance schedule below. NOTE   Service more frequently when used in dusty areas or adverse conditions.   These items should be serviced by an authorized service center, unless you have the proper tools and are mechanically proficient.

  • Page 27: Emission Control System

    HY2200P 7.2 EMISSION CONTROL SYSTEM Emission Source Exhaust gas contains carbon monoxide, nitrogen oxides (NOx) and hydrocarbons. It is very important to control the emissions of NOx and hydrocarbons as they are a major contributor to air pollution. Carbon monoxide is a poisonous gas. The emission of fuel vapors is a source of pollution as well.
  • Page 28 HYUNDAI Replacement parts and accessories The parts making up the emission control system in your product’s engine have been specifically approved and certified by the regulatory agencies. You can trust that the replacement parts supplied by customer service have been manufactured to the same production standard as the original parts.

  • Page 29: Changing The Oil

    HY2200P 7.3 CHANGING THE OIL Warning! Used motor oil can cause skin irritations if left in long-terM contact with skin. Thoroughly wash off used oil as soon as possible with soap and water. Do not dispose of used oil in drains or on soil. Local service shops provide environmentally-friendly disposal methods.
  • Page 30 Synthetic 5W-30 HYUNDAI 10W-30 NOTE 5W-30   Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. 0°C °C   Use high quality 4-stroke engine oil, certified to meet or exceed API 32°F...

  • Page 31: Cleaning The Air-Filter

    HY2200P 7.4 CLEANING THE AIR-FILTER Warning! Using gasoline or other flammable solvents can cause a fire or explosion. Do not operate this product without an air filter. A dirty air filter will restrict air flow into the carburetor. Clean and maintain the air filter regularly, especially in dusty areas.

  • Page 32: Spark Plug Service

    HYUNDAI 7.5 SPARK PLUG SERVICE NOTE   Do not rinse spark plug in water. Follow guidelines and be careful not to overtighten the spark plug.   The spark plug must be securely tightened or it could cause the spark plug to heat up, enough to damage the engine.

  • Page 33: Spark Arrester Maintenance

    HY2200P 7.6 SPARK ARRESTER MAINTENANCE •• •••• •• •• •• •• •••• •• •• •• •• •• •• •• •••• •• •• •• •• •• •• •• Loosen 6 screws and remove the muffler guard. •••• •• •• •• ••...

  • Page 34: Transportation & Storage

    HYUNDAI 8. TRANSPORTATION & STORAGE Draining the Fuel Tank Turn OFF the engine. Remove the fuel cap and the debris screen underneath the fuel cap. Empty the fuel tank using a siphon and an approved gasoline container. Next rotate the fuel cap vent to ON, turn the fuel valve to OPEN, and loosen the carburetor drain bolt to discharge all gasoline from inside of the carburetor.
  • Page 35 HY2200P Storage Gasoline can oxidize in as little as 30 days, causing gum and varnish to build up in fuel system components. Keep fuel fresh and use a quality fuel stabilizer. NOTE   Ensure that the storage area is free of excess humidity and dust and away from heat and ignition sources.

  • Page 36: Troubleshooting

    HYUNDAI 9. TROUBLESHOOTING If appliances do not operate: Is the output indicator light ON? Contact an authorized Is the overload indicator light ON? dealer Check the electrical Contact an authorized appliance for any fault dealer Stop the engine and then replace...
  • Page 37 HY2200P If the engine does not start: Is there fuel in the tank? Refill the fuel tank. Turn the fuel valve to OPEN. Is the fuel valve OPEN? Turn the power switch to RUN. Is the power switch in RUN? Is there enough oil in the engine? Add the recommended oil.

  • Page 38: Technical Specifications

    Full transistor Start System Recoil starter Fuel Type Unleaded Gasoline Oil Capacity 0.35L (12 fl. Oz) Oil Model SAE 10W-30 Model Name HY2200P Rated Frequency 60Hz Rated Voltage 120V Rated Current 14.2A Rated Output Power 1700W Max. Output Power 2200W Fuel Tank Volume 3.4L / 0.9 Gal...

  • Page 39: Wiring Diagram

    HY2200P 11. WIRING DIAGRAM...

  • Page 40: Appendix

    HYUNDAI 12. APPENDIX The standard condition of rated power output: Altitude: 0m Ambient temperature: 25°C Relative humidity: 30% Factor of Environment Correction: Altitude (m) Ambient Temperature°C 0.98 0.96 0.93 0.90 0.93 0.91 0.89 0.87 0.84 1000 0.87 0.85 0.82 0.80 0.78...

  • Page 41: Limited Warranty

    HY2200P 13. LIMITED WARRANTY This product is distributed by: Midland Power Inc. 376 Magnetic Drive, Toronto, ON M3J 2C4, Canada Warranty Beginning at the time of retail purchase and for the duration of the warranty period Midland Power Inc. (Midland) warrants that Equipment manufactured by it is warranted to be free from defects in material and workmanship.
  • Page 42 HYUNDAI including oils, adhesives, additives, fuel, filters, brushes, belts, lubricants, spark plugs, gaskets, seals, fasteners, wires, tubes, pipes, fittings, wheels, batteries, and other expendables susceptible to natural wear; g. Any accessory or attachment. Any battery supplied with this Equipment is considered a consumable item and is excluded from this warranty.
  • Page 43 HY2200P Emission Control System Warranty Parts: This list applies to parts supplied by Midland Power Inc. and does not cover parts supplied by the equipment manufacturer. Please see the original equipment manufacturer’s emissions warranty for non-Midland Power Inc. parts. Consumable parts are covered up to a maximum of 30 days.
  • Page 44 Enjoy! Be sure to check www.hyundaipower.ca for updates regarding your product.
  • Page 45 Customer Service Online: www.hyundaipower.ca E-mail: support@midlandpowerinc.com Toll Free: 1-877-528-3772...
  • Page 46 For Inquiries, Please Contact: Midland Power Inc. 376 Magnetic Drive, Toronto, ON Canada M3J 2C4 1-877-528-3772 support@hyundaipower.ca www.hyundaipower.ca Imported / Distributed by Midland Power Inc., Canada Licensed by Hyundai Corporation Holdings, Korea...
