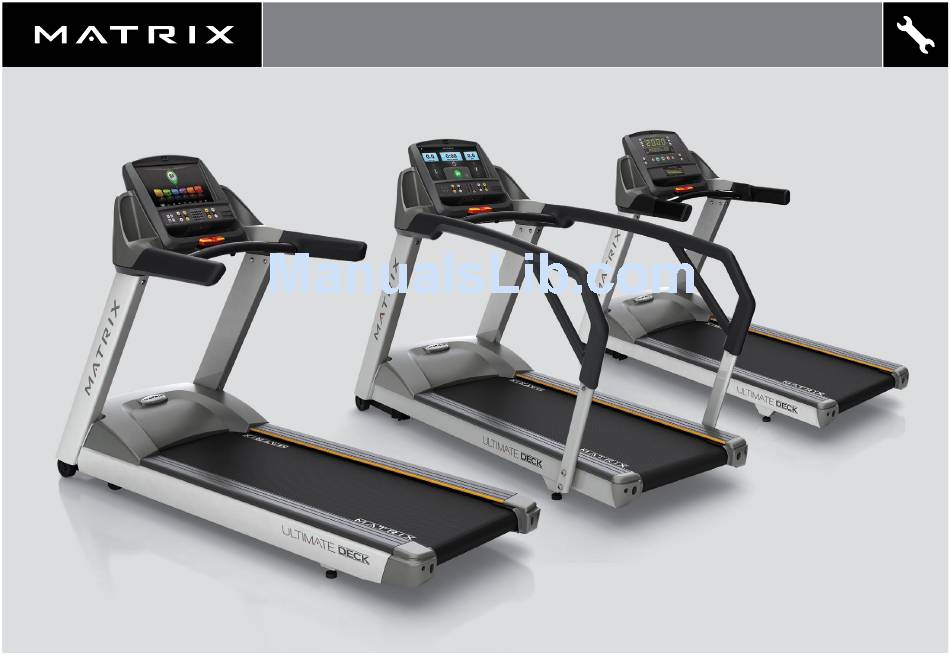

  • Page 1 T3xe T3xh T1xe...

  • Page 2: Table Of Contents

    IMPORTANT PRECAUTIONS ASSEMBLY BEFORE YOU BEGIN MAINTENANCE PRODUCT SPECIFICATIONS...

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS • When using a treadmill, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all warnings and precautions. •...

  • Page 4: Power Requirements

    ‘Manager Mode’ or ‘Engineering Mode.’ 110 V UNITS All Matrix 5x, 7xe and 7xi 110 V treadmills require the use of a 100-125 V, 60 Hz and a 20 A “Dedicated Circuit”, with a ADD-ON DIGITAL TV (T1X AND T3X) non-looped (isolated) neutral/ground for power.

  • Page 5: Assembly

    WARNING! DANGER! • Connect this exercise product to a properly grounded outlet only. Improper connection of the equipment- grounding conductor can result in a risk • Never operate product with a damaged cord or plug even if it is working properly. of electric shock.
  • Page 6 Pre-Installed Hardware Blue Hardware Bag Remove the motor cover and set aside. The motor cover need Description Description to be removed to gain access to the motor compartment Bolt Bolt so that the wire harness connections can occur. Flat Washer MODELS MODELS T3x shown...
  • Page 7 Yellow / White Hardware Bags Black Hardware Bag Pull the HR wires through handlebars using wire Be sure to route the console cables down the Description Description pull. Pull mast wire through handlebar. console mast and connect the contact HR Bolt Bolt wires.
  • Page 8 White Hardware Bag Blue Hardware Bag Description Description Bolt Bolt Flat Washer Flat Washer Bolt Bolt T3xh T3xh...
  • Page 9 Black Hardware Bag Pre-Installed Hardware Be sure to route the console cables down the console mast Description Description and connect the contact HR wires. Route wires through Bolt Bolt flexible cable housing (Z01 & Z20). Make all appropriate wire connections within the motor compartment. T3xh MODELS ASSEMBLY COMPLETE!

  • Page 10: Before You Begin

    BEFORE YOU BEGIN LOCATION OF THE TREADMILL Place the equipment on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate the equipment in an area with cool temperatures and low humidity. Please leave a clear zone behind the treadmill that is at least the width of the treadmill and at least 79”...
  • Page 11 TENSIONING THE RUNNING BELT After placing the treadmill in the position it will be used, the belt must be checked for proper tension and centering. The belt might need to be adjusted after the first two hours of use. Temperature, humidity, and use cause the belt to stretch at different rates. If the belt starts to slip when a user is on it, be sure to follow the directions below.

  • Page 12: Proper Usage

    CAUTION! USING THE HEART RATE FUNCTION RISK OF INJURY TO PERSONS The heart rate function on this product is not a medical device. While heart rate grips While you are preparing to use the treadmill, do not stand on the belt. Place can provide a relative estimation of your actual heart rate, they should not be relied your feet on the side rails before starting the treadmill.

  • Page 13: Maintenance

    Make sure the power cord is not underneath the unit or in any other area where it can become pinched or cut during DAILY or repair of any kind is qualified to do so. MATRIX dealers will provide service and maintenance training at our corporate facility upon request. storage or use.

  • Page 14: Product Specifications

    Electrical Requirements 20 A dedicated circuit required-non-looped-grounded * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs.
  • Page 16 T7xi / T7xe T5x Frame Part # XXXXXXXXXX © 2015 Johnson Health Tech Rev 1.0...
