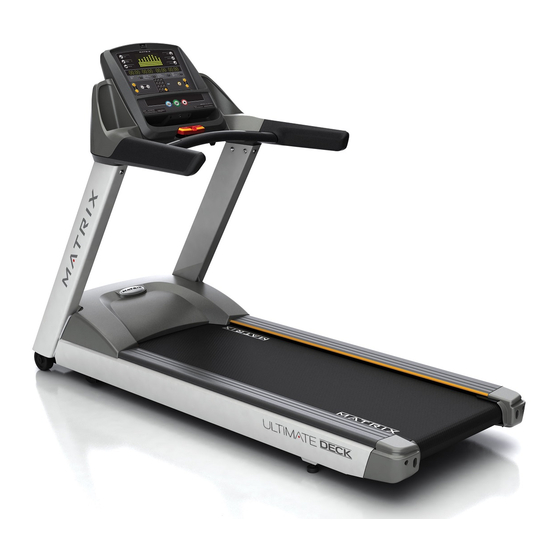

Matrix T3X Error Code List
Lcd console board w/ meeex lcb
Hide thumbs
Also See for T3X:
- Owner's manual (12 pages) ,
- Manual (124 pages) ,
- Console manual (84 pages)
Table of Contents
Advertisement
Quick Links
Table of Contents
Notes:
If there are any safety concernes please call the Matrix Fitness Systems Service Department
at 866-693-4863 before performing any service.
Please make sure to take any saftey percautions before performing any service.
Unplug any electrical power cords before touching any electrical components.
Use common sense before performing any electrical service.
Do not touch any component that is "hot" or looks to be "hot".
T3x Error Codes LCD Console Board W / MEEEX LCB
1000324 Rev 1 8/1/05
T3X Error Codes
LCD Console Board W/ MEEEX LCB
Page #
2
2
2
2-3
2
3
4-6
5
6
7-8
8
8
9-13
10
11
12
13
1
